Cisco CBS220-48FP-4X-NA Business Ethernet Switch - 48 Port Gigabit PoE+ - 4x SFP+ Uplinks - 740W PoE Budget - Layer 2 Managed
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This switch supports both twisted pair and optical fiber media, accommodating 10/100/1000Base-T copper connections on its 48 PoE+ ports and 10GBase-X fiber connections through its four SFP+ expansion slots. The modular design allows for flexible uplink configuration, enabling network architects to tailor connectivity for backbone aggregation or long-distance fiber runs.
Power efficiency is maintained with a typical consumption of 65.70W, while the integrated power supply ensures stable voltage delivery to all connected PoE devices. The switch operates at Layer 2 of the OSI model, providing essential switching functions including VLAN support, Quality of Service (QoS), and security features for segmented network traffic.
Relevant factors for this section include Total Number of Network Ports, Uplink Port, Modular, Media Type Supported. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
The combination of high port count, substantial PoE budget, and 10G uplink capability makes this switch particularly valuable for environments where network growth and device density are primary concerns. Managed Layer 2 features give administrators control over traffic flow, security policies, and network segmentation.
High-Density PoE Deployment
With 48 PoE+ ports and a 740W budget, this switch can simultaneously power and connect dozens of PoE devices, reducing the need for separate power injectors and simplifying infrastructure.
- Eliminates local power adapters
- Centralized power management
- Supports PoE standards for compatibility
Scalable Uplink Architecture
Four SFP+ slots provide 10 Gigabit Ethernet uplink capacity, allowing for high-speed connections to core switches, servers, or other network segments without bottlenecking the 48 access ports.
- Future-proof fiber connectivity
- Flexible backbone options
- Reduces congestion at aggregation points
Deployment / Use Cases
The Cisco CBS220-48FP-4X serves effectively in retail environments for connecting point-of-sale systems, digital signage, and surveillance cameras, all powered through PoE. Its rack-mountable design and manageable feature set also make it appropriate for small data center edge deployments or network closet installations where space optimization and remote management are important.
For growing businesses, the switch provides a foundation that can expand with additional PoE devices and higher-speed uplinks as network demands increase, protecting infrastructure investments over time.
Medium Business Office Networks
Ideal for office environments requiring reliable wired connectivity for workstations, IP phones, and wireless access points, with the PoE budget to support modern collaboration tools and security systems.
Education & Campus Deployments
Well-suited for classroom buildings or campus networks where multiple devices need both data and power, and where uplink capacity ensures smooth connectivity between floors or buildings.
Physical Profile

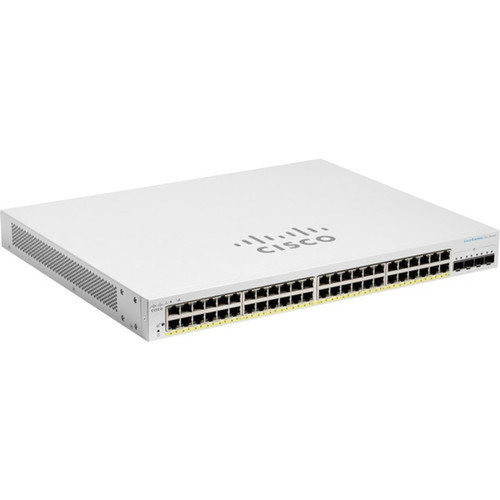

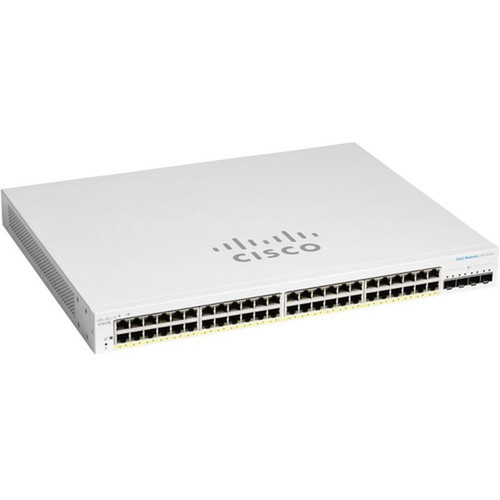

The switch features a compact 1U rack-mountable form factor measuring 1.73 inches in height, 17.32 inches in width, and 13.78 inches in depth. This standard 19-inch rack width ensures compatibility with common server racks and network cabinets. At approximately 12.46 pounds, the switch maintains a manageable weight for installation while providing robust construction for continuous operation.

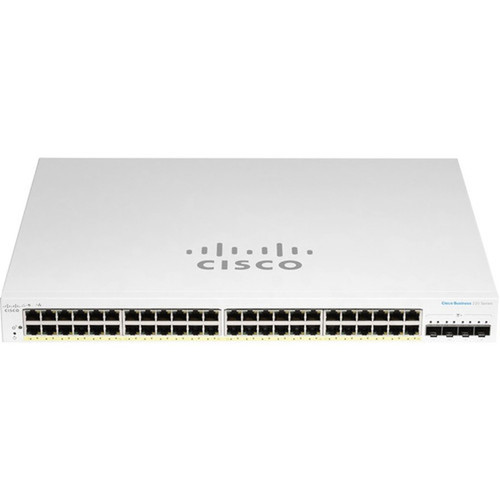

Front-panel port layout offers clear visibility of connection status, and the included mounting kit facilitates secure installation in standard rack environments. The physical design supports proper airflow for thermal management during sustained operation with full PoE load.
- Width
- 17.32" (440 mm)
- Depth
- 13.78" (350 mm)
- Height
- 1.73" (44 mm)
- Weight
- 12.46 lb (5650 g)
What's in the Box
The package includes all essential components for immediate deployment and operation.
Package contents include Business CBS220-48FP-4X Ethernet Switch Power Cord Mounting Kit Quick Start Guide, Business CBS220-48FP-4X Ethernet Switch. These included items support setup, installation, and immediate deployment without needing to source the core bundled accessories separately.
Highlights
- 48 Gigabit Ethernet PoE+ ports for high-density device connectivity
- 740W total PoE budget to power numerous PoE devices simultaneously
- Four SFP+ uplink slots for 10 Gigabit Ethernet fiber or copper expansion
- Layer 2 managed switching with VLAN, QoS, and security features
- Rack-mountable 1U form factor for professional installation
- Supports both twisted pair and optical fiber media types
- Built-in power supply with 65.70W typical consumption
- Modular design for flexible uplink configuration
- Includes mounting kit and power cord for immediate deployment
- 3-year limited warranty for reliable long-term operation
Specifications
| Specifications | |
|---|---|
| Manufacturer | Cisco Systems, Inc |
| Manufacturer Part Number | CBS220-48FP-4X-NA |
| Brand Name | Cisco |
| Product Line | Business |
| Product Series | 220 |
| Product Model | CBS220-48FP-4X |
| Product Name | Business CBS220-48FP-4X Ethernet Switch |
| Product Type | Ethernet Switch |
| Interfaces/Ports | |
| Total Number of Network Ports | 48 |
| Uplink Port | Yes |
| Modular | Yes |
| Port/Expansion Slot Details | 48 x Gigabit Ethernet PoE+,4 x 10 Gigabit Ethernet Expansion Slot |
| Media & Performance | |
| Media Type Supported | Optical Fiber,Twisted Pair |
| Ethernet Technology | Gigabit Ethernet,10 Gigabit Ethernet |
| Network Technology | 10/100/1000Base-T,10GBase-X |
| I/O Expansions | |
| Total Number of Expansion Slots | 4.0 |
| Expansion Slot Type | SFP+ |
| Number of SFP+ Slots | 4 |
| Network & Communication | |
| Layer Supported | 2 |
| Management & Protocols | |
| Manageable | Yes |
| Power Description | |
| PoE (RJ-45) Port | Yes |
| PoE Budget | 740 W |
| Power Source | Power Supply |
| Power Consumption | 65.70 W |
| Physical Characteristics | |
| Form Factor | Rack-mountable |
| Height | 1.73" (44 mm) |
| Width | 17.32" (440 mm) |
| Depth | 13.78" (350 mm) |
| Weight (Approximate) | 12.46 lb (5650 g) |
| Miscellaneous | |
| Package Contents | Business CBS220-48FP-4X Ethernet Switch Power Cord Mounting Kit Quick Start Guide |
| Environmentally Friendly | Yes |
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE) |
| Warranty | |
| Limited Warranty | 3 Year |
FAQ
How many devices can this switch power with PoE?
The switch provides a total PoE budget of 740W across its 48 PoE+ ports. The actual number of devices depends on their individual power requirements, but this substantial budget can typically support dozens of PoE devices such as IP phones, wireless access points, and security cameras simultaneously without requiring additional power sources.
What types of uplink connections does this switch support?
The switch includes four SFP+ expansion slots that support 10 Gigabit Ethernet connections. These slots can accommodate SFP+ transceivers for either fiber optic or copper uplinks, providing flexibility for connecting to core switches, servers, or other network segments at high speeds.
Is this switch manageable, and what features does it offer?
Yes, this is a fully manageable Layer 2 switch. It supports essential management features including VLAN configuration for network segmentation, Quality of Service (QoS) for traffic prioritization, port security, and monitoring capabilities. These features provide network administrators with control over traffic flow and security policies.
What is the physical size of this switch for rack installation?
The switch has a standard 1U rack-mountable form factor with dimensions of 1.73 inches in height, 17.32 inches in width, and 13.78 inches in depth. This compact design fits in standard 19-inch server racks, and the included mounting kit facilitates secure installation in network cabinets or server rooms.
What networking standards does this switch support?
The switch supports 10/100/1000Base-T for copper connections on its 48 PoE+ ports and 10GBase-X for high-speed connections through its SFP+ uplink slots. It is compatible with both twisted pair and optical fiber media, providing flexibility for various network cabling infrastructures.
What comes in the box with this switch?
The package includes the Business CBS220-48FP-4X Ethernet Switch itself, a power cord for immediate operation, a mounting kit for rack installation, and a quick start guide to assist with initial setup and configuration. All essential components are provided for deployment without requiring additional purchases.
