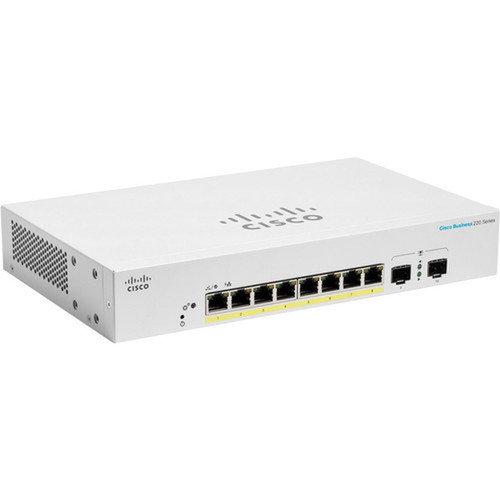

Cisco CBS220-8P-E-2G-NA Business 8-Port Gigabit PoE+ Managed Switch - 65W Budget - 2 SFP Uplinks - Layer 2 - Rack-Mountable
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This switch operates at Layer 2 of the OSI model, supporting advanced networking features including IGMP snooping for efficient multicast traffic management, port mirroring for network monitoring and troubleshooting, and spanning tree protocols (IEEE 802.1D/w/s) for network loop prevention and rapid convergence. The switch supports a broad range of Ethernet standards from 10/100/1000Base-T to 1000Base-X, ensuring compatibility with existing network infrastructure.
Power efficiency is maintained with an 8.20-watt typical power consumption, and the included external power adapter simplifies installation. The switch's modular design through SFP slots allows network administrators to choose appropriate transceivers for specific distance and media requirements, whether using cost-effective twisted pair cabling for up to 100 meters or optical fiber for longer runs.
Relevant factors for this section include Total Number of Network Ports, Network (RJ-45), Uplink Port, Media Type Supported. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
The CBS220-8P-E-2G-NA combines essential PoE capabilities with robust management in a compact form factor, making it ideal for deployments where space and power efficiency matter. The 65-watt PoE budget is sufficient to power multiple devices simultaneously, eliminating the need for separate power injectors and reducing cable clutter.
Simplified PoE Deployment
Deliver both data and power over standard Ethernet cables to connected devices, streamlining installation and reducing infrastructure costs for VoIP, wireless, and surveillance systems.
- Supports IEEE 802.3af and 802.3at standards
- 65W total budget for flexible device powering
- Eliminates need for additional power outlets
Enhanced Network Control
Gain visibility and control over network traffic with managed features that improve security, performance, and reliability in business environments.
- Layer 2 switching with VLAN support
- Quality of Service (QoS) for traffic prioritization
- Port-based access control and monitoring
Future-Ready Expansion
Two SFP slots provide uplink flexibility for connecting to fiber backbones or extending network reach beyond copper limitations, supporting network growth and technology upgrades.
- Compatible with SFP and SFP+ transceivers
- Supports both fiber and copper uplinks
- Enables high-speed connections to core switches
Deployment / Use Cases
This switch is particularly well-suited for small office networks, retail environments, and remote branch locations where a combination of wired connectivity and PoE power is required. Its manageable nature allows IT administrators to implement policies, monitor performance, and troubleshoot issues remotely, reducing on-site maintenance needs.
Common deployment scenarios include powering a mix of IP phones, wireless access points, and IP cameras in a unified network, with the SFP uplinks used to connect back to a central server room or internet gateway. The switch's compact size and low power draw make it appropriate for wall-mounted network enclosures or small racks in space-constrained locations.
Small Business Office
Connect computers, printers, and phones while powering VoIP handsets and Wi-Fi access points from a single switch, simplifying network infrastructure in offices with 10-20 users.
Retail or Hospitality
Support point-of-sale systems, digital signage, and security cameras with PoE, using the managed features to segment traffic and prioritize critical business applications.
Physical Profile
The switch features a standard 1U rack-mountable design with dimensions of 1.73 inches in height, 10.98 inches in width, and 6.69 inches in depth (44 x 279 x 170 mm). This compact footprint fits easily into most network racks or can be placed on a shelf for temporary deployments. The included mounting kit facilitates secure installation, while the 2.60-pound weight (1180 g) makes handling and installation straightforward. The front-panel design provides clear status indicators for each port and system health, with ventilation ensuring adequate cooling during operation.
- Width
- 10.98" (279 mm)
- Depth
- 6.69" (170 mm)
- Height
- 1.73" (44 mm)
- Weight
- 2.60 lb (1180 g)
What's in the Box
The package includes everything needed for immediate deployment and installation.
Highlights
- 8 Gigabit Ethernet ports with PoE+ support (IEEE 802.3at)
- 65-watt total PoE budget for powering multiple devices
- 2 SFP (mini-GBIC) slots for fiber or copper uplink expansion
- Layer 2 managed switching with advanced features
- Rack-mountable 1U form factor for professional installation
- Supports comprehensive networking standards including IEEE 802.1D/w/s
- Low 8.20-watt power consumption for energy efficiency
- Includes mounting hardware and power adapter
- 3-year limited warranty for peace of mind
- Environmentally compliant with WEEE directives
Specifications
| Specifications | |
|---|---|
| Manufacturer | Cisco Systems, Inc |
| Manufacturer Part Number | CBS220-8P-E-2G-NA |
| Brand Name | Cisco |
| Product Line | Business |
| Product Series | 220 |
| Product Model | CBS220-8P-E-2G |
| Product Name | Business CBS220-8P-E-2G Ethernet Switch |
| Product Type | Ethernet Switch |
| Interfaces/Ports | |
| Total Number of Network Ports | 8 |
| Network (RJ-45) | Yes |
| Uplink Port | Yes |
| Modular | Yes |
| Port/Expansion Slot Details | 8 x Gigabit Ethernet PoE,2 x Gigabit Ethernet Expansion Slot |
| Media & Performance | |
| Media Type Supported | Optical Fiber,Twisted Pair |
| Ethernet Technology | Gigabit Ethernet |
| Network Technology | 10/100/1000Base-T,1000Base-X |
| I/O Expansions | |
| Total Number of Expansion Slots | 2.0 |
| Expansion Slot Type | SFP (mini-GBIC) |
| Number of SFP Slots | 2 |
| Network & Communication | |
| Layer Supported | 2 |
| Networking Standards | IEEE 802.3,IEEE 802.3u,IEEE 802.3ab,IEEE 802.3ad,IEEE 802.3z,IEEE 802.3x,IEEE 802.1D,IEEE 802.1w,IEEE 802.1s,IEEE 802.3af,IEEE 802.3at |
| Management & Protocols | |
| Manageable | Yes |
| Power Description | |
| PoE (RJ-45) Port | Yes |
| PoE Budget | 65 W |
| Power Source | Power Adapter |
| Power Consumption | 8.20 W |
| Physical Characteristics | |
| Form Factor | Rack-mountable |
| Height | 1.73" (44 mm) |
| Width | 10.98" (279 mm) |
| Depth | 6.69" (170 mm) |
| Weight (Approximate) | 2.60 lb (1180 g) |
| Miscellaneous | |
| Package Contents | Business CBS220-8P-E-2G Ethernet Switch Adaptor Mounting Kit Quick Start Guide |
| Environmentally Friendly | Yes |
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE) |
| Country of Origin | China |
| Warranty | |
| Limited Warranty | 3 Year |
FAQ
How many devices can this switch power with PoE?
The switch provides 65 watts of total PoE budget across all eight ports. This allows it to power multiple PoE devices simultaneously, such as VoIP phones, wireless access points, or security cameras. The exact number depends on each device's power requirements, but typically 4-8 standard PoE devices can be supported within the 65-watt budget.
What types of SFP modules are compatible with this switch?
The switch supports standard SFP (mini-GBIC) transceivers for both fiber optic and copper connections. Compatible modules include 1000BASE-SX for multimode fiber, 1000BASE-LX for single-mode fiber, and 1000BASE-T for copper Ethernet. Always verify compatibility with specific transceiver models, as third-party modules may require compatibility testing.
Is this switch manageable, and what features does it offer?
Yes, this is a fully manageable Layer 2 switch. Management features include VLAN support for network segmentation, Quality of Service (QoS) for traffic prioritization, port mirroring for monitoring, IGMP snooping for efficient multicast handling, and spanning tree protocols for network redundancy. These features provide control over network performance, security, and reliability.
Can this switch be rack-mounted?
Yes, the switch is designed for standard 19-inch rack mounting with a 1U form factor. The package includes a mounting kit with the necessary brackets and hardware for secure installation in network racks or cabinets. The compact dimensions (1.73" H x 10.98" W x 6.69" D) ensure it fits efficiently in space-constrained environments.
What is the warranty period for this Cisco switch?
This Cisco Business switch comes with a 3-year limited warranty from the manufacturer. The warranty covers defects in materials and workmanship under normal use. For complete warranty terms and conditions, refer to the documentation included with the product or contact Cisco support directly.
What networking standards does this switch support?
The switch supports a comprehensive set of IEEE standards including 802.3 (Ethernet), 802.3u (Fast Ethernet), 802.3ab (Gigabit Ethernet over copper), 802.3z (Gigabit Ethernet over fiber), 802.3af/at (PoE), 802.1D (Spanning Tree), 802.1w (Rapid Spanning Tree), and 802.1s (Multiple Spanning Tree). This ensures compatibility with existing network infrastructure and devices.
