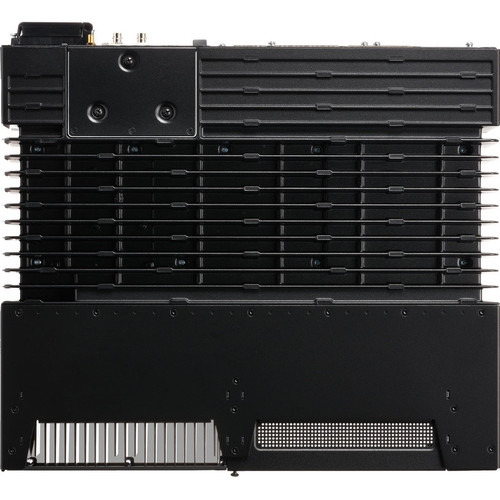

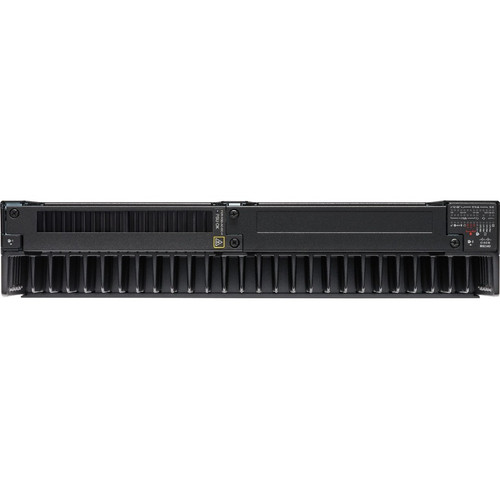

Cisco IR8340-K9 Catalyst IR8340 Rugged Router - 8 Ports - 2 WAN - PoE - Gigabit Ethernet - 10 Expansion Slots - 2U Rack-Mountable
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
Built on Gigabit Ethernet technology, the IR8340 supports 1000Base-T and 1000Base-X standards, enabling data transfer rates up to 1000 Mbps for high-speed network traffic. The router includes a comprehensive set of networking protocols, including IEEE 802.1D for spanning tree, IEEE 802.1w for rapid spanning tree, IEEE 802.1s for multiple spanning trees, IEEE 802.3ae for 10 Gigabit Ethernet, IEEE 802.1Q for VLAN tagging, and IEEE 802.1x for network access control.
A built-in USB 3.0 port facilitates easy management and firmware updates, while the management port offers dedicated access for network administration. The router's power consumption is rated at 86 watts, ensuring efficient operation in continuous-use scenarios.
Relevant factors for this section include Total Number of Ports, USB Standard, Management Port, Total Number of Expansion Slots. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
The IR8340 stands out in industrial networking with its rugged construction and feature set designed for edge deployment. It combines high throughput with essential security and management capabilities, making it a dependable choice for organizations that require stable and secure connectivity in challenging environments.
Dual WAN Reliability
Two WAN ports provide redundancy and load balancing, ensuring continuous internet connectivity and failover support for critical applications.
- Reduces downtime
- Improves network resilience
PoE Integration
Power over Ethernet ports allow the router to deliver both data and power to compatible devices, simplifying cabling and reducing the need for additional power sources.
- Streamlines installation
- Supports IP cameras, phones, and access points
Deployment / Use Cases
The Cisco Catalyst IR8340 is ideal for industrial sites, manufacturing facilities, remote offices, and transportation networks where environmental factors and network reliability are paramount. Its rugged design and extensive port configuration make it suitable for connecting multiple devices and supporting complex network topologies.
Common applications include serving as the primary router for small to medium-sized industrial networks, providing connectivity for surveillance systems via PoE, and acting as a gateway for IoT devices in smart infrastructure projects. The expansion slots enable the addition of modules for fiber connectivity, additional security features, or specialized industrial protocols.
Industrial Automation
Connects PLCs, sensors, and control systems in manufacturing plants, ensuring real-time data exchange and operational continuity.
Remote Site Networking
Provides reliable internet access and local network routing for branch offices or temporary sites with limited infrastructure.
Physical Profile
The router measures 3.50 inches in height, 17.25 inches in width, and 15 inches in depth, with an approximate weight of 24 pounds. Its 2U rack-mountable form factor allows for efficient use of rack space, and the sturdy construction ensures durability in vibration-prone or harsh environments. The compact design facilitates installation in standard server racks, while the weight distribution supports stable mounting without additional hardware.
- Width
- 17.25" (438.15 mm)
- Depth
- 15" (381 mm)
- Height
- 3.50" (88.90 mm)
- Weight
- 24 lb (10886.22 g)
Highlights
- 8 total ports with 2 dedicated WAN ports for reliable internet connectivity
- Power over Ethernet (PoE) support to power connected devices directly
- Gigabit Ethernet technology for high-speed data transfer up to 1000 Mbps
- 10 expansion slots for future network upgrades and customization
- 2U rack-mountable form factor for easy integration into server racks
- Built-in USB 3.0 port for management and firmware updates
- Comprehensive networking standards including IEEE 802.1D, 802.1w, and 802.1Q
- 86-watt power consumption for efficient operation in continuous use
Specifications
| Specifications | |
|---|---|
| Manufacturer | Cisco Systems, Inc |
| Manufacturer Part Number | IR8340-K9 |
| Brand Name | Cisco |
| Product Line | Catalyst |
| Product Name | Catalyst IR8340 Rugged Router |
| Product Type | Router |
| Interfaces/Ports | |
| Total Number of Ports | 8 |
| USB Standard | USB 3.0 |
| Management Port | Yes |
| Number of WAN Ports | 2 |
| I/O Expansions | |
| Total Number of Expansion Slots | 10 |
| Network & Communication | |
| Ethernet Technology | Gigabit Ethernet |
| Network Technology | 1000Base-T,1000Base-X |
| Networking Standards | IEEE 802.1D,IEEE 802.1w,IEEE 802.1s,IEEE 802.3ae,IEEE 802.1Q,IEEE 802.1x |
| Power Description | |
| PoE (RJ-45) Port | Yes |
| Power Consumption | 86 W |
| Physical Characteristics | |
| Compatible Rack Unit | 2U |
| Form Factor | Rack-mountable |
| Height | 3.50" (88.90 mm) |
| Width | 17.25" (438.15 mm) |
| Depth | 15" (381 mm) |
| Weight (Approximate) | 24 lb (10886.22 g) |
User Manual
FAQ
How many WAN ports does the Cisco IR8340 router have?
The Cisco IR8340 router includes two dedicated WAN ports. This dual-WAN configuration supports redundancy and load balancing, allowing for continuous internet connectivity and failover capabilities in case one connection fails, which is essential for maintaining uptime in critical industrial applications.
Does this router support Power over Ethernet (PoE)?
Yes, the IR8340 features PoE (RJ-45) ports. This allows the router to deliver both data and electrical power over Ethernet cables to compatible devices such as IP cameras, VoIP phones, and wireless access points, simplifying installation by reducing the need for separate power supplies.
What is the form factor of the IR8340 router?
The IR8340 is designed as a 2U rack-mountable router. It measures 3.50 inches in height, 17.25 inches in width, and 15 inches in depth, with an approximate weight of 24 pounds. This form factor makes it suitable for installation in standard server racks, optimizing space in data centers or industrial control rooms.
How many expansion slots are available on this router?
The router offers ten total expansion slots. These slots provide flexibility for future network upgrades, allowing you to add modules for additional connectivity options, enhanced security features, or specialized industrial protocols, ensuring the router can adapt to evolving network requirements.
What networking standards does the IR8340 support?
The IR8340 supports a range of networking standards, including IEEE 802.1D for spanning tree, IEEE 802.1w for rapid spanning tree, IEEE 802.1s for multiple spanning trees, IEEE 802.3ae for 10 Gigabit Ethernet, IEEE 802.1Q for VLAN tagging, and IEEE 802.1x for network access control. These standards ensure robust, secure, and efficient network operation.
What is the power consumption of the Cisco IR8340 router?
The router has a power consumption of 86 watts. This efficient power usage makes it suitable for continuous operation in industrial environments, helping to manage energy costs while providing reliable performance for networking tasks such as routing, PoE delivery, and traffic management.
