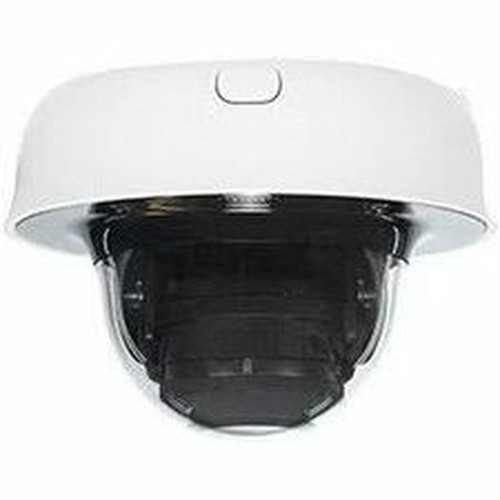

Meraki MV13-HW 8. 4 Megapixel Indoor Mini Dome Network Camera - 256GB Storage - Color - 49. 21 ft Infrared Night Vision - H. 264 - PoE
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This network camera utilizes a 1/2.8" CMOS image sensor that balances power efficiency with high-definition video quality. The fixed 3.3 mm lens with f/2.0 maximum aperture provides consistent focus, while exposure control ranges from 1/32000 to 1/30 second for adapting to varying lighting conditions. Video is encoded in H.264 format at up to 24 frames per second, optimizing bandwidth usage while maintaining smooth playback.
Connectivity is handled through Gigabit Ethernet with Power over Ethernet (PoE) support, simplifying installation by delivering both data and power over a single cable. The camera consumes a maximum of 12.95 watts and includes an RJ-45 network port for wired connectivity. Remote management capabilities allow administrators to configure and monitor the camera through network interfaces.
This section brings together practical product details such as HD Recording, Night Vision, Night Vision Distance, Image Sensor Type, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Key Product Advantages
The MV13-HW combines high-resolution imaging with practical surveillance features in a compact form factor. Its 8.4-megapixel resolution captures fine details, while the 256 GB of internal storage provides immediate recording capacity without additional hardware. The infrared night vision extends monitoring capability to 49.21 feet in low-light conditions, ensuring 24/7 surveillance coverage.
Advanced Analytics
Includes AI-powered features such as vehicle detection, cross-line detection, smart object detection, and auto tracking for intelligent surveillance.
- AI Analytics
- Video Content Analytics
- Smart Object Detection
- Auto Tracking
Reliable Operation
Built-in IR LEDs support day/night functionality with video authentication and smart stream technology for efficient bandwidth management.
- Built-in IR LED
- Day/Night Mode
- Video Authentication
- Smart Stream
Deployment / Use Cases
This camera is ideal for indoor surveillance applications where high-resolution monitoring and local storage are priorities. Retail environments benefit from its detailed video capture for loss prevention and customer behavior analysis. Educational institutions and office buildings can deploy it in corridors, entryways, and common areas for security monitoring with minimal infrastructure requirements.
The PoE power support simplifies installation in locations where power outlets are limited or where clean cable management is desired. The multiple mounting options provide flexibility for corner installations in rooms with unusual layouts or ceiling mounting in warehouses and storage facilities. The indoor rating makes it suitable for climate-controlled environments across commercial and institutional sectors.
Retail Security
Monitor point-of-sale areas, entrances, and inventory storage with high-resolution video and local recording.
Office Monitoring
Secure lobbies, server rooms, and sensitive areas with discreet mini dome design and remote management capabilities.
Physical Profile
The mini dome form factor measures 3.29 inches in height and 4.72 inches in diameter, presenting a low-profile appearance suitable for discreet surveillance. Weighing approximately 15.17 ounces, the camera installs easily on various surfaces with wall, ceiling, or corner mounting options. The compact dimensions allow installation in spaces with limited clearance while maintaining the 119.7-degree field of view.
The physical profile is practical for deployment planning because the dimensions and weight are clearly defined: 3.29" (83.50 mm), 15.17 oz (430 g). This helps confirm rack, shelf, desk, or cabinet fit before installation.
- Height
- 3.29" (83.50 mm)
- Weight
- 15.17 oz (430 g)
- Length
- 3.3 mm (0.13")
Highlights
- 8.4-megapixel resolution for detailed surveillance video
- 256 GB of integrated solid-state storage for local recording
- Infrared night vision effective up to 49.21 feet (15 meters)
- H.264 video encoding at up to 3854 x 2176 resolution
- Power over Ethernet (PoE) for simplified installation
- Wide 119.7-degree diagonal field of view
- AI analytics including vehicle and object detection
- Multiple mounting options: wall, ceiling, and corner
- Gigabit Ethernet connectivity for high-bandwidth video
- Indoor operation with 32°F to 104°F temperature range
Specifications
| Specifications | |
|---|---|
| Manufacturer | Cisco Systems, Inc |
| Manufacturer Part Number | MV13-HW |
| Brand Name | Cisco Meraki |
| Product Series | MV |
| Product Model | MV13 |
| Product Name | Fixed lens indoor mini-dome camera with 256GB storage |
| Product Type | Network Camera |
| Technical Information | |
| HD Recording | Yes |
| Night Vision | Yes |
| Night Vision Distance | 49.21 ft (15 m) |
| Night Vision Type | Infrared |
| Display & Graphics | |
| Image Sensor Type | CMOS |
| Image Sensor Size | 1/2.8" |
| Color Supported | Color |
| Field of View | Diagonal: 119.7, Horizontal:101.3, Vertical: 54.4 |
| Effective Camera Resolution | 8.4 Megapixel |
| Video | |
| Video Formats | H.264 |
| Maximum Video Resolution | 3854 x 2176 |
| Maximum Frame Rate | 24 fps |
| Lens | |
| Lens Type | Fixed |
| Maximum Focal Length | 3.3 mm (0.13") |
| Lens Included | Yes |
| Maximum Aperture | f/2.0 |
| Exposure | |
| Shortest Shutter Speed | 1/32000 Second |
| Longest Shutter Speed | 1/30 Second |
| Network & Communication | |
| Connectivity Technology | Wired |
| Remote Management | Yes |
| Ethernet Technology | Gigabit Ethernet |
| Storage | |
| Solid State Drive Capacity | 256 GB |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Power Description | |
| Maximum Power Consumption | 12.95 W |
| Power Source Type | PoE |
| Physical Characteristics | |
| Mount Type | Wall Mount,Ceiling Mount,Corner Mount |
| Form Factor | Mini Dome |
| Height | 3.29" (83.50 mm) |
| Diameter | 4.72" (120 mm) |
| Weight (Approximate) | 15.17 oz (430 g) |
| Environmental Conditions | |
| Minimum Operating Temperature | 32°F (0°C) |
| Maximum Operating Temperature | 104°F (40°C) |
| Miscellaneous | |
| Features | AI Analytics,Video Content Analytics,Vehicle Detection,Cross Line Detection,Smart Object Detection,Day/Night,Auto Tracking,Smart Stream,Video Authentication,Built-in IR LED |
| Indoor/Outdoor | Indoor |
FAQ
What is the resolution of the Meraki MV13-HW camera?
The MV13-HW captures 8.4-megapixel video with a maximum resolution of 3854 x 2176 pixels. This high resolution provides detailed imagery for surveillance applications, allowing clear identification of subjects and objects within the camera's field of view.
How much storage does this camera have built-in?
This network camera includes 256 GB of solid-state storage integrated directly into the device. This local storage capacity allows for recording video without immediate dependence on external network video recorders, though it can also stream to external systems if configured.
What is the night vision capability of this camera?
The MV13-HW features infrared night vision effective up to 49.21 feet (15 meters). It uses built-in IR LEDs to provide illumination in low-light conditions, enabling 24/7 surveillance coverage with clear imaging even in complete darkness.
How is this camera powered?
The camera supports Power over Ethernet (PoE), which delivers both data connectivity and electrical power through a single Ethernet cable. This simplifies installation by eliminating the need for separate power outlets near the camera location. Maximum power consumption is 12.95 watts.
What mounting options are available for this camera?
The mini dome design supports wall mounting, ceiling mounting, and corner mounting configurations. This flexibility allows installation in various indoor environments including rooms with unusual layouts or where discreet placement is preferred for surveillance applications.
What video analytics features does this camera include?
The MV13-HW incorporates AI-powered analytics including vehicle detection, cross-line detection, smart object detection, and auto tracking. These features enable intelligent surveillance by automatically identifying and following objects of interest within the camera's field of view.
What storage is included?
The system includes 256 GB of storage for applications, files, and everyday business data.
