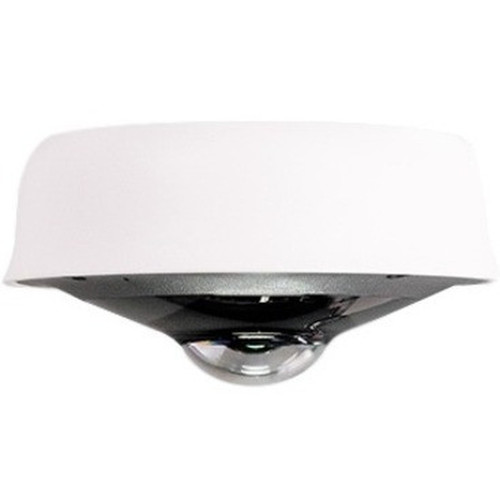

Meraki MV93-HW Outdoor Fisheye Network Camera - 12. 4MP - 180° Panoramic View - 65. 62 ft IR Night Vision - IP67 - PoE
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This camera captures video at a maximum resolution of 4072 x 3046 using the efficient H.264 codec at up to 24 frames per second, ensuring detailed and fluid surveillance footage. The 1.6 mm fixed focal length fisheye lens provides an ultra-wide 180° field of view in both dimensions, while the f/2.0 maximum aperture and wide dynamic range optimize performance in varied lighting conditions.
The integrated infrared LEDs enable clear monochrome imaging in total darkness up to 20 meters, supported by a day/night function that automatically switches between color and IR modes. For reliability in extreme climates, the camera operates from -40°F to 122°F (-40°C to 50°C) and includes a built-in heater to prevent frost and condensation.
Key Product Advantages
The MV93-HW stands out with its combination of high-resolution imaging, expansive coverage, and rugged outdoor design, making it an ideal solution for perimeter security, parking lots, and large outdoor facilities.
Complete Area Coverage
The fisheye lens and 180° field of view provide a single-camera solution for monitoring wide areas, reducing hardware costs and simplifying installation compared to multiple standard cameras.
- Eliminates blind spots
- Reduces total camera count
- Simplifies video management
All-Weather Durability
With IP67 dust and water resistance, IK10+ impact protection, and an extended operating temperature range, this camera delivers consistent performance in harsh outdoor environments year-round.
- Resists dust and water ingress
- Withstands physical impacts
- Operates in extreme temperatures
Intelligent Surveillance Features
Built-in analytics including motion detection, audio detection, and auto tracking enhance security monitoring by reducing false alarms and focusing on relevant events.
- Reduces manual monitoring
- Improves event accuracy
- Enables proactive responses
Deployment / Use Cases
The Meraki MV93-HW is tailored for outdoor surveillance applications where wide-area coverage, high image detail, and environmental resilience are critical. Its cloud-managed platform allows for centralized control and scalability across multiple sites.
Typical deployments include retail store perimeters, warehouse exteriors, school campuses, and industrial facilities, where the camera's panoramic view can monitor large open spaces effectively. The PoE support simplifies wiring in these scenarios, while the wireless capability offers flexibility for temporary installations or hard-to-wire locations.
Perimeter Security
Monitor fences, gates, and building exteriors with a single camera covering wide angles, enhanced by IR night vision for 24/7 visibility.
Parking Lot Surveillance
Provide comprehensive oversight of vehicle and pedestrian traffic in large lots, with motion detection to alert on suspicious activity.
Physical Profile
The camera features a compact fisheye design with dimensions of 5.40" wide x 5.40" deep x 2.70" high (137.16 mm x 137.16 mm x 68.58 mm) and a weight of 2.31 lb (1050 g), making it easy to mount discreetly on walls or ceilings. The included wall mount facilitates secure installation, and the durable housing ensures long-term performance in outdoor settings.
- Width
- 5.40" (137.16 mm)
- Depth
- 5.40" (137.16 mm)
- Height
- 2.70" (68.58 mm)
- Weight
- 2.31 lb (1050 g)
- Length
- 1.6 mm (0.06")
Highlights
- 12.4-megapixel resolution for detailed surveillance imaging
- 180° horizontal and vertical fisheye panoramic field of view
- Infrared night vision effective up to 65.62 ft (20 m)
- IP67 and IK10+ ratings for outdoor durability
- Power over Ethernet (PoE) for simplified installation
- Supports both wired and wireless network connectivity
- H.264 video encoding at up to 4072 x 3046 resolution
- Built-in microphone, audio detection, and motion detection
- Operates in temperatures from -40°F to 122°F (-40°C to 50°C)
- Cloud-based remote management via Meraki dashboard
Specifications
| Specifications | |
|---|---|
| Manufacturer | Cisco Systems, Inc |
| Manufacturer Part Number | MV93-HW |
| Brand Name | Cisco Meraki |
| Product Series | MV93 |
| Product Model | MV93-HW |
| Product Name | Outdoor Fisheye Camera with 256GB Onboard Storage |
| Product Type | Network Camera |
| Technical Information | |
| HD Recording | Yes |
| Night Vision | Yes |
| Night Vision Distance | 65.62 ft (20 m) |
| Night Vision Type | Infrared |
| Display & Graphics | |
| Image Sensor Type | CMOS |
| Color Supported | Color |
| Field of View | Horizontal 180°, Vertical 180° |
| Effective Camera Resolution | 12.4 Megapixel |
| Video | |
| Video Formats | H.264 |
| Maximum Video Resolution | 4072 x 3046 |
| Maximum Frame Rate | 24 fps |
| Lens | |
| Lens Type | Fixed |
| Maximum Focal Length | 1.6 mm (0.06") |
| Lens Included | Yes |
| Maximum Aperture | f/2.0 |
| Exposure | |
| Shortest Shutter Speed | 1/32000 Second |
| Longest Shutter Speed | 1/30 Second |
| Network & Communication | |
| Connectivity Technology | Wired & Wireless |
| Remote Management | Yes |
| Storage | |
| Storage Type | Memory Card |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Power Description | |
| Power Source Type | PoE |
| Physical Characteristics | |
| Mount Type | Wall Mount |
| Form Factor | Fisheye |
| Height | 2.70" (68.58 mm) |
| Width | 5.40" (137.16 mm) |
| Depth | 5.40" (137.16 mm) |
| Diameter | 5.42" (137.68 mm) |
| Weight (Approximate) | 2.31 lb (1050 g) |
| Environmental Conditions | |
| Minimum Operating Temperature | -40°F (-40°C) |
| Maximum Operating Temperature | 122°F (50°C) |
| Miscellaneous | |
| Features | 180° Panoramic View,Built-in Microphone,Audio Detection,Motion Detection,Auto Tracking,Firmware Upgradable,Day/Night,Heater,Wide Dynamic Range,Built-in Heater |
| Indoor/Outdoor | Outdoor |
| Impact Protection Rating | IK10+ |
| Ingress Protection Rating | IP67 |
User Manual
FAQ
What is the resolution of the Meraki MV93-HW camera?
The Meraki MV93-HW captures video at a maximum resolution of 4072 x 3046, which equates to 12.4 megapixels. This high resolution ensures clear, detailed imagery suitable for identifying faces, license plates, and other critical details in surveillance footage, even when zooming in on recorded video.
How far does the night vision reach on this camera?
The integrated infrared LEDs provide effective night vision up to 65.62 ft (20 m). This allows the camera to deliver clear monochrome video in complete darkness, making it reliable for 24/7 outdoor security monitoring in low-light or no-light conditions.
Is this camera suitable for outdoor use?
Yes, the MV93-HW is designed for outdoor deployment with an IP67 rating for dust and water resistance and an IK10+ impact protection rating. It operates in temperatures from -40°F to 122°F (-40°C to 50°C) and includes a built-in heater to prevent frost, ensuring durability in harsh weather conditions.
What type of lens does this camera have?
This camera features a fixed fisheye lens with a 1.6 mm focal length, providing a 180° horizontal and vertical field of view. The fisheye design offers panoramic coverage, reducing the need for multiple cameras to monitor large areas, and is ideal for wide-angle surveillance applications.
How is the MV93-HW powered?
The camera supports Power over Ethernet (PoE), allowing it to receive both power and data through a single Ethernet cable. This simplifies installation by eliminating the need for a separate power source near the camera, making it easier to deploy in outdoor or hard-to-wire locations.
What video formats and frame rates does this camera support?
The MV93-HW uses H.264 video encoding, which efficiently compresses footage without sacrificing quality, and records at up to 24 frames per second. This ensures smooth, real-time video playback and reduces bandwidth and storage requirements compared to less efficient codecs.
What storage is included?
The system includes Memory Card of storage for applications, files, and everyday business data.
