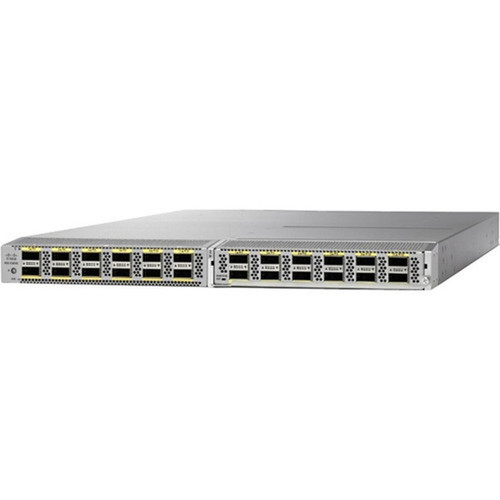

Cisco N5K-C5624Q-RF Nexus 5624Q Chassis - 40GbE Modular Switch - 12x QSFP+ Ports - Layer 3 Managed - 1U Rack-Mountable - Refurbished
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
Relevant factors for this section include Uplink Port, Modular, Stack Port, Media Type Supported. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
A strong technical summary explains how the product's interfaces, hardware profile, and operating characteristics work together in real deployment. Buyers often need this context to confirm compatibility with existing devices, expected performance in daily use, and whether installation will be straightforward for IT staff or end users.
40GbE Performance
Delivers 40 Gigabit Ethernet throughput with 40GBase-X technology, optimized for high-bandwidth applications and data-intensive workloads.
- 12 dedicated QSFP+ ports
- Optical fiber media support
- Efficient data transfer architecture
Switching Architecture
Implements Layer 3 switching with advanced routing protocols, VLAN support, and quality of service features for intelligent traffic management.
- Full Layer 3 capabilities
- Managed switching platform
- Enterprise-grade performance
Key Product Advantages
The Nexus 5624Q chassis combines high-density 40GbE connectivity with enterprise switching features in a compact 1U footprint. The modular expansion capability provides investment protection, while the Layer 3 functionality enables sophisticated network designs without requiring separate routing hardware.
These strengths make the product easier to deploy and manage in real environments, especially where reliability, usability, and day-to-day operational continuity matter. Notable benefits include High-Density Connectivity, Enterprise Reliability.
High-Density Connectivity
Twelve QSFP+ ports deliver substantial 40GbE port density in a single rack unit, reducing physical space requirements while maximizing bandwidth capacity.
- 12 ports in 1U space
- QSFP+ interface standard
- Optical fiber ready
Enterprise Reliability
Redundant power supply support and environmentally friendly design ensure continuous operation in demanding data center environments.
- Redundant power capable
- Industrial-grade components
- Refurbished to spec
Deployment / Use Cases
This switch chassis is engineered for core switching roles in medium to large enterprise networks, data center aggregation layers, and high-performance computing environments. The 40GbE capabilities make it particularly suitable for backbone connections, storage network fabrics, and server farm interconnects where maximum throughput is essential.
The modular architecture allows the 5624Q to adapt to evolving network requirements, supporting various expansion modules as needs change. The 1U form factor enables efficient rack utilization in space-constrained data centers while providing substantial switching capacity.
Data Center Core
Serve as aggregation or core switches in virtualized environments, connecting multiple server racks with high-bandwidth 40GbE links.
- Server farm connectivity
- Virtual machine traffic
- Storage network backbone
Network Fabric
Build high-performance switching fabrics for financial trading, scientific computing, or media production applications requiring low latency and high throughput.
- Low-latency switching
- High-bandwidth applications
- Fabric architecture ready
Physical Profile
The 5624Q chassis features a standard 1U rack-mount design measuring 1.75 inches in height, 30 inches in width, and 17.30 inches in depth. Weighing approximately 32 pounds, this switch chassis fits standard 19-inch equipment racks and includes appropriate mounting hardware for secure installation. The compact footprint maximizes rack space efficiency while providing substantial switching capacity.
- Width
- 30" (762 mm)
- Depth
- 17.30" (439.42 mm)
- Height
- 1.75" (44.45 mm)
- Weight
- 32 lb (14514.95584 g)
Highlights
- 12 x 40 Gigabit Ethernet QSFP+ expansion ports
- Layer 3 switching with advanced routing capabilities
- Modular chassis with 13 total expansion slots
- 1U rack-mountable form factor for space efficiency
- Optical fiber media support for extended reach
- Redundant power supply capability
- Managed switch platform with comprehensive controls
- Refurbished condition with full functionality
- Environmentally friendly design and components
- 40GBase-X technology for high-performance networking
Specifications
| Specifications | |
|---|---|
| Manufacturer | Cisco Systems, Inc |
| Manufacturer Part Number | N5K-C5624Q-RF |
| Brand Name | Cisco |
| Product Line | Nexus |
| Product Series | 5000 |
| Product Model | 5624Q |
| Product Name | Nexus 5624Q Chassis |
| Product Condition | Refurbished |
| Product Type | Switch Chassis |
| Interfaces/Ports | |
| Uplink Port | No |
| Modular | Yes |
| Stack Port | No |
| Port/Expansion Slot Details | 12 x 40 Gigabit Ethernet Expansion Slot,1 x Expansion Slot |
| Media & Performance | |
| Media Type Supported | Optical Fiber |
| Ethernet Technology | 40 Gigabit Ethernet |
| Network Technology | 40GBase-X |
| I/O Expansions | |
| Total Number of Expansion Slots | 13.0 |
| Expansion Slot Type | QSFP+ |
| Network & Communication | |
| Layer Supported | 3 |
| Management & Protocols | |
| Manageable | Yes |
| Power Description | |
| Power Source | Power Supply |
| Redundant Power Supply Supported | Yes |
| Physical Characteristics | |
| Compatible Rack Unit | 1U |
| Form Factor | Rack-mountable |
| Height | 1.75" (44.45 mm) |
| Width | 30" (762 mm) |
| Depth | 17.30" (439.42 mm) |
| Weight (Approximate) | 32 lb (14514.95584 g) |
| Miscellaneous | |
| Environmentally Friendly | Yes |
FAQ
What type of ports does this Cisco switch chassis provide?
The Nexus 5624Q chassis features 12 dedicated 40 Gigabit Ethernet expansion slots using QSFP+ interfaces. These ports support optical fiber media with 40GBase-X technology for high-bandwidth connections over extended distances. The modular design includes a total of 13 expansion slots for additional flexibility in network configuration.
Does this switch support Layer 3 switching capabilities?
Yes, the Cisco Nexus 5624Q chassis provides full Layer 3 switching functionality. This includes support for advanced routing protocols, VLAN routing, access control lists, and quality of service features. Layer 3 capabilities enable more sophisticated network designs with improved traffic management and segmentation compared to basic Layer 2 switches.
What is the form factor and rack mounting compatibility?
This switch chassis features a 1U rack-mountable form factor designed for standard 19-inch equipment racks. The dimensions are 1.75 inches in height, 30 inches in width, and 17.30 inches in depth, with a weight of approximately 32 pounds. The compact 1U design maximizes rack space efficiency while delivering substantial 40GbE switching capacity.
Is this switch manageable, and what management features does it offer?
Yes, the Nexus 5624Q is a fully manageable switch chassis. It provides comprehensive management capabilities including CLI access, SNMP support, and web-based management interfaces. The manageable platform allows for configuration of VLANs, quality of service policies, security settings, and monitoring of network performance and traffic patterns.
What power supply features does this switch chassis include?
The switch chassis supports standard power supply units with redundant power supply capability. This allows for implementation of dual power supplies for increased reliability in critical network environments. The environmentally friendly design incorporates energy-efficient components while maintaining the high performance expected from enterprise switching equipment.
What does refurbished condition mean for this Cisco switch?
Refurbished condition indicates that this Cisco Nexus 5624Q chassis has been professionally tested, cleaned, and restored to full working specifications. Refurbished networking equipment undergoes comprehensive testing to ensure all ports, switching functions, and management features operate correctly. This provides a cost-effective alternative to new equipment while maintaining enterprise-grade performance and reliability.
