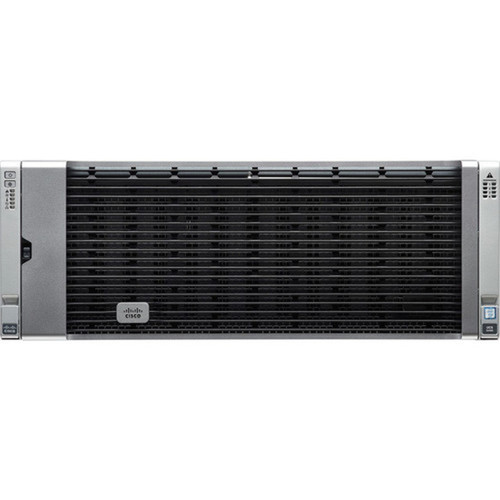

Cisco UCS-S3260-M5SRB-U S3260 M5 Barebone System - 4U Rack-mountable - Dual Processor Support - 56 x 3. 5" Bays - 14 x DDR4 Slots
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
The S3260 M5 platform supports dual Intel Xeon Scalable processors from the Platinum, Gold, Silver, or Bronze families, providing a range of performance options for different compute demands. The memory subsystem features 14 DDR4-2666/PC4-21300 DIMM slots, enabling substantial memory capacity for memory-intensive applications.
Storage architecture centers on 56 front-accessible 3.5" drive bays managed by a 12Gb/s SAS controller with RAID functionality. This configuration supports massive raw storage capacity while maintaining enterprise-grade data protection through hardware RAID capabilities.
Relevant factors for this section include Number of Nodes, Number of Processors Supported, Processor Supported, Memory Technology. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
A strong technical summary explains how the product's interfaces, hardware profile, and operating characteristics work together in real deployment. Buyers often need this context to confirm compatibility with existing devices, expected performance in daily use, and whether installation will be straightforward for IT staff or end users.
Key Product Advantages
The UCS S3260 M5 combines exceptional storage density with enterprise-grade connectivity in a single 4U chassis. The platform's design prioritizes both capacity and performance, making it suitable for demanding storage and compute workloads.
These strengths make the product easier to deploy and manage in real environments, especially where reliability, usability, and day-to-day operational continuity matter. Notable benefits include High-Density Storage Platform, Enterprise Networking Capabilities.
High-Density Storage Platform

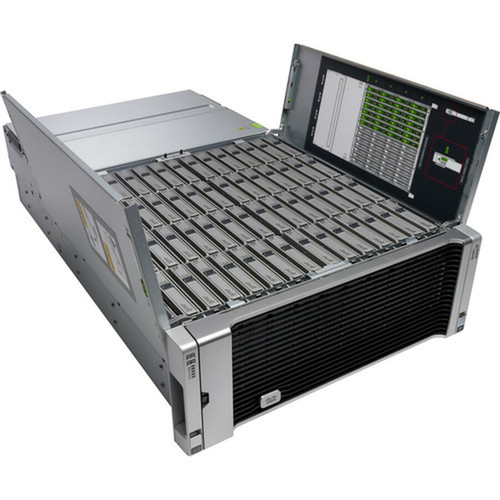

With 56 front-loading 3.5" drive bays, this system supports massive storage arrays for archival, backup, or primary storage applications while maintaining serviceability.
- 56 hot-swappable bays
- Front-accessible design
- 12Gb/s SAS throughput
Enterprise Networking Capabilities
Integrated 40 Gigabit Ethernet provides high-bandwidth connectivity for data-intensive applications, while Gigabit Ethernet offers compatibility with existing network infrastructure.
- Dual-speed Ethernet support
- High-performance networking
- Backward compatibility
Deployment / Use Cases
The S3260 M5 barebone system serves as an ideal foundation for storage-heavy server deployments where capacity and reliability are paramount. Its dual-processor architecture and extensive memory support make it suitable for virtualization hosts that require both compute power and substantial storage resources.
This platform excels in environments requiring large-scale storage arrays, such as media streaming servers, surveillance storage systems, or backup repositories. The 12Gb/s SAS controller ensures high throughput for data-intensive applications, while the dual PCIe expansion slots allow for additional networking or accelerator cards.
Virtualization Host Platform
Configure with high-core-count Xeon processors and maximum memory to create powerful virtualization hosts with direct-attached storage for virtual machines.
Storage Server Foundation
Build dedicated storage servers for file serving, backup targets, or archival systems using the 56-bay capacity and hardware RAID protection.

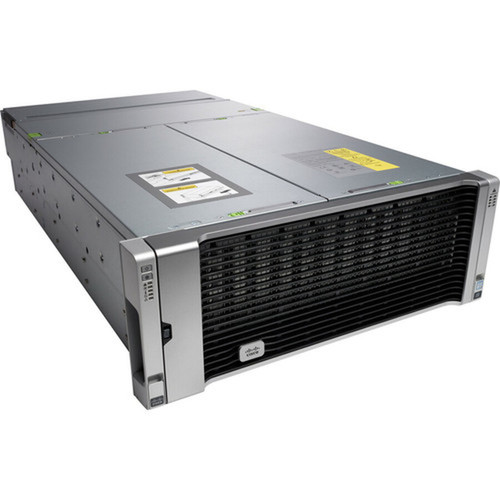

Physical Profile
The 4U rack-mountable chassis measures 6.88 inches in height, 17.46 inches in width, and 32 inches in depth, fitting standard 19-inch server racks. With an approximate weight of 195 pounds when fully configured, the system requires proper rack mounting and consideration of weight distribution in data center environments.
The rack-optimized design includes front-accessible drive bays for easy maintenance and hot-swappable component access. The form factor balances storage density with serviceability, providing ample internal space for components while maintaining standard rack compatibility.
- Width
- 17.46" (443.48 mm)
- Depth
- 32" (812.80 mm)
- Height
- 4U
- Weight
- 195 lb (88450.51 g)
Highlights
- Dual Intel Xeon Scalable processor support (Platinum, Gold, Silver, Bronze)
- 14 DDR4-2666/PC4-21300 memory slots for extensive RAM capacity
- 56 front-accessible 3.5" drive bays for massive storage arrays
- 12Gb/s SAS controller with hardware RAID support
- 40 Gigabit Ethernet and Gigabit Ethernet networking interfaces
- 4U rack-mountable chassis with standard 19-inch rack compatibility
- 2 PCI Express x8 expansion slots for additional cards
- Dual-voltage power support (120V AC or 230V AC)
- 3-year limited warranty from Cisco
- Manufactured in the United States
Specifications
| Specifications | |
|---|---|
| Manufacturer | Cisco Systems, Inc |
| Manufacturer Part Number | UCS-S3260-M5SRB-U |
| Brand Name | Cisco |
| Product Model | S3260 M5 |
| Product Name | UCS S3260 M5 Barebone System |
| Product Type | Barebone System |
| Processor | |
| Number of Nodes | 2 |
| Number of Processors Supported | 2 |
| Processor Supported | Xeon Platinum,Xeon Gold,Xeon Silver,Xeon Bronze |
| 64-bit Processing | Yes |
| Memory | |
| Memory Technology | DDR4 SDRAM |
| Memory Standard | DDR4-2666/PC4-21300 |
| Total Number of Memory Slots | 14 |
| Controllers | |
| Controller Type | 12Gb/s SAS |
| RAID Supported | Yes |
| Network & Communication | |
| Ethernet Technology | 40 Gigabit Ethernet,Gigabit Ethernet |
| I/O Expansions | |
| Number of 3.5" Bays | 56 |
| Total Number of Expansion Slots | 2 |
| Number of PCI Express x8 Slots | 2 |
| Interfaces/Ports | |
| Total Number of USB Ports | 2 |
| Power Description | |
| Input Voltage | 120 V AC,230 V AC |
| Physical Characteristics | |
| Form Factor | Rack-mountable |
| Rack Height | 4U |
| Height | 6.88" (174.75 mm) |
| Width | 17.46" (443.48 mm) |
| Depth | 32" (812.80 mm) |
| Weight (Approximate) | 195 lb (88450.51 g) |
| Miscellaneous | |
| Country of Origin | United States |
| Warranty | |
| Limited Warranty | 3 Year |
FAQ
What components are included with this barebone system?
This is a barebone configuration that includes the chassis, motherboard, power supplies, cooling system, and storage backplane. You will need to add processors, memory modules, storage drives, and any expansion cards to complete the server build. The system provides the foundational hardware platform for custom server configuration.
What processors are compatible with the S3260 M5 system?
The system supports dual Intel Xeon Scalable processors from the Platinum, Gold, Silver, and Bronze families. This includes the entire range of Xeon Scalable processors compatible with the platform's socket and chipset. You can configure the system with matching processor pairs for optimal performance.
How much memory can this system support?
With 14 DDR4 memory slots supporting DDR4-2666/PC4-21300 modules, the system can accommodate substantial memory capacity. The exact maximum depends on the memory module density you install. The platform supports registered ECC memory modules typically used in enterprise server environments for reliability and error correction.
What type of storage drives work with the 56 drive bays?
The 56 front-accessible bays are designed for 3.5" form factor drives, including SAS and SATA hard disk drives or solid-state drives. The 12Gb/s SAS controller provides connectivity for both drive types, with hardware RAID support available for creating redundant storage arrays. Drive trays or caddies may be required depending on the specific drive models.
What networking capabilities does the system include?
The system features integrated 40 Gigabit Ethernet and Gigabit Ethernet networking. The 40GbE ports provide high-bandwidth connectivity for data-intensive applications and storage networking, while the Gigabit Ethernet ports offer compatibility with standard network infrastructure. Additional networking cards can be installed in the PCIe expansion slots if needed.
What is the warranty coverage for this Cisco barebone system?
Cisco provides a 3-year limited warranty for this barebone system. The warranty covers defects in materials and workmanship under normal use. For complete warranty terms and support options, consult Cisco's official documentation or contact their support services directly for the most current information.
