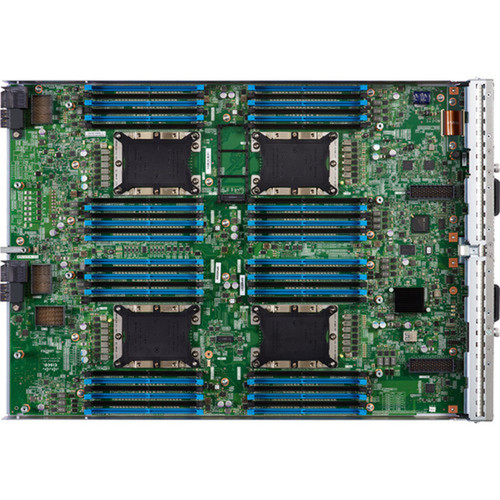

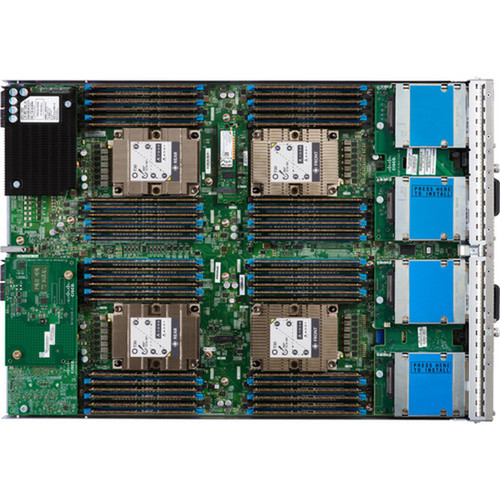

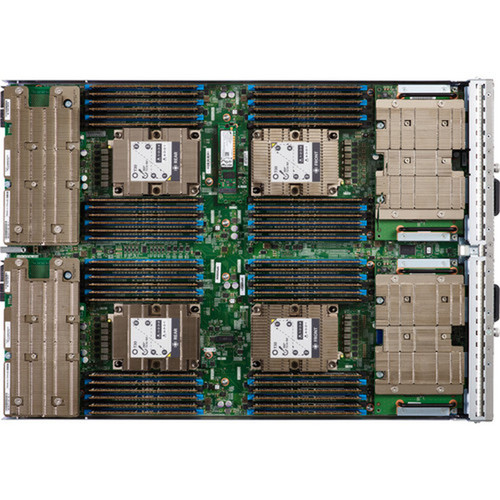

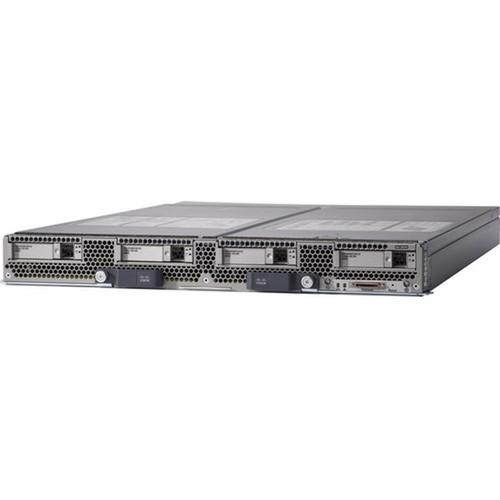

Cisco UCSB-B480-M5 Barebone System - Blade Server - 4x Xeon Support - Intel C620 Chipset - 48 DDR4-2666 Slots - 12Gb/s SAS RAID
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This barebone system delivers enterprise-grade server architecture with a focus on memory and storage scalability. The platform supports 64-bit Intel Xeon processors across four sockets, enabling high-core-count configurations for virtualized workloads and database applications.
Memory architecture utilizes DDR4-2666/PC4-21300 technology across 48 DIMM slots, providing extensive capacity for memory-intensive applications. Storage connectivity is handled by a 12Gb/s SAS controller with RAID support, while network communication is provided through Gigabit Ethernet interfaces.
Relevant factors for this section include Number of Processors Supported, Processor Supported, 64-bit Processing, Chipset Manufacturer. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
A strong technical summary explains how the product's interfaces, hardware profile, and operating characteristics work together in real deployment. Buyers often need this context to confirm compatibility with existing devices, expected performance in daily use, and whether installation will be straightforward for IT staff or end users.
Key Product Advantages
The UCSB-B480-M5 offers several advantages for organizations deploying scalable server infrastructure in constrained data center environments.
High-Density Compute
Support for four Xeon processors enables substantial parallel processing capability within a single blade footprint, optimizing rack space utilization.
- Quad-socket processor support
- 64-bit computing architecture
- Enterprise-grade reliability
Memory Scalability
Forty-eight DDR4 memory slots provide exceptional capacity for memory-bound applications like in-memory databases, virtualization hosts, and analytics platforms.
- DDR4-2666 performance
- High memory bandwidth
- Future expansion capability
Storage Performance
The integrated 12Gb/s SAS controller delivers high-speed storage connectivity with RAID support for data protection and performance optimization.
- 12Gb/s SAS interface
- Hardware RAID support
- Enterprise storage compatibility
Deployment / Use Cases
The Cisco UCSB-B480-M5 barebone system is engineered for deployment scenarios requiring high compute density and memory capacity within standardized blade infrastructure.
Primary use cases include virtualization host platforms where multiple virtual machines benefit from the quad-socket architecture and extensive memory resources. The system also serves well for database servers, particularly in-memory database implementations that leverage the 48 memory slots for optimal performance.
Relevant factors for this section include Number of Processors Supported, Processor Supported, 64-bit Processing, Chipset Manufacturer. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Virtualization Infrastructure
Deploy as VMware ESXi, Microsoft Hyper-V, or KVM hosts supporting numerous virtual machines with dedicated processor and memory resources.
Database Servers
Implement as SQL Server, Oracle, or SAP HANA database nodes where memory capacity directly impacts query performance and transaction throughput.
Physical Profile
The blade form factor measures 1.95 inches in height, 16.50 inches in width, and 24.40 inches in depth, with an approximate weight of 33.30 pounds. This compact design enables high-density deployment within Cisco UCS blade chassis, optimizing rack space while maintaining serviceability. The standardized blade dimensions ensure compatibility with existing UCS infrastructure and simplify integration into data center environments.
The physical profile is practical for deployment planning because the dimensions and weight are clearly defined: 1.95" (49.53 mm), 16.50" (419.10 mm), 24.40" (619.76 mm), 33.30 lb (15102.81 g). This helps confirm rack, shelf, desk, or cabinet fit before installation.
- Width
- 16.50" (419.10 mm)
- Depth
- 24.40" (619.76 mm)
- Height
- 1.95" (49.53 mm)
- Weight
- 33.30 lb (15102.81 g)
Highlights
- Supports up to four Intel Xeon processors for high-core-count configurations
- Forty-eight DDR4-2666 memory slots enable extensive memory capacity
- Intel C620 chipset provides enterprise-grade platform foundation
- 12Gb/s SAS controller with RAID support for high-performance storage
- Gigabit Ethernet connectivity for network communication
- Blade form factor optimizes rack space and power efficiency
- Four expansion bays for additional storage or I/O capabilities
- 64-bit processing architecture for modern enterprise workloads
Specifications
| Specifications | |
|---|---|
| Manufacturer | Cisco Systems, Inc |
| Manufacturer Part Number | UCSB-B480-M5 |
| Brand Name | Cisco |
| Product Series | B480 M5 |
| Product Name | UCS B480 M5 Barebone System |
| Product Type | Barebone System |
| Processor | |
| Number of Processors Supported | 4 |
| Processor Supported | Xeon |
| 64-bit Processing | Yes |
| Chipset | |
| Chipset Manufacturer | Intel |
| Chipset Model | C620 |
| Memory | |
| Memory Technology | DDR4 SDRAM |
| Memory Standard | DDR4-2666/PC4-21300 |
| Total Number of Memory Slots | 48 |
| Controllers | |
| Controller Type | 12Gb/s SAS |
| RAID Supported | Yes |
| Display & Graphics | |
| Graphics Memory Capacity | 16 MB |
| Network & Communication | |
| Ethernet Technology | Gigabit Ethernet |
| I/O Expansions | |
| Number of Total Expansion Bays | 4 |
| Physical Characteristics | |
| Form Factor | Blade |
| Height | 1.95" (49.53 mm) |
| Width | 16.50" (419.10 mm) |
| Depth | 24.40" (619.76 mm) |
| Weight (Approximate) | 33.30 lb (15102.81 g) |
| Miscellaneous | |
| Country of Origin | Mexico |
FAQ
What processors are compatible with the UCSB-B480-M5 barebone system?
The system supports Intel Xeon processors across four processor sockets. These are 64-bit enterprise-grade processors suitable for virtualization, database, and high-performance computing workloads. Specific compatible processor models should be verified against Cisco's compatibility matrix for the B480 M5 platform.
How much memory can this barebone system support?
With 48 DDR4 memory slots supporting DDR4-2666/PC4-21300 modules, the system can accommodate substantial memory configurations. The exact maximum capacity depends on the specific memory module densities installed, but the platform architecture is designed for high-memory deployments common in virtualization and database environments.
What type of storage connectivity does this system provide?
The barebone includes a 12Gb/s SAS controller with RAID support. This provides high-speed connectivity for SAS drives and supports various RAID configurations for data protection and performance. The system also features four expansion bays for additional storage devices or I/O cards.
What networking capabilities are built into this barebone system?
The platform includes Gigabit Ethernet connectivity for network communication. This provides standard enterprise networking performance suitable for most data center applications. Additional network capabilities can be added through the expansion bays if required for specific deployment scenarios.
How does the blade form factor benefit deployment?
The blade form factor enables high-density server deployment within standardized blade chassis. This optimizes rack space utilization, simplifies cabling through midplane connections, and often improves power and cooling efficiency compared to traditional rack servers. The 1.95-inch height allows multiple blades to be deployed in a single chassis.
What components are needed to complete this barebone system?
As a barebone system, additional components are required for a functional server. These include processors, memory modules, storage drives, and potentially expansion cards. The system provides the foundational platform including motherboard, chassis, power distribution, and basic controllers, with processors, memory, and storage to be added based on specific requirements.
