Cisco UCSC-C240-M5SN UCS C240 M5 Barebone System - 2U Rack-mountable - Dual Xeon Support - 3TB DDR4-2666 Memory - 12Gb/s SAS RAID
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
The UCS C240 M5 supports two Intel Xeon processors, enabling substantial parallel processing power for multi-threaded applications and virtualized environments. The platform accommodates up to 3 TB of DDR4-2666 memory across 24 DIMM slots, providing high bandwidth and low latency for memory-intensive workloads.
Storage connectivity is handled by a 12Gb/s SAS controller with RAID support, ensuring fast, reliable data access and redundancy for critical data. Networking capabilities include dual-speed 10 Gigabit Ethernet and Gigabit Ethernet interfaces, optimized for high-throughput data center networks.
Relevant factors for this section include Number of Processors Supported, Processor Supported, 64-bit Processing, Chipset Manufacturer. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
This barebone system offers a balance of density, performance, and flexibility, making it suitable for a range of enterprise server roles. Its design prioritizes scalability and manageability in rack-optimized form factors.
High-Density Compute
Dual processor support and extensive memory capacity enable consolidation of workloads and efficient resource utilization in virtualized and cloud environments.
- Supports two Intel Xeon CPUs
- Up to 3 TB DDR4 memory
- 24 memory slots for granular configuration
Enterprise Storage Ready
Integrated 12Gb/s SAS controller with RAID support provides fast, reliable storage connectivity for high-performance drives and arrays.
- 12Gb/s SAS interface speed
- Hardware RAID capabilities
- Ideal for SAS and SATA drives
Rack-Optimized Design
The 2U form factor maximizes rack space efficiency while providing ample room for expansion cards, drives, and cooling components.
- Standard 19-inch rack width
- 2U height for density
- Tool-less chassis design for serviceability
Deployment / Use Cases
The Cisco UCS C240 M5 Barebone System is well-suited for deployment in enterprise data centers, hosting providers, and IT environments requiring reliable, scalable server infrastructure. Its flexible architecture supports a variety of application workloads.
Common use cases include virtualization hosts running VMware, Hyper-V, or KVM; database servers for SQL, Oracle, or NoSQL platforms; and high-performance computing nodes for scientific, financial, or engineering applications. The system's 26 expansion bays allow for significant storage capacity, making it effective for file servers, backup targets, or media storage solutions.
Relevant factors for this section include Number of Processors Supported, Processor Supported, 64-bit Processing, Chipset Manufacturer. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Physical Profile

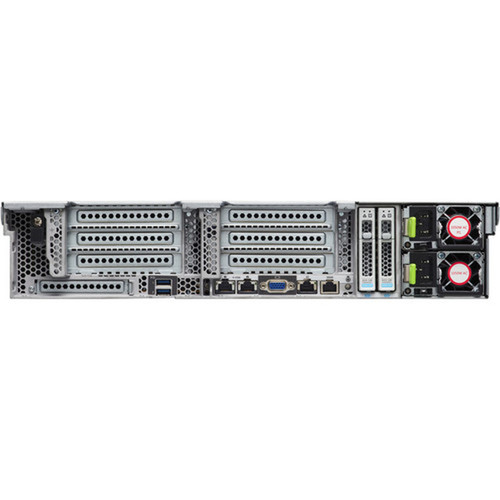

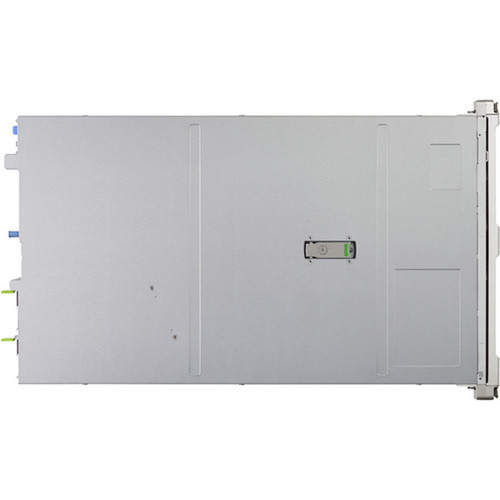

The chassis measures 3.43 inches in height (2U), 18.96 inches in width, and 30.18 inches in depth, fitting standard 19-inch server racks. Its weight of approximately 57.50 pounds reflects a robust construction with support for multiple drives, power supplies, and cooling modules. The rack-mountable design includes front-accessible drive bays and rear I/O panels for easy maintenance and cable management in dense deployments.
- Width
- 18.96" (481.58 mm)
- Depth
- 30.18" (766.57 mm)
- Height
- 2U
- Weight
- 57.50 lb (26081.56 g)
Highlights
- Dual Intel Xeon processor support for high-performance computing
- Up to 3 TB of DDR4-2666 memory across 24 DIMM slots
- 12Gb/s SAS controller with hardware RAID capabilities
- 10 Gigabit Ethernet and Gigabit Ethernet networking interfaces
- 2U rack-mountable form factor for data center density
- 26 total expansion bays for drives and peripherals
- Two USB 3.0 ports for external device connectivity
- Dual voltage input (120V AC / 230V AC) for global deployment
Specifications
| Specifications | |
|---|---|
| Manufacturer | Cisco Systems, Inc |
| Manufacturer Part Number | UCSC-C240-M5SN |
| Brand Name | Cisco |
| Product Series | C240 M5 |
| Product Name | UCS C240 M5 Barebone System |
| Product Type | Barebone System |
| Processor | |
| Number of Processors Supported | 2 |
| Processor Supported | Xeon |
| 64-bit Processing | Yes |
| Chipset | |
| Chipset Manufacturer | Intel |
| Chipset Model | C620 |
| Memory | |
| Maximum Memory Supported | 3 TB |
| Memory Technology | DDR4 SDRAM |
| Memory Standard | DDR4-2666/PC4-21300 |
| Total Number of Memory Slots | 24 |
| Controllers | |
| Controller Type | 12Gb/s SAS |
| RAID Supported | Yes |
| Display & Graphics | |
| Graphics Memory Capacity | 16 MB |
| Network & Communication | |
| Ethernet Technology | 10 Gigabit Ethernet,Gigabit Ethernet |
| I/O Expansions | |
| Number of Total Expansion Bays | 26 |
| Interfaces/Ports | |
| Total Number of USB Ports | 2 |
| Number of USB 3.0 Ports | 2 |
| Power Description | |
| Input Voltage | 120 V AC,230 V AC |
| Physical Characteristics | |
| Form Factor | Rack-mountable |
| Rack Height | 2U |
| Height | 3.43" (87.12 mm) |
| Width | 18.96" (481.58 mm) |
| Depth | 30.18" (766.57 mm) |
| Weight (Approximate) | 57.50 lb (26081.56 g) |
FAQ
What processors are compatible with this barebone system?
The Cisco UCS C240 M5 Barebone System supports dual Intel Xeon processors. Specific compatible Xeon models depend on the generation and socket type supported by the Intel C620 chipset. You will need to install compatible Xeon CPUs separately, as this is a barebone chassis without included processors.
How much memory can I install, and what type is supported?
This system supports up to 3 TB of DDR4 SDRAM memory using the DDR4-2666/PC4-21300 standard. It has 24 memory slots, allowing for flexible configurations with various DIMM sizes. Memory must be purchased separately and installed according to the platform's population guidelines for optimal performance.
What storage connectivity options are available?
The barebone includes a 12Gb/s SAS controller that supports RAID configurations. This interface is ideal for connecting SAS or SATA hard drives and SSDs. With 26 expansion bays, you can install multiple drives for high-capacity storage arrays, making it suitable for applications requiring fast data access and redundancy.
What networking features does this server chassis offer?
It provides both 10 Gigabit Ethernet and Gigabit Ethernet ports, enabling high-speed network connectivity for data-intensive applications. The 10GbE ports are optimized for backbone connections in data centers, while Gigabit Ethernet offers compatibility with standard network infrastructure. Additional network cards can be installed in expansion slots if needed.
Is this system rack-mountable, and what are its dimensions?
Yes, it is a 2U rack-mountable chassis designed for standard 19-inch server racks. The dimensions are 3.43 inches in height (2U), 18.96 inches in width, and 30.18 inches in depth. This compact form factor maximizes rack space efficiency while providing room for components and cooling.
What power supply requirements does this barebone have?
The system accepts input voltages of 120V AC or 230V AC, making it suitable for use in North America and international regions with different power standards. Power supplies are typically included or must be selected based on the configuration, ensuring adequate wattage for installed processors, memory, drives, and expansion cards.
