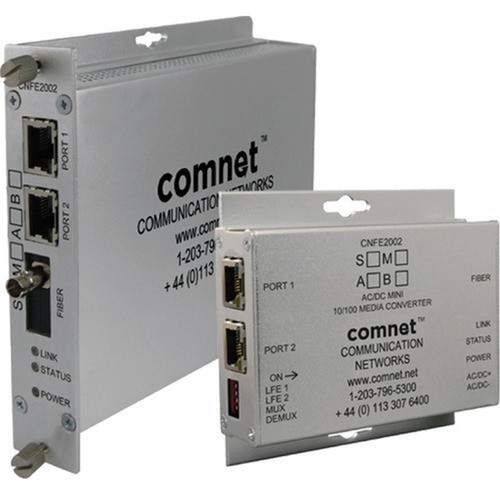

ComNet CNFE2002M1A/M 2-Channel 10/100 Mbps Ethernet Media Converter - 2x RJ-45 - 1x ST Simplex - Multi-mode 1310/1550nm - 3 km
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This media converter operates on Fast Ethernet technology (10/100Base-TX), delivering data transfer rates up to 100 Mbps over twisted pair cable. It supports both optical fiber and twisted pair media, with multi-mode fiber compatibility for wavelengths of 1310 nm and 1550 nm.
The unit features a total of three ports: two RJ-45 network ports for copper connections and one ST simplex port for fiber optic links. Power is supplied via an included AC adapter, ensuring stable operation in various network setups.
This section brings together practical product details such as Total Number of Ports, Network (RJ-45), Number of Network (RJ-45) Ports, Media Type Supported, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Key Product Advantages
The ComNet CNFE2002M1A/M media converter offers several advantages for network expansion and fiber integration. Its dual-channel design allows simultaneous conversion for multiple connections, enhancing network flexibility without sacrificing performance.
Extended Distance Coverage
Supports optical fiber cable to span longer distances up to 3 km, providing excellent data transmission rates between networks and devices where copper cabling is impractical.
- 3 km maximum distance
- Fiber optic reliability
- Reduced signal degradation
Network Expansion Capability
Attach multiple devices together or expand the number of devices connected to your existing network by using this 3-port transceiver/media converter.
- Two RJ-45 ports for device connections
- Single ST port for fiber uplink
- Simplified network scaling
Deployment / Use Cases
This media converter is ideal for environments requiring extended network reach beyond typical copper limitations. It effectively bridges fiber backbone segments with copper-based edge devices, making it suitable for campus networks, industrial settings, and surveillance systems.
Common deployment scenarios include connecting remote buildings via fiber while maintaining copper connectivity for local devices, integrating fiber optic security cameras into existing Ethernet networks, and extending network segments in manufacturing or warehouse facilities where electromagnetic interference is a concern.
Building-to-Building Connectivity
Use this converter to connect network segments between separate buildings using fiber optic cable for distances up to 3 km, while maintaining copper ports for local device connections.
Industrial Network Integration
Deploy in manufacturing environments where fiber optic cable provides immunity to electrical noise, converting to copper Ethernet for PLCs, sensors, and control devices.
Physical Profile
The converter features a compact design measuring 1.10" (27.94 mm) in height, 3.70" (93.98 mm) in width, and 4.10" (104.14 mm) in depth. This small footprint allows for flexible placement on desktops, in network racks, or alongside other equipment without consuming excessive space.
The physical profile is practical for deployment planning because the dimensions and weight are clearly defined: 1.10" (27.94 mm), 3.70" (93.98 mm), 4.10" (104.14 mm). This helps confirm rack, shelf, desk, or cabinet fit before installation.
- Width
- 3.70" (93.98 mm)
- Depth
- 4.10" (104.14 mm)
- Height
- 1.10" (27.94 mm)
- Length
- 1310 nm,1550 nm
What's in the Box
The package includes the ComNet 2 Channel 10/100 Mbps Ethernet 1310/1550nm media converter and a DC plug-in power supply for immediate deployment.
Highlights
- Converts between fiber optic and copper Ethernet media
- Supports multi-mode fiber with 1310 nm and 1550 nm wavelengths
- Extends network distances up to 3 km (1.86 miles)
- Features two RJ-45 ports and one ST simplex port
- Provides Fast Ethernet performance up to 100 Mbps
- Powered by included AC adapter
- Compact design for flexible placement
- Lifetime warranty for long-term reliability
- Environmentally friendly construction
- Manufactured in the United States
Specifications
| Specifications | |
|---|---|
| Manufacturer | ACRE |
| Manufacturer Part Number | CNFE2002M1A/M |
| Brand Name | ComNet |
| Product Series | CNFE200(X)POE(M,S)(1,2)[HO][/M] |
| Product Name | 2 Channel 10/100 Mbps Ethernet 1310/1550nm |
| Product Type | Transceiver/Media Converter |
| Interfaces/Ports | |
| Total Number of Ports | 3 |
| Network (RJ-45) | Yes |
| Number of Network (RJ-45) Ports | 2 |
| Number of ST Ports | 1 |
| ST Port Type | Simplex |
| Media & Performance | |
| Media Type Supported | Optical Fiber,Twisted Pair |
| Fiber Mode Supported | Multi-mode |
| Fiber Optic Cable Wavelength | 1310 nm,1550 nm |
| Maximum Distance Supported | 3 km (1.86 Mile) |
| Network & Communication | |
| Ethernet Technology | Fast Ethernet |
| Network Technology | 10/100Base-TX |
| Power Description | |
| Power Source | AC Adapter |
| Physical Characteristics | |
| Height | 1.10" (27.94 mm) |
| Width | 3.70" (93.98 mm) |
| Depth | 4.10" (104.14 mm) |
| Miscellaneous | |
| Package Contents | 2 Channel 10/100 Mbps Ethernet 1310/1550nm DC Plug-in Power Supply |
| Environmentally Friendly | Yes |
| Country of Origin | United States |
| Warranty | |
| Limited Warranty | Lifetime |
FAQ
What media types does this ComNet converter support?
This media converter supports both optical fiber and twisted pair copper cable. It converts signals between these two media types, allowing you to integrate fiber optic segments into existing copper-based networks or extend network reach using fiber cabling.
What is the maximum distance supported by this converter?
The converter supports distances up to 3 km (approximately 1.86 miles) when using optical fiber cable. This extended reach makes it suitable for connecting network segments between buildings or across large facilities where copper Ethernet distance limitations would be exceeded.
What type of fiber optic cable is compatible with this converter?
This converter is compatible with multi-mode fiber optic cable operating at wavelengths of 1310 nm and 1550 nm. It features an ST simplex port for fiber connections, which is a common connector type for multi-mode fiber installations in enterprise and industrial environments.
How many devices can I connect to this media converter?
The converter has three total ports: two RJ-45 Ethernet ports for copper connections and one ST simplex port for fiber. You can connect up to two copper-based devices directly to the RJ-45 ports while using the ST port for the fiber uplink connection to another network segment or device.
What power source does this converter require?
The converter is powered by an AC adapter that is included in the package. This plug-in power supply provides stable operation without requiring specialized power infrastructure, making deployment straightforward in various environments from offices to industrial settings.
What is the warranty coverage for this ComNet product?
This ComNet media converter comes with a lifetime limited warranty. This extensive warranty coverage provides long-term assurance of product reliability and support, which is particularly valuable for critical network infrastructure components that may be deployed in demanding environments.
