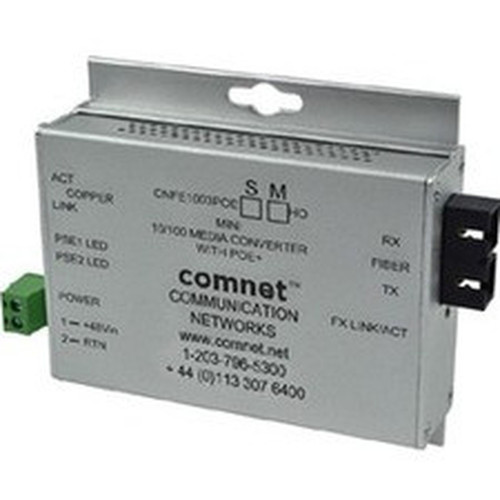

ComNet CNFE1003POEMHO/M Industrially Hardened 100Mbps Media Converter with 48V PoE+ - 1x RJ-45 PoE+ - 2x SC Fiber Ports - Rail-Mountable
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This media converter operates at Fast Ethernet speeds with a maximum data transfer rate of 100Mbps, supporting both 10/100Base-TX over twisted pair and 100Base-FX over fiber optic connections. The device features three total ports: one PoE+ RJ-45 port that delivers 48V power to connected devices and two SC fiber ports for multi-mode fiber connections.
The conversion capability enables network segments to extend beyond the 100-meter limitation of standard copper Ethernet by utilizing fiber optic cabling, which supports much longer distances without signal degradation. The industrial hardening ensures reliable operation in environments with temperature fluctuations, vibration, or electrical interference that might affect standard networking equipment.
Key Product Advantages
This media converter combines fiber optic distance extension with Power over Ethernet capabilities in a single industrially hardened package. The 48V PoE+ output allows you to power remote devices like IP cameras, wireless access points, or VoIP phones while extending their network connection via fiber optic cabling.
Industrial Durability
Designed for harsh environments with industrial-grade components that withstand temperature variations, vibration, and electrical noise.
- Rail-mountable for secure installation
- Compact 1" height profile
- Suitable for control cabinets and industrial racks
Media Conversion Flexibility
Converts between twisted pair copper and multi-mode fiber optic media, enabling network extension beyond copper distance limitations.
- Supports both optical fiber and twisted pair
- Two SC ports for fiber connections
- One RJ-45 port with PoE+ capability
Deployment / Use Cases
The CNFE1003POEMHO/M media converter is ideal for industrial automation, security surveillance, and telecommunications applications where network extension and device powering are required in challenging environments. Its compact rail-mount design makes it particularly suitable for installation in control panels, manufacturing facilities, or outdoor enclosures.
Common deployment scenarios include extending network connections to remote security cameras in parking lots or perimeter fencing, connecting industrial sensors and controllers in manufacturing plants, or providing network access to wireless access points in warehouses or large facilities. The PoE+ capability eliminates the need for separate power supplies at remote locations, simplifying installation and reducing infrastructure costs.
Industrial Automation Networks
Extend Ethernet connections to PLCs, HMIs, and industrial controllers across manufacturing floors while providing reliable operation in electrically noisy environments.
Security and Surveillance
Connect remote IP cameras with both data and power over extended distances using fiber optic backbone connections for campus-wide surveillance systems.
Physical Profile
The media converter features a compact industrial design measuring 1" (25.40 mm) in height, 3.70" (93.98 mm) in width, and 4" (101.60 mm) in depth. The rail-mountable form factor allows for secure installation on standard DIN rails commonly found in industrial control cabinets and telecommunications racks. This mounting method provides vibration resistance and organized cable management in space-constrained environments.
- Width
- 3.70" (93.98 mm)
- Depth
- 4" (101.60 mm)
- Height
- 1" (25.40 mm)
What's in the Box
The package includes everything needed for immediate deployment of the media converter in your network environment.
Highlights
- Converts 100Mbps Fast Ethernet between twisted pair and multi-mode fiber optic media
- Provides 48V PoE+ power through one RJ-45 port to connected devices
- Features two SC fiber ports for multi-mode fiber connections
- Rail-mountable industrial design for secure installation in control cabinets
- Compact form factor measuring 1"H × 3.70"W × 4"D
- Supports 10/100Base-TX and 100Base-FX network standards
- Industrially hardened construction for reliable operation in demanding environments
- Includes external power supply for immediate deployment
Specifications
| Specifications | |
|---|---|
| Manufacturer | ACRE |
| Manufacturer Part Number | CNFE1003POEMHO/M |
| Brand Name | ComNet |
| Product Series | CNFE100(X)POE/M |
| Product Model | CNFE1003POEMHO/M |
| Product Name | Industrially Hardened 100Mbps Media Converter with 48V POE, Mini |
| Product Type | Transceiver/Media Converter |
| Interfaces/Ports | |
| Total Number of Ports | 3 |
| Network (RJ-45) | Yes |
| DVI | No |
| USB | No |
| Management Port | No |
| Number of PoE+ (RJ-45) Ports | 1 |
| Number of SC Ports | 2 |
| Media & Performance | |
| Media Type Supported | Optical Fiber,Twisted Pair |
| Fiber Mode Supported | Multi-mode |
| Network & Communication | |
| Ethernet Technology | Fast Ethernet |
| Network Technology | 10/100Base-TX,100Base-FX |
| Power Description | |
| Power Source | Power Supply |
| Physical Characteristics | |
| Form Factor | Rail-mountable |
| Height | 1" (25.40 mm) |
| Width | 3.70" (93.98 mm) |
| Depth | 4" (101.60 mm) |
| Miscellaneous | |
| Package Contents | Industrially Hardened 100Mbps Media Converter with 48V POE, Mini Power Supply |
| Environmentally Friendly | Yes |
| Country of Origin | United States |
| Warranty | |
| Limited Warranty | Lifetime |
FAQ
What types of media does this converter support?
The ComNet CNFE1003POEMHO/M media converter supports both optical fiber and twisted pair copper cabling. It specifically works with multi-mode fiber optic cables using SC connectors on the fiber side and standard Category 5e or better Ethernet cables with RJ-45 connectors on the copper side. This dual-media support allows you to extend network connections beyond the 100-meter limitation of copper Ethernet by utilizing fiber optic cabling for longer distances.
What is the maximum data transfer rate?
This media converter operates at Fast Ethernet speeds with a maximum data transfer rate of 100Mbps. It supports both 10Base-T and 100Base-TX standards over twisted pair copper connections and 100Base-FX standard over fiber optic connections. The consistent 100Mbps throughput ensures reliable data transmission for industrial control systems, security video streams, and general network traffic between copper and fiber network segments.
How many devices can receive PoE power from this converter?
The media converter includes one PoE+ (Power over Ethernet Plus) RJ-45 port that can deliver 48V power to a single connected device. This port follows IEEE 802.3at standards and can power compatible devices such as IP cameras, wireless access points, VoIP phones, or industrial sensors. The PoE+ capability eliminates the need for separate power supplies at remote locations, simplifying installation when extending network connections via fiber optic cabling.
What mounting options are available?
This media converter features a rail-mountable form factor designed for installation on standard DIN rails commonly found in industrial control cabinets, telecommunications racks, and electrical enclosures. The compact design measures just 1 inch in height, allowing efficient use of space in crowded cabinets. The rail mounting provides secure attachment that resists vibration and movement in industrial environments while facilitating organized cable management.
What fiber connector type does this converter use?
The ComNet CNFE1003POEMHO/M media converter uses SC connectors for its fiber optic connections. It includes two SC ports specifically designed for multi-mode fiber optic cables. SC connectors provide reliable, push-pull coupling that ensures secure connections in industrial environments. The dual SC ports allow for fiber network integration in various topologies, supporting both simplex and duplex fiber configurations depending on your network design requirements.
What is the warranty coverage for this product?
ComNet provides a lifetime limited warranty for the CNFE1003POEMHO/M industrially hardened media converter. This warranty covers defects in materials and workmanship for the life of the product when used under normal conditions and according to manufacturer specifications. The product is manufactured in the United States and built with industrial-grade components designed for long-term reliability in demanding networking environments.
