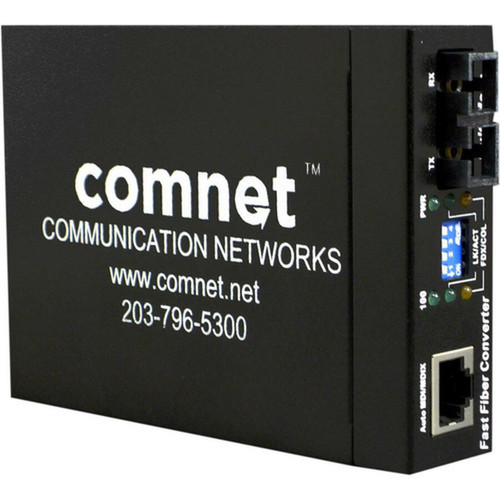

ComNet CWFE2SCM2 ValueLine Media Converter - 1 x RJ-45 to 1 x SC Fiber - 10/100Base-TX to 100Base-FX - 3 km - External
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This media converter operates with 10/100Base-TX technology on the copper side, delivering data transfer rates up to 100 Mbps over twisted pair, and 100Base-FX on the fiber side for reliable optical transmission. It supports a maximum distance of 3 km, enabling network extension across buildings or campuses without signal degradation.
The converter's external design includes a dedicated AC-DC power adapter for flexible placement, and its compact dimensions of 1" height, 4.70" width, and 3.30" depth ensure it fits easily on desktops or in network closets. Environmentally friendly construction and a 5-year limited warranty provide added reliability for long-term use.
Key Product Advantages
The CWFE2SCM2 media converter offers practical benefits for network expansion, combining ease of use with robust performance. Its external form factor allows quick deployment without internal hardware modifications, reducing installation time and complexity.
These strengths make the product easier to deploy and manage in real environments, especially where reliability, usability, and day-to-day operational continuity matter. Notable benefits include 3 km Distance Support, External Installation, SC Fiber Connectivity, 10/100Base-TX Compatibility, Compact Footprint.
Deployment / Use Cases
This media converter is well-suited for extending Ethernet networks over fiber optic cabling in scenarios where copper distances are insufficient. Common applications include connecting network segments between separate buildings, linking remote offices within a campus, or integrating fiber backbones into existing copper-based infrastructure.
In industrial or commercial settings, the converter can bridge equipment in harsh environments where fiber's immunity to electromagnetic interference is advantageous. Its external design makes it adaptable for temporary setups or locations where rack mounting is not feasible, providing a flexible solution for diverse networking needs.
Building-to-Building Connectivity
Extend network reach across campus or industrial sites by converting copper to fiber for reliable long-distance links up to 3 km.
- Eliminates copper distance limitations
- Supports multimode fiber standards
- External placement for easy access
Network Infrastructure Upgrades
Integrate fiber optic segments into existing copper networks without replacing entire cabling systems, enabling cost-effective upgrades.
- Backward compatible with 10/100Base-TX
- Simplifies migration to fiber
- Reduces installation downtime
Physical Profile
The converter's external form factor measures 1" in height, 4.70" in width, and 3.30" in depth, offering a compact footprint for desktop or shelf placement. Its design prioritizes easy access and ventilation, with no internal mounting required, making it suitable for environments where space is limited or frequent adjustments are needed.
- Width
- 4.70" (119.38 mm)
- Depth
- 3.30" (83.82 mm)
- Height
- 1" (25.40 mm)
What's in the Box
The package includes all necessary components for immediate deployment.
Highlights
- Converts 10/100Base-TX copper Ethernet to 100Base-FX fiber optic signals.
- Supports distances up to 3 kilometers for extended network reach.
- Features one RJ-45 port and one SC port for easy connectivity.
- External form factor eliminates internal installation hassles.
- Compatible with 62.5/125 µm and 50/125 µm multimode fiber cables.
- Includes AC-DC power adapter for flexible power sourcing.
- Compact dimensions of 1" H x 4.70" W x 3.30" D for space-efficient placement.
- Backed by a 5-year limited warranty for reliable performance.
- Environmentally friendly construction meets sustainability standards.
- Ideal for building-to-building links or network infrastructure upgrades.
Specifications
| Specifications | |
|---|---|
| Manufacturer | ACRE |
| Manufacturer Part Number | CWFE2SCM2 |
| Brand Name | ComNet |
| Product Line | ValueLine |
| Product Model | CWFE2SCM2 |
| Product Name | ValueLine CWFE2SCM2 Media Converter |
| Product Type | Transceiver/Media Converter |
| Interfaces/Ports | |
| Total Number of Ports | 2 |
| Network (RJ-45) | Yes |
| Number of Network (RJ-45) Ports | 1 |
| Number of SC Ports | 1 |
| Media & Performance | |
| Maximum Distance Supported | 3 km |
| Fiber Optic Cable Core/Cladding Specification | 62.5/125 µm,50/125 µm |
| Network & Communication | |
| Network Technology | 10/100Base-TX,100Base-FX |
| Physical Characteristics | |
| Form Factor | External |
| Height | 1" (25.40 mm) |
| Width | 4.70" (119.38 mm) |
| Depth | 3.30" (83.82 mm) |
| Miscellaneous | |
| Package Contents | ValueLine CWFE2SCM2 Media Converter AC-DC Power Adapter User Guide |
| Environmentally Friendly | Yes |
| Warranty | |
| Limited Warranty | 5 Year |
FAQ
What does this media converter do?
The ComNet CWFE2SCM2 media converter transforms 10/100Base-TX Ethernet signals from copper twisted pair cabling into 100Base-FX fiber optic signals. This allows network extension over longer distances—up to 3 km—while maintaining data integrity, making it useful for connecting separate buildings or expanding network backbones.
What types of fiber cables are compatible?
This converter supports multimode fiber optic cables with core/cladding specifications of 62.5/125 µm or 50/125 µm. It uses SC connectors for fiber connectivity, ensuring compatibility with standard multimode infrastructure commonly found in enterprise and industrial networks.
How is this media converter powered?
The converter is powered by an included AC-DC power adapter, which plugs into standard electrical outlets. This external power method provides flexibility in placement and eliminates the need for internal power supplies, simplifying installation in various environments.
What is the maximum data transfer rate?
On the copper side, the converter supports 10/100Base-TX technology, delivering data transfer rates up to 100 Mbps over twisted pair. On the fiber side, it uses 100Base-FX for optical transmission, maintaining consistent performance across the supported 3 km distance.
