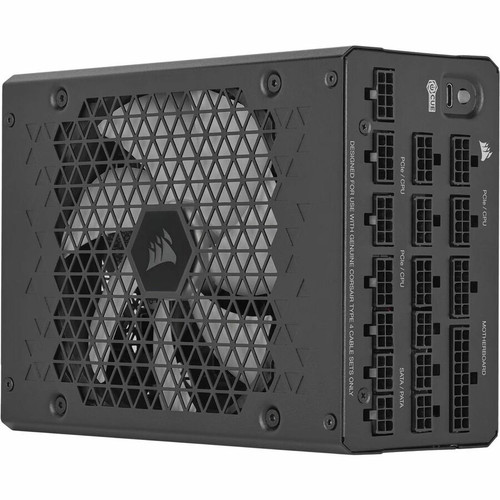

Corsair HXi RPS0202 1200W Power Supply - Internal, ATX - 120 V, 230 V Input - 3.3 V, 5 V, 12 V, 5 V SB Output - 1.20 kW - PCI Express (CP-9020307-NA)
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
- HXi RPS0202 1200W Power Supply
- Mounting Screws
- Power Cord
- Cable Ties
Specification Compliance: ATX 3.1,ATX12V v3.1
Efficiency: 90%
Number of Fans: 1
Fan Bearing Type: Fluid Dynamic Bearing
Fan Diameter: 140 mm (5.51")
Modular: Yes
Modular Type: Fully Modular
NVIDIA SLI Supported: Yes
Features: Low Noise
MTBF: 100000 Hour
Input Voltage: 120 V,230 V
Output Voltage: 3.3 V,5 V,12 V,5 V SB
Output Voltage Detail: 3.3 V @ 20 A,5 V @ 20 A,5 V SB @ 3 A,12 V @ 100 A
Output Current: 20 A,100 A,3 A
Output Power: 1.20 kW
Number of SATA Power Connectors: 8
PCI Express Connector: Yes
PCI Express Version: 5.1
Number of (6+2 pin) PCI Express Power Connectors: 5
Number of (4+4 pin) CPU Power Connectors: 2
Form Factor: Internal,ATX
Package Contents:
Energy Efficiency Certification: 80 Plus Platinum
Limited Warranty: 10 Year
[custom-specifications]
| Specifications | |
| Manufacturer | Corsair |
| Manufacturer Part Number | CP-9020307-NA |
| Manufacturer Website Address | http://www.corsair.com |
| Brand Name | Corsair |
| Product Series | HXi |
| Product Model | RPS0202 |
| Product Name | HXi RPS0202 1200W Power Supply |
| Product Type | Power Supply |
| Technical Information | |
| Specification Compliance | ATX 3.1,ATX12V v3.1 |
| Efficiency | 90% |
| Number of Fans | 1 |
| Fan Bearing Type | Fluid Dynamic Bearing |
| Fan Diameter | 140 mm (5.51") |
| Modular | Yes |
| Modular Type | Fully Modular |
| NVIDIA SLI Supported | Yes |
| Features | Low Noise |
| Reliability | |
| MTBF | 100000 Hour |
| Power Description | |
| Input Voltage | 120 V,230 V |
| Output Voltage | 3.3 V,5 V,12 V,5 V SB |
| Output Voltage Detail | 3.3 V @ 20 A,5 V @ 20 A,5 V SB @ 3 A,12 V @ 100 A |
| Output Current | 20 A,100 A,3 A |
| Output Power | 1.20 kW |
| Interfaces/Ports | |
| Number of SATA Power Connectors | 8 |
| PCI Express Connector | Yes |
| PCI Express Version | 5.1 |
| Number of (6+2 pin) PCI Express Power Connectors | 5 |
| Number of (4+4 pin) CPU Power Connectors | 2 |
| Physical Characteristics | |
| Form Factor | Internal,ATX |
| Miscellaneous | |
| Package Contents |
|
| Energy Efficiency Certification | 80 Plus Platinum |
| Warranty | |
| Limited Warranty | 10 Year |
[/custom-specifications]
