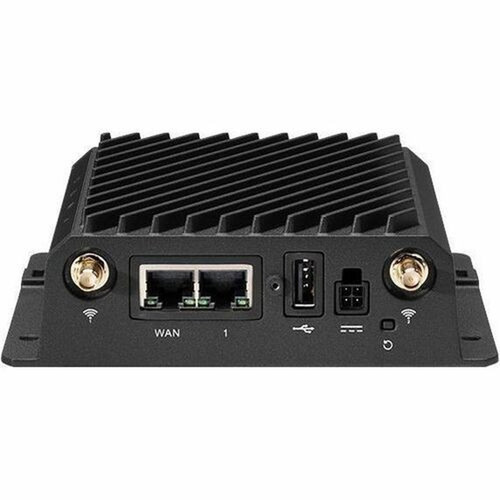

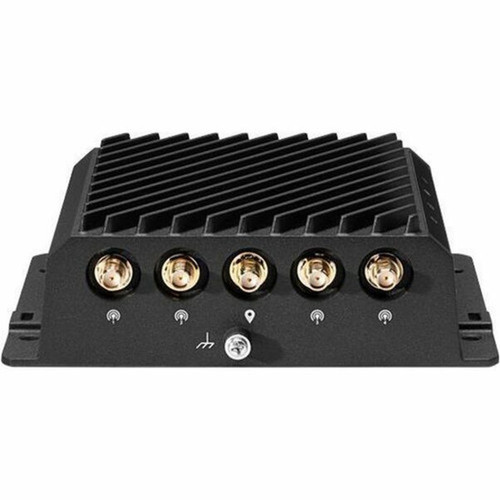

CradlePoint MB03-R980-5GD-A R980 Wi-Fi 6 Dual-Band Modem/Wireless Router - 5G/LTE Cellular - Dual SIM - Gigabit Ethernet - DIN Rail Mountable
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This router features a dual-core processor and 921 MB of standard memory to handle demanding network traffic. MU-MIMO technology improves performance in multi-device environments by allowing simultaneous data transmission.
Cellular connectivity spans a comprehensive range of bands, including LTE 2100, 1900, 1800, 1700, 850, 2600, 900, 700, 800, 2300, 1500, 600, 2000, 2500, 3500, 3700, and 5200 MHz. It supports 5G NR, LTE, WCDMA, UMTS, HSPA+, and LTE Advanced Pro technologies for broad compatibility.
Relevant factors for this section include Wi-Fi Generation, Network Band, Processor Core, Broadband Transmission Technology. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
A strong technical summary explains how the product's interfaces, hardware profile, and operating characteristics work together in real deployment. Buyers often need this context to confirm compatibility with existing devices, expected performance in daily use, and whether installation will be straightforward for IT staff or end users.
Key Product Advantages
The R980 combines robust wireless performance with reliable cellular backup, making it ideal for locations where traditional broadband is unstable or unavailable. Its dual SIM capability enhances redundancy, while VPN support secures remote connections.
These strengths make the product easier to deploy and manage in real environments, especially where reliability, usability, and day-to-day operational continuity matter. Notable benefits include Cellular Failover, Enterprise Wi-Fi 6.
Cellular Failover
Automatically switches to 5G/LTE when the primary Ethernet connection fails, ensuring uninterrupted network access.
- Supports 5G NR and LTE Advanced Pro
- Compatible with 17 LTE bands
Enterprise Wi-Fi 6
Delivers faster speeds, increased capacity, and better performance in dense environments compared to previous Wi-Fi generations.
- Dual-band operation
- MU-MIMO technology
Deployment / Use Cases
This router is suited for retail stores, branch offices, and industrial sites that require dependable internet with cellular backup. Its DIN rail mounting allows integration into existing control panels or network racks.
Use cases include point-of-sale systems, digital signage, and remote monitoring where network downtime is costly. The VPN support makes it suitable for secure connections to corporate networks, while the USB port can connect storage or printers.
Relevant factors for this section include Wi-Fi Generation, Network Band, Processor Core, Broadband Transmission Technology. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Retail & Hospitality
Provides reliable connectivity for payment processing, inventory management, and guest Wi-Fi, with cellular failover during outages.
Industrial IoT
Supports sensors and automation equipment in manufacturing or logistics, with rugged DIN rail mounting for harsh environments.
Physical Profile
The compact design measures 1.61" (41 mm) in height, 5.26" (133.60 mm) in width, and 4.78" (121.50 mm) in depth, with an approximate weight of 1.32 lb (601 g). DIN rail mounting simplifies installation in standard industrial enclosures, saving space and improving organization.
The physical profile is practical for deployment planning because the dimensions and weight are clearly defined: 1.61" (41 mm), 5.26" (133.60 mm), 4.78" (121.50 mm), 1.32 lb (601 g). This helps confirm rack, shelf, desk, or cabinet fit before installation.
- Width
- 5.26" (133.60 mm)
- Depth
- 4.78" (121.50 mm)
- Height
- 1.61" (41 mm)
- Weight
- 1.32 lb (601 g)
Highlights
- Wi-Fi 6 dual-band router with IEEE 802.11k/r/v/ax support
- Integrated 5G and LTE cellular connectivity for failover
- Dual SIM slots supporting Nano/eSim cards
- Gigabit Ethernet port for high-speed wired networking
- Built-in USB port for peripheral connectivity
- VPN support for secure remote access
- DIN rail mountable form factor for industrial installations
- Dual-core processor with 921 MB memory for performance
- MU-MIMO technology for efficient multi-device handling
- Flash memory capacity of 8 GB for firmware and configurations
Specifications
| Specifications | |
|---|---|
| Manufacturer | ERICSSON |
| Manufacturer Part Number | MB03-R980-5GD-A |
| Brand Name | CradlePoint |
| Product Series | R980 |
| Product Name | R980 Modem/Wireless Router |
| Product Type | Modem/Wireless Router |
| Technical Information | |
| Wi-Fi Generation | Wi-Fi 6 |
| Network Band | Dual Band |
| Processor Core | Dual-core (2 Core) |
| Standard Memory | 921 MB |
| MU-MIMO Technology | Yes |
| Wireless Specifications | |
| Broadband Transmission Technology | Ethernet,Cellular |
| Wireless LAN Standard | IEEE 802.11k/r/v/ax |
| ISM Band | Yes |
| UNII Band | Yes |
| ISM Maximum Frequency | 2.40 GHz |
| UNII Maximum Frequency | 5 GHz |
| Cellular Generation | 5G |
| Cellular Network Supported | LTE 2100,LTE 1900,LTE 1800,LTE 1700,LTE 850,LTE 2600,LTE 900,LTE 700,LTE 800,LTE 2300,LTE 1500,LTE 600,LTE 2000,LTE 2500,LTE 3500,LTE 3700,LTE 5200 |
| Cellular Data Connectivity Technology | 5G NR,LTE,WCDMA,UMTS,HSPA+,LTE Advanced Pro |
| Total Wireless Transmission Speed | 153.60 MB/s |
| Interfaces/Ports | |
| Total Number of Network Ports | 2 |
| Number of Network (RJ-45) Ports | 1 |
| USB | Yes |
| Number of Broadband (RJ-45) Ports | 1 |
| Network & Communication | |
| Ethernet Technology | Gigabit Ethernet |
| VPN Supported | Yes |
| Multi-SIM Supported | Yes |
| Number of SIM Card Supported | 2 |
| SIM Size Supported | Nano/eSim |
| Storage | |
| Flash Memory Capacity | 8 GB |
| Physical Characteristics | |
| Form Factor | DIN Rail Mountable |
| Height | 1.61" (41 mm) |
| Width | 5.26" (133.60 mm) |
| Depth | 4.78" (121.50 mm) |
| Weight (Approximate) | 1.32 lb (601 g) |
User Manual
FAQ
What Wi-Fi standard does this router support?
This router supports Wi-Fi 6 (IEEE 802.11k/r/v/ax), which provides faster speeds, improved capacity, and better performance in environments with many connected devices. It includes dual-band operation for flexibility across 2.4 GHz and 5 GHz frequencies.
Does it support cellular connectivity?
Yes, it features integrated 5G and LTE cellular connectivity, supporting technologies like 5G NR, LTE Advanced Pro, WCDMA, UMTS, and HSPA+. It is compatible with numerous LTE bands, including 2100, 1900, 1800, 1700, and others, for broad carrier support.
How many SIM cards can it hold?
It supports two SIM cards in Nano/eSim sizes, allowing for dual-carrier configurations. This enables failover between cellular networks to maintain connectivity if one carrier experiences issues, enhancing reliability.
What Ethernet speeds does it offer?
The router includes a Gigabit Ethernet port, providing wired network speeds up to 1 Gbps. This ensures fast connections for devices that require high bandwidth, such as servers or networked storage.
Is it suitable for industrial environments?
Yes, its DIN rail mountable form factor makes it ideal for industrial settings, allowing easy installation in control panels or network racks. The compact design and rugged build support use in manufacturing, logistics, or outdoor applications.
Does it support VPN for secure connections?
Yes, VPN support is included, enabling secure remote access to corporate networks or cloud services. This feature is essential for protecting data transmitted over public or cellular networks in business deployments.
