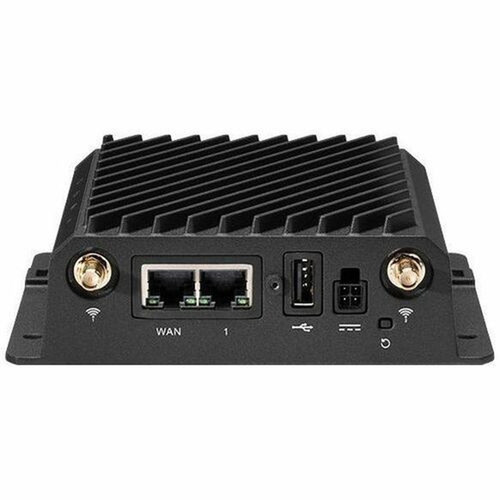

CradlePoint TC03-R980-5GD-A R980 5G/LTE Dual-SIM Wi-Fi 6 Modem/Wireless Router - DIN Rail Mountable
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
The R980 operates on Wi-Fi 6 (IEEE 802.11k/r/v/ax) across dual bands, with ISM frequencies up to 2.40 GHz and UNII frequencies up to 5 GHz, providing optimized wireless coverage and reduced interference. Cellular connectivity spans 5G NR and LTE Advanced Pro, supporting a comprehensive range of bands including LTE 2100, 1900, 1800, 1700, and many others for global compatibility.
Network management features include VPN support for secure remote access and multi-SIM capability with two Nano/eSim slots, enabling seamless carrier switching or redundancy. The device offers a total wireless transmission speed of 153.60 MB/s, suitable for bandwidth-intensive applications. Its 8 GB flash memory capacity stores firmware and configurations reliably.
Relevant factors for this section include Wi-Fi Generation, Network Band, Processor Core, Broadband Transmission Technology. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
This modem/wireless router stands out for its dual-SIM design and DIN rail mounting, making it ideal for fixed installations where space is limited and reliability is critical. The combination of 5G/LTE and Wi-Fi 6 ensures future-proof connectivity, while advanced features like MU-MIMO and VPN support cater to demanding enterprise environments.
Dual-SIM Flexibility
Supports two Nano/eSim cards for load balancing, failover, or using different carriers, enhancing network resilience and reducing downtime.
- Carrier redundancy
- Load balancing options
- Global band support
Industrial-Grade Mounting
DIN rail mountable form factor allows for secure installation in control panels, server racks, or industrial settings, saving space and simplifying deployment.
- Secure mounting
- Space-efficient design
- Ideal for harsh environments
Advanced Wireless Management
Wi-Fi 6 with IEEE 802.11k/r/v/ax standards improves roaming, network efficiency, and overall performance, supported by dual-band operation for optimized coverage.
- Better roaming
- Reduced interference
- High-density support
Deployment / Use Cases
The CradlePoint R980 is tailored for scenarios where traditional wired internet is unreliable, unavailable, or needs a cellular backup. Its compact, mountable design and robust feature set make it suitable for a variety of commercial and industrial applications.
Common use cases include retail stores requiring failover connectivity for point-of-sale systems, remote offices or construction sites with limited infrastructure, and transportation hubs needing continuous network access. The device also serves well in IoT deployments, such as connecting sensors or cameras in field locations, thanks to its cellular capabilities and durable form factor.
Retail & Hospitality
Provides reliable internet for POS systems, digital signage, and guest Wi-Fi, with cellular failover to prevent downtime during outages.
Industrial & Remote Sites
Ideal for monitoring equipment, SCADA systems, or temporary offices where wired connections are impractical, offering secure VPN access and mountable installation.
Physical Profile
The R980 features a compact, DIN rail mountable form factor measuring 1.61" (41 mm) in height, 5.26" (133.60 mm) in width, and 4.78" (121.50 mm) in depth, with an approximate weight of 1.32 lb (601 g). This design facilitates easy integration into standard industrial racks or enclosures, ensuring a secure and organized installation without occupying excessive space.
The physical profile is practical for deployment planning because the dimensions and weight are clearly defined: 1.61" (41 mm), 5.26" (133.60 mm), 4.78" (121.50 mm), 1.32 lb (601 g). This helps confirm rack, shelf, desk, or cabinet fit before installation.
- Width
- 5.26" (133.60 mm)
- Depth
- 4.78" (121.50 mm)
- Height
- 1.61" (41 mm)
- Weight
- 1.32 lb (601 g)
Highlights
- Wi-Fi 6 (IEEE 802.11k/r/v/ax) for advanced wireless performance and efficiency
- 5G and LTE cellular connectivity with support for numerous global bands
- Dual SIM slots (Nano/eSim) for carrier redundancy or load balancing
- DIN rail mountable form factor for secure industrial installations
- Gigabit Ethernet port for high-speed wired network connections
- VPN support to enable secure remote access and data protection
- MU-MIMO technology improves throughput in multi-device environments
- Dual-core processor and 921 MB memory for reliable operation
- USB port for connecting peripherals across the network
- 8 GB flash memory for firmware and configuration storage
Specifications
| Specifications | |
|---|---|
| Manufacturer | ERICSSON |
| Manufacturer Part Number | TC03-R980-5GD-A |
| Brand Name | CradlePoint |
| Product Series | R980 |
| Product Name | R980 Modem/Wireless Router |
| Product Type | Modem/Wireless Router |
| Technical Information | |
| Wi-Fi Generation | Wi-Fi 6 |
| Network Band | Dual Band |
| Processor Core | Dual-core (2 Core) |
| Standard Memory | 921 MB |
| MU-MIMO Technology | Yes |
| Wireless Specifications | |
| Broadband Transmission Technology | Ethernet,Cellular |
| Wireless LAN Standard | IEEE 802.11k/r/v/ax |
| ISM Band | Yes |
| UNII Band | Yes |
| ISM Maximum Frequency | 2.40 GHz |
| UNII Maximum Frequency | 5 GHz |
| Cellular Generation | 5G |
| Cellular Network Supported | LTE 2100,LTE 1900,LTE 1800,LTE 1700,LTE 850,LTE 2600,LTE 900,LTE 700,LTE 800,LTE 2300,LTE 1500,LTE 600,LTE 2000,LTE 2500,LTE 3500,LTE 3700,LTE 5200 |
| Cellular Data Connectivity Technology | 5G NR,LTE,WCDMA,UMTS,HSPA+,LTE Advanced Pro |
| Total Wireless Transmission Speed | 153.60 MB/s |
| Interfaces/Ports | |
| Total Number of Network Ports | 2 |
| Number of Network (RJ-45) Ports | 1 |
| USB | Yes |
| Number of Broadband (RJ-45) Ports | 1 |
| Network & Communication | |
| Ethernet Technology | Gigabit Ethernet |
| VPN Supported | Yes |
| Multi-SIM Supported | Yes |
| Number of SIM Card Supported | 2 |
| SIM Size Supported | Nano/eSim |
| Storage | |
| Flash Memory Capacity | 8 GB |
| Physical Characteristics | |
| Form Factor | DIN Rail Mountable |
| Height | 1.61" (41 mm) |
| Width | 5.26" (133.60 mm) |
| Depth | 4.78" (121.50 mm) |
| Weight (Approximate) | 1.32 lb (601 g) |
User Manual
FAQ
What Wi-Fi standard does this CradlePoint router support?
This router supports Wi-Fi 6, specifically the IEEE 802.11k/r/v/ax standard. This includes dual-band operation with ISM frequencies up to 2.40 GHz and UNII frequencies up to 5 GHz, enhancing network efficiency, roaming, and performance in crowded environments.
Does this device support 5G cellular connectivity?
Yes, the R980 supports 5G cellular connectivity along with LTE, WCDMA, UMTS, HSPA+, and LTE Advanced Pro. It is compatible with a wide range of cellular bands, including LTE 2100, 1900, 1800, 1700, and many others, ensuring reliable internet access in various regions.
How many SIM cards can this router accommodate?
This router supports two SIM cards, using Nano/eSim sizes. This dual-SIM capability allows for features like carrier failover, load balancing, or using different providers to maintain connectivity and reduce downtime in critical applications.
What mounting options are available for this router?
The R980 is designed for DIN rail mounting, making it suitable for industrial or commercial installations where space is limited. Its compact dimensions of 1.61" x 5.26" x 4.78" and approximate weight of 1.32 lb facilitate easy integration into control panels or server racks.
What wired connectivity options does this router offer?
It includes two network ports: one Gigabit Ethernet RJ-45 port for network connections and one broadband RJ-45 port. This provides fast wired backbone speeds and flexibility for connecting to modems or other network devices, with VPN support for secure communications.
Is this router suitable for high-density wireless environments?
Yes, with MU-MIMO technology and a dual-core processor, the R980 efficiently handles multiple simultaneous connections, making it suitable for high-density settings like offices or public spaces. Its total wireless transmission speed of 153.60 MB/s supports bandwidth-intensive applications.
