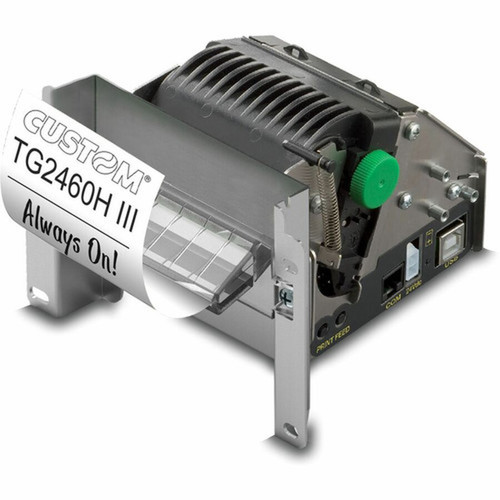

Custom 915CG050141300 TG2460HIII Direct Thermal Printer - Monochrome - 60mm Receipt/Ticket - 5. 51 in/s Speed - Serial/USB - Kiosk/Queue Management
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
The TG2460HIII employs direct thermal printing technology that eliminates the need for ink, toner, or ribbons, reducing consumable costs and maintenance requirements. The printer achieves 203 dpi resolution for crisp text and barcode printing, supporting industry-standard symbologies including UPC-A, UPC-E, EAN-8, EAN-13, Code 39, ITF, Code 128, Code 32, QR Code, Codabar, and Code 93.
Advanced media handling is facilitated by multiple sensors: paper presence, head temperature, paper jam, notch presence, paper near end, and paper end sensors. These ensure reliable paper feeding and prevent printing errors. The printer includes 1 MB of flash memory for firmware storage and supports Custom/POS and TGH language emulations for compatibility with various point-of-sale systems.
This section brings together practical product details such as Recommended Use, Print Color Capability, Maximum Mono Print Speed, Flash Memory, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Key Product Advantages
The TG2460HIII combines high-speed printing with exceptional reliability in a compact form factor. Its direct thermal technology eliminates consumable costs associated with traditional printing methods, while the integrated cutter provides automatic receipt separation for improved customer service efficiency.
Industrial-Grade Construction
Designed for continuous operation with a mean time between failures of 47.9 years and print head life of 50 kilometers.
- Durable print head
- Integrated cutter with 1 million cut lifespan
- Wide operating temperature range
Comprehensive Media Support
Handles both receipt and ticket media up to 60mm wide with precise sensor-controlled feeding.
- Multiple media sensors
- 3.1 mil media thickness support
- Reliable paper path design
Deployment / Use Cases
The TG2460HIII is specifically designed for integration into automated systems and self-service environments where reliable receipt and ticket printing is essential. Its compact dimensions and versatile connectivity options make it ideal for embedded applications where space is limited but performance cannot be compromised.
This printer excels in queue management systems, parking facilities, banking kiosks, gaming machines, and vending operations. The combination of serial and USB interfaces ensures compatibility with legacy and modern systems alike, while platform support for PC, SPARC, and Android enables deployment across diverse technology environments.
This section brings together practical product details such as Recommended Use, Print Color Capability, Maximum Mono Print Speed, Flash Memory, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Physical Profile
With dimensions of 3.19" (81 mm) height, 4.49" (114 mm) width, and 4.96" (126 mm) depth, the TG2460HIII occupies minimal space while delivering full-featured printing capability. The printer weighs approximately 1.32 pounds (600 grams), facilitating easy installation and integration into existing equipment enclosures or custom mounting solutions.
The physical profile is practical for deployment planning because the dimensions and weight are clearly defined: 3.19" (81 mm), 2.36" (60 mm), 4.96" (126 mm), 1.32 lb (600 g). This helps confirm rack, shelf, desk, or cabinet fit before installation.
- Width
- 2.36" (60 mm)
- Depth
- 4.96" (126 mm)
- Height
- 3.19" (81 mm)
- Weight
- 1.32 lb (600 g)
Highlights
- Direct thermal printing technology eliminates ink, toner, and ribbon requirements
- 5.51 in/s (140 mm/s) maximum print speed for high-volume applications
- 60mm maximum media width supports standard receipt and ticket formats
- Integrated cutter with 1 million cut lifespan for automatic receipt separation
- Serial and USB connectivity for flexible system integration
- 203 dpi resolution ensures crisp text and barcode printing
- Wide operating temperature range (68°F to 158°F) for diverse environments
- Multiple media sensors prevent paper jams and ensure reliable feeding
- Platform support for PC, SPARC, and Android systems
- Industrial-grade construction with 47.9 year MTBF rating
Specifications
| Specifications | |
|---|---|
| Manufacturer | Custom S.p.A |
| Manufacturer Part Number | 915CG050141300 |
| Brand Name | Custom |
| Product Model | TG2460HIII |
| Product Name | TG2460HIII 60mm ticket / receipt printer |
| Product Type | Direct Thermal Printer |
| Technical Information | |
| Recommended Use | Receipt Print |
| Print Color Capability | Monochrome |
| Maximum Mono Print Speed | 5.51 in/s (140 mm/s) |
| Maximum Print Resolution (dpi) | 203 |
| Barcode Symbology Supported | UPC-A,UPC-E,EAN-8,EAN-13,Code 39,ITF,Code 128,Code 32,QR Code,Codabar,Code 93 |
| Character Sets | PC437,PC860,PC850,PC863,PC865,PC858,PC866 |
| Application/Usage | Kiosk,Queue Management System,Parking,Banking,Gaming,Vending Machine |
| Memory | |
| Flash Memory | 1 MB |
| Interfaces/Ports | |
| Serial Port | Yes |
| USB | Yes |
| Cutter | |
| Cutter | Yes |
| Cutter Life | 1000000 Cuts |
| Media Types & Handling | |
| Media Type | Receipt,Ticket |
| Media Sensor | Paper Presence Sensor,Head Temperature Sensor,Paper Jam Sensor,Notch Presence Sensor,Paper Near End Sensor,Paper End Sensor |
| Media Thickness | 3.1 mil (0.080000 mm) |
| Maximum Label Width | 2.36" (60 mm) |
| Fonts & Emulation | |
| Language Emulation | Custom/POS,TGH |
| Reliability | |
| Mean Time Between Failures (MTBF) | 47.9 Year |
| Print Head Life | 50Km |
| Environmental Conditions | |
| Operating Temperature | 68°F (20°C) - 158°F (70°C) |
| Physical Characteristics | |
| Height | 3.19" (81 mm) |
| Width | 4.49" (114 mm) |
| Depth | 4.96" (126 mm) |
| Weight (Approximate) | 1.32 lb (600 g) |
| Miscellaneous | |
| Platform Supported | PC,SPARC,Android |
User Manual
FAQ
What type of printing technology does the TG2460HIII use?
The TG2460HIII employs direct thermal printing technology, which uses heat-sensitive paper without requiring ink, toner, or ribbons. This technology reduces consumable costs and maintenance while providing reliable monochrome output at speeds up to 5.51 inches per second (140 mm/s).
What media sizes does this printer support?
This printer supports receipt and ticket media up to 2.36 inches (60 mm) wide with a thickness of 3.1 mil (0.080000 mm). The media handling system includes multiple sensors for paper presence, head temperature, paper jam detection, notch presence, paper near end, and paper end monitoring to ensure reliable operation.
What connectivity options are available?
The TG2460HIII includes both serial port and USB connectivity, providing flexibility for integration with various systems. The printer supports PC, SPARC, and Android platforms, making it compatible with legacy point-of-sale systems as well as modern computing environments.
Does this printer include an automatic cutter?
Yes, the TG2460HIII features an integrated automatic cutter with a rated lifespan of 1,000,000 cuts. This allows for clean separation of receipts and tickets without manual intervention, improving operational efficiency in high-volume printing environments.
What barcode formats does the printer support?
The printer supports industry-standard barcode symbologies including UPC-A, UPC-E, EAN-8, EAN-13, Code 39, ITF, Code 128, Code 32, QR Code, Codabar, and Code 93. This comprehensive barcode support makes the printer suitable for retail, inventory, and tracking applications.
What is the expected lifespan of the print head?
The print head is rated for 50 kilometers of printing, and the overall mean time between failures (MTBF) is 47.9 years. These durability specifications make the TG2460HIII suitable for continuous operation in demanding environments such as kiosks, queue management systems, and vending machines.
What print, scan, copy, or multifunction capability is listed?
the specifications are intended to help buyers confirm fit, compatibility, and expected day-to-day operation. In practical terms, the best reading of this product comes from how its hardware, connectivity, and deployment details work together.
What duplex or duty-cycle detail is listed?
the specifications are intended to help buyers confirm fit, compatibility, and expected day-to-day operation. In practical terms, the best reading of this product comes from how its hardware, connectivity, and deployment details work together.
