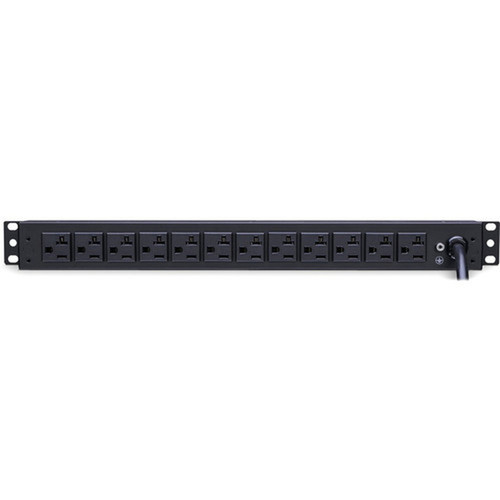

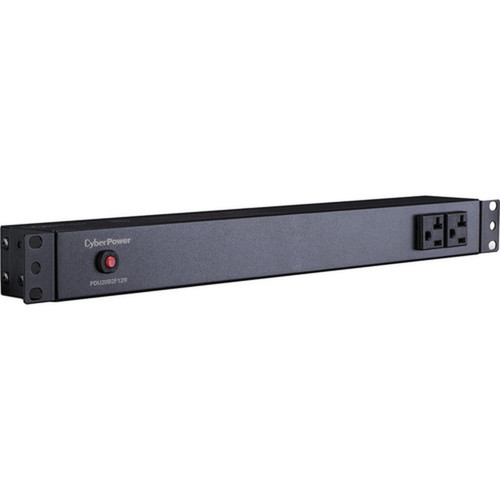

CyberPower PDU20B2F12R Basic 14-Outlet Vertical Rack PDU - NEMA 5-20P to 5-20R 120V AC 20A 1U Rackmount
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This basic PDU delivers consistent 120V AC power from input to output with no voltage conversion or conditioning. The unit features overload protection to prevent circuit damage from excessive current draw, providing a fundamental safety layer for connected devices.
The electrical design supports single-phase power distribution with a voltage range of 100-125V, accommodating typical utility power variations. The NEMA 5-20P plug connects to standard 20A outlets, while the 14 NEMA 5-20R receptacles accept equipment with matching connectors.
Relevant factors for this section include PDU Type, Plug/Connector Type, Receptacle Type, Input Voltage. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
A strong technical summary explains how the product's interfaces, hardware profile, and operating characteristics work together in real deployment. Buyers often need this context to confirm compatibility with existing devices, expected performance in daily use, and whether installation will be straightforward for IT staff or end users.
Key Product Advantages
The PDU20B2F12R offers essential power distribution with several practical benefits for rack deployment scenarios. Its vertical orientation and compact 1U profile make it ideal for space-constrained environments where horizontal PDUs would consume valuable equipment space.
Space-Efficient Design
The vertical 1U form factor occupies minimal rack depth while providing full front-to-back power distribution, leaving more room for servers, switches, and other rack-mounted equipment.
- 17.5" width fits standard racks
- 1.75" height uses minimal vertical space
- Vertical orientation preserves rack depth
Reliable Power Distribution
With 14 outlets and overload protection, this PDU delivers stable power to multiple devices while preventing circuit overload situations that could disrupt operations.
- 14 NEMA 5-20R outlets
- 20A capacity (derated to 16A)
- Overload protection circuitry
Deployment / Use Cases
This vertical rack PDU is specifically designed for data centers, server rooms, network closets, and telecommunications installations where efficient power distribution to multiple rack-mounted devices is required. The basic design makes it suitable for environments where simple, reliable power distribution takes priority over advanced monitoring or switching capabilities.
Common deployment scenarios include powering servers, network switches, storage arrays, and other rack-mounted equipment in commercial and enterprise IT environments. The vertical orientation is particularly valuable in full-height racks where preserving horizontal space for equipment is critical.
Data Center Power Distribution
Distribute power to multiple servers and networking equipment within a single rack while maintaining clean cable management and efficient space utilization.
- 14 outlets support multiple devices
- Vertical mounting saves horizontal space
- Standard NEMA connections ensure compatibility
Network Closet Installation
Provide reliable power to switches, routers, and other networking equipment in telecommunications and network infrastructure environments.
- 1U design fits standard network racks
- Overload protection safeguards equipment
- RoHS compliance meets environmental standards
Physical Profile
The PDU20B2F12R features a compact vertical design measuring 17.50" wide, 1.75" high, and 1.50" deep, occupying exactly 1U of rack space. The unit weighs approximately 4.56 pounds, making it lightweight yet durable for rack installation. The vertical orientation allows for efficient cable routing along the side of the rack, while the included cord retention tray helps manage power cables and prevent accidental disconnections.
- Width
- 17.50" (444.50 mm)
- Height
- 1U
- Weight
- 4.56 lb (2068.38 g)
- Length
- 1.50" (38.10 mm)
What's in the Box
This PDU ships complete with all necessary components for immediate installation and use in rack environments.
Highlights
- 14 NEMA 5-20R outlets for multiple device connections
- Vertical 1U rack-mountable design saves horizontal space
- 120V AC input and output with 20A capacity
- Overload protection prevents circuit damage
- NEMA 5-20P plug for standard 20A outlet connections
- Compact dimensions: 17.5"W x 1.75"H x 1.5"D
- RoHS compliant and environmentally friendly
- Lifetime limited warranty for long-term reliability
Specifications
| Specifications | |
|---|---|
| Manufacturer | CyberPower Systems, Inc |
| Manufacturer Part Number | PDU20B2F12R |
| Brand Name | CyberPower |
| Product Model | PDU20B2F12R |
| Product Name | PDU20B2F12R 100 - 125 VAC 20A Basic |
| Product Type | PDU |
| Technical Information | |
| PDU Type | Basic |
| Plug/Connector Type | NEMA 5-20P |
| Receptacle Type | NEMA 5-20R |
| Receptacle Detail | 14 x NEMA 5-20R |
| Protection Type | Overload Protection |
| Power Description | |
| Input Voltage | 120 V AC |
| Output Voltage | 120 V AC |
| Physical Characteristics | |
| Mounting Orientation | Vertical |
| Mount Type | Rack-mountable |
| Rack Height | 1U |
| Height | 1.75" (44.45 mm) |
| Width | 17.50" (444.50 mm) |
| Length | 1.50" (38.10 mm) |
| Weight (Approximate) | 4.56 lb (2068.38 g) |
| Miscellaneous | |
| Package Contents | Basic PDU20B2F12R 14-Outlets PDU Cord Retention Tray |
| Energy Star | No |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | Lifetime |
User Manual
FAQ
What type of outlets does this PDU have?
This CyberPower PDU features 14 NEMA 5-20R outlets, which are standard 20-amp receptacles commonly used for computer equipment, servers, and networking devices in North American installations. The outlets accept NEMA 5-20P plugs and provide 120V AC power to connected equipment.
What is the rack mounting configuration?
The PDU20B2F12R is designed for vertical rack mounting and occupies 1U of rack space. Its vertical orientation allows it to be mounted along the side of a standard 19-inch rack, preserving valuable horizontal space for servers and other equipment while providing convenient front-to-back power distribution.
What electrical protection does this PDU provide?
This basic PDU includes overload protection to prevent damage from excessive current draw. The protection circuitry monitors the electrical load and will interrupt power if the current exceeds safe operating levels, helping to protect both the PDU and connected equipment from potential damage due to circuit overloads.
What is the input voltage and amperage rating?
The PDU accepts 120V AC input power through its NEMA 5-20P plug and is rated for 20A operation (derated to 16A for continuous use). It operates within a voltage range of 100-125V and supports both 50Hz and 60Hz frequencies, making it compatible with standard North American power infrastructure.
What are the physical dimensions of this PDU?
The unit measures 17.50 inches wide, 1.75 inches high, and 1.50 inches deep, occupying exactly 1U of vertical rack space. These compact dimensions make it ideal for space-constrained rack environments while still providing 14 outlets for power distribution to multiple devices.
What warranty coverage does CyberPower provide?
CyberPower backs this PDU with a lifetime limited warranty, providing long-term protection against manufacturing defects and ensuring reliable performance throughout the product's service life. This warranty coverage demonstrates the manufacturer's confidence in the product's durability and reliability for continuous operation in rack environments.
