CyberPower CPS-1220RMS Rackbar Surge Protector - 12 Outlet NEMA 5-20R - 1800 J Surge Suppression - 15 ft Cord - 1U Rack-Mountable
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
The CPS-1220RMS operates within a temperature range of 32°F to 95°F (0°C to 35°C) and stores safely from 5°F to 113°F (-15°C to 45°C), making it suitable for standard indoor environments. Its design includes overload protection to prevent circuit damage, and it complies with RoHS environmental standards.
With a clamping voltage of 800V, this surge protector effectively limits voltage spikes to safe levels. The 20 A circuit breaker supports high-power devices, ensuring stable operation for network infrastructure.
Relevant factors for this section include Plug/Connector Type, Receptacles, Features, Input Voltage. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
A strong technical summary explains how the product's interfaces, hardware profile, and operating characteristics work together in real deployment. Buyers often need this context to confirm compatibility with existing devices, expected performance in daily use, and whether installation will be straightforward for IT staff or end users.
Key Product Advantages
This surge protector combines high outlet density with reliable safety features, offering a practical solution for power management in networked environments. Its 3-year limited warranty provides added assurance for long-term deployment.
High-Capacity Surge Protection
The 1800 J surge energy rating and 90 kA maximum surge current provide robust defense against electrical disturbances, protecting sensitive network equipment from damage.
- 1800 J surge suppression
- 90 kA surge current
- 800V clamping voltage
Rack-Optimized Design
As a 1U rack-mountable unit, it integrates seamlessly into standard 19-inch racks, saving space and organizing power distribution in data centers or server rooms.
- 1U form factor
- Metal construction
- Black finish
Deployment / Use Cases
The CPS-1220RMS is engineered for environments where reliable power distribution and surge protection are essential. Its 12 NEMA 5-20R outlets support high-power devices commonly found in IT infrastructure, while the overload protection feature enhances safety during peak usage.
Deploy this unit in scenarios requiring organized, surge-protected power for network devices, such as office server rooms, educational IT labs, or commercial data centers. The 15 ft cord allows for flexible installation, accommodating various rack configurations and power source locations.
Data Center Power Distribution
Ideal for rack-mounted servers, storage arrays, and networking gear, providing surge-protected power to multiple devices in a compact footprint.
Network Closet and Server Room
Suitable for small to medium network installations, protecting switches, routers, and other critical infrastructure from power surges and overloads.
Physical Profile

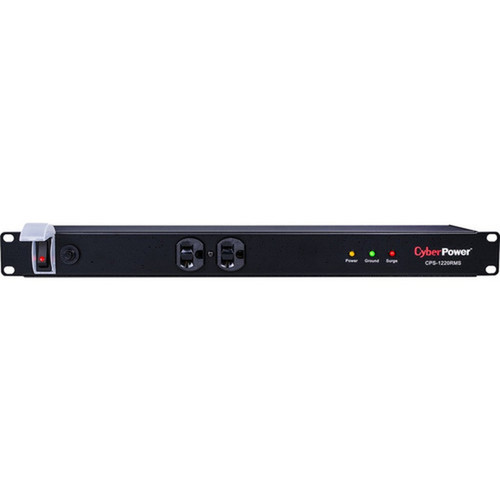

This surge protector features a black metal housing with dimensions of 1.75" H x 17.25" W x 4.75" D (44.45 mm x 438.15 mm x 120.65 mm), designed for standard 19-inch rack mounting. Its 1U height maximizes rack space efficiency, while the 6 lb weight ensures stability without excessive load. The unit includes two front and ten rear outlets for accessible cable management.
- Width
- 17.25" (438.15 mm)
- Depth
- 4.75" (120.65 mm)
- Height
- 1.75" (44.45 mm)
- Weight
- 6 lb (2721.55 g)
- Length
- 15 ft (4.57 m)
Highlights
- 12 NEMA 5-20R outlets for high-density power distribution
- 1800 J surge energy rating with 90 kA maximum surge current
- 1U rack-mountable form factor for space-efficient installation
- 15 ft power cord provides flexible placement options
- Overload protection and 20 A circuit breaker for safety
- Metal construction ensures durability in rack environments
- Operates from 32°F to 95°F (0°C to 35°C)
- RoHS compliant and backed by a 3-year limited warranty
Specifications
| Specifications | |
|---|---|
| Manufacturer | CyberPower Systems, Inc |
| Manufacturer Part Number | CPS-1220RMS |
| Brand Name | CyberPower |
| Product Series | Rackbar Surge |
| Product Model | CPS1220RMS |
| Product Name | CPS1220RMS |
| Product Type | Surge Suppressor/Protector |
| Technical Information | |
| Plug/Connector Type | NEMA 5-20P |
| Receptacles | 12 x NEMA 5-20R |
| Features | Overload Protection |
| Power Description | |
| Input Voltage | 120 V AC |
| Output Voltage | 120 V AC |
| Maximum Surge Current | 90 kA |
| Surge Energy Rating | 1800 J |
| Environmental Conditions | |
| Minimum Operating Temperature | 32°F (0°C) |
| Maximum Operating Temperature | 95°F (35°C) |
| Minimum Storage Temperature | 5°F (-15°C) |
| Maximum Storage Temperature | 113°F (45°C) |
| Physical Characteristics | |
| Power Cord/Cable Length | 15 ft (4.57 m) |
| Product Color | Black |
| Product Material | Metal |
| Form Factor | Rack-mountable |
| Height | 1.75" (44.45 mm) |
| Width | 17.25" (438.15 mm) |
| Depth | 4.75" (120.65 mm) |
| Weight (Approximate) | 6 lb (2721.55 g) |
| Miscellaneous | |
| Application/Usage | Network Device |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 3 Year |
User Manual
FAQ
What is the surge energy rating of the CyberPower CPS-1220RMS?
The CPS-1220RMS has a surge energy rating of 1800 joules, which indicates its capacity to absorb energy from power surges. This rating, combined with a maximum surge current of 90 kA and 800V clamping voltage, provides robust protection for connected network devices against voltage spikes and transient events.
How many outlets does this surge protector have and what type are they?
This unit features 12 NEMA 5-20R outlets, configured with two on the front and ten on the rear for flexible cable management. These outlets support standard 20-amp plugs, making them suitable for servers, switches, and other network equipment requiring reliable, surge-protected power distribution.
Is the CPS-1220RMS rack-mountable and what are its dimensions?
Yes, it is designed as a 1U rack-mountable unit for standard 19-inch racks. Its dimensions are 1.75 inches in height, 17.25 inches in width, and 4.75 inches in depth (44.45 mm x 438.15 mm x 120.65 mm), with a weight of approximately 6 pounds. This compact form factor optimizes space in data centers or server rooms.
What safety features are included with this surge protector?
The CPS-1220RMS includes overload protection and a 20 A circuit breaker to prevent damage from excessive current draw. It also has a clamping voltage of 800V to limit surge voltages, and it operates within a safe temperature range of 32°F to 95°F (0°C to 35°C), ensuring reliable performance in typical indoor environments.
What is the length of the power cord and does it affect installation?
The power cord is 15 feet (4.57 meters) long, providing flexibility for installation in various rack configurations and distances from power sources. This length accommodates setups where power outlets may not be directly adjacent to the rack, simplifying cable routing and reducing the need for extensions.
What warranty covers the CyberPower CPS-1220RMS surge protector?
CyberPower backs this surge protector with a 3-year limited warranty, offering protection against defects in materials and workmanship. This warranty supports long-term deployment in network environments, providing assurance for investments in power protection infrastructure.
