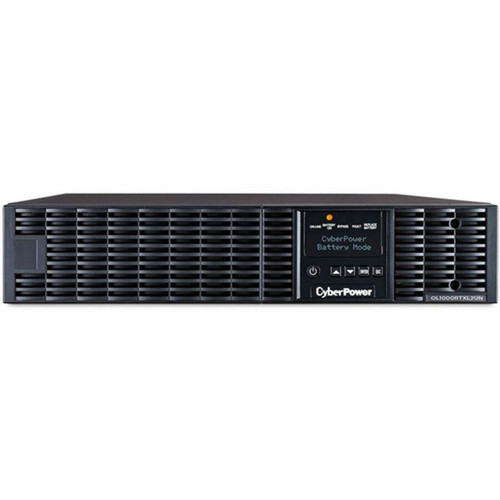

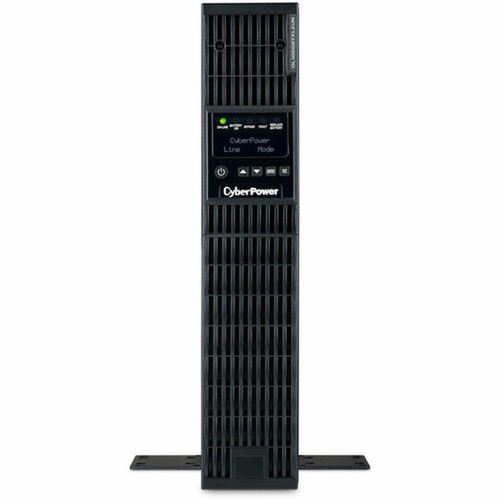

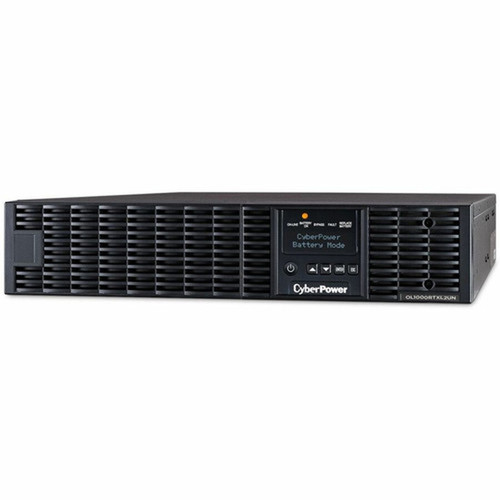

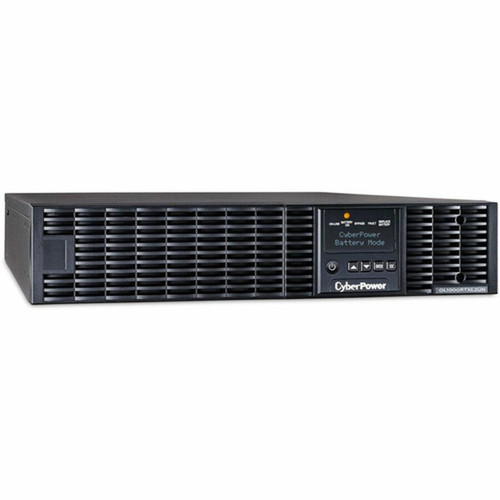

CyberPower OL1000RTXL2UN Smart App Online UPS - 1000VA/900W - 2U Rack/Tower - 8 Outlets - Sine Wave - LCD
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Product Overview
The CyberPower OL1000RTXL2UN Smart App Online UPS is a double-conversion online uninterruptible power supply engineered for mission-critical equipment protection in demanding IT and industrial environments. It delivers 1000VA/900W of pure sine wave power with zero transfer time, ensuring seamless backup during power disturbances, voltage fluctuations, and electrical noise.
This 2U rack/tower unit features eight NEMA 5-15R outlets, comprehensive network management capabilities via USB, serial, RJ-45, and EPO ports, and an LCD display for real-time monitoring of power status, battery health, and load conditions. Its robust construction incorporates three sealed lead-acid batteries (12V, 9000 mAh each) that provide up to 8 minutes of runtime at full load and 21 minutes at half load, supporting orderly shutdown procedures or bridging to generator power.
Designed for flexibility, the UPS includes rackmount rails, ears, and hanging brackets for secure installation in standard 19-inch server cabinets or as a standalone tower. With Energy Star certification and ECO mode efficiency exceeding 94%, it combines reliable power protection with operational cost savings for server rooms, network closets, medical equipment, and point-of-sale systems.
Technical Overview
This online UPS employs double-conversion technology, continuously converting AC input to DC and back to AC, providing complete isolation from power line anomalies including sags, surges, and frequency variations. It accepts input voltages from 100 to 125 VAC with a frequency range of 40-70 Hz, delivering configurable output voltages between 100 and 125 VAC at 50-60 Hz with ±2% regulation for stable power delivery.
The unit's electrical specifications include an input power factor of 0.99 and output power factor of 0.9, optimizing energy efficiency. Built-in protection features include short circuit and overload protection, EMI/RFI noise filtering, and data line surge protection for telephone (RJ-11) and network (RJ-45) connections. The 10-foot NEMA 5-15P input cord and 15A circuit breaker support standard North American power infrastructure.
Management interfaces extend beyond basic monitoring to include dry contact, relay card, and SNMP capabilities for integration with network management systems. The LCD display and LED status indicators provide clear visual feedback for power modes, battery conditions, and fault alerts, while the included PowerPanel® Business Edition software enables remote configuration, automated shutdown, and energy usage reporting.
Key Product Advantages
The OL1000RTXL2UN combines high-efficiency operation with extensive protection features in a versatile 2U form factor. Its ECO mode achieves over 94% efficiency, reducing energy costs and heat generation, while the 1780 J surge energy rating and EMI/RFI filtering safeguard against electrical noise and voltage spikes.
The unit's battery management system supports user-replaceable batteries with a typical recharge time of 4 hours, minimizing downtime during maintenance. Environmental specifications include operation up to 104°F (40°C) and 90% humidity, with sound emission limited to 55 dB(A) for quiet operation in office environments. These advantages make it a reliable choice for organizations prioritizing power quality, management flexibility, and total cost of ownership.
Pure Sine Wave Output
Delivers clean, stable power compatible with sensitive electronic equipment including servers, medical devices, and audio/video systems, preventing damage from harmonic distortion and ensuring reliable operation.
Zero Transfer Time
Ensures uninterrupted power to connected devices during switchover to battery mode, critical for servers, networking gear, and industrial controls where even brief power interruptions can cause data loss or system downtime.
Comprehensive Management Suite
Includes PowerPanel® Business Edition software for remote monitoring, configuration, and automated shutdown procedures, plus SNMP, dry contact, and relay card support for integration with existing network management infrastructure.
Deployment / Use Cases
This UPS is engineered for environments where power quality and availability are non-negotiable. Its 2U form factor allows flexible installation in standard 19-inch racks or as a standalone tower, making it adaptable to various IT and industrial setups from small server closets to distributed network locations.
Typical applications include protecting critical IT infrastructure in financial institutions, healthcare facilities with medical equipment, retail point-of-sale systems, and generator-backed installations where it provides power conditioning and bridging during generator start-up sequences. The eight NEMA 5-15R outlets accommodate multiple devices, while the comprehensive management options support both local monitoring and centralized control through network management systems.
For industrial environments, the UPS's wide input voltage range (100-125 VAC) and robust construction withstand voltage fluctuations common in manufacturing settings. The included rackmount hardware and hanging brackets facilitate secure mounting in equipment cabinets, while the black finish maintains a professional appearance in office and data center environments.
Server Room and Data Center Protection
Ideal for rack-mounted servers, switches, storage arrays, and network appliances requiring clean power, extended runtime during outages, and remote management capabilities for IT infrastructure.
Network Infrastructure and VoIP Systems
Supports routers, switches, security appliances, and VoIP equipment with its data line protection for RJ-11 and RJ-45 connections, ensuring continuous operation of critical communications infrastructure.
Physical Profile
The black chassis measures 3.50" (88.90 mm) in height, 17" (431.80 mm) in width, and 16.90" (429.26 mm) in depth, with a weight of 39.60 lb. Its 2U rack height optimizes space in server cabinets, while the standard 19-inch width ensures compatibility with most rack enclosures. The compact depth of 16.90" allows installation in shallow network cabinets where space is constrained.
Included rackmount rails, ears, and hanging brackets facilitate secure mounting in both rack and tower configurations. The unit's thermal dissipation of 274 BTU/h and sound emission of 55 dB(A) support quiet operation in office environments, while the operating temperature range up to 104°F (40°C) ensures reliability in server rooms with elevated temperatures. The 10-foot input cord provides flexibility in positioning relative to power sources, and the black finish maintains a professional appearance across deployment scenarios.
- Width
- 17" (431.80 mm)
- Depth
- 16.90" (429.26 mm)
- Height
- 2U
- Weight
- 55 dB(A)
- Length
- 10 ft (3048 mm)
What's in the Box
The package includes all necessary hardware for installation and operation:
Highlights
- 1000VA/900W double-conversion online UPS with pure sine wave output
- 2U rack/tower form factor with included mounting hardware
- 8 x NEMA 5-15R outlets and 10 ft. NEMA 5-15P input cord
- Zero transfer time and configurable output voltage (100-125 VAC)
- Up to 8 minutes runtime at full load, 21 minutes at half load
- Comprehensive management via USB, serial, RJ-45, and EPO ports
- LCD display with status indicators for power, battery, and fault conditions
- Includes PowerPanel® Business Edition software for remote monitoring
- Energy Star certified with ECO mode efficiency >94%
- 3-year limited warranty and RoHS compliance
Specifications
| Specifications | |
|---|---|
| Manufacturer | CyberPower Systems, Inc |
| Manufacturer Part Number | OL1000RTXL2UN |
| Brand Name | CyberPower |
| Product Series | Smart App Online UPS |
| Product Model | OL1000RTXL2UN |
| Product Name | OL1000RTXL2UN Smart App Online UPS Systems |
| Product Type | Double Conversion Online UPS |
| Technical Information | |
| Plug/Connector Type | NEMA 5-15P |
| Receptacle Type | NEMA 5-15R |
| Receptacle Detail | 8 x NEMA 5-15R |
| Transfer Time | 0 ns |
| Dataline Protection | RJ-11,RJ-45 |
| Protection Type | Short Circuit |
| Overload Protection | Yes |
| EMI/RFI Noise Filter | Yes |
| Energy Saving | ECO Mode Efficiency >94% |
| Application/Usage | Mission Critical Equipment,Generator |
| Cord Length | 10 ft (3048 mm) |
| Circuit Breaker Current Rating | 15 A |
| Crest Factor | 3:1 |
| Power Description | |
| Load Capacity (VA) | 1 kVA |
| Load Capacity (Watt) | 900 W |
| Input Voltage | 120 V AC,230 V AC |
| Input Voltage Range | 60 V AC - 69 V AC,100 V AC - 125 V AC |
| Output Voltage | 125 V AC,100 V AC,110 V AC,115 V AC,120 V AC |
| Input Frequency | 40 Hz,70 Hz |
| Output Frequency | 50 Hz,60 Hz |
| Waveform Type | Sine Wave |
| Surge Energy Rating | 1780 J |
| Input Power Factor | 0.99 |
| Output Power Factor | 0.9 |
| Display & Graphics | |
| Display | LCD |
| Management | |
| Network Management | Dry Contact,Relay Card,SNMP Manageable |
| Alarm | Battery Mode,Low Battery,Overload,UPS Fault |
| Controls/Indicators | |
| Status Indicators | LED Indicators: Power On (White) Line Mode (Green) Battery Mode (Yellow) Bypass Mode (Yellow) Fault (Red) Replace Battery (Red) |
| Interfaces/Ports | |
| Serial Port | Yes |
| Network (RJ-45) | Yes |
| USB | Yes |
| USB (HID Compliant) Port | Yes |
| EPO Port | Yes |
| Battery Information | |
| Number of Batteries | 3 |
| Battery Characteristics | Sealed |
| Battery Chemistry | Lead Acid |
| Battery Size | 12V |
| Battery Capacity | 9000 mAh |
| Backup/Run Time (Full Load) | 8 Minute |
| Backup/Run Time (Half Load) | 21 Minute |
| Typical Battery Recharge Time | 4 Hour |
| Replaceable Battery | Yes |
| Environmental Conditions | |
| Maximum Operating Temperature | 104°F (40°C) |
| Storage Temperature | -4°F (-20°C) - 113°F (45°C) |
| Maximum Operating Elevation | 10000 ft (3048000 mm) |
| Maximum Storage Elevation | 50000 ft (15240000 mm) |
| Operating Humidity | 0% - 90% |
| Storage Relative Humidity | 0% - 95% |
| Sound Emission (A-Weighted) | 55 dB(A) |
| Thermal Dissipation | 274 BTU/h |
| Physical Characteristics | |
| Product Color | Black |
| Form Factor | Rack/Tower |
| Rack Height | 2U |
| Height | 3.50" (88.90 mm) |
| Width | 17" (431.80 mm) |
| Depth | 16.90" (429.26 mm) |
| Weight (Approximate) | 39.60 lb (17962.26 g) |
| Miscellaneous | |
| Package Contents | Smart App Online OL1000RTXL2UN 1000VA Rack/Tower UPSUser Manual Registration Card 2 x Rackmount Rails 2 x Rackmount Ears 2 x Hanging Brackets Phone Line Usb Communication Cable Serial Interface Cable (RS-232) 8 x M5x7l Black Flat Head Screws 12 x M5x12l Black Pan Head Screws 6 x M5x6l Silver Pan Head Screws 8 x Plastic Washers 12 x Screw Hole Dust Covers 12 x Rubber Pads And A Software Download Card |
| Software Included | PowerPanel® Business |
| Energy Star | Yes |
| Country of Origin | Taiwan |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 3 Year |
FAQ
What is the power capacity of this UPS?
This CyberPower UPS has a power capacity of 1000VA (1 kVA) and 900 watts, suitable for protecting critical IT equipment like servers, networking gear, and medical devices in rack or tower deployments.
What runtime can I expect at full and half load?
At full load, the UPS provides up to 8 minutes of runtime, while at half load, it extends to 21 minutes. This supports orderly shutdowns or bridging to generator power during outages, with a typical battery recharge time of 4 hours.
How many outlets does this UPS have?
It features eight NEMA 5-15R outlets, allowing multiple devices to be connected for battery backup and surge protection, ideal for server rooms, network closets, and point-of-sale systems.
What input and output voltage ranges are supported?
The UPS accepts input voltages from 100 to 125 VAC and delivers configurable output voltages between 100 and 125 VAC, with a pure sine wave output for stable power to sensitive electronics.
Is this UPS designed for rack or tower installation?
Yes, it has a flexible 2U rack/tower form factor, including rackmount rails, ears, and hanging brackets for secure installation in standard 19-inch server cabinets or as a standalone tower unit.
What management and connectivity options are included?
Management options include USB, serial, RJ-45, and EPO ports, plus SNMP, dry contact, and relay card support. The included PowerPanel® Business Edition software enables remote monitoring, configuration, and automated shutdown procedures.
