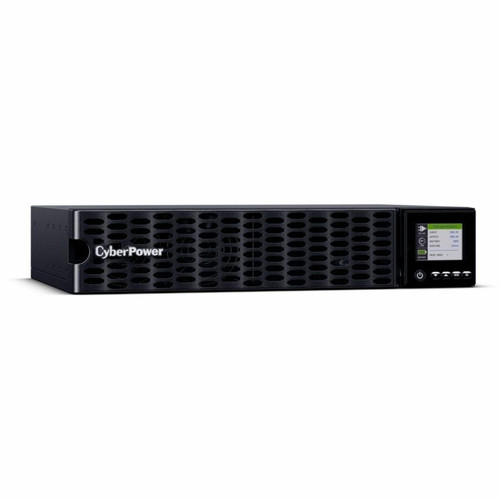

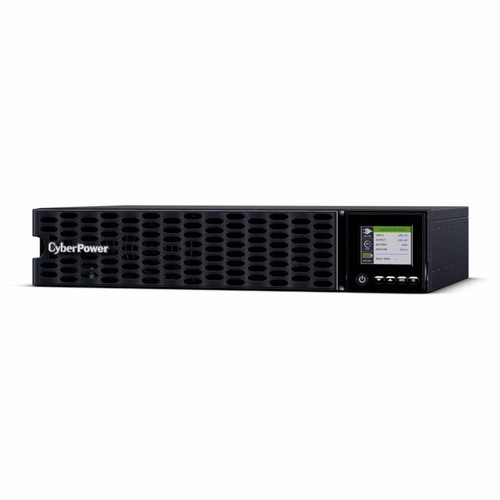

CyberPower OL1K5RTHD Smart App Online UPS - 1500VA/1350W Double-Conversion - 2U Rack/Tower - Sine Wave - 8 Outlets - 12.5 Min Half-Load Runtime
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Product Overview
The CyberPower OL1K5RTHD Smart App Online UPS delivers enterprise-grade power protection with double-conversion topology, ensuring clean and consistent sine wave output for sensitive server and networking equipment. This 1500VA/1350W unit provides zero transfer time, eliminating power interruptions during grid fluctuations or outages.
Designed for both rack and tower deployment, the 2U form factor optimizes space in standard server cabinets while maintaining high power density. The unit features eight NEMA 5-15R outlets with switchable control, allowing for flexible power distribution and managed shutdown sequences.
The UPS includes a 10-foot NEMA 5-15P power cord and supports overload protection with a built-in circuit breaker. Surge suppression rated at 710 joules and EMI/RFI noise filtering protect connected equipment from electrical disturbances. An audible alarm and LED status indicators provide clear operational feedback during normal and battery mode operation.
With an input power factor of 0.99 and output power factor of 0.9, the system maximizes power efficiency while maintaining compatibility with modern power supplies. The ECO mode achieves greater than 96% efficiency during normal operation, reducing energy consumption and operational costs in continuous-use environments.
Technical Overview
This online UPS employs double-conversion technology, continuously converting incoming AC power to DC and back to AC, providing complete isolation from utility power anomalies. The pure sine wave output ensures compatibility with active PFC power supplies and sensitive electronic loads.
Advanced power management includes an LCD display for real-time status monitoring, configurable output voltage settings from 100 to 125 VAC, and comprehensive network connectivity through USB, serial, and optional SNMP interfaces. The unit supports hot-swappable battery replacement with three sealed lead-acid batteries, each rated at 12V with 9000 mAh capacity.
The system accepts input voltage from 100-125 VAC with a frequency range of 40-70 Hz, automatically adjusting to provide stable output at 50-60 Hz. Output voltage can be configured to 100, 110, 115, 120, or 125 VAC with ±2% precision, ensuring compatibility with various equipment requirements.
Communication interfaces include USB (HID-compliant), serial, and EPO ports for emergency power-off functionality. Network management capabilities support dry contact signaling and SNMP/HTTP remote monitoring, enabling integration with existing infrastructure management systems. The unit operates within a temperature range of 32°F to 104°F (0°C to 40°C) with thermal dissipation rated at 395 BTU/h.
Key Product Advantages
These strengths make the product easier to deploy and manage in real environments, especially where reliability, usability, and day-to-day operational continuity matter. Notable benefits include Zero Transfer Time Protection, High-Density 2U Design, Comprehensive Management Suite.
Zero Transfer Time Protection
Double-conversion topology eliminates transfer delays, providing seamless power continuity during utility failures or voltage sags.
- Continuous power conditioning
- Isolation from grid disturbances
- Ideal for critical server applications
High-Density 2U Design
Optimized rack footprint delivers 1500VA capacity in just 2U of vertical space, maximizing power density in constrained server environments.
- Rack or tower deployment flexibility
- Standard 19-inch rack compatibility
- Space-efficient for dense installations
Comprehensive Management Suite
Integrated monitoring and control capabilities through multiple interface options enable remote management and automated shutdown procedures.
- SNMP/HTTP remote monitoring
- Dry contact for external alarms
- USB HID-compliant for software integration
Deployment / Use Cases
The OL1K5RTHD is engineered for business-critical applications where power quality and availability are non-negotiable. Its double-conversion design makes it particularly suitable for environments with unstable utility power or frequent voltage fluctuations.
Typical deployments include server rooms supporting virtualization platforms, network operations centers with multiple switches and routers, and telecommunications installations requiring clean power for sensitive transmission equipment. The 2U rack-mount configuration integrates seamlessly with standard server infrastructure while providing sufficient runtime for orderly shutdown procedures.
Server Room Protection
Provides clean sine wave power for rack-mounted servers, storage arrays, and network switches, with sufficient runtime for graceful shutdowns during extended outages.
Network Infrastructure Support
Protects core networking equipment including routers, switches, and firewalls from power anomalies that could cause data corruption or hardware damage.
Physical Profile
The black chassis measures 3.39" (86 mm) in height, 17.05" (433 mm) in width, and 14.96" (380 mm) in depth, conforming to standard 2U rack dimensions. The 37.26 lb weight includes three internal batteries, with front-panel accessibility for status monitoring and control functions.
Front-panel features include an LCD display, LED status indicators, and audible alarms for battery mode notifications. The unit operates within a temperature range of 32°F to 104°F (0°C to 40°C) with thermal dissipation rated at 395 BTU/h, ensuring reliable performance in typical server room environments.
- Width
- 17.05" (433 mm)
- Depth
- 14.96" (380 mm)
- Height
- 3.39" (86 mm)
- Weight
- 47.6 dB(A)
- Length
- 10 ft (3.05 m)
Highlights
- 1500VA/1350W double-conversion online UPS
- Zero transfer time with pure sine wave output
- 2U rack/tower form factor for space-efficient deployment
- 12.5 minutes runtime at half load (4 minutes at full load)
- Eight NEMA 5-15R outlets with switchable control
- Hot-swappable battery replacement with three 12V batteries
- LCD display with comprehensive status monitoring
- Network management via SNMP/HTTP, USB, and serial interfaces
- ECO mode with greater than 96% efficiency
- Three-year warranty including battery coverage
Specifications
| Specifications | |
|---|---|
| Manufacturer | CyberPower Systems, Inc |
| Manufacturer Part Number | OL1K5RTHD |
| Brand Name | CyberPower |
| Product Series | Smart App Online UPS |
| Product Model | OL1K5RTHD |
| Product Name | Smart App Online UPS OL1K5RTHD 1500VA Rack/Tower UPS |
| Product Type | Double Conversion Online UPS |
| Technical Information | |
| Plug/Connector Type | NEMA 5-15P |
| Receptacle Type | NEMA 5-15R |
| Receptacle Detail | 8 x NEMA 5-15R |
| Overload Protection | Yes |
| Cord Length | 10 ft (3.05 m) |
| Transfer Time | 0 ns |
| EMI/RFI Noise Filter | Yes |
| Energy Saving | ECO Mode Efficiency >96% |
| Surge Suppression | Yes |
| Features | Built-in Bypass Switch,Audible Alarm |
| Power Description | |
| Load Capacity (VA) | 1.50 kVA |
| Load Capacity (Watt) | 1.35 kW |
| Input Voltage | 120 V AC |
| Input Voltage Range | 100 V AC - 125 V AC,60 V AC - 69 V AC |
| Output Voltage | 100 V AC,110 V AC,115 V AC,120 V AC,125 V AC |
| Input Frequency | 40 Hz,70 Hz |
| Output Frequency | 50 Hz,60 Hz |
| Waveform Type | Sine Wave |
| Surge Energy Rating | 710 J |
| Circuit Breaker | Yes |
| Input Power Factor | 0.99 |
| Output Power Factor | 0.9 |
| Display & Graphics | |
| Display | LCD |
| Management | |
| Network Management | Dry Contact,SNMP/HTTP Remote Monitoring |
| Alarm | Battery Mode |
| Controls/Indicators | |
| Status Indicators | LED Indicators: Power On (White) |
| Interfaces/Ports | |
| Serial Port | Yes |
| USB | Yes |
| EPO Port | Yes |
| USB (HID Compliant) Port | Yes |
| Battery Information | |
| Number of Batteries | 3 |
| Battery Characteristics | Sealed |
| Battery Chemistry | Lead Acid |
| Battery Size | 12V |
| Battery Capacity | 9000 mAh |
| Backup/Run Time (Full Load) | 4 Minute |
| Backup/Run Time (Half Load) | 12.50 Minute |
| Hot Swappable | Yes |
| Typical Battery Recharge Time | 4 Hour |
| Replaceable Battery | Yes |
| Environmental Conditions | |
| Maximum Operating Elevation | 9843 ft (3000146.40 mm) |
| Maximum Storage Elevation | 49213 ft (15000122.40 mm) |
| Storage Temperature | 5°F (-15°C) - 113°F (45°C) |
| Storage Relative Humidity | 0% - 95% |
| Minimum Operating Temperature | 32°F (0°C) |
| Maximum Operating Temperature | 104°F (40°C) |
| Sound Emission (A-Weighted) | 47.6 dB(A) |
| Thermal Dissipation | 395 BTU/h |
| Physical Characteristics | |
| Product Color | Black |
| Height | 3.39" (86 mm) |
| Width | 17.05" (433 mm) |
| Depth | 14.96" (380 mm) |
| Rack Height | 2U |
| Form Factor | Rack/Tower |
| Weight (Approximate) | 37.26 lb (16900.85 g) |
| Miscellaneous | |
| Energy Star | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 3 Year |
| Additional Warranty Information | Three-year warranty (including batteries) |
User Manual
FAQ
What is the power capacity of this UPS?
The CyberPower OL1K5RTHD provides 1500VA (1.50 kVA) and 1350W of power capacity, suitable for protecting servers, networking equipment, and other critical loads in business environments.
What runtime can I expect at half and full load?
At half load (675W), the UPS delivers approximately 12.5 minutes of runtime, while at full load (1350W), it provides about 4 minutes. This allows for orderly shutdowns during power outages to prevent data loss or hardware damage.
How many outlets does this UPS have, and what type are they?
It includes eight NEMA 5-15R outlets, all switchable for controlled power distribution. These outlets support standard North American plugs, making them compatible with most IT and office equipment.
What input and output voltage ranges does this UPS support?
The input voltage range is 100-125 VAC, with an output configurable to 100, 110, 115, 120, or 125 VAC (±2%). This flexibility ensures stable power delivery across varying utility conditions and equipment requirements.
Is this UPS designed for rack or tower deployment?
Yes, it features a dual rack/tower form factor with a 2U height, allowing installation in standard 19-inch server racks or as a standalone tower unit. This provides deployment flexibility for different IT environments.
What management and connectivity options are available?
Management options include USB, serial, and EPO ports, along with support for dry contact signaling and SNMP/HTTP remote monitoring. These interfaces enable integration with network management systems for automated monitoring and shutdown procedures.
