CyberPower OL2200RTXL2U Smart App Online UPS - 2200VA/1800W Double-Conversion - 2U Rack/Tower - 7 Outlets - 100-125V Sine Wave
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Product Overview
The CyberPower OL2200RTXL2U Smart App Online UPS is a 2200VA/1800W double-conversion uninterruptible power supply engineered for mission-critical environments. Its online topology ensures zero transfer time and continuous sine wave output, delivering clean, stable power to connected equipment regardless of input fluctuations.
Designed for both rack and tower deployment, this 2U unit provides comprehensive power protection with seven outlets, advanced network management, and a clear LCD interface. It supports servers, networking gear, storage devices, PBX systems, VoIP equipment, and generators, making it a versatile solution for data centers, server rooms, and industrial applications.
The UPS features a robust 30A circuit breaker and 1335J surge energy rating for electrical safety, along with EMI/RFI noise filtering to protect sensitive electronics from interference. Its configurable output voltage (100-125V) ensures compatibility with various equipment, while the 10-foot input cord with NEMA 5-20P/L5-20P plug offers flexible installation options.
With six sealed lead-acid batteries providing reliable backup power, this unit delivers 8 minutes of runtime at full load and 21 minutes at half load. The included PowerPanel® Business software enables comprehensive monitoring and management, while the 3-year limited warranty provides long-term confidence in its performance.
Technical Overview
This UPS employs double-conversion technology, converting incoming AC power to DC and back to AC, which isolates connected equipment from power anomalies. It maintains a sine wave output with configurable voltage settings (100-125V) and operates with an input power factor of 0.99 and output power factor of 0.8.
The system includes six sealed lead-acid batteries (12V, 9000 mAh each) that provide 8 minutes of runtime at full load and 21 minutes at half load. It features a 30A circuit breaker, 1335J surge energy rating, EMI/RFI noise filtering, and overload protection for robust electrical safety.
Advanced management capabilities include SNMP/HTTP remote monitoring, dry contact and relay card interfaces for external alarms, and USB/serial connections for local control. The LCD display provides clear status indicators for power modes, battery conditions, and fault alerts, while dataline protection (RJ-45/RJ-11) safeguards network and telephone connections.
Environmental specifications include operation up to 104°F (40°C) with 0-90% humidity, storage from -4°F to 113°F (-20°C to 45°C), and thermal dissipation of 541 BTU/h. The unit supports operation at elevations up to 10,000 feet and features ECO Mode with efficiency exceeding 95% for energy savings during normal operation.
Key Product Advantages
The OL2200RTXL2U combines high-capacity power protection with flexible deployment and intelligent management. Its double-conversion design ensures maximum uptime for sensitive electronics, while the rack/tower form factor adapts to diverse installation needs.
Zero Transfer Time
Online topology eliminates switching delays, providing seamless power during outages or disturbances.
- Continuous power conditioning
- Isolation from input anomalies
Advanced Monitoring
Remote management via SNMP/HTTP, dry contact, and relay card interfaces enables proactive UPS oversight.
- LCD display with status indicators
- Alarms for battery, overload, and fault conditions
Flexible Power Distribution
Seven outlets accommodate mixed equipment, with configurable output voltage for compatibility.
- 6x NEMA 5-20R, 1x NEMA L5-20R receptacles
- 10 ft input cord with NEMA 5-20P/L5-20P plug
Deployment / Use Cases
This UPS is ideal for environments where power quality and uptime are non-negotiable. Its 2200VA capacity and online topology suit medium-density server racks, network closets, and industrial control systems.
Common applications include protecting server infrastructure in small to medium data centers, ensuring continuous operation for VoIP and PBX systems, safeguarding network switches and storage arrays, and providing backup for generator-supported setups. The rack/tower design allows integration into standard 19-inch racks or standalone use in equipment rooms.
Relevant product facts for this section include Plug/Connector Type: NEMA 5-20P,NEMA L5-20P, Receptacle Type: NEMA 5-20R,NEMA L5-20R, Receptacle Detail: 6 x NEMA 5-20R,1 x NEMA L5-20R, Load Capacity (VA): 2.20 kVA. When those details are considered together, they give buyers a clearer picture of how the product is equipped, how it connects, and what kind of day-to-day role it is meant to support.
Data Center & Server Room
Protects rack-mounted servers and networking equipment from power disturbances, with SNMP management for integration into monitoring systems.
Telecommunications & VoIP
Ensures uninterrupted operation of PBX systems and VoIP devices, with sine wave output compatible with sensitive telephony hardware.
Physical Profile

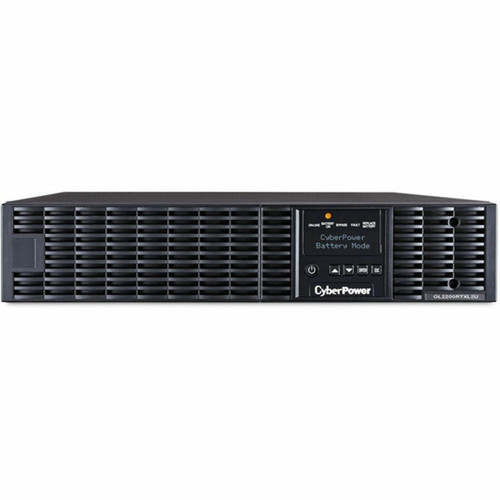

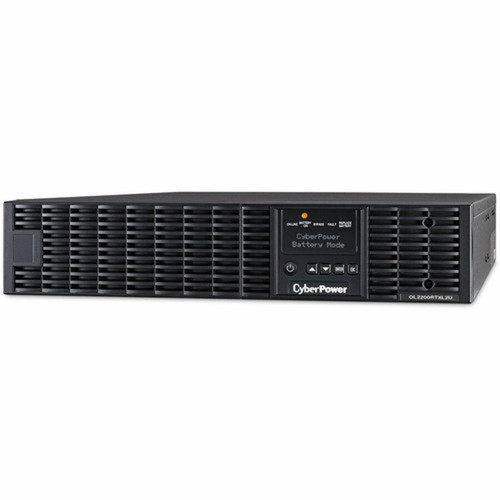

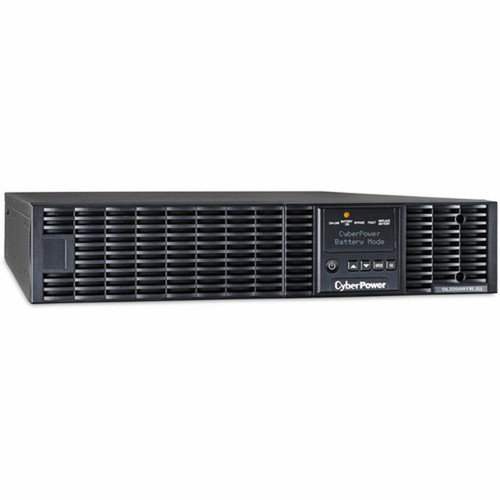

The OL2200RTXL2U features a black 2U chassis measuring 3.5" H x 17" W x 23.62" D, designed for standard 19-inch rack mounting or tower placement. It weighs 68.2 lbs and includes rackmount rails, hanging brackets, and ears for secure installation. The compact height optimizes rack space while providing substantial power capacity.
- Width
- 17" (431.80 mm)
- Depth
- 23.62" (599.95 mm)
- Height
- 2U
- Weight
- 68.20 lb (30935 g)
- Length
- 10 ft (3048 mm)
What's in the Box
The package includes all necessary hardware for rack or tower deployment, communication cables, and documentation for quick setup.
Highlights
- 2200VA/1800W double-conversion online UPS
- Zero transfer time with sine wave output
- 2U rack/tower form factor for flexible installation
- 7 outlets (6x NEMA 5-20R, 1x NEMA L5-20R)
- Configurable output voltage (100-125V)
- 8-minute runtime at full load, 21 minutes at half load
- LCD display with status indicators and alarms
- Remote management via SNMP/HTTP, dry contact, relay card
- Includes PowerPanel® Business software
- 3-year limited warranty
Specifications
| Specifications | |
|---|---|
| Manufacturer | CyberPower Systems, Inc |
| Manufacturer Part Number | OL2200RTXL2U |
| Brand Name | CyberPower |
| Product Series | Smart App Online UPS |
| Product Model | OL2200RTXL2U |
| Product Name | OL2200RTXL2U Smart App Online UPS Systems |
| Product Type | Double Conversion Online UPS |
| Technical Information | |
| Plug/Connector Type | NEMA 5-20P,NEMA L5-20P |
| Receptacle Type | NEMA 5-20R,NEMA L5-20R |
| Receptacle Detail | 6 x NEMA 5-20R,1 x NEMA L5-20R |
| Transfer Time | 0 ns |
| Dataline Protection | RJ-45,RJ-11 |
| Protection Type | Short Circuit |
| Overload Protection | Yes |
| EMI/RFI Noise Filter | Yes |
| Energy Saving | ECO Mode Efficiency >95% |
| Application/Usage | Mission Critical Equipment,Network Device,Storage Device,PBX System,VoIP Device,Server,Generator |
| Cord Length | 10 ft (3048 mm) |
| Circuit Breaker Current Rating | 30 A |
| Crest Factor | 3:1 |
| Power Description | |
| Load Capacity (VA) | 2.20 kVA |
| Load Capacity (Watt) | 1.80 kW |
| Input Voltage | 120 V AC |
| Input Voltage Range | 60 V AC - 69 V AC,100 V AC - 125 V AC |
| Output Voltage | 100 V AC,110 V AC,115 V AC,120 V AC,125 V AC |
| Input Frequency | 40 Hz,70 Hz |
| Output Frequency | 50 Hz,60 Hz |
| Waveform Type | Sine Wave |
| Surge Energy Rating | 1335 J |
| Input Power Factor | 0.99 |
| Output Power Factor | 0.8 |
| Display & Graphics | |
| Display | LCD |
| Management | |
| Network Management | Dry Contact,Relay Card,SNMP/HTTP Remote Monitoring |
| Alarm | Battery Mode,Low Battery,Overload,UPS Fault |
| Controls/Indicators | |
| Status Indicators | Power On (White) Line Mode (Green) Battery Mode (Yellow) Bypass Mode (Yellow) Fault (Red) Replace Battery (Red) |
| Interfaces/Ports | |
| Serial Port | Yes |
| Network (RJ-45) | Yes |
| USB | Yes |
| USB (HID Compliant) Port | Yes |
| EPO Port | Yes |
| Battery Information | |
| Number of Batteries | 6 |
| Battery Characteristics | Sealed |
| Battery Chemistry | Lead Acid |
| Battery Size | 12V |
| Battery Capacity | 9000 mAh |
| Backup/Run Time (Full Load) | 8 Minute |
| Backup/Run Time (Half Load) | 21 Minute |
| Typical Battery Recharge Time | 4 Hour |
| Replaceable Battery | Yes |
| Environmental Conditions | |
| Maximum Operating Temperature | 104°F (40°C) |
| Storage Temperature | -4°F (-20°C) - 113°F (45°C) |
| Maximum Operating Elevation | 10000 ft (3048000 mm) |
| Maximum Storage Elevation | 50000 ft (15240000 mm) |
| Operating Humidity | 0% - 90% |
| Storage Relative Humidity | 0% - 95% |
| Thermal Dissipation | 541 BTU/h |
| Physical Characteristics | |
| Product Color | Black |
| Form Factor | Rack/Tower |
| Rack Height | 2U |
| Height | 3.50" (88.90 mm) |
| Width | 17" (431.80 mm) |
| Depth | 23.62" (599.95 mm) |
| Weight (Approximate) | 68.20 lb (30935 g) |
| Miscellaneous | |
| Package Contents | Smart App Online OL2200RTXL2U 2200VA 100-125V Sine Wave LCD Rack/Tower UPS User Manual Registration card 2 x Rackmount rails 2 x Hanging brackets 2 xRackmount ears USB communication cable Serial interface cable (RS-232) 8 x M5X7L black flat head screws 12 x M5X12L black pan head screws 6 x M5X6L silver pan head screws 8 x Plastic washers 12 x Screw hole dust covers 12 x Rubber pads Software download card |
| Software Included | PowerPanel® Business |
| Energy Star | No |
| Country of Origin | China |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 3 Year |
FAQ
What is the power capacity of this UPS?
The CyberPower OL2200RTXL2U delivers 2200VA (2.20 kVA) and 1800W of power capacity, suitable for protecting medium-density server racks, networking equipment, and critical infrastructure.
What runtime can I expect at different load levels?
This UPS provides 8 minutes of backup runtime at full load (1800W) and 21 minutes at half load (900W), giving you time to safely shut down equipment or switch to generator power during outages.
How many outlets does this UPS have and what types?
The unit features seven outlets total: six NEMA 5-20R receptacles and one NEMA L5-20R receptacle, providing flexible power distribution for various equipment types in rack or tower installations.
What input and output voltage ranges does this UPS support?
The UPS accepts input voltage from 100-125V AC and delivers configurable output voltage of 100, 110, 115, 120, or 125V AC, ensuring compatibility with different equipment requirements and power conditions.
Can this UPS be installed in both rack and tower configurations?
Yes, the OL2200RTXL2U is designed for both 2U rack mounting in standard 19-inch racks and standalone tower deployment, with included rails, brackets, and mounting hardware for flexible installation options.
What management and monitoring capabilities are included?
The UPS offers comprehensive management through SNMP/HTTP remote monitoring, dry contact and relay card interfaces, USB and serial connections, plus an LCD display with status indicators for local oversight of power conditions and battery status.
