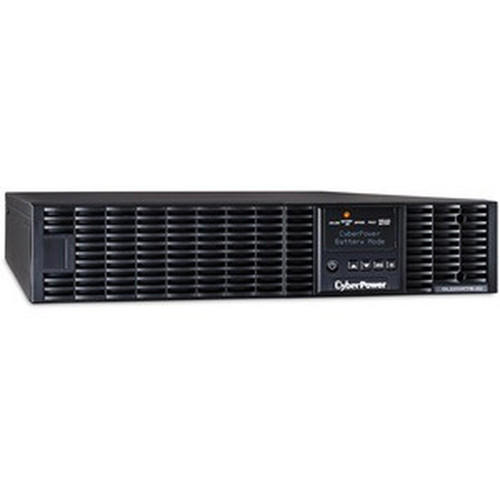

CyberPower OL2200RTXL2UN Smart App Online UPS - 2200VA/1800W Double-Conversion - 2U Rack/Tower - NEMA L5-20P - 100-125VAC - 7 Outlets - 8 Min Full
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Product Overview
The CyberPower OL2200RTXL2UN Smart App Online UPS is a double-conversion uninterruptible power supply engineered for critical IT infrastructure protection. With 2200VA/1800W capacity, this unit delivers pure sine wave output and zero transfer time, ensuring seamless power continuity for servers, network devices, storage systems, and mission-critical equipment.
Designed for flexible deployment, the UPS features a 2U rack/tower form factor that adapts to both data center racks and standalone tower installations. Its advanced management capabilities include SNMP, dry contact, and relay card support, providing comprehensive monitoring and control through the included PowerPanel® Business software. The front-panel LCD offers real-time status visibility, while multiple connectivity ports enable integration with existing management systems.
Relevant product facts for this section include Plug/Connector Type: NEMA 5-20P,NEMA L5-20P, Receptacle Type: NEMA L5-20R,NEMA 5-20R, Receptacle Detail: 1 x NEMA L5-20R,6 x NEMA 5-20R, Load Capacity (VA): 2.20 kVA. When those details are considered together, they give buyers a clearer picture of how the product is equipped, how it connects, and what kind of day-to-day role it is meant to support.
Technical Overview
This double-conversion online UPS continuously converts incoming AC power to DC and back to clean AC, providing complete isolation from utility power anomalies. The unit accepts input voltages from 100 to 125 VAC with automatic voltage regulation, delivering configurable output voltages of 100, 110, 115, 120, or 125 VAC ±2%.
Electrical performance includes a 0.99 input power factor and 0.8 output power factor, with surge protection rated at 1335 joules. The system incorporates EMI/RFI noise filtering, overload protection, and short circuit protection to safeguard connected equipment. A 20A circuit breaker and 10-foot power cord with NEMA L5-20P plug complete the electrical specifications.
Battery System
Six sealed lead-acid batteries provide 9000 mAh total capacity. The user-replaceable battery pack supports typical recharge in 4 hours and delivers 8 minutes at full load or 21 minutes at half load.
- 6 x 12V Sealed Lead-Acid Batteries
- 9000 mAh Capacity
- User-Replaceable Design
Key Product Advantages
The OL2200RTXL2UN combines enterprise-grade power protection with flexible deployment options. Its 2U rack/tower design includes integrated rack ears that double as tower stands, allowing seamless transition between data center and office environments without additional hardware.
Comprehensive Connectivity
Multiple management interfaces include USB, serial, RJ-45 for network connectivity, and an EPO (Emergency Power Off) port for safety integration. Dataline protection covers both RJ-11 and RJ-45 connections.
- USB HID Compliant Port
- Serial Interface
- SNMP Management
- Dry Contact/Relay Support
Deployment / Use Cases
This UPS is engineered for environments where power quality and continuity are non-negotiable. Its 2200VA capacity and double-conversion topology make it ideal for protecting server racks, network closets, storage arrays, and telecommunications equipment from power disturbances that can cause data loss or hardware damage.
The unit's flexible form factor supports deployment in data centers as a rack-mounted solution or in server rooms and network closets as a tower configuration. Mission-critical applications include PBX systems, VoIP devices, medical equipment, financial trading systems, and industrial control systems where even momentary power interruptions are unacceptable.
Data Center Rack Deployment
As a 2U rack-mounted unit, the UPS fits standard 19-inch racks with included rails and mounting hardware. The compact 3.5-inch height maximizes rack space efficiency while delivering substantial power protection.
- Standard 19-inch Rack Compatible
- Includes Mounting Rails
- 2U Height Conservation
Critical Infrastructure Protection
With 7 outlets (1 NEMA L5-20R and 6 NEMA 5-20R), the UPS can protect multiple devices simultaneously. Applications include server farms, network operation centers, healthcare equipment, and financial transaction systems.
- Server & Storage Protection
- Network Equipment Backup
- Telecommunications Support
Physical Profile
The black 2U chassis measures 3.5 inches high, 17 inches wide, and 23.62 inches deep, with a weight of 68.20 pounds. The rack/tower convertible design includes integrated rack ears that serve as stable tower stands when deployed outside a rack enclosure.
- Width
- 17" (431.80 mm)
- Depth
- 23.62" (599.95 mm)
- Height
- 2U
- Weight
- 55 dB(A)
- Length
- 10 ft (3048 mm)
What's in the Box
The package includes all necessary components for immediate deployment in either rack or tower configuration.
Highlights
- 2200VA/1800W double-conversion online UPS protection
- Pure sine wave output with 0 ns transfer time
- 2U rack/tower convertible form factor
- 7 outlets: 1 NEMA L5-20R + 6 NEMA 5-20R
- 8 minutes runtime at full load, 21 minutes at half load
- SNMP, dry contact, and relay card management
- LCD display with status indicators
- User-replaceable battery pack
- 3-year limited warranty
- RoHS compliant and Energy Star certified
Specifications
| Specifications | |
|---|---|
| Manufacturer | CyberPower Systems, Inc |
| Manufacturer Part Number | OL2200RTXL2UN |
| Brand Name | CyberPower |
| Product Series | Smart App Online UPS |
| Product Model | OL2200RTXL2UN |
| Product Name | OL2200RTXL2UN Smart App Online UPS Systems |
| Product Type | Double Conversion Online UPS |
| Technical Information | |
| Plug/Connector Type | NEMA 5-20P,NEMA L5-20P |
| Receptacle Type | NEMA L5-20R,NEMA 5-20R |
| Receptacle Detail | 1 x NEMA L5-20R,6 x NEMA 5-20R |
| Transfer Time | 0 ns |
| Dataline Protection | RJ-11,RJ-45 |
| Protection Type | Short Circuit |
| Overload Protection | Yes |
| EMI/RFI Noise Filter | Yes |
| Energy Saving | ECO Mode Efficiency >95% |
| Application/Usage | Server,Network Device,Storage Device,Network Closet,PBX System,VoIP Device,Mission Critical Equipment,Generator |
| Cord Length | 10 ft (3048 mm) |
| Circuit Breaker Current Rating | 20 A |
| Crest Factor | 3:1 |
| Power Description | |
| Load Capacity (VA) | 2.20 kVA |
| Load Capacity (Watt) | 1.80 kW |
| Input Voltage | 120 V AC |
| Input Voltage Range | 60 V AC - 69 V AC,100 V AC - 125 V AC |
| Output Voltage | 125 V AC,100 V AC,110 V AC,115 V AC,120 V AC |
| Input Frequency | 40 Hz,70 Hz |
| Output Frequency | 50 Hz,60 Hz |
| Waveform Type | Sine Wave |
| Surge Energy Rating | 1335 J |
| Input Power Factor | 0.99 |
| Output Power Factor | 0.8 |
| Display & Graphics | |
| Display | LCD |
| Management | |
| Network Management | Dry Contact,Relay Card,SNMP Manageable |
| Alarm | Battery Mode,Low Battery,Overload,UPS Fault |
| Controls/Indicators | |
| Status Indicators | LED Indicators: Power On (White) Line Mode (Green) Battery Mode (Yellow) Bypass Mode (Yellow) Fault (Red) Replace Battery (Red) |
| Interfaces/Ports | |
| Serial Port | Yes |
| Network (RJ-45) | Yes |
| USB | Yes |
| USB (HID Compliant) Port | Yes |
| EPO Port | Yes |
| Battery Information | |
| Number of Batteries | 6 |
| Battery Characteristics | Sealed |
| Battery Chemistry | Lead Acid |
| Battery Size | 12V |
| Battery Capacity | 9000 mAh |
| Backup/Run Time (Full Load) | 8 Minute |
| Backup/Run Time (Half Load) | 21 Minute |
| Typical Battery Recharge Time | 4 Hour |
| Replaceable Battery | Yes |
| Environmental Conditions | |
| Maximum Operating Temperature | 104°F (40°C) |
| Storage Temperature | -4°F (-20°C) - 113°F (45°C) |
| Maximum Operating Elevation | 10000 ft (3048000 mm) |
| Maximum Storage Elevation | 50000 ft (15240000 mm) |
| Operating Humidity | 0% - 90% |
| Storage Relative Humidity | 0% - 95% |
| Sound Emission (A-Weighted) | 55 dB(A) |
| Thermal Dissipation | 541 BTU/h |
| Physical Characteristics | |
| Product Color | Black |
| Form Factor | Rack/Tower |
| Rack Height | 2U |
| Height | 3.50" (88.90 mm) |
| Width | 17" (431.80 mm) |
| Depth | 23.62" (599.95 mm) |
| Weight (Approximate) | 68.20 lb (30935 g) |
| Miscellaneous | |
| Package Contents | Smart App Online OL2200RTXL2UN 2200VA Rack/Tower UPS 2 x Rack Mount Rails 2 x Rack Mount Ears (Double As Tower Stands) USB Communication Cable Serial Interface Cable 8 x Flat Head Screws (M5x8l) 4 x Pan Head Screws (M5x12l) 14 x Pan Head Screws (M5x6l) 2 x Guide Screws (M5x10l) 8 x Plastic Washers 12 x Screw Hole Dust Covers 12 x Rubber Feet Software Download Card |
| Software Included | PowerPanel® Business |
| Energy Star | Yes |
| Country of Origin | Philippines |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 3 Year |
FAQ
What is the difference between double-conversion and line-interactive UPS topology?
Double-conversion UPS systems continuously convert incoming AC power to DC and back to clean AC, providing complete isolation from utility power issues with zero transfer time. Line-interactive units only engage conditioning when voltage fluctuates outside set parameters, resulting in brief transfers. The OL2200RTXL2UN's double-conversion design offers superior protection for sensitive electronic equipment.
How many devices can this UPS power simultaneously?
The UPS features 7 outlets: one NEMA L5-20R and six NEMA 5-20R receptacles. With 2200VA/1800W capacity, it can support multiple servers, network switches, storage devices, or other critical equipment, though total connected load should not exceed 1800 watts for proper runtime performance.
What is the expected battery runtime under typical loads?
Runtime varies by connected load. At full 1800W load, the UPS provides approximately 8 minutes of backup time. At half load (900W), runtime extends to about 21 minutes. These figures are based on the included 9000 mAh battery capacity and assume proper battery condition and environmental factors.
Can this UPS be mounted in a standard server rack?
Yes, the unit is designed for standard 19-inch server racks with a 2U height (3.5 inches). The package includes rack mount rails and all necessary hardware for secure installation. The integrated rack ears also function as stable stands for tower deployment outside a rack enclosure.
What management and monitoring options are available?
The UPS supports multiple management interfaces including USB, serial, and RJ-45 for network connectivity via SNMP. It also features dry contact and relay card support for integration with building management systems. The included PowerPanel® Business software provides comprehensive monitoring, configuration, and shutdown capabilities across platforms.
Are the batteries user-replaceable, and what is the typical recharge time?
Yes, the battery pack is designed for user replacement without requiring service technician intervention. The six sealed lead-acid batteries typically recharge to 90% capacity within 4 hours after a complete discharge, allowing for quick recovery between power events.
