CyberPower OL3000RTXL2UN Smart App Online UPS - 3000VA/2700W Double-Conversion - 2U Rack/Tower - 7 Outlets - Sine Wave - 120V AC
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Product Overview
The CyberPower OL3000RTXL2UN Smart App Online UPS delivers enterprise-grade power protection for critical IT infrastructure. This 3000VA/2700W double-conversion online UPS provides clean, consistent power with zero transfer time, ensuring continuous operation for servers, network equipment, and mission-critical systems. Engineered for both rack and tower deployment, this 2U unit features seven outlets with comprehensive surge protection and dataline protection for RJ-11 and RJ-45 connections.

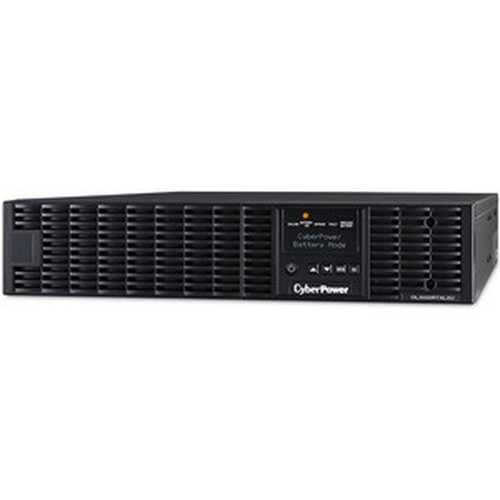

The intelligent LCD display provides real-time status monitoring, while multiple management interfaces including USB, serial, and SNMP enable remote monitoring and control through PowerPanel® Business software. With a pure sine wave output and configurable voltage settings from 100-125 V AC, this UPS maintains compatibility with sensitive electronic equipment across diverse power environments. The unit's robust construction and comprehensive protection systems make it suitable for demanding applications where power quality and reliability are non-negotiable.
Technical Overview
This online UPS employs double-conversion technology that continuously converts AC input to DC and back to clean AC output, providing complete isolation from power line disturbances. The pure sine wave output ensures compatibility with sensitive electronic equipment, while the 0 ns transfer time eliminates any interruption during power transitions. Advanced power management features include configurable output voltage from 100-125 V AC, wide input voltage range of 100-125 V AC, and intelligent battery management with replaceable sealed lead-acid batteries.
The unit maintains high efficiency with ECO mode operation exceeding 95% efficiency, reducing energy consumption during normal operation. Electrical specifications include a 30A circuit breaker, crest factor of 3:1, and comprehensive protection systems including short circuit protection, overload protection, and EMI/RFI noise filtering. The UPS supports input frequencies of 40-70 Hz and delivers output frequencies of 50-60 Hz, accommodating international power standards while maintaining stable operation.
Key Product Advantages

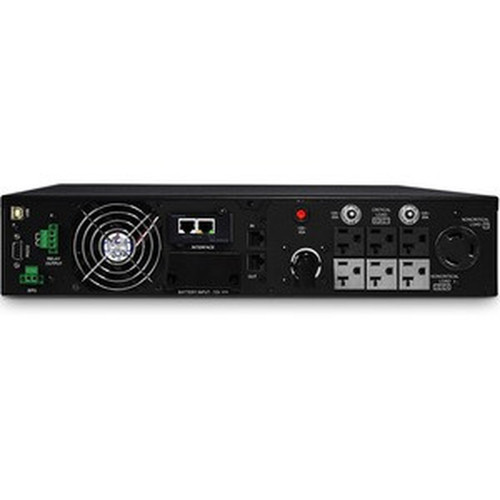

The OL3000RTXL2UN combines robust power protection with intelligent management features designed for demanding IT environments. Seven protected outlets with NEMA L5-30R and NEMA 5-20R receptacles provide flexible device connectivity, while the 30A circuit breaker and comprehensive protection systems safeguard connected equipment.
Zero Transfer Time Protection
Double-conversion topology ensures continuous power delivery with no interruption during utility power failures or fluctuations, providing seamless protection for critical systems.
Comprehensive Management Capabilities
Multiple interface options including USB, serial, SNMP, and dry contact relay enable flexible monitoring and control through PowerPanel® Business software for centralized power management.
Flexible Deployment Options

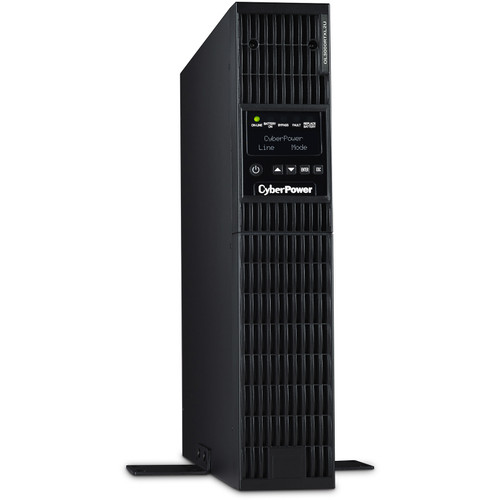

2U rack-mountable design with included rails and ears, plus tower configuration capability, allows installation in data centers, network closets, or equipment rooms.
Deployment / Use Cases
This UPS is engineered for environments where power quality and reliability are non-negotiable. The double-conversion technology and pure sine wave output make it particularly suitable for sensitive electronic equipment that requires clean power free from harmonics and voltage fluctuations.
With its 2U rack-mountable design and comprehensive management capabilities, the OL3000RTXL2UN fits seamlessly into both enterprise data centers and smaller network closets. The included PowerPanel® Business software enables proactive monitoring, automated shutdown procedures, and detailed reporting for maintaining system availability.
Server Room Protection
Ideal for protecting rack-mounted servers, storage arrays, and network switches in data center environments where continuous uptime is critical.
Network Infrastructure
Provides reliable backup power for PBX systems, VoIP equipment, network switches, and routers in telecommunications and network closet installations.
Mission Critical Systems
Suitable for medical equipment, security systems, and industrial control systems that require clean, uninterrupted power with zero transfer time.
Physical Profile
The black 2U rack/tower unit measures 3.50" (88.90 mm) in height, 17" (431.80 mm) in width, and 23.62" (599.95 mm) in depth, with a weight of 68.20 lb (30935 g). This compact form factor optimizes rack space utilization while providing substantial power capacity. The unit operates quietly at 55 dB(A) and dissipates 889 BTU/h of thermal energy during normal operation.
Environmental specifications include operation up to 104°F (40°C) with 0-90% humidity, and storage capability from -4°F (-20°C) to 113°F (45°C) with 0-95% humidity. The design supports installation at elevations up to 10,000 feet (3,048,000 mm) for operation and 50,000 feet (15,240,000 mm) for storage.
- Width
- 17" (431.80 mm)
- Depth
- 23.62" (599.95 mm)
- Height
- 2U
- Weight
- 55 dB(A)
- Length
- 10 ft (3048 mm)
What's in the Box
The package includes all necessary components for immediate deployment in rack or tower configurations.
Highlights
- 3000VA/2700W double-conversion online UPS with pure sine wave output
- Zero transfer time protection for continuous operation
- 2U rack/tower design with included mounting hardware
- Seven protected outlets (1x NEMA L5-30R, 6x NEMA 5-20R)
- Configurable output voltage from 100-125 V AC
- Comprehensive management via USB, serial, SNMP, and dry contact
- 4-minute runtime at full load, 12.5-minute runtime at half load
- Replaceable sealed lead-acid batteries with 4-hour recharge time
- PowerPanel® Business software for remote monitoring and control
- RoHS compliant with 3-year limited warranty
Specifications
| Specifications | |
|---|---|
| Manufacturer | CyberPower Systems, Inc |
| Manufacturer Part Number | OL3000RTXL2UN |
| Brand Name | CyberPower |
| Product Series | Smart App Online UPS |
| Product Model | OL3000RTXL2UN |
| Product Name | OL3000RTXL2UN Smart App Online UPS Systems |
| Product Type | Double Conversion Online UPS |
| Technical Information | |
| Plug/Connector Type | NEMA L5-30P |
| Receptacle Type | NEMA L5-30R,NEMA 5-20R |
| Receptacle Detail | 1 x NEMA L5-30R,6 x NEMA 5-20R |
| Number of Battery & Surge Outlets | 7 |
| Transfer Time | 0 ns |
| Dataline Protection | RJ-11,RJ-45 |
| Protection Type | Short Circuit |
| Overload Protection | Yes |
| EMI/RFI Noise Filter | Yes |
| Energy Saving | ECO Mode Efficiency >95% |
| Application/Usage | Server,Network Device,Storage Device,Network Closet,PBX System,VoIP Device,Mission Critical Equipment,Generator |
| Cord Length | 10 ft (3048 mm) |
| Circuit Breaker Current Rating | 30 A |
| Crest Factor | 3:1 |
| Power Description | |
| Load Capacity (VA) | 3 kVA |
| Load Capacity (Watt) | 2.70 kW |
| Input Voltage | 120 V AC |
| Input Voltage Range | 60 V AC - 69 V AC,100 V AC - 125 V AC |
| Output Voltage | 100 V AC,110 V AC,115 V AC,120 V AC,125 V AC |
| Input Frequency | 40 Hz,70 Hz |
| Output Frequency | 50 Hz,60 Hz |
| Waveform Type | Sine Wave |
| Surge Energy Rating | 1335 J |
| Input Power Factor | 0.99 |
| Output Power Factor | 0.9 |
| Display & Graphics | |
| Display | LCD |
| Management | |
| Network Management | Dry Contact,Relay Card,SNMP Manageable |
| Alarm | Battery Mode |
| Controls/Indicators | |
| Status Indicators | LED Indicators: Power On (White) Line Mode (Green) Battery Mode (Yellow) Bypass Mode (Yellow) Fault (Red) Replace Battery (Red) |
| Interfaces/Ports | |
| Serial Port | Yes |
| Network (RJ-45) | Yes |
| USB | Yes |
| USB (HID Compliant) Port | Yes |
| EPO Port | Yes |
| Battery Information | |
| Number of Batteries | 6 |
| Battery Characteristics | Sealed |
| Battery Chemistry | Lead Acid |
| Battery Size | 12V |
| Battery Capacity | 9000 mAh |
| Backup/Run Time (Full Load) | 4 Minute |
| Backup/Run Time (Half Load) | 12.50 Minute |
| Typical Battery Recharge Time | 4 Hour |
| Replaceable Battery | Yes |
| Environmental Conditions | |
| Maximum Operating Temperature | 104°F (40°C) |
| Storage Temperature | -4°F (-20°C) - 113°F (45°C) |
| Maximum Operating Elevation | 10000 ft (3048000 mm) |
| Maximum Storage Elevation | 50000 ft (15240000 mm) |
| Operating Humidity | 0% - 90% |
| Storage Relative Humidity | 0% - 95% |
| Sound Emission (A-Weighted) | 55 dB(A) |
| Thermal Dissipation | 889 BTU/h |
| Physical Characteristics | |
| Product Color | Black |
| Form Factor | Rack/Tower |
| Rack Height | 2U |
| Height | 3.50" (88.90 mm) |
| Width | 17" (431.80 mm) |
| Depth | 23.62" (599.95 mm) |
| Weight (Approximate) | 68.20 lb (30935 g) |
| Miscellaneous | |
| Package Contents | Smart App Online OL3000RMXL2U 3000VA Rack/Tower UPS User Manual Registration Card 2 x Rackmount Rails 2 x Rackmount Ears 2 x Hanging Brackets Phone Line USB Communication Cable Serial Interface Cable (RS-232) 8 x M5X7L Black Flat Head Screws 12 x M5X12L Black Pan Head Screws 6 x M5X6l Silver Pan Head Screws 8 x Plastic Washers 12 x Screw Hole Dust Covers 12 x Rubber Pads Software Download Card |
| Software Included | PowerPanel® Business |
| Energy Star | Yes |
| Country of Origin | Taiwan |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 3 Year |
FAQ
What is the power capacity of this UPS?
The CyberPower OL3000RTXL2UN delivers 3000VA/2700W of power capacity, making it suitable for protecting servers, network equipment, and other critical IT infrastructure that requires substantial backup power.
What runtime can I expect at different load levels?
At full load (2700W), the UPS provides approximately 4 minutes of runtime. At half load (1350W), runtime extends to about 12.5 minutes. These figures help determine how long connected equipment can operate during a power outage.
How many outlets does this UPS have and what types?
This unit features seven protected outlets: one NEMA L5-30R receptacle and six NEMA 5-20R receptacles. This outlet configuration supports a mix of equipment with different plug types, providing flexible connectivity for servers, switches, and other devices.
What input and output voltage ranges does it support?
The UPS accepts input voltage from 100-125 V AC and delivers configurable output voltage within the same 100-125 V AC range. This wide input range accommodates typical North American power variations, while the configurable output ensures compatibility with sensitive equipment.
Is this UPS designed for rack or tower deployment?
The OL3000RTXL2UN supports both rack and tower configurations. Its 2U rack height (3.5 inches) makes it suitable for standard server racks, while the included mounting hardware and tower capability provide installation flexibility for various environments.
What management and connectivity options are available?
Management interfaces include USB, serial, SNMP, and dry contact relay connections. These options enable remote monitoring and control through CyberPower's PowerPanel® Business software, allowing for centralized management of power protection across your infrastructure.
