Product Features
Product Overview
The CyberPower OL5KRTHDL Smart App Online UPS delivers enterprise-grade double-conversion power protection for critical IT infrastructure. This 5000VA/5000W unit provides pure sine wave output with zero transfer time, ensuring seamless power continuity for servers, network equipment, storage systems, and hyperconverged infrastructure.
Designed for both rack and tower deployment, the 3U form factor optimizes data center space while supporting high-density environments. The unit includes comprehensive remote management capabilities through SNMP/HTTP interfaces, allowing IT administrators to monitor power conditions, configure settings, and receive alerts from anywhere on the network.
With its robust battery system featuring twelve 12V sealed lead-acid batteries, the OL5KRTHDL delivers reliable backup power during outages. The hot-swappable battery design enables maintenance without system downtime, while the 4-hour recharge time minimizes vulnerability windows after extended power events.
Technical Overview
The OL5KRTHDL employs true double-conversion technology that continuously converts incoming AC power to DC and back to clean AC output. This topology provides complete isolation from utility power anomalies, including voltage sags, surges, frequency variations, and harmonic distortion.
Advanced power management features include an integrated circuit breaker for overload protection, EMI/RFI noise filtering that meets stringent IT equipment requirements, and a cold start function that allows battery-powered operation when AC input is unavailable. The unit maintains a high 0.99 input power factor and perfect 1.0 output power factor, minimizing reactive power waste and maximizing usable capacity.
Thermal management is engineered for continuous operation with 1051 BTU/h dissipation capacity. The 43 dB(A) sound emission rating ensures quiet performance in office or data center environments, while operating specifications support deployment at elevations up to 10,000 feet.
Key Product Advantages
Zero Transfer Time Protection
Double-conversion topology eliminates transfer delays during power events, providing seamless protection for sensitive electronic equipment that cannot tolerate even momentary power interruptions.
- Continuous power conditioning
- No switching to battery during normal operation
- Eliminates transfer-related downtime risk
High-Density 3U Design
The compact 3U rack-mount footprint delivers 5000VA capacity in minimal vertical space, optimizing rack utilization for data centers and server rooms where real estate is at a premium.
- Supports standard 19" racks
- Tower conversion kit included
- Front-accessible controls and display
Comprehensive Remote Management
SNMP/HTTP interfaces enable centralized monitoring and control through PowerPanel Business Edition software, providing real-time status, historical reporting, and automated shutdown capabilities.
- Web-based configuration interface
- Email and SNMP trap alerts
- Scheduled self-tests and diagnostics
Deployment / Use Cases
The OL5KRTHDL is engineered for demanding environments where power quality and availability directly impact business continuity. Its 5000VA capacity and double-conversion topology make it ideal for protecting server racks, network closets, and critical infrastructure nodes.
In corporate data centers, this UPS safeguards virtualization hosts, storage arrays, and converged infrastructure platforms against power disturbances that could cause data corruption or system crashes. The unit's 200-240VAC input compatibility supports standard North American three-phase power distribution while the NEMA L6-30P cord and hardwire terminals provide flexible installation options.
For laboratory and industrial applications, the pure sine wave output ensures compatibility with sensitive test equipment, medical devices, and process control systems. The audible alarm system provides local notification of power events, while the built-in bypass switch enables maintenance without disrupting connected loads.
Server Room Protection
Provides clean, uninterrupted power for rack-mounted servers, switches, and storage systems, with runtime sufficient for graceful shutdown or transfer to generator power.
Network Infrastructure
Protects core networking equipment, VoIP systems, and security appliances from power anomalies that could disrupt communications and connectivity.
Physical Profile

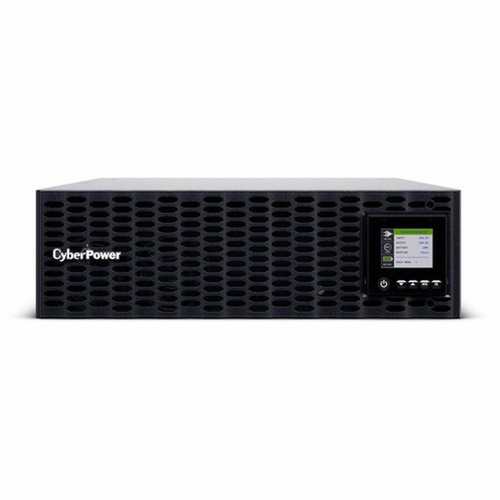

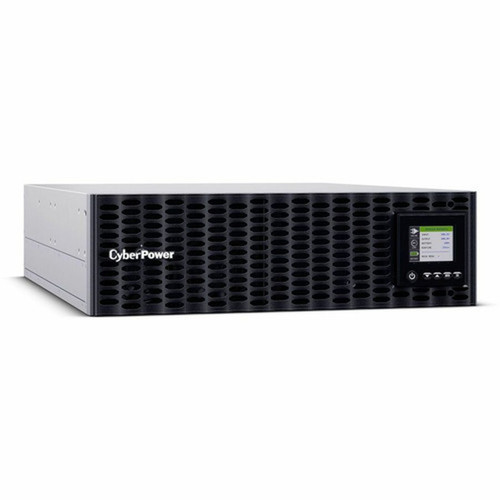

The black steel enclosure houses all components in a rugged design rated for continuous operation. Front-panel controls include an LCD display showing UPS status, load percentage, battery condition, and input/output voltage readings. LED indicators provide at-a-glance status for power, battery, and fault conditions.
The 3U rack-mount design includes integrated rack ears for standard 19" cabinet installation. For tower deployment, the unit stands securely on its included feet. All connections are conveniently located on the rear panel, with clear labeling for power input, output receptacles, and communication ports. The 10-foot NEMA L6-30P power cord provides installation flexibility in various rack configurations.
- Width
- 17.01" (432 mm)
- Depth
- 28.31" (719 mm)
- Height
- 5.12" (130 mm)
- Weight
- 43 dB(A)
- Length
- 10 ft (3.05 m)
What's in the Box
The OL5KRTHDL ships complete with all necessary components for immediate deployment in rack or tower configurations.
Highlights
- 5000VA/5000W double-conversion online UPS with pure sine wave output
- 3U rack/tower form factor for high-density deployment
- Zero transfer time protection for critical equipment
- SNMP/HTTP remote management with PowerPanel Business Edition software
- Twelve 12V sealed lead-acid batteries with hot-swappable design
- 4.9 minutes runtime at full load, 14.3 minutes at half load
- 200-240VAC input range with NEMA L6-30P cord and hardwire terminals
- LCD display with comprehensive status monitoring and event logging
- Energy Star compliant with >96% efficiency in ECO mode
- 3-year limited warranty with RoHS environmental compliance
Specifications
| Specifications | |
|---|---|
| Manufacturer | CyberPower Systems, Inc |
| Manufacturer Part Number | OL5KRTHDL |
| Brand Name | CyberPower |
| Product Line | Smart App Online |
| Product Model | OL5KRTHDL |
| Product Name | OL5KRTHDL Smart App Online UPS Systems |
| Product Type | Double Conversion Online UPS |
| Technical Information | |
| Plug/Connector Type | NEMA L6-30P,Hardwired |
| Receptacle Type | NEMA L6-20R,NEMA L6-30R |
| Receptacle Detail | 2 x NEMA L6-20R,2 x NEMA L6-30R |
| Cord Length | 10 ft (3.05 m) |
| Transfer Time | 0 ns |
| EMI/RFI Noise Filter | Yes |
| Energy Saving | ECO Mode Efficiency >96% |
| Application/Usage | High-end System Component,Corporate,Server,Lab Equipment,Electronic Device,Network Equipment,Hyperconverged Infrastructure (HCI),Server Room,Infrastructure,Storage System,VoIP |
| Features | Audible Alarm,Built-in Bypass Switch,Green Energy Saving,Cold Start Function |
| Power Description | |
| Load Capacity (VA) | 5 kVA |
| Load Capacity (Watt) | 5 kW |
| Input Voltage | 120 V AC,230 V AC |
| Input Voltage Range | 120 V AC - 139 V AC,200 V AC - 240 V AC |
| Output Voltage | 200 V AC,208 V AC,220 V AC,230 V AC,240 V AC |
| Input Frequency | 50 Hz,60 Hz |
| Output Frequency | 50 Hz,60 Hz |
| Waveform Type | Sine Wave |
| Surge Energy Rating | 2430 J |
| Circuit Breaker | Yes |
| Input Power Factor | 0.99 |
| Output Power Factor | 1 |
| Display & Graphics | |
| Display | LCD |
| Management | |
| Network Management | SNMP/HTTP Remote Monitoring |
| Alarm | Battery Mode,Low Battery,Overload,UPS Fault |
| Controls/Indicators | |
| Status Indicators | LED Indicators: Power On LCD Display: UPS status Controls Most recent event logs Diagnostics Power Failure Fault Notices |
| Interfaces/Ports | |
| Serial Port | Yes |
| USB | Yes |
| EPO Port | Yes |
| USB (HID Compliant) Port | Yes |
| Battery Information | |
| Number of Batteries | 12 |
| Battery Characteristics | Sealed |
| Battery Chemistry | Lead Acid |
| Battery Size | 12V |
| Battery Capacity | 9000 mAh |
| Backup/Run Time (Full Load) | 4.90 Minute |
| Backup/Run Time (Half Load) | 14.30 Minute |
| Hot Swappable | Yes |
| Typical Battery Recharge Time | 4 Hour |
| Replaceable Battery | No |
| Environmental Conditions | |
| Maximum Operating Elevation | 10000 ft (3048000 mm) |
| Maximum Storage Elevation | 50000 ft (15240000 mm) |
| Storage Temperature | -4°F (-20°C) - 113°F (45°C) |
| Operating Humidity | 0% - 90% |
| Storage Relative Humidity | 0% - 95% |
| Minimum Operating Temperature | 32°F (0°C) |
| Maximum Operating Temperature | 104°F (40°C) |
| Sound Emission (A-Weighted) | 43 dB(A) |
| Thermal Dissipation | 1051 BTU/h |
| Physical Characteristics | |
| Product Color | Black |
| Height | 5.12" (130 mm) |
| Width | 17.01" (432 mm) |
| Depth | 28.31" (719 mm) |
| Rack Height | 3U |
| Form Factor | Rack/Tower |
| Weight (Approximate) | 117.99 lb (53520 g) |
| Miscellaneous | |
| Package Contents | Smart App Online OL5KRTHDL 5000VA Rack/tower UPS Power Cord |
| Software Included | PowerPanel® Business Edition |
| Energy Star | Yes |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 3 Year |
User Manual
FAQ
What is the difference between double-conversion and line-interactive UPS topology?
Double-conversion UPS systems continuously convert incoming AC power to DC and back to clean AC, providing complete isolation from utility power anomalies with zero transfer time. Line-interactive units only engage conditioning when voltage exceeds preset thresholds, resulting in brief transfer delays. The OL5KRTHDL's double-conversion topology offers superior protection for sensitive server and network equipment.
How many devices can this 5000VA UPS support?
The 5000VA/5000W capacity supports approximately 10-15 typical server loads or 20-30 network devices, depending on individual power consumption. The unit includes two NEMA L6-20R and two NEMA L6-30R receptacles for connecting equipment directly, plus hardwire terminals for connecting to a downstream power distribution unit (PDU) for expanded outlet capacity.
What remote management capabilities does this UPS offer?
The OL5KRTHDL provides SNMP and HTTP interfaces for network-based monitoring and control. The included PowerPanel Business Edition software enables configuration of automated shutdown sequences, email/SMS alerts for power events, historical reporting, and remote reboot capabilities. The UPS also supports industry-standard management protocols for integration with existing network management systems.
Can this UPS be mounted in a standard server rack?
Yes, the unit is designed for standard 19" server racks with a 3U vertical space requirement. It includes all necessary mounting hardware and features front-accessible controls and display for easy monitoring in rack environments. The 5.12" height, 17.01" width, and 28.31" depth fit typical rack configurations while providing adequate ventilation for continuous operation.
What is the expected battery lifespan and replacement process?
The twelve sealed lead-acid batteries typically provide 3-5 years of service under normal operating conditions. The hot-swappable design allows battery replacement without powering down connected equipment. While the batteries themselves are not user-replaceable under warranty, the entire battery module can be serviced by qualified technicians while the UPS continues to provide power from the remaining functional cells.
Does this UPS support generator compatibility?
Yes, the OL5KRTHDL is compatible with most standby generators. The wide input voltage range (120-139V AC and 200-240V AC) accommodates typical generator output variations, while the input frequency tolerance (50/60 Hz ±3 Hz) handles minor frequency fluctuations. The double-conversion topology provides additional conditioning of generator power before it reaches connected equipment.
