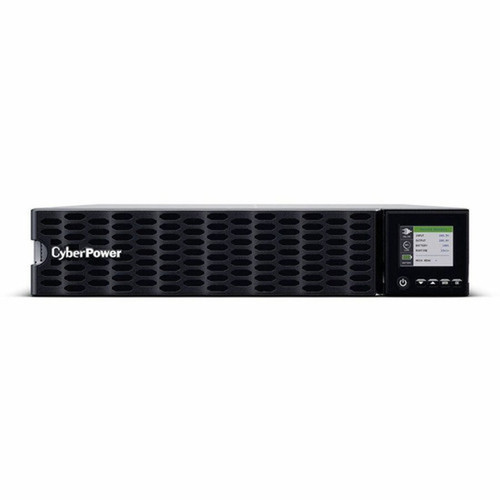

CyberPower OL6KRTHD Smart App Online UPS - 6000VA/6000W Double-Conversion - 200-240VAC - 2U Rack/Tower - NEMA L6-30P Cord Included
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Product Overview
The CyberPower OL6KRTHD Smart App Online UPS is a double-conversion uninterruptible power supply engineered for critical IT infrastructure requiring clean, stable power and zero transfer time during outages. With 6000VA/6000W capacity, this unit delivers robust power protection for server racks, network closets, and industrial applications where voltage fluctuations and interruptions can cause data loss or hardware damage.
Featuring a 2U rack/tower design, the OL6KRTHD integrates seamlessly into standard 19-inch racks while offering the flexibility for tower deployment where rack space is unavailable. The unit includes a NEMA L6-30P power cord and supports hardwired terminal connections, providing installation versatility for commercial and industrial environments. Advanced monitoring through a color TFT-LCD display and SNMP/HTTP remote management enables proactive power management and real-time status visibility.
Technical Overview
The CyberPower OL6KRTHD employs double-conversion online topology, continuously converting incoming AC power to DC and back to clean AC output. This process ensures zero transfer time during power transitions and provides complete isolation from input power anomalies, delivering pure sine wave output compatible with sensitive servers, networking equipment, and industrial control systems. The unit achieves 96% operational efficiency, reducing energy waste and operating costs while maintaining stable power quality.
Power specifications include a wide input voltage range of 200-240VAC with automatic voltage regulation, supporting both 120V and 230V input configurations. Output voltage is adjustable between 200-240VAC with 50/60Hz frequency support, accommodating international power standards. The system provides 2430 joules of surge protection and incorporates EMI/RFI noise filtering to safeguard connected equipment from electrical interference and power line disturbances.
Connectivity includes a NEMA L6-30P input cord with hardwired terminal options for permanent installations. Output receptacles consist of two NEMA L6-30R and two NEMA L6-20R outlets, protected by a 50A circuit breaker. Management interfaces include serial, USB, and EPO ports, while the multi-function color TFT-LCD display provides real-time monitoring of 15 UPS status parameters, 7 control functions, 20 setup options, and comprehensive event logging.
Key Product Advantages
The OL6KRTHD combines high-density power protection with intelligent management features designed for modern IT environments. The 2U form factor maximizes power capacity per rack unit, while the included mounting hardware and NEMA L6-30P cord simplify deployment.
Advanced Monitoring & Control
The multi-function color TFT-LCD displays 15 types of UPS status, 7 control functions, 20 setup options, 12 event logs, and 4 diagnostic tests. Remote management via SNMP/HTTP allows network administrators to monitor power conditions, configure settings, and receive alerts from any location.
- Color TFT-LCD Display
- SNMP/HTTP Management
- EPO Port for Emergency Shutdown
Comprehensive Protection
Beyond battery backup, the unit provides overload protection, short circuit protection, backfeed protection, and thermal overload safeguards. The 50A circuit breaker and sealed lead-acid battery system ensure reliable operation under demanding conditions.
- Overload & Short Circuit Protection
- Sealed Lead-Acid Batteries
- ECO Mode for Energy Savings
Deployment / Use Cases
The OL6KRTHD is engineered for environments where power quality and continuity are non-negotiable. Its 6000VA capacity and rack-optimized design make it ideal for protecting server infrastructure in data centers, network operations centers, and telecommunications facilities.
Industrial applications benefit from the hardwired terminal capability and wide input voltage range, supporting manufacturing equipment, control systems, and medical devices. The tower configuration option provides flexibility for edge computing locations, remote offices, and retail environments where rack mounting isn't available.
Data Center & Server Room
Protect rack-mounted servers, storage arrays, and network switches with clean sine wave power and zero transfer time. The 2U height conserves valuable rack space while delivering enterprise-grade power protection.
Industrial & Commercial
Safeguard critical manufacturing equipment, point-of-sale systems, and security infrastructure from power disturbances. The NEMA L6-30P cord and hardwired options accommodate various electrical installations.
Physical Profile
Designed for both rack and tower deployment, the OL6KRTHD measures 3.4 inches in height (2U), 17 inches in width, and 28.3 inches in depth. The black finish complements standard IT equipment, while the 92.4-pound weight reflects its robust construction and internal battery bank. Front-panel accessibility to the LCD display, status indicators, and connectivity ports ensures convenient monitoring and management in either orientation.
- Width
- 17" (431.80 mm)
- Depth
- 28.30" (718.82 mm)
- Height
- 2U
- Weight
- 66 dB(A)
- Length
- 10 ft (3048 mm)
What's in the Box
The package includes everything needed for immediate deployment of the UPS system in rack or tower configurations.
Highlights
- 6000VA/6000W double-conversion online UPS protection
- 2U rack/tower form factor with included mounting hardware
- Zero transfer time with sine wave output
- Color TFT-LCD display with advanced monitoring
- SNMP/HTTP remote management capabilities
- 200-240VAC input with automatic voltage regulation
- NEMA L6-30P power cord included
- 96% operational efficiency with ECO mode
- Sealed lead-acid battery system
- 3-year warranty including batteries
Specifications
| Specifications | |
|---|---|
| Manufacturer | CyberPower Systems, Inc |
| Manufacturer Part Number | OL6KRTHD |
| Brand Name | CyberPower |
| Product Line | Smart App Online |
| Product Series | Smart App Online UPS |
| Product Model | OL6KRTHD |
| Product Name | OL6KRTHD Smart App Online UPS Systems |
| Product Condition | New |
| Product Type | Double Conversion Online UPS |
| Technical Information | |
| Plug/Connector Type | NEMA L6-30P |
| Receptacle Type | NEMA L6-30R,NEMA L6-20R |
| Receptacle Detail | 2 x NEMA L6-30R,2 x NEMA L6-20R |
| Transfer Time | 0 ns |
| Protection Type | Backfeed,Short Circuit |
| Overload Protection | Yes |
| EMI/RFI Noise Filter | Yes |
| Energy Saving | ECO Mode Efficiency >96% |
| Cord Length | 10 ft (3048 mm) |
| Circuit Breaker Current Rating | 50 A |
| Efficiency | 96% |
| Power Description | |
| Load Capacity (VA) | 6 kVA |
| Load Capacity (Watt) | 6 kW |
| Input Voltage | 120 V AC,230 V AC |
| Input Voltage Range | 120 V AC - 139 V AC,200 V AC - 240 V AC |
| Output Voltage | 200 V AC,208 V AC,220 V AC,230 V AC,240 V AC |
| Input Frequency | 40 Hz,70 Hz |
| Output Frequency | 50 Hz,60 Hz |
| Waveform Type | Sine Wave |
| Surge Energy Rating | 2430 J |
| Input Power Factor | 0.99 |
| Output Power Factor | 1 |
| Display & Graphics | |
| Display | LCD |
| Management | |
| Network Management | SNMP/HTTP Remote Monitoring |
| Alarm | Battery Mode |
| Controls/Indicators | |
| Status Indicators | LED Indicators: Power On (White) Multi-Function Color TFT-LCD Readout that Supports: 15 x Types of UPS status 7 x Types of Controls 20 x Types of Set Up 12 x Event Logs 11 x Types of About 4 x Types of Diagnostics |
| Interfaces/Ports | |
| Serial Port | Yes |
| USB | Yes |
| USB (HID Compliant) Port | Yes |
| EPO Port | Yes |
| Battery Information | |
| DC System Voltage | 12 V DC |
| Number of Batteries | 12 |
| Battery Characteristics | Sealed |
| Battery Chemistry | Lead Acid |
| Battery Size | 12V |
| Battery Capacity | 5700 mAh |
| Backup/Run Time (Full Load) | 2.40 Minute |
| Backup/Run Time (Half Load) | 6.20 Minute |
| Typical Battery Recharge Time | 4 Hour |
| Replaceable Battery | No |
| Environmental Conditions | |
| Maximum Operating Temperature | 104°F (40°C) |
| Storage Temperature | -4°F (-20°C) - 113°F (45°C) |
| Maximum Operating Elevation | 10000 ft (3048000 mm) |
| Maximum Storage Elevation | 50000 ft (15240000 mm) |
| Operating Humidity | 0% - 90% |
| Storage Relative Humidity | 0% - 95% |
| Sound Emission (A-Weighted) | 66 dB(A) |
| Thermal Dissipation | 1307 BTU/h |
| Physical Characteristics | |
| Product Color | Black |
| Form Factor | Rack/Tower |
| Rack Height | 2U |
| Height | 3.40" (86.36 mm) |
| Width | 17" (431.80 mm) |
| Depth | 28.30" (718.82 mm) |
| Weight (Approximate) | 92.40 lb (41911.93 g) |
| Miscellaneous | |
| Package Contents | Smart App Online OL6KRTHD 6000VA Rack/Tower UPS Mounting Hardware NEMA L6-30P Power Cord |
| Energy Star | Yes |
| Country of Origin | Taiwan |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 3 Year |
| Additional Warranty Information | Backed by a three-year warranty (including batteries) |
User Manual
FAQ
What is the power capacity of the CyberPower OL6KRTHD UPS?
The CyberPower OL6KRTHD provides 6000VA/6000W of power capacity, making it suitable for protecting critical IT infrastructure such as servers, networking equipment, and industrial systems that require high-density power backup in rack or tower deployments.
What are the runtime specifications for this UPS under different loads?
At full load (6000W), the UPS offers a backup runtime of 2.4 minutes, while at half load (3000W), it extends to 6.2 minutes. These runtimes are based on the internal sealed lead-acid battery system, which typically recharges within 4 hours after use.
How many output outlets does the OL6KRTHD have, and what types are they?
The UPS includes four output receptacles: two NEMA L6-30R and two NEMA L6-20R outlets. This configuration supports a mix of high-power devices, with all outlets protected by a 50A circuit breaker and providing battery backup and surge protection.
What input and output voltage ranges does this UPS support?
The input voltage range is 200-240VAC, with support for 120VAC and 230VAC inputs. Output voltage is adjustable between 200-240VAC, ensuring compatibility with various power standards and providing stable, clean sine wave power to connected equipment.
Is the CyberPower OL6KRTHD designed for rack or tower installation?
Yes, the OL6KRTHD features a versatile rack/tower form factor with a 2U rack height. It includes mounting hardware for standard 19-inch racks and can also be deployed as a standalone tower, offering flexibility for data centers, server rooms, or edge locations.
What management and connectivity options are available on this UPS?
Management options include SNMP/HTTP remote monitoring for network integration, a multi-function color TFT-LCD display for real-time status, and interfaces such as serial, USB, HID-compliant USB, and an EPO port for emergency shutdown, enabling comprehensive control and monitoring.
