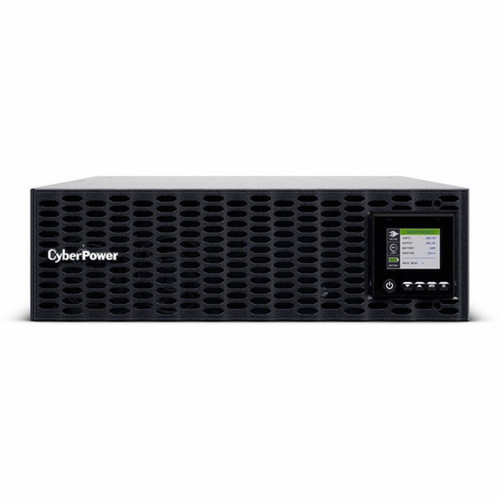

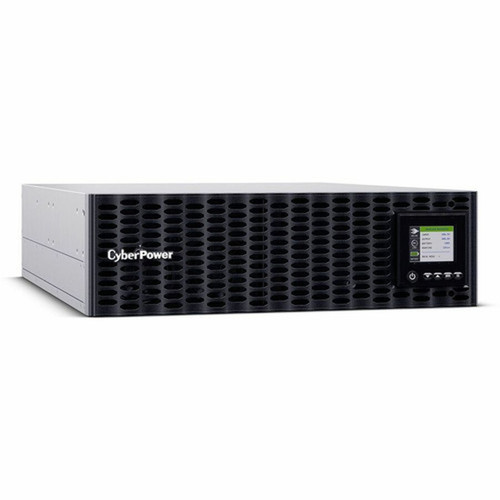

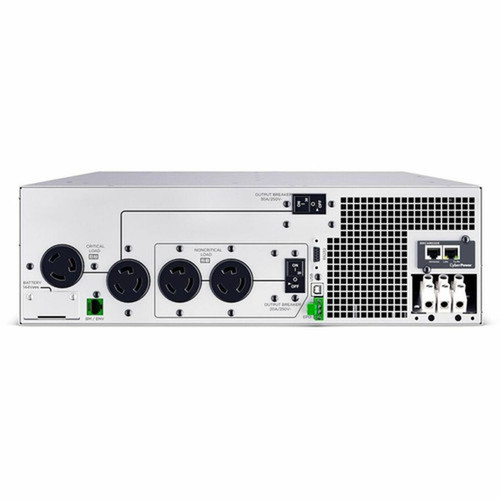

CyberPower OL6KRTHDL Smart App Online UPS - 6000VA/6000W Double-Conversion - 3U Rack/Tower - 200-240VAC - Hardwire Terminal
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
The OL6KRTHDL operates with an input voltage range of 120-139VAC and 200-240VAC, delivering configurable output voltages from 200VAC to 240VAC. It maintains a high efficiency of over 96% in Eco Mode, reducing energy consumption and operational costs. The output power factor of 1 ensures optimal power delivery to connected equipment.
The UPS includes a comprehensive battery system with twelve sealed lead-acid batteries (12V, 9000mAh each), supporting hot-swappable replacement for minimal downtime. It offers runtime of 3.1 minutes at full load and 10.4 minutes at half load, with a typical recharge time of four hours. Advanced battery management features include equalization technology and fast charging.
This section brings together practical product details such as Plug/Connector Type, Receptacle Type, Receptacle Detail, Load Capacity (VA), so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Key Product Advantages
The OL6KRTHDL combines high power capacity with advanced management features, making it ideal for data centers and server rooms. Its double-conversion design provides complete isolation from input power anomalies, ensuring clean and stable output for critical loads.
Advanced Power Protection
Double-conversion topology with pure sine wave output protects against blackouts, brownouts, surges, and noise. The 0 ns transfer time eliminates any interruption during power events.
- Pure Sine Wave
- Zero Transfer Time
- Voltage Regulation
Comprehensive Management
Includes PowerPanel Business Edition software for remote monitoring and control via web browser, CLI, SNMP, or NMS. The LCD display offers intuitive status indicators and event logging.
- Web/SNMP Management
- LCD Control Panel
- Event Logging
Deployment / Use Cases
This UPS is engineered for environments where power reliability is non-negotiable. Its 6000VA capacity and rack/tower flexibility make it suitable for a wide range of applications, from corporate server rooms to industrial labs.
Typical deployments include protecting high-end servers, storage arrays, network switches, VoIP systems, and hyperconverged infrastructure. The hardwire terminal option allows for permanent installation, while the included NEMA L6-30P power cord supports standard connections.
This section brings together practical product details such as Plug/Connector Type, Receptacle Type, Receptacle Detail, Load Capacity (VA), so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Data Center & Server Room
Provides backup power for rack-mounted servers and storage, ensuring continuous operation during outages. The 3U design optimizes rack space.
Industrial & Lab Equipment
Protects sensitive electronic devices from power fluctuations in laboratory or manufacturing settings. The wide input voltage range accommodates varying power conditions.
Physical Profile
The UPS features a black chassis with dimensions of 5.12" (130 mm) height, 17.01" (432 mm) width, and 28.31" (719 mm) depth. It occupies 3U of rack space and weighs approximately 117.99 lb (53520 g), providing a sturdy and compact footprint for rack or tower installation. The design includes integrated handles for easier mounting and maintenance.
- Width
- 17.01" (432 mm)
- Depth
- 28.31" (719 mm)
- Height
- 5.12" (130 mm)
- Weight
- 66 dB(A)
- Length
- 10 ft (3.05 m)
What's in the Box
The package includes all necessary components for immediate deployment.
Highlights
- 6000VA/6000W double-conversion online UPS for high-power applications
- 3U rack/tower form factor with black chassis for flexible installation
- Pure sine wave output with 0 ns transfer time for clean power protection
- Configurable output voltage (200-240VAC) and wide input range (120-240VAC)
- Runtime of 10.4 minutes at half load and 3.1 minutes at full load
- Hot-swappable battery system with twelve sealed lead-acid batteries
- LCD display and PowerPanel Business Edition for comprehensive management
- Includes NEMA L6-30P power cord and hardwire terminal option
- Energy Star certified with over 96% efficiency in Eco Mode
- 3-year limited warranty with connected equipment guarantee
Specifications
| Specifications | |
|---|---|
| Manufacturer | CyberPower Systems, Inc |
| Manufacturer Part Number | OL6KRTHDL |
| Brand Name | CyberPower |
| Product Line | Smart App Online |
| Product Model | OL6KRTHDL |
| Product Name | OL6KRTHDL Smart App Online UPS Systems |
| Product Type | Double Conversion Online UPS |
| Technical Information | |
| Plug/Connector Type | NEMA L6-30P |
| Receptacle Type | NEMA L6-20R,NEMA L6-30R |
| Receptacle Detail | 2 x NEMA L6-20R,2 x NEMA L6-30R |
| Cord Length | 10 ft (3.05 m) |
| Transfer Time | 0 ns |
| EMI/RFI Noise Filter | Yes |
| Energy Saving | ECO Mode Efficiency >96% |
| Efficiency Detail | 96% (Eco Mode) |
| Application/Usage | High-end System Component,Corporate,Server,Lab Equipment,Electronic Device,Network Equipment,Hyperconverged Infrastructure (HCI),Server Room,Infrastructure,Storage System,VoIP |
| Features | Audible Alarm,Built-in Bypass Switch,Green Energy Saving,Cold Start Function |
| Power Description | |
| Load Capacity (VA) | 6 kVA |
| Load Capacity (Watt) | 6 kW |
| Input Voltage | 120 V AC,230 V AC |
| Input Voltage Range | 120 V AC - 139 V AC,200 V AC - 240 V AC |
| Output Voltage | 200 V AC,208 V AC,220 V AC,230 V AC,240 V AC |
| Input Frequency | 50 Hz,60 Hz |
| Output Frequency | 50 Hz,60 Hz |
| Waveform Type | Sine Wave |
| Surge Energy Rating | 2430 J |
| Circuit Breaker | Yes |
| Input Power Factor | 0.99 |
| Output Power Factor | 1 |
| Display & Graphics | |
| Display | LCD |
| Management | |
| Network Management | Web Browser/CLI/SNMP/NMS |
| Alarm | Battery Mode,Low Battery,Overload,UPS Fault |
| Controls/Indicators | |
| Status Indicators | LED Indicators: Power On LCD Display: UPS status Controls Most recent event logs Diagnostics Power Failure Fault Notices |
| Interfaces/Ports | |
| Serial Port | Yes |
| USB | Yes |
| EPO Port | Yes |
| USB (HID Compliant) Port | Yes |
| Battery Information | |
| Number of Batteries | 12 |
| Battery Characteristics | Sealed |
| Battery Chemistry | Lead Acid |
| Battery Size | 12V |
| Battery Capacity | 9000 mAh |
| Backup/Run Time (Full Load) | 3.10 Minute |
| Backup/Run Time (Half Load) | 10.40 Minute |
| Hot Swappable | Yes |
| Typical Battery Recharge Time | 4 Hour |
| Replaceable Battery | No |
| Environmental Conditions | |
| Maximum Operating Elevation | 10000 ft (3048000 mm) |
| Maximum Storage Elevation | 50000 ft (15240000 mm) |
| Storage Temperature | -4°F (-20°C) - 113°F (45°C) |
| Operating Humidity | 0% - 90% |
| Storage Relative Humidity | 0% - 95% |
| Minimum Operating Temperature | 32°F (0°C) |
| Maximum Operating Temperature | 104°F (40°C) |
| Sound Emission (A-Weighted) | 66 dB(A) |
| Thermal Dissipation | 1307 BTU/h |
| Physical Characteristics | |
| Product Color | Black |
| Height | 5.12" (130 mm) |
| Width | 17.01" (432 mm) |
| Depth | 28.31" (719 mm) |
| Rack Height | 3U |
| Form Factor | Rack/Tower |
| Weight (Approximate) | 117.99 lb (53520 g) |
| Miscellaneous | |
| Package Contents | Smart App Online OL6KRTHDL 6000VA Rack/tower UPS Power Cord |
| Software Included | PowerPanel® Business Edition |
| Energy Star | Yes |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 3 Year |
User Manual
FAQ
What is the power capacity of the CyberPower OL6KRTHDL UPS?
The OL6KRTHDL provides 6000VA (6 kVA) and 6000W of power capacity. This double-conversion online UPS is designed to support high-density IT equipment, including servers, storage systems, and network infrastructure, with an output power factor of 1 for efficient power delivery.
What runtime can I expect from this UPS at full and half loads?
At full load (6000W), the UPS offers approximately 3.1 minutes of runtime. At half load (3000W), runtime extends to about 10.4 minutes. These figures are based on the included twelve sealed lead-acid batteries (12V, 9000mAh each) and support critical operations during power outages.
Is this UPS suitable for rack mounting?
Yes, the OL6KRTHDL features a 3U rack/tower form factor, making it ideal for standard server racks. Its dimensions are 5.12" height, 17.01" width, and 28.31" depth, with a weight of approximately 117.99 lb. It includes integrated handles for easier installation in rack or tower configurations.
What management options are available for this UPS?
The UPS includes PowerPanel Business Edition software for remote monitoring and control via web browser, CLI, SNMP, or NMS. An LCD display provides real-time status, event logs, and diagnostics. Communication ports include USB, serial, EPO, and HID-compliant USB for flexible integration.
What input and output voltages does this UPS support?
The input voltage range is 120-139VAC and 200-240VAC, accommodating various power sources. Output voltage is user-configurable between 200VAC, 208VAC, 220VAC, 230VAC, and 240VAC (±2%). It operates at 50/60 Hz input and output frequencies for global compatibility.
Does this UPS include a warranty?
Yes, the CyberPower OL6KRTHDL comes with a 3-year limited warranty. It also includes a connected equipment guarantee, providing additional protection for devices connected to the UPS against damage from power surges or UPS malfunctions.
What power capacity is listed for this UPS?
The listed power specification is 6 kVA, which helps position the unit for the right load level and installation role.
What voltage details are listed?
The listed power specification is 120 V AC,230 V AC, which helps position the unit for the right load level and installation role.
