CyberPower OL750RTHD Smart App Online UPS - 750VA/750W Double-Conversion - 2U Rack/Tower - Sine Wave - 8 Outlets - 100-125VAC - 3-Year Warranty
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Product Overview
The CyberPower OL750RTHD Smart App Online UPS is a double-conversion uninterruptible power supply engineered for business IT environments requiring clean, reliable power protection. This 750VA/750W unit delivers pure sine wave output with zero transfer time, ensuring sensitive equipment receives stable power regardless of input fluctuations or outages.

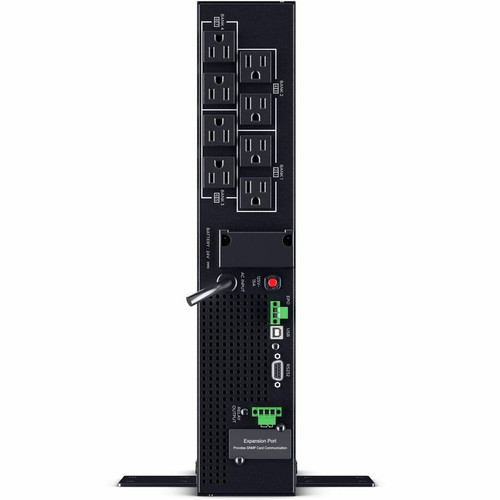

Designed for flexible deployment, the OL750RTHD operates in both rack-mount and tower configurations with a compact 2U form factor. It features eight NEMA 5-15R outlets—four of which are switchable—providing ample connectivity for servers, networking gear, and critical workstations. The unit includes comprehensive management capabilities through USB, serial, SNMP, and dry contact interfaces, supported by PowerPanel® Business Edition software for centralized monitoring and control.
Relevant product facts for this section include Plug/Connector Type: NEMA 5-15P, Receptacle Type: NEMA 5-15P, Receptacle Detail: 8 x NEMA 5-15R, Load Capacity (VA): 750 VA. When those details are considered together, they give buyers a clearer picture of how the product is equipped, how it connects, and what kind of day-to-day role it is meant to support.
Technical Overview
The CyberPower OL750RTHD employs double-conversion online topology that continuously converts incoming AC power to DC and back to clean AC output, providing complete isolation from power anomalies with zero transfer time. This technology ensures connected equipment receives stable pure sine wave power regardless of input fluctuations, brownouts, or complete outages. The unit delivers 750VA/750W capacity with an output power factor of 1, making it fully compatible with modern active PFC power supplies found in servers, networking gear, and sensitive electronics.
Advanced power management features include configurable output voltage settings from 100 to 125 VAC with ±2% precision, allowing fine-tuning for specific equipment requirements. The ECO Mode achieves over 96% efficiency during normal operation, reducing energy consumption while maintaining protection. Comprehensive surge suppression rated at 710 joules, combined with EMI/RFI noise filtering and overload protection, safeguards connected devices from transient voltage spikes and electrical noise. The integrated circuit breaker and thermal dissipation of 229 BTU/h ensure stable operation under sustained loads.
Key Product Advantages
The OL750RTHD combines robust power protection with intelligent management features designed for business continuity. Hot-swappable batteries allow for maintenance without system downtime, while the three-year warranty—including battery coverage—provides long-term reliability assurance.
Zero-Transfer Power Protection
Double-conversion topology ensures seamless power delivery with no transfer time during grid failures, eliminating the risk of data corruption or hardware damage from power interruptions.
Enterprise-Grade Management
Integrated SNMP/HTTP remote monitoring, USB and serial interfaces, and optional RMCARD205 support enable centralized UPS management across distributed IT infrastructure.
High-Density Rack Design
The 2U form factor maximizes power protection per rack unit while maintaining flexible tower deployment options for environments without rack infrastructure.
Deployment / Use Cases
This UPS is engineered for environments where power quality directly impacts operational continuity and equipment longevity. The configurable output voltage and pure sine wave output make it suitable for international deployments and facilities with unstable grid power.
The rack/tower dual design accommodates both centralized IT infrastructure and distributed edge deployments where space constraints vary. With eight outlets and flexible management options, the OL750RTHD scales from protecting single critical systems to small server clusters.
Server Room & Network Closet
Protect rack-mounted servers, switches, routers, and storage arrays with clean sine wave power in data center and edge computing environments.
Critical Workstation & Point-of-Sale
Ensure uninterrupted operation for CAD/CAM workstations, medical imaging systems, financial terminals, and retail POS systems vulnerable to power disturbances.
Physical Profile

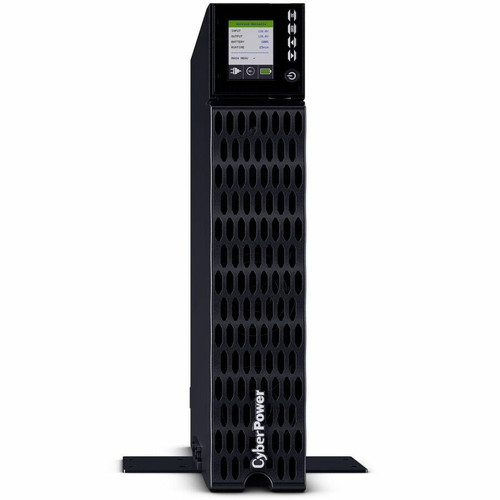

The OL750RTHD features a black enclosure designed for professional IT environments. With dimensions of 3.39" H × 17.05" W × 11.42" D (86 × 433 × 290 mm) and a weight of 27.12 lb (12.3 kg), the unit installs efficiently in standard 19" racks using the included mounting hardware. The front panel includes an LCD display for real-time status monitoring and configuration, along with LED indicators for power and battery status.
- Width
- 17.05" (433 mm)
- Depth
- 11.42" (290 mm)
- Height
- 3.39" (86 mm)
- Weight
- 42.8 dB(A)
- Length
- 10 ft (3.05 m)
Highlights
- 750VA/750W double-conversion online UPS with pure sine wave output
- 2U rack/tower form factor for flexible deployment in server rooms or offices
- Eight NEMA 5-15R outlets with four switchable for controlled shutdown
- Zero transfer time ensures uninterrupted power during grid failures
- Runtime: 5 minutes at full load, 14 minutes at half load
- Hot-swappable batteries enable maintenance without downtime
- SNMP/HTTP, USB, serial, and dry contact management interfaces
- PowerPanel® Business Edition software for centralized monitoring
- Configurable output voltage (100-125 VAC ±2%) for compatibility
- Three-year warranty including battery coverage
Specifications
| Specifications | |
|---|---|
| Manufacturer | CyberPower Systems, Inc |
| Manufacturer Part Number | OL750RTHD |
| Brand Name | CyberPower |
| Product Series | Smart App Online UPS |
| Product Model | OL750RTHD |
| Product Name | Smart App Online UPS OL750RTHD 750VA Rack/Tower UPS |
| Product Type | Double Conversion Online UPS |
| Technical Information | |
| Plug/Connector Type | NEMA 5-15P |
| Receptacle Type | NEMA 5-15P |
| Receptacle Detail | 8 x NEMA 5-15R |
| Overload Protection | Yes |
| Cord Length | 10 ft (3.05 m) |
| Transfer Time | 0 ns |
| EMI/RFI Noise Filter | Yes |
| Energy Saving | ECO Mode Efficiency >96% |
| Surge Suppression | Yes |
| Features | Built-in Bypass Switch,Audible Alarm,Cold Start Function |
| Power Description | |
| Load Capacity (VA) | 750 VA |
| Load Capacity (Watt) | 750 W |
| Input Voltage | 120 V AC |
| Input Voltage Range | 100 V AC - 125 V AC,60 V AC - 69 V AC |
| Output Voltage | 100 V AC,110 V AC,115 V AC,120 V AC,125 V AC |
| Input Frequency | 40 Hz,70 Hz |
| Output Frequency | 50 Hz,60 Hz |
| Waveform Type | Sine Wave |
| Surge Energy Rating | 710 J |
| Circuit Breaker | Yes |
| Input Power Factor | 0.99 |
| Output Power Factor | 1 |
| Display & Graphics | |
| Display | LCD |
| Management | |
| Network Management | Dry Contact,SNMP/HTTP Remote Monitoring |
| Alarm | Battery Mode |
| Controls/Indicators | |
| Status Indicators | LED Indicators: Power On (White) |
| Interfaces/Ports | |
| Serial Port | Yes |
| USB | Yes |
| EPO Port | Yes |
| USB (HID Compliant) Port | Yes |
| Battery Information | |
| Number of Batteries | 2 |
| Battery Characteristics | Sealed |
| Battery Chemistry | Lead Acid |
| Battery Size | 12V |
| Battery Capacity | 9000 mAh |
| Backup/Run Time (Full Load) | 5 Minute |
| Backup/Run Time (Half Load) | 14 Minute |
| Hot Swappable | Yes |
| Typical Battery Recharge Time | 4 Hour |
| Replaceable Battery | Yes |
| Environmental Conditions | |
| Maximum Operating Elevation | 9843 ft (3000146.40 mm) |
| Maximum Storage Elevation | 49213 ft (15000122.40 mm) |
| Storage Temperature | 5°F (-15°C) - 113°F (45°C) |
| Storage Relative Humidity | 0% - 95% |
| Minimum Operating Temperature | 32°F (0°C) |
| Maximum Operating Temperature | 104°F (40°C) |
| Sound Emission (A-Weighted) | 42.8 dB(A) |
| Thermal Dissipation | 229 BTU/h |
| Physical Characteristics | |
| Product Color | Black |
| Height | 3.39" (86 mm) |
| Width | 17.05" (433 mm) |
| Depth | 11.42" (290 mm) |
| Rack Height | 2U |
| Form Factor | Rack/Tower |
| Weight (Approximate) | 27.12 lb (12301.43 g) |
| Miscellaneous | |
| Energy Star | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 3 Year |
| Additional Warranty Information | Three-year warranty (including batteries) |
User Manual
FAQ
What is the power capacity and wattage of this UPS?
The CyberPower OL750RTHD delivers 750 VA and 750 W of power capacity, providing reliable backup for business IT equipment such as servers, networking gear, and workstations. This double-conversion online UPS ensures clean sine wave output with zero transfer time, protecting sensitive electronics from power disturbances.
What are the runtime specifications at full and half load?
At full load, the UPS provides approximately 5 minutes of runtime, while at half load, it offers around 14 minutes. These runtimes are based on the included 12V sealed lead-acid batteries, which are hot-swappable for maintenance without downtime, ensuring continuous operation during power outages.
How many outlets does this UPS have and what types are they?
This UPS features eight NEMA 5-15R outlets, with four of them being switchable for controlled shutdown of connected devices. The outlets support standard North American plugs, and the unit includes a 10-foot NEMA 5-15P power cord for flexible installation in rack or tower configurations.
What input and output voltage ranges are supported?
The input voltage range is 100-125 VAC, with a nominal input of 120 VAC, making it suitable for standard North American power grids. Output voltage is user-configurable from 100 to 125 VAC with ±2% precision, allowing fine-tuning for compatibility with various equipment and international deployments.
Is this UPS designed for rack or tower deployment?
The OL750RTHD is designed for both rack and tower deployment with a compact 2U form factor. It can be mounted in standard 19-inch racks using included hardware or placed as a standalone tower, offering flexibility for server rooms, network closets, or office environments without rack infrastructure.
What management and connectivity options are available?
Management options include SNMP/HTTP remote monitoring, USB, serial, and dry contact interfaces, supported by PowerPanel® Business Edition software for centralized control. The optional RMCARD205 enhances network management, enabling remote monitoring and configuration across distributed IT infrastructure.
