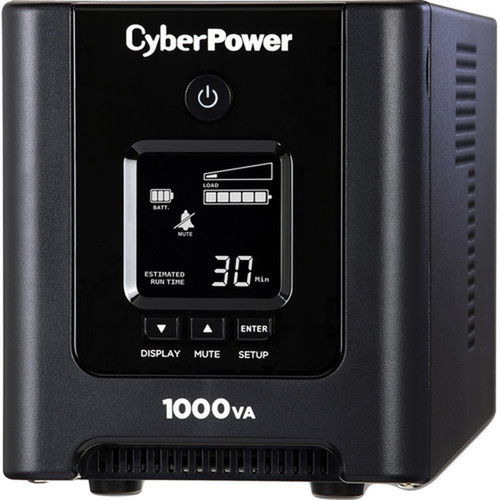

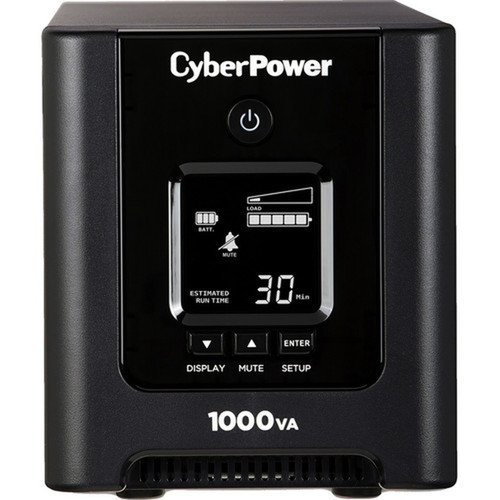

CyberPower OR1000PFCLCD 1000VA/700W PFC Sinewave UPS System - Line Interactive - 8 Outlets - LCD Display - Mini-Tower
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
The OR1000PFCLCD utilizes a line-interactive topology with automatic voltage regulation (AVR) to correct minor power fluctuations without switching to battery, extending runtime and battery life. Its pure sine wave output ensures clean, stable power for active PFC power supplies and sensitive equipment, preventing potential damage or instability during backup operation. The system supports input and output voltages of 120V AC, with a typical battery recharge time of 8 hours after a full discharge.
Communication and management are facilitated through USB and serial interfaces, enabling integration with PowerPanel Business Edition software for remote monitoring, graceful shutdowns, and event logging. The LCD display provides at-a-glance information on load capacity, battery status, and input voltage, while the hot-swappable battery feature allows for easy replacement without interrupting connected devices.
This section brings together practical product details such as Receptacle Type, Receptacle Detail, Cord Length, Load Capacity (VA), so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Key Product Advantages
The OR1000PFCLCD stands out with its combination of high-capacity protection, user-friendly features, and compact design. The pure sine wave output is critical for modern electronics, ensuring compatibility and preventing equipment damage. The LCD display and management software provide comprehensive control, while the hot-swappable battery design minimizes downtime during maintenance.
Enhanced Equipment Protection
Pure sine wave output safeguards sensitive devices like servers, NAS units, and medical equipment from harmonic distortion, ensuring reliable operation during power events.
- Compatible with active PFC power supplies
- Prevents data corruption and hardware stress
- Maintains stable voltage output
Proactive Monitoring & Management
The LCD display and PowerPanel Business Edition software enable real-time monitoring, automated shutdowns, and historical event logging for proactive power management.
- Visual status indicators on LCD
- Remote management via USB/serial
- Graceful shutdowns for connected systems
Deployment / Use Cases
This UPS is ideal for protecting critical infrastructure in small office environments, retail point-of-sale systems, and network closets. Its 1000VA/700W capacity supports multiple devices such as desktop computers, monitors, routers, and switches, providing enough runtime for safe shutdowns during extended outages.
The mini-tower form factor allows placement under desks or in tight spaces, making it suitable for environments where rack mounting isn't feasible. Use cases include securing home office setups, protecting telecommunications equipment, and ensuring uninterrupted operation for security systems and medical devices that require stable power.
Small Business Server Protection
Safeguard essential servers and networking equipment from power surges, sags, and outages, ensuring business continuity and data integrity.
Retail & Point-of-Sale Backup
Maintain operational uptime for cash registers, barcode scanners, and receipt printers during power disturbances, preventing transaction loss and customer inconvenience.
Physical Profile
The OR1000PFCLCD features a compact mini-tower design with dimensions of 6.40" (H) x 5.40" (W) x 13.80" (D), allowing it to fit discreetly in office settings or under desks. Its weight of 24.70 lb provides stability without being cumbersome, and the finish is designed for durability in commercial environments. The form factor supports standalone placement without requiring rack mounting hardware, making installation straightforward for non-technical users.
- Width
- 5.40" (137.16 mm)
- Depth
- 13.80" (350.52 mm)
- Height
- 6.40" (162.56 mm)
- Weight
- 24.70 lb (11203.73 g)
- Length
- 6 ft (1.83 m)
What's in the Box
The package includes all necessary components for immediate setup and operation.
Highlights
- 1000VA/700W line-interactive UPS with pure sine wave output
- Eight NEMA 5-15R outlets for multi-device protection
- Integrated LCD display for real-time status monitoring
- Hot-swappable battery design for maintenance without downtime
- USB and serial communication interfaces for remote management
- PowerPanel Business Edition software for automated shutdowns
- Compact mini-tower form factor fits in office environments
- 3-year warranty with RoHS environmental compliance
Specifications
| Specifications | |
|---|---|
| Manufacturer | CyberPower Systems, Inc |
| Manufacturer Part Number | OR1000PFCLCD |
| Brand Name | CyberPower |
| Product Series | PFC Sinewave UPS |
| Product Model | OR1000PFCLCD |
| Product Name | OR1000PFCLCD PFC Sinewave UPS Systems |
| Product Type | Line-interactive UPS |
| Technical Information | |
| Receptacle Type | NEMA 5-15R |
| Receptacle Detail | 8 x NEMA 5-15R |
| Cord Length | 6 ft (1.83 m) |
| Power Description | |
| Load Capacity (VA) | 1 kVA |
| Load Capacity (Watt) | 700 W |
| Input Voltage | 120 V AC |
| Output Voltage | 120 V AC |
| Battery Information | |
| Backup/Run Time (Full Load) | 6 Minute |
| Hot Swappable | Yes |
| Typical Battery Recharge Time | 8 Hour |
| Physical Characteristics | |
| Height | 6.40" (162.56 mm) |
| Width | 5.40" (137.16 mm) |
| Depth | 13.80" (350.52 mm) |
| Form Factor | Mini-tower |
| Weight (Approximate) | 24.70 lb (11203.73 g) |
| Miscellaneous | |
| Package Contents | PFC Sine Wave OR1000PFCLCD mini-tower 1000VA 700W User Manual USB Cable PowerPanel Business Edition Software Download Card |
| Energy Star | No |
| Country of Origin | China |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 3 Year |
User Manual
FAQ
What is the VA and watt rating of this UPS?
The CyberPower OR1000PFCLCD has a load capacity of 1000VA and 700W. This rating indicates the maximum apparent power and real power it can support, making it suitable for protecting multiple devices like computers, monitors, and networking equipment simultaneously.
How many outlets does this UPS have and what type are they?
This UPS features eight NEMA 5-15R outlets. These are standard North American outlets that accommodate three-prong plugs, allowing you to connect and protect up to eight devices such as desktops, printers, and routers from power disturbances.
What is the runtime at full load?
At full load (700W), the backup runtime is approximately 6 minutes. This provides sufficient time for connected equipment to perform graceful shutdowns or continue operating through brief power interruptions, ensuring data integrity and preventing hardware damage.
Does this UPS output pure sine wave power?
Yes, the OR1000PFCLCD delivers pure sine wave output. This is essential for compatibility with active PFC power supplies found in modern servers, medical devices, and sensitive electronics, as it prevents harmonic distortion and ensures stable operation during battery backup.
What management software is included?
PowerPanel Business Edition software is included via a download card. This software enables remote monitoring, automated shutdowns, event logging, and configuration through USB or serial connections, helping you manage power events proactively across your infrastructure.
Is the battery hot-swappable?
Yes, the battery is hot-swappable. This design allows you to replace the battery without powering down connected equipment, minimizing downtime and ensuring continuous protection during maintenance, which is critical for business environments.
What power capacity is listed for this UPS?
The listed power specification is 1 kVA, which helps position the unit for the right load level and installation role.
What voltage details are listed?
The listed power specification is 120 V AC, which helps position the unit for the right load level and installation role.
