CyberPower PDU15B10R Basic PDU - 10 Outlets - 15A - 100-125V - 1U Rackmount - 15 ft Cord - Lifetime Warranty
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This basic PDU operates on single-phase power with a 15A current rating (derated to 12A for continuous operation), compatible with 50Hz/60Hz frequencies. The unit maintains consistent output voltage matching the input range of 100-125V AC, ensuring stable power delivery to connected devices.
The NEMA 5-15P plug connects to standard North American outlets, while ten NEMA 5-15R receptacles accommodate common power cords. Overload protection safeguards against excessive current draw, and the RoHS-compliant construction meets environmental standards.
Relevant factors for this section include PDU Type, Phase, Plug/Connector Type, Input Voltage. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
A strong technical summary explains how the product's interfaces, hardware profile, and operating characteristics work together in real deployment. Buyers often need this context to confirm compatibility with existing devices, expected performance in daily use, and whether installation will be straightforward for IT staff or end users.
Key Product Advantages
The PDU15B10R combines essential power distribution features with rack-optimized design for data center and server room deployments. Its straightforward approach eliminates complexity while delivering reliable performance.
High-Density Outlet Configuration

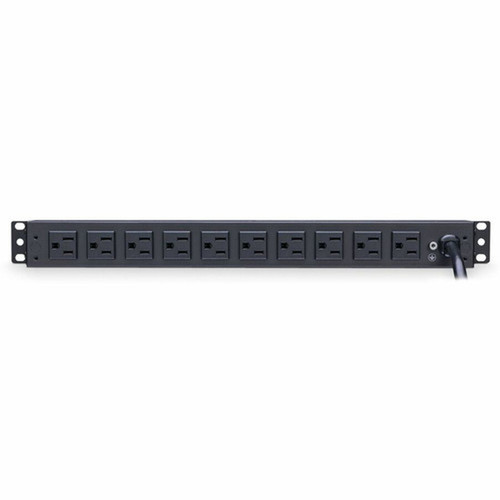

Ten NEMA 5-15R outlets provide ample connectivity for servers, switches, and other rack-mounted equipment, reducing the need for additional power strips.
- Standard North American outlets
- Spaced for power brick clearance
- Supports multiple devices per PDU
Flexible Mounting Options
Includes both horizontal and vertical mounting brackets, allowing installation in various rack configurations to match specific space and cable management requirements.
- Vertical orientation standard
- Horizontal mounting possible
- Complete hardware kit included
Built-in Protection & Compliance
Overload protection prevents damage from excessive current draw, while RoHS compliance ensures environmentally responsible manufacturing without hazardous substances.
- Equipment safety protection
- Meets environmental standards
- No hazardous materials
Deployment / Use Cases
This basic PDU serves as a fundamental power distribution solution for rack environments where straightforward, reliable connectivity takes priority over advanced monitoring or switching capabilities.
Ideal for network closets, server racks, and AV installations requiring multiple power connections within a compact 1U footprint. The vertical mounting orientation optimizes cable routing and front-to-back airflow in standard racks.
Relevant factors for this section include PDU Type, Phase, Plug/Connector Type, Input Voltage. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Server Rack Power Distribution
Distribute power to multiple servers, storage units, and network switches within a single rack enclosure, utilizing the full 15A capacity across ten outlets.
Network Equipment Support
Power routers, switches, and other networking gear in telecommunications racks or data center environments where basic, reliable power distribution is essential.
Physical Profile
The PDU15B10R measures 17.50" wide, 1.75" high, and 1.50" deep, fitting standard 19-inch rack widths while maintaining a minimal 1U height profile. The compact depth ensures compatibility with various rack depths without protruding excessively.
Weighing 3.40 pounds, the unit installs easily with included mounting hardware. The vertical orientation positions outlets for convenient access, and the cord retention tray helps manage power cables neatly.
- Width
- 17.50" (444.50 mm)
- Depth
- 1.50" (38.10 mm)
- Height
- 1U
- Weight
- 3.40 lb (1542.21 g)
What's in the Box
The package includes all necessary components for immediate deployment and proper installation.
Highlights
- 10 NEMA 5-15R outlets for multiple device connections
- 15A current rating (derated to 12A) with overload protection
- 100-125V AC input/output voltage range compatibility
- 1U rackmount design for space-efficient vertical installation
- 15-foot power cord provides placement flexibility
- Includes both horizontal and vertical mounting brackets
- RoHS compliant for environmental responsibility
- Lifetime warranty for long-term reliability
Specifications
| Specifications | |
|---|---|
| Manufacturer | CyberPower Systems, Inc |
| Manufacturer Part Number | PDU15B10R |
| Brand Name | CyberPower |
| Product Series | Basic PDU |
| Product Model | PDU15B10R |
| Product Name | PDU15B10R 100 - 125 VAC 15A Basic |
| Product Type | PDU |
| Technical Information | |
| PDU Type | Basic |
| Phase | Single Phase |
| Plug/Connector Type | NEMA 5-15P |
| Receptacle Type | NEMA 5-15R |
| Receptacle Detail | 10 x NEMA 5-15R |
| Protection Type | Overload Protection |
| Power Description | |
| Input Voltage | 120 V AC |
| Input Voltage Range | 100 V AC - 125 V AC |
| Output Voltage Range | 100 V AC - 125 V AC |
| Physical Characteristics | |
| Mounting Orientation | Vertical |
| Mount Type | Rack-mountable |
| Rack Height | 1U |
| Height | 1.75" (44.45 mm) |
| Width | 17.50" (444.50 mm) |
| Depth | 1.50" (38.10 mm) |
| Weight (Approximate) | 3.40 lb (1542.21 g) |
| Miscellaneous | |
| Package Contents | PDU15B10R 10-Outlets PDU Cord Retention Tray User Manual Screw Kit Cord Clip Kit Horizontal Mounting Brackets Vertical Mounting Brackets Product Registration Card |
| Energy Star | No |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | Lifetime |
User Manual
FAQ
What type of outlets does this PDU have?
The CyberPower PDU15B10R features ten NEMA 5-15R outlets, which are standard North American 3-prong receptacles. These outlets accommodate common power cords used by servers, networking equipment, and other rack-mounted devices, providing straightforward connectivity without requiring specialized cables.
What is the maximum current capacity of this PDU?
This PDU has a 15A current rating, which is derated to 12A for continuous operation. This means it can safely handle up to 12 amps of continuous current draw across all connected devices, with overload protection to prevent damage from excessive current consumption.
Can this PDU be mounted horizontally in a rack?
Yes, the PDU15B10R includes horizontal mounting brackets in addition to the standard vertical mounting hardware. This allows flexible installation based on your rack configuration and cable management preferences, though the unit is primarily designed for vertical orientation.
What voltage range does this PDU support?
The PDU supports an input and output voltage range of 100-125V AC, with a nominal input voltage of 120V AC. This range covers standard North American power voltages, ensuring compatibility with typical electrical infrastructure in data centers and server rooms.
What protection features does this PDU include?
This basic PDU provides overload protection to safeguard connected equipment from excessive current draw. While it doesn't include surge protection or voltage regulation, the overload protection helps prevent damage from current spikes or overload conditions that could affect multiple devices on the circuit.
What is included in the package for installation?
The package contains the PDU15B10R unit, cord retention tray, user manual, screw kit, cord clip kit, horizontal mounting brackets, vertical mounting brackets, and product registration card. This complete hardware set supports both vertical and horizontal mounting configurations in standard 19-inch racks.
