CyberPower PDU20BHVIEC8R Basic PDU - 8 Outlets - 20A - 200-230V AC - 1U Rackmount - 10 ft Cord - IEC C20 Input - Lifetime Warranty
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This PDU operates on single-phase power with a 20A capacity (derated to 16A) and accepts input voltages from 200 to 230V AC. It delivers output at 200V, 208V, or 230V AC, accommodating various equipment voltage requirements without voltage conversion.
The unit includes overload protection to safeguard connected devices against excessive current draw. Its 50/60Hz frequency compatibility ensures operation in diverse electrical environments worldwide.
Relevant factors for this section include PDU Type, Plug/Connector Type, Receptacle Type, Input Voltage. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
A strong technical summary explains how the product's interfaces, hardware profile, and operating characteristics work together in real deployment. Buyers often need this context to confirm compatibility with existing devices, expected performance in daily use, and whether installation will be straightforward for IT staff or end users.
Key Product Advantages
The PDU20BHVIEC8R combines essential power distribution with rack-optimized design for efficient IT infrastructure management. Its lifetime warranty provides long-term reliability assurance for continuous operation.
These strengths make the product easier to deploy and manage in real environments, especially where reliability, usability, and day-to-day operational continuity matter. Notable benefits include Space-Efficient Design, Standardized Connectivity.
Space-Efficient Design
The 1U vertical mounting preserves valuable rack space while providing eight outlets for equipment power needs.
- 17.5" width fits standard racks
- 1.75" height minimizes space use
- Vertical orientation optimizes airflow
Standardized Connectivity

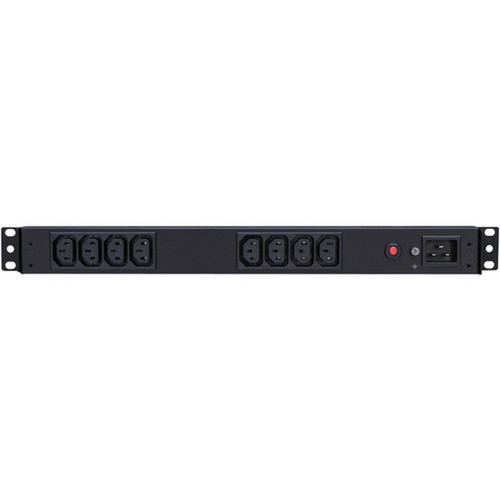

IEC C20 input and C13 outlets ensure compatibility with common rack power infrastructure and server/network equipment.
- IEC 60320 C20 input plug
- 8 x IEC 60320 C13 outlets
- 10 ft cord provides placement flexibility
Deployment / Use Cases
This basic PDU is ideal for distributing power to multiple devices in rack-mounted environments where monitoring or switching capabilities are not required. It serves as a reliable power source for servers, switches, storage arrays, and other rack-mounted equipment.
Common deployment scenarios include data center racks, network server cabinets, telecommunications closets, and broadcast equipment racks. The vertical 1U design makes it particularly suitable for full-height server racks where space optimization is critical.
Relevant factors for this section include PDU Type, Plug/Connector Type, Receptacle Type, Input Voltage. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Data Center Power Distribution
Provide stable power to multiple servers and network devices within a single rack enclosure, supporting 200-230V AC equipment requirements.
Network Infrastructure Support
Power switches, routers, and other networking equipment in telecommunications rooms and network closets with reliable overload-protected distribution.
Physical Profile

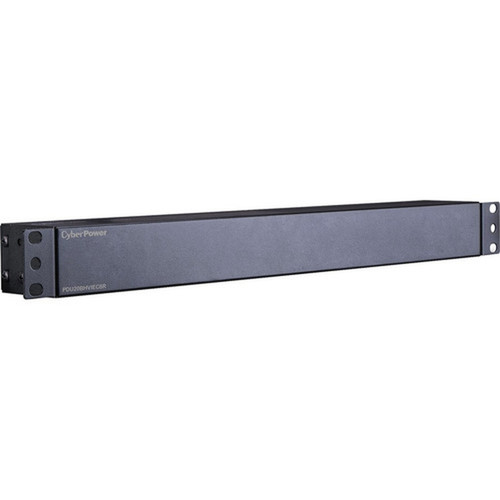

The PDU20BHVIEC8R features a compact metal housing measuring 17.5 inches wide, 1.75 inches high, and 1.5 inches deep. This 1U form factor installs vertically in standard 19-inch racks using included mounting hardware. The unit weighs approximately 1.81 pounds, making it easy to handle during installation while maintaining structural integrity for rack mounting.
The physical profile is practical for deployment planning because the dimensions and weight are clearly defined: 1U, 17.50" (444.50 mm), 1.81 lb (821 g). This helps confirm rack, shelf, desk, or cabinet fit before installation.
- Width
- 17.50" (444.50 mm)
- Height
- 1U
- Weight
- 1.81 lb (821 g)
- Length
- 1.50" (38.10 mm)
What's in the Box
The package includes the PDU unit with attached 10-foot power cord and a cord retention tray for secure cable management.
Highlights
- 8 IEC C13 outlets for multiple device connections
- 20A capacity (derated to 16A) with overload protection
- 200-230V AC input range with 200/208/230V output
- 1U vertical rack-mountable design for space efficiency
- 10-foot power cord with IEC C20 input plug
- Single-phase operation with 50/60Hz compatibility
- Lifetime warranty for long-term reliability
- RoHS compliant and environmentally friendly
- Compact dimensions: 17.5"W x 1.75"H x 1.5"D
- Includes cord retention tray for cable management
Specifications
| Specifications | |
|---|---|
| Manufacturer | CyberPower Systems, Inc |
| Manufacturer Part Number | PDU20BHVIEC8R |
| Brand Name | CyberPower |
| Product Series | Basic PDU |
| Product Model | PDU20BHVIEC8R |
| Product Name | PDU20BHVIEC8R 200 - 230 VAC 20A Basic |
| Product Type | PDU |
| Technical Information | |
| PDU Type | Basic |
| Plug/Connector Type | IEC 60320 C20 |
| Receptacle Type | IEC 60320 C13 |
| Receptacle Detail | 8 x IEC 60320 C13 |
| Protection Type | Overload Protection |
| Power Description | |
| Input Voltage | 230 V AC |
| Input Voltage Range | 200 V AC - 230 V AC |
| Output Voltage | 200 V AC,208 V AC,230 V AC |
| Physical Characteristics | |
| Mounting Orientation | Vertical |
| Mount Type | Rack-mountable |
| Rack Height | 1U |
| Height | 1.75" (44.45 mm) |
| Width | 17.50" (444.50 mm) |
| Length | 1.50" (38.10 mm) |
| Weight (Approximate) | 1.81 lb (821 g) |
| Miscellaneous | |
| Package Contents | Basic PDU20BHVIEC8R 8-Outlets PDU Cord Retention Tray |
| Energy Star | No |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | Lifetime |
User Manual
FAQ
What type of input plug does this PDU use?
The PDU20BHVIEC8R uses an IEC 60320 C20 input plug on its 10-foot power cord. This is a standard connector type commonly used in rack power distribution systems, providing a secure connection to rack-mounted power sources or upstream PDUs in data center environments.
How many devices can I power with this PDU?
This PDU provides eight IEC 60320 C13 outlets, allowing you to power up to eight compatible devices simultaneously. Each outlet supports equipment requiring 200-230V AC power, making it suitable for servers, network switches, storage devices, and other rack-mounted IT equipment.
What rack space does this PDU require?
The PDU20BHVIEC8R occupies 1U of vertical rack space with dimensions of 17.5 inches wide, 1.75 inches high, and 1.5 inches deep. It mounts vertically in standard 19-inch racks, making efficient use of rack real estate while providing power distribution to multiple devices.
What voltage range does this PDU support?
This PDU accepts input voltages from 200 to 230V AC and delivers output at 200V, 208V, or 230V AC. This voltage flexibility accommodates various equipment requirements and makes the unit suitable for use in different electrical environments without requiring voltage conversion.
Does this PDU include any protection features?
Yes, the PDU20BHVIEC8R includes overload protection to safeguard connected equipment against excessive current draw. This basic protection helps prevent damage to devices during power anomalies or when the total connected load approaches the unit's 20A capacity (derated to 16A).
What warranty coverage does this PDU include?
CyberPower provides a lifetime limited warranty for the PDU20BHVIEC8R. This warranty covers defects in materials and workmanship for the product's lifetime, offering long-term reliability assurance for your power distribution investment in business IT environments.
