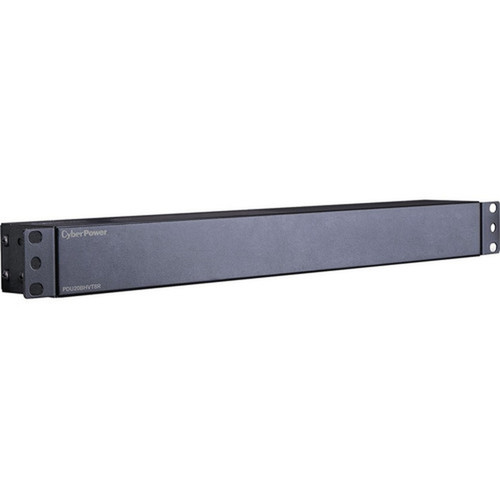

CyberPower PDU20BHVT8R Basic PDU - 8 Outlets - 20A - 200-230V AC - NEMA L6-20P - 1U Rackmount - 10 ft Cord - Lifetime Warranty
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This PDU accepts 200-230V AC input and provides output at 200V DC, 208V AC, or 230V AC, accommodating a range of server and networking hardware. The unit includes overload protection to safeguard connected devices against excessive current draw.
The electrical design operates at 50Hz/60Hz and is single-phase, suitable for standard commercial power configurations. With a NEMA L6-20P plug, it connects to compatible 20A receptacles, while the outlet mix—six IEC C13 and two IEC C19—supports both standard and high-power devices.
Relevant factors for this section include PDU Type, Plug/Connector Type, Receptacle Type, Input Voltage. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
A strong technical summary explains how the product's interfaces, hardware profile, and operating characteristics work together in real deployment. Buyers often need this context to confirm compatibility with existing devices, expected performance in daily use, and whether installation will be straightforward for IT staff or end users.
Key Product Advantages
The PDU20BHVT8R combines essential power distribution with a compact, rack-optimized form factor. Its vertical orientation and 1U height maximize usable rack space while providing accessible outlets for cable management.
Outlet Versatility
The combination of six C13 and two C19 outlets allows simultaneous powering of standard IT equipment and higher-draw devices like servers or UPS units, reducing the need for multiple PDUs.
- 2 x IEC C19 for high-power devices
- 6 x IEC C13 for standard equipment
Rack Integration
Designed specifically for vertical rack mounting, this PDU installs cleanly alongside servers, switches, and other rack-mounted hardware, keeping power distribution organized and accessible.
- 1U rack height
- Vertical mounting orientation
- 17.5" width fits standard racks
Deployment / Use Cases
This Basic PDU is ideal for environments where straightforward, reliable power distribution is needed without advanced monitoring or switching capabilities. It serves as a foundational power component in standardized IT infrastructure.
Typical deployments include data center racks where multiple servers and network devices require consolidated power, network closets in office buildings, and broadcast or AV racks where equipment needs organized power distribution. The unit's 10-foot cord accommodates various rack-to-outlet distances.
Relevant factors for this section include PDU Type, Plug/Connector Type, Receptacle Type, Input Voltage. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Data Center Racks
Provide power to servers, storage arrays, and network switches in standard 19-inch racks, with outlet types matching common server power cords.
Network & Telecom Closets
Distribute power to switches, routers, and other networking hardware in confined spaces where rack real estate is limited.
Physical Profile
The PDU20BHVT8R measures 17.5 inches wide, 1.75 inches high, and 1.5 inches deep, fitting precisely into 19-inch rack widths. Its 1U vertical design minimizes space consumption while allowing outlets to face sideways for easy cable access. The unit weighs 3.70 pounds, making it lightweight for installation and repositioning.
The physical profile is practical for deployment planning because the dimensions and weight are clearly defined: 1U, 17.50" (444.50 mm), 3.70 lb (1678.29 g). This helps confirm rack, shelf, desk, or cabinet fit before installation.
- Width
- 17.50" (444.50 mm)
- Height
- 1U
- Weight
- 3.70 lb (1678.29 g)
- Length
- 1.50" (38.10 mm)
What's in the Box
The package includes the PDU unit with attached 10-foot power cord and a cord retention tray to secure cables and prevent accidental disconnection.
Package contents include Basic PDU20BHVT8R 8-Outlets PDU Cord Retention Tray, Basic PDU20BHVT8R 8-Outlets PDU. These included items support setup, installation, and immediate deployment without needing to source the core bundled accessories separately.
Highlights
- 8 total outlets: 6 IEC C13 + 2 IEC C19
- 20A capacity with overload protection
- 200-230V AC input range
- NEMA L6-20P plug type
- 1U vertical rack mount design
- 10-foot attached power cord
- Includes cord retention tray
- Lifetime limited warranty
- RoHS compliant and environmentally friendly
- Compact dimensions: 17.5"W x 1.75"H x 1.5"D
Specifications
| Specifications | |
|---|---|
| Manufacturer | CyberPower Systems, Inc |
| Manufacturer Part Number | PDU20BHVT8R |
| Brand Name | CyberPower |
| Product Series | Basic PDU |
| Product Model | PDU20BHVT8R |
| Product Name | PDU20BHVT8R 200 - 230 VAC 20A Basic |
| Product Type | PDU |
| Technical Information | |
| PDU Type | Basic |
| Plug/Connector Type | NEMA L6-20P |
| Receptacle Type | IEC 60320 C19,IEC 60320 C13 |
| Receptacle Detail | 2 x IEC 60320 C19,6 x IEC 60320 C13 |
| Protection Type | Overload Protection |
| Power Description | |
| Input Voltage | 230 V AC |
| Input Voltage Range | 200 V AC - 230 V AC |
| Output Voltage | 200 V DC,208 V AC,230 V AC |
| Physical Characteristics | |
| Mounting Orientation | Vertical |
| Mount Type | Rack-mountable |
| Rack Height | 1U |
| Height | 1.75" (44.45 mm) |
| Width | 17.50" (444.50 mm) |
| Length | 1.50" (38.10 mm) |
| Weight (Approximate) | 3.70 lb (1678.29 g) |
| Miscellaneous | |
| Package Contents | Basic PDU20BHVT8R 8-Outlets PDU Cord Retention Tray |
| Energy Star | No |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | Lifetime |
User Manual
FAQ
What types of equipment can I power with this PDU?
This PDU supports standard IT and networking equipment through its six IEC C13 outlets, suitable for devices like switches, routers, and monitors. The two IEC C19 outlets accommodate higher-power devices such as servers, UPS units, or power supplies that require C19 connectors. The 20A capacity allows multiple devices to operate simultaneously within the derated 16A limit.
Is this PDU compatible with my rack?
Yes, the PDU20BHVT8R is designed for vertical mounting in standard 19-inch wide equipment racks. Its 1U height (1.75 inches) occupies minimal rack space, and the 17.5-inch width ensures proper fit. The unit includes mounting hardware for secure installation in racks with square or round holes.
What input voltage does this PDU require?
The PDU accepts 200-230V AC input, with a nominal rating of 230V AC. This range covers common commercial and data center power configurations in North America and internationally. The unit operates at 50Hz or 60Hz, making it compatible with standard power grids in most regions.
Does this PDU offer any protection features?
Yes, it includes overload protection to prevent damage from excessive current draw. This safeguards connected equipment by interrupting power if the load exceeds safe levels. The PDU does not include surge protection or voltage regulation; it is a basic power distribution unit focused on reliable outlet expansion.
What is included in the warranty?
CyberPower provides a lifetime limited warranty for this PDU, covering defects in materials and workmanship for the product's lifespan. This warranty demonstrates confidence in the unit's durability and reliability for continuous operation in IT environments. Always retain proof of purchase for warranty claims.
How do the outlet types differ?
The IEC C13 outlets are standard for most IT equipment, supporting up to 10A. The IEC C19 outlets handle higher currents, typically up to 16A, and are used for power-hungry devices like servers, large UPS systems, or high-performance computing equipment. The mix allows flexible power distribution for diverse hardware in a single rack.
