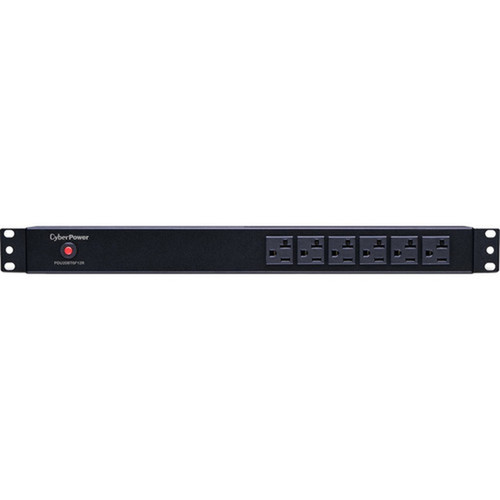

CyberPower PDU20BT6F12R Basic PDU - 18 NEMA 5-20R Outlets - 20A - 120V AC - 1U Rackmount - 15 ft Cord - Lifetime Warranty
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This PDU operates on a single-phase 120V AC input with a 20A current capacity, derated to 16A for continuous safe operation. It supports both 50Hz and 60Hz frequencies, making it compatible with standard North American power infrastructures. The 18 NEMA 5-20R outlets deliver consistent 120V AC output to connected equipment.
Built with a basic non-metered design, the PDU20BT6F12R focuses on essential power distribution without advanced monitoring features. Its overload protection mechanism prevents circuit damage during power surges or excessive current draw, ensuring reliable operation in demanding environments.
Relevant factors for this section include PDU Type, Plug/Connector Type, Receptacle Type, Input Voltage. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
The PDU20BT6F12R combines high outlet density with a space-saving 1U vertical design, making it ideal for maximizing rack utilization in constrained environments. Its 18 NEMA 5-20R outlets provide ample connectivity for servers, switches, and other rackmount equipment without requiring additional power strips.
High-Density Power Distribution
With 18 outlets in a compact 1U form factor, this PDU supports more devices per rack unit than standard power strips, reducing clutter and improving airflow management.
- 18 NEMA 5-20R outlets
- 1U vertical footprint
- Front-facing outlet access
Built for Reliability
Overload protection safeguards connected equipment from power surges, while the RoHS-compliant construction ensures environmental responsibility and long-term durability.
- Overload protection circuit
- Lifetime warranty
- RoHS compliance
Deployment / Use Cases
This basic PDU is optimized for environments where straightforward, reliable power distribution takes priority over advanced monitoring capabilities. Its vertical 1U design and high outlet count make it particularly suitable for dense server racks, network equipment cabinets, and telecommunications installations.
IT administrators deploy the PDU20BT6F12R in data centers to power multiple servers and switches from a single rack unit. Network operations centers use it for clean power distribution to monitoring equipment and patch panels. Small to medium businesses install it in server rooms to organize power for their infrastructure without complex management overhead.
Data Center Rack Deployment
Install in standard 19-inch server racks to distribute power to multiple devices while conserving vertical space for additional equipment.
- 1U rack height
- Vertical mounting
- Standard 19-inch rack compatible
Network Equipment Power
Power switches, routers, and patch panels in network closets with consistent 120V AC output across all 18 outlets.
- 18 NEMA 5-20R outlets
- 120V AC output
- Overload protection
Physical Profile
The PDU20BT6F12R features a compact vertical design measuring 17.50" wide, 1.75" high, and 2.25" deep, occupying exactly 1U of rack space. Its lightweight construction at 4.67 lb simplifies installation and reduces rack load. The vertical orientation provides front-facing outlet access for easy cable connection and management, while the included cord retention tray helps secure power cables in place.
The physical profile is practical for deployment planning because the dimensions and weight are clearly defined: 1U, 17.50" (444.50 mm), 2.25" (57.15 mm), 4.67 lb (2118.28 g). This helps confirm rack, shelf, desk, or cabinet fit before installation.
- Width
- 17.50" (444.50 mm)
- Depth
- 2.25" (57.15 mm)
- Height
- 1U
- Weight
- 4.67 lb (2118.28 g)
What's in the Box
The package includes the complete PDU unit with all necessary components for immediate installation and use.
Highlights
- 18 NEMA 5-20R outlets for high-density power distribution
- 20A capacity (derated to 16A) with 120V AC input/output
- 1U vertical rackmount design saves valuable rack space
- 15 ft NEMA L5-20P input cord provides installation flexibility
- Overload protection safeguards connected equipment
- RoHS compliant construction for environmental responsibility
- Lifetime warranty ensures long-term reliability
- Compact dimensions: 17.5"W x 1.75"H x 2.25"D
Specifications
| Specifications | |
|---|---|
| Manufacturer | CyberPower Systems, Inc |
| Manufacturer Part Number | PDU20BT6F12R |
| Brand Name | CyberPower |
| Product Model | PDU20BT6F12R |
| Product Name | PDU20BT6F12R 100 - 125 VAC 20A Basic |
| Product Type | PDU |
| Technical Information | |
| PDU Type | Basic |
| Plug/Connector Type | NEMA L5-20P |
| Receptacle Type | NEMA 5-20R |
| Receptacle Detail | 18 x NEMA 5-20R |
| Protection Type | Overload Protection |
| Power Description | |
| Input Voltage | 120 V AC |
| Output Voltage | 120 V AC |
| Physical Characteristics | |
| Mounting Orientation | Vertical |
| Mount Type | Rack-mountable |
| Rack Height | 1U |
| Height | 1.75" (44.45 mm) |
| Width | 17.50" (444.50 mm) |
| Depth | 2.25" (57.15 mm) |
| Weight (Approximate) | 4.67 lb (2118.28 g) |
| Miscellaneous | |
| Package Contents | Basic PDU20BT6F12R 18-Outlets PDU Cord Retention Tray |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | Lifetime |
User Manual
FAQ
What is the maximum amperage rating of this PDU?
The CyberPower PDU20BT6F12R has a 20A maximum amperage rating, which is derated to 16A for continuous operation. This derating ensures safe, reliable performance under sustained loads while providing headroom for occasional peak demands in rack environments.
How many outlets does this PDU provide and what type are they?
This PDU provides 18 NEMA 5-20R outlets, which are standard 120V 20A receptacles commonly used for rackmount equipment in North America. The high outlet count allows multiple devices to be powered from a single 1U rack space, reducing cable clutter and improving organization.
What rack space does this PDU occupy?
The PDU20BT6F12R occupies exactly 1U of vertical rack space with its compact design. It mounts vertically in standard 19-inch racks, measuring 1.75" in height, which maximizes usable space for equipment while providing accessible front-facing outlets for easy cable management.
What type of input plug does this PDU use?
This PDU uses a NEMA L5-20P plug on its 15 ft input cord. The L5-20P is a locking 20A 125V connector that provides secure power connection, reducing the risk of accidental disconnection in rack environments where vibration or movement may occur.
Does this PDU include any protection features?
Yes, the PDU20BT6F12R includes overload protection to safeguard connected equipment. This protection mechanism prevents damage from power surges or excessive current draw, ensuring reliable operation for servers, switches, and other critical rackmount devices in data center and network environments.
What warranty coverage does CyberPower provide for this PDU?
CyberPower provides a lifetime limited warranty for the PDU20BT6F12R. This extensive warranty coverage demonstrates the manufacturer's confidence in the product's durability and reliability for long-term deployment in demanding rack environments, providing peace of mind for IT infrastructure investments.
