CyberPower PDU30BHVT8R Basic PDU - 8 Outlets - 30A - 200-230V AC - NEMA L6-30P Input - 1U Rackmount - Vertical Mount - Lifetime Warranty
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This PDU operates on a single-phase power system with a NEMA L6-30P input connector, suitable for dedicated 30A circuits. The unit maintains consistent output voltage matching the input range, ensuring stable power delivery to connected equipment.
Built-in overload protection safeguards against excessive current draw, while the derated 24A operational rating provides a safety margin for continuous use. The 10-foot power cord offers flexible placement options within the rack environment.
This section brings together practical product details such as PDU Type, Phase, Plug/Connector Type, Input Voltage, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
A strong technical summary explains how the product's interfaces, hardware profile, and operating characteristics work together in real deployment. Buyers often need this context to confirm compatibility with existing devices, expected performance in daily use, and whether installation will be straightforward for IT staff or end users.
Key Product Advantages
The lifetime warranty demonstrates CyberPower's confidence in the unit's durability and reliability for continuous operation in demanding environments. The RoHS compliance ensures environmentally responsible manufacturing without hazardous substances.
Optimized Outlet Mix

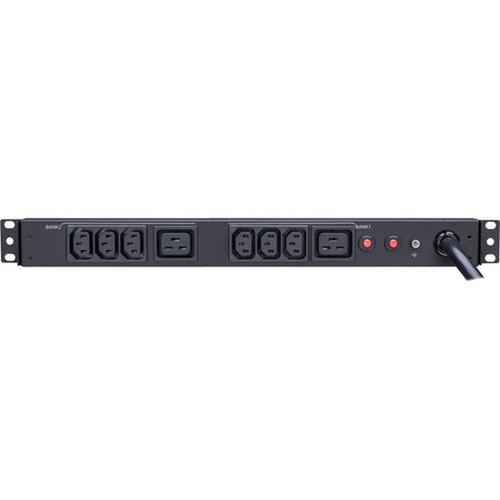

The combination of six C13 and two C19 outlets supports both standard IT equipment and higher-power devices, eliminating the need for adapter cords in most rack configurations.
- 6x IEC 60320 C13 outlets
- 2x IEC 60320 C19 outlets
- No adapter cords required
Space-Efficient Design
With a compact 1U form factor measuring just 1.75 inches high, this PDU maximizes usable rack space while providing essential power distribution capabilities.
- 1U rack height
- 17.5-inch width fits standard racks
- Vertical mounting orientation
Deployment / Use Cases
The vertical mounting orientation makes this PDU particularly useful in full-height racks where horizontal space is at a premium. The unit serves as a centralized power distribution point for equipment requiring 200-230V AC power in commercial and industrial settings.
IT managers can deploy this PDU in both primary data centers and secondary equipment rooms where reliable power distribution is essential for maintaining uptime. The basic design ensures straightforward installation without complex configuration requirements.
Data Center Racks
Ideal for server racks containing a mix of 1U and 2U servers, network switches, and storage arrays that require both C13 and C19 power connections.
- Server power distribution
- Network equipment racks
- Storage array cabinets
Telecom Installations
Suitable for telecommunications equipment racks where vertical mounting conserves space and the 30A capacity supports multiple devices on a single circuit.
- Telecom switching equipment
- Network operation centers
- Equipment closets
Physical Profile

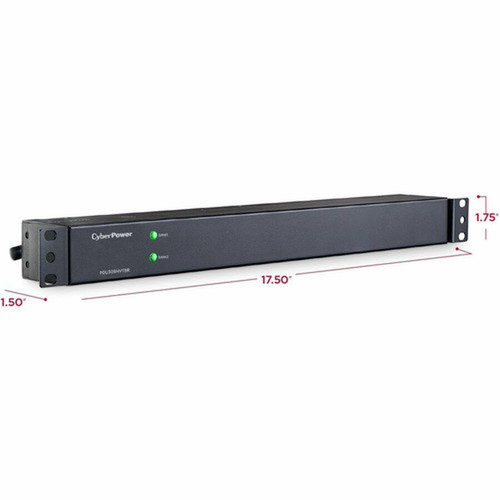

The PDU30BHVT8R features a rugged steel construction with dimensions optimized for standard 19-inch rack compatibility. At 17.5 inches wide, the unit fits perfectly between rack rails, while the 1.5-inch depth ensures it doesn't interfere with equipment mounting.
Weighing approximately 4.5 pounds, the PDU installs easily with the included mounting brackets. The vertical orientation places outlets in an accessible position along the rack's vertical space, making cable management straightforward with the included cord retention accessories.
- Width
- 17.50" (444.50 mm)
- Depth
- 1.50" (38.10 mm)
- Height
- 1U
- Weight
- 4.50 lb (2041.17 g)
What's in the Box
The package includes all necessary components for immediate deployment and proper installation in rack environments.
Highlights
- 8 total outlets: 6x IEC C13 and 2x IEC C19 receptacles
- 30A input capacity with NEMA L6-30P plug for dedicated circuits
- 200-230V AC input and output voltage range
- 1U rack-mountable design with vertical mounting orientation
- Includes both horizontal and vertical mounting brackets
- Overload protection for connected equipment safety
- 10-foot power cord for flexible placement
- Lifetime warranty for long-term reliability
- RoHS compliant for environmental responsibility
- Includes cord management accessories
Specifications
| Specifications | |
|---|---|
| Manufacturer | CyberPower Systems, Inc |
| Manufacturer Part Number | PDU30BHVT8R |
| Brand Name | CyberPower |
| Product Series | Basic PDU |
| Product Model | PDU30BHVT8R |
| Product Name | PDU30BHVT8R 200 - 230 VAC 30A Basic |
| Product Type | PDU |
| Technical Information | |
| PDU Type | Basic |
| Phase | Single Phase |
| Plug/Connector Type | NEMA L6-30P |
| Receptacle Type | IEC 60320 C19,IEC 60320 C13 |
| Receptacle Detail | 2 x IEC 60320 C19,6 x IEC 60320 C13 |
| Protection Type | Overload Protection |
| Power Description | |
| Input Voltage | 230 V AC |
| Input Voltage Range | 200 V AC - 230 V AC |
| Output Voltage Range | 200 V AC - 230 V AC |
| Input Current | 30 A |
| Physical Characteristics | |
| Mounting Orientation | Vertical |
| Mount Type | Rack-mountable |
| Rack Height | 1U |
| Height | 1.75" (44.45 mm) |
| Width | 17.50" (444.50 mm) |
| Depth | 1.50" (38.10 mm) |
| Weight (Approximate) | 4.50 lb (2041.17 g) |
| Miscellaneous | |
| Package Contents | PDU30BHVT8R 8-Outlets PDU Cord Retention Tray User Manual Screw Kit Cord Clip Kit Horizontal Mounting Brackets Vertical Mounting Brackets Product Registration Card |
| Country of Origin | China |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | Lifetime |
User Manual
FAQ
What types of equipment can I connect to this PDU?
The CyberPower PDU30BHVT8R supports equipment requiring IEC C13 or C19 power connections, including servers, network switches, storage arrays, and telecom gear. The outlet mix of six C13 and two C19 receptacles accommodates both standard IT devices and higher-power equipment commonly found in rack environments.
What electrical circuit is required for this PDU?
This PDU requires a dedicated 30A circuit with a NEMA L6-30R receptacle. The unit operates on single-phase power within the 200-230V AC range, making it suitable for commercial and data center electrical systems. The derated 24A operational rating provides a safety margin for continuous use.
How does this PDU mount in a rack?
The PDU30BHVT8R is designed for vertical mounting in standard 19-inch racks, occupying just 1U of vertical space. The package includes both horizontal and vertical mounting brackets, providing installation flexibility. The vertical orientation positions outlets along the rack's vertical space for optimal cable management.
What protection features does this PDU include?
This Basic PDU includes overload protection to safeguard connected equipment from excessive current draw. While it doesn't include surge protection or battery backup, the overload protection ensures the unit won't deliver more current than its rated capacity, protecting both the PDU and connected devices.
What is included in the package?
The package contains the PDU30BHVT8R unit, cord retention tray, user manual, screw kit, cord clip kit, horizontal mounting brackets, vertical mounting brackets, and product registration card. These accessories support proper installation, cable management, and warranty registration for the unit.
What warranty coverage does this PDU have?
CyberPower provides a lifetime limited warranty for the PDU30BHVT8R, demonstrating confidence in the product's durability and reliability for continuous operation in rack environments. This extensive warranty coverage ensures long-term protection for your power distribution investment.
What power capacity is listed for this UPS?
Power specifications help show where the unit fits best, including the type of load level, electrical environment, and backup role it is intended to support. These are usually the most decision-critical facts in a UPS or power-protection comparison.
What voltage details are listed?
The listed power specification is 230 V AC, which helps position the unit for the right load level and installation role.
