CyberPower PDU30BT8F8R Basic PDU - 16 Outlets - 30A - 100-125V - NEMA L5-30P - 1U Rackmount - 12 ft Cord - Lifetime Warranty
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This Basic PDU operates on single-phase power with a nominal input voltage of 120V AC and accepts input voltages from 100V to 125V AC. The unit provides overload protection to safeguard connected equipment against excessive current draw.
The PDU30BT8F8R maintains stable operation across a temperature range of 32°F to 95°F (0°C to 35°C) and complies with RoHS environmental standards. Its black finish complements standard rack equipment aesthetics.
Relevant factors for this section include PDU Type, Phase, Plug/Connector Type, Input Voltage. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
A strong technical summary explains how the product's interfaces, hardware profile, and operating characteristics work together in real deployment. Buyers often need this context to confirm compatibility with existing devices, expected performance in daily use, and whether installation will be straightforward for IT staff or end users.
Key Product Advantages
The PDU30BT8F8R combines essential power distribution functionality with installation flexibility for rack environments. Its comprehensive mounting kit supports both horizontal and vertical orientations, allowing integration into various rack configurations.
High-Density Power Distribution
Sixteen NEMA 5-20R outlets provide ample connectivity for servers, switches, and other rack-mounted equipment, reducing the need for additional power strips.
- 16-outlet capacity
- NEMA 5-20R standard
- Supports multiple devices
Flexible Installation Options
Includes both horizontal and vertical mounting brackets, enabling installation in standard 19-inch racks regardless of orientation requirements.
- Horizontal/Vertical mounting
- 1U rack height
- Wall-mountable option
Enhanced Cable Management
Cord retention tray and cord clip kit help organize power cables, maintaining airflow and accessibility within the rack enclosure.
- Cord retention system
- Cable organization
- Improved airflow
Deployment / Use Cases
The CyberPower Basic PDU is engineered for data center, server room, and network closet environments where reliable power distribution to multiple devices is essential. Its 30A capacity and 16 outlets make it suitable for powering rack-mounted servers, network switches, storage arrays, and other critical infrastructure.
This PDU serves as a foundational power distribution component in both enterprise and small business IT environments. The unit's compatibility with standard NEMA 5-20R equipment and flexible mounting options ensure seamless integration into existing rack infrastructure.
Server Rack Power Distribution
Distribute power to multiple servers and storage devices within a single rack enclosure, reducing cable clutter and improving power management.
Network Equipment Power
Power switches, routers, and other networking equipment while maintaining organized cable routing and accessibility for maintenance.
Physical Profile

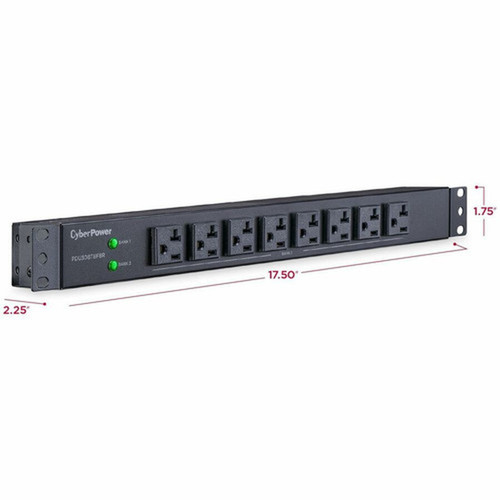

The PDU30BT8F8R features a compact 1U design measuring 17.5" wide, 1.75" high, and 2.25" deep, occupying minimal rack space while providing substantial outlet capacity. Weighing approximately 6 pounds, the unit installs easily without excessive weight burden on rack rails.
The black finish matches standard rack equipment, and the included mounting brackets support secure installation in both horizontal and vertical orientations. The 12-foot power cord provides sufficient reach to power sources while maintaining tidy cable routing.
- Width
- 17.50" (444.50 mm)
- Depth
- 2.25" (57.15 mm)
- Height
- 1U
- Weight
- 6 lb (2721.55 g)
- Length
- 12 ft (3.66 m)
What's in the Box
The PDU30BT8F8R ships complete with all necessary components for immediate deployment in rack or wall-mounted configurations.
Highlights

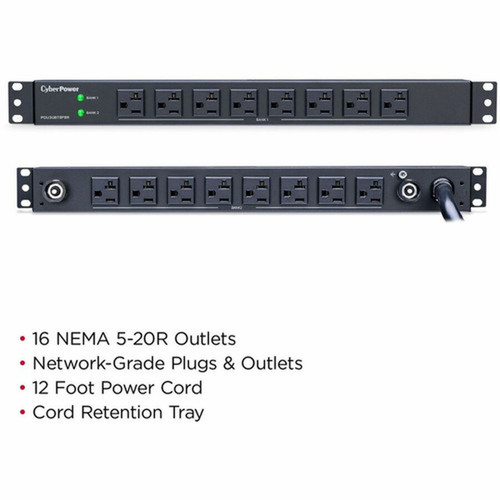

- 16 NEMA 5-20R outlets for high-density power distribution
- 30A input capacity with 100-125V AC operating range
- 1U rackmount design with horizontal/vertical mounting options
- NEMA L5-30P plug with 12-foot power cord
- Overload protection for connected equipment safety
- Includes comprehensive mounting hardware and cable management accessories
- RoHS compliant and environmentally friendly construction
- Lifetime limited warranty for long-term reliability
Specifications
| Specifications | |
|---|---|
| Manufacturer | CyberPower Systems, Inc |
| Manufacturer Part Number | PDU30BT8F8R |
| Brand Name | CyberPower |
| Product Series | Basic PDU |
| Product Model | PDU30BT8F8R |
| Product Name | PDU30BT8F8R Single Phase 100 - 125 VAC 30A Basic |
| Product Type | PDU |
| Technical Information | |
| PDU Type | Basic |
| Phase | Single Phase |
| Plug/Connector Type | NEMA L5-30P |
| Receptacle Type | NEMA 5-20R |
| Receptacle Detail | 16 x NEMA 5-20R |
| Protection Type | Overload Protection |
| Locking Receptacles | Cord Retention Tray |
| Power Description | |
| Input Voltage | 120 V AC |
| Input Voltage Range | 100 V AC - 125 V AC |
| Output Voltage | 100 V AC,125 V AC |
| Output Voltage Range | 100 V AC - 125 V AC |
| Input Current | 30 A |
| Input Frequency | 60 Hz |
| Physical Characteristics | |
| Color Family | Black |
| Product Color | Black |
| Mounting Orientation | Horizontal |
| Mount Type | Rack-mountable,Wall-mountable |
| Form Factor | Horizontal/Vertical |
| Rack Height | 1U |
| Cord Length | 12 ft (3.66 m) |
| Height | 1.75" (44.45 mm) |
| Width | 17.50" (444.50 mm) |
| Depth | 2.25" (57.15 mm) |
| Weight (Approximate) | 6 lb (2721.55 g) |
| Environmental Conditions | |
| Minimum Operating Temperature | 32°F (0°C) |
| Maximum Operating Temperature | 95°F (35°C) |
| Minimum Storage Temperature | 5°F (-15°C) |
| Maximum Storage Temperature | 113°F (45°C) |
| Miscellaneous | |
| Package Contents | Basic PDU30BT8F8R 16-Outlets PDU Cord Retention Tray User Manual Screw Kit Cord Clip Kit Horizontal Mounting Brackets Vertical Mounting Brackets Product Registration Card |
| Application/Usage | Network Device,Server |
| Energy Star | No |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | Lifetime |
User Manual
FAQ
What type of plug does this PDU use for power input?
The CyberPower PDU30BT8F8R uses a NEMA L5-30P plug for power input. This locking plug design provides secure connection to compatible power sources and is commonly used in commercial and data center environments for 30A circuits.
How many devices can I connect to this power distribution unit?
This PDU provides 16 NEMA 5-20R outlets, allowing you to connect up to 16 devices simultaneously. Each outlet supports standard NEMA 5-20P plugs commonly used for servers, network switches, and other rack-mounted equipment.
What rack space does this PDU require for installation?
The PDU30BT8F8R occupies 1U of rack space with dimensions of 17.5" wide, 1.75" high, and 2.25" deep. This compact design maximizes outlet density while minimizing the rack space dedicated to power distribution.
Can this PDU be mounted in different orientations?
Yes, the PDU30BT8F8R supports both horizontal and vertical mounting orientations. The package includes dedicated mounting brackets for each configuration, allowing flexible installation based on your rack layout and cable management preferences.
What voltage range does this PDU support?
This PDU operates with an input voltage range of 100-125V AC, with a nominal voltage of 120V AC. The output provides the same voltage range to connected devices, making it compatible with standard North American power systems.
What protection features does this Basic PDU include?
The PDU30BT8F8R includes overload protection to safeguard connected equipment against excessive current draw. While it doesn't provide surge protection or battery backup, the overload protection helps prevent damage from power overload conditions.
