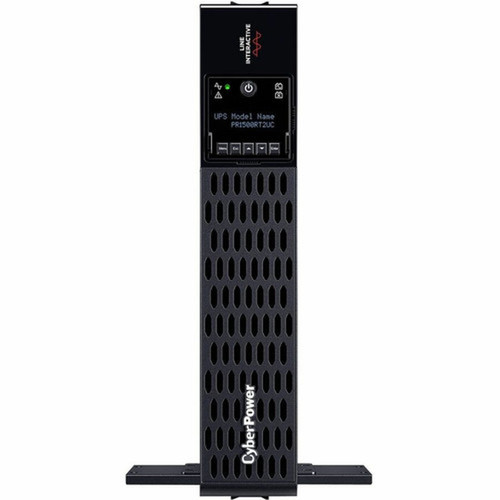

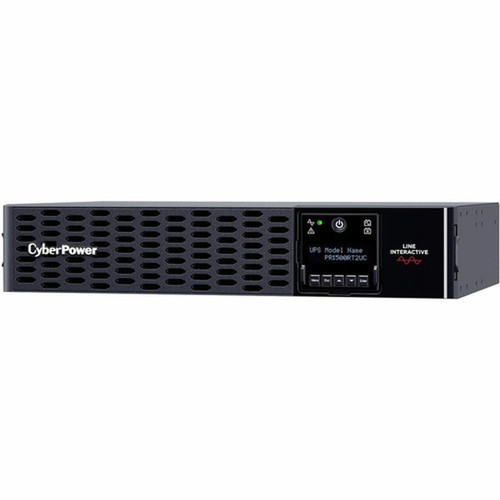

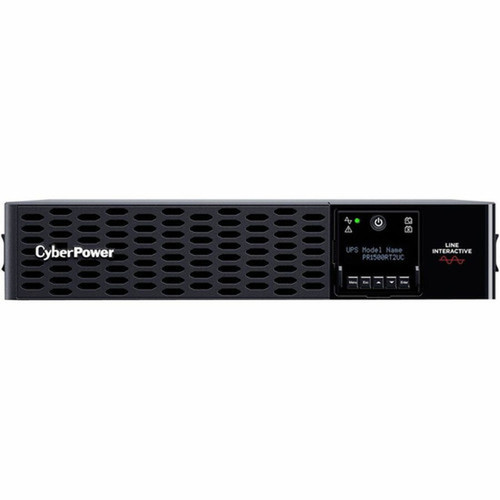

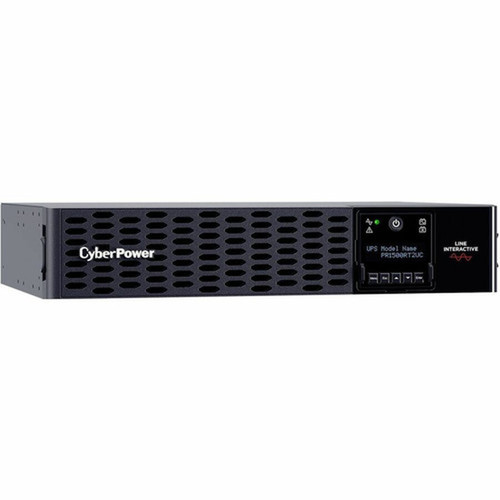

CyberPower PR1500RT2UC Smart App Sinewave UPS - 1500VA/1500W - 2U Rack/Tower - 8 Outlets - Sine Wave Output - 3-Year Warranty
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Product Overview
The CyberPower PR1500RT2UC Smart App Sinewave UPS is a line-interactive uninterruptible power supply engineered for business-critical infrastructure. With 1500VA/1500W capacity and pure sine wave output, it delivers clean, stable backup power to protect servers, storage arrays, network devices, and telecommunications equipment from outages, surges, and brownouts.
This 2U rack/tower unit combines high power density with flexible deployment options, making it suitable for both data center racks and standalone tower installations. The intelligent LCD interface provides real-time status monitoring, while comprehensive management capabilities via USB, serial, SNMP, and optional cloud monitoring enable centralized power management across your IT environment.
The unit features automatic voltage regulation (AVR) to correct minor voltage fluctuations without switching to battery, extending runtime and battery life. With eight NEMA 5-15R outlets—four providing battery backup plus surge protection and four offering surge protection only—it supports mixed equipment loads typical in server rooms and network closets. The 10-foot NEMA 5-15P power cord ensures convenient connection to standard wall outlets.
Designed for reliability in demanding environments, the PR1500RT2UC operates within a temperature range of up to 104°F (40°C) and 95% humidity. Its black chassis includes front-accessible controls and status indicators, while integrated handles facilitate installation and maintenance. The unit's Energy Star certification and RoHS compliance reflect its energy efficiency and environmental responsibility.
Technical Overview
Built on a line-interactive topology with automatic voltage regulation (AVR), the PR1500RT2UC corrects minor voltage fluctuations without switching to battery, extending runtime and battery life. The unit accepts 120V AC input with a wide range of 70-155V AC and delivers regulated output between 100-125V AC at 60Hz, maintaining compatibility with sensitive electronic loads.
Four hot-swappable, sealed lead-acid batteries provide 9000mAh capacity, supporting 6.5 minutes of runtime at full load and 18.2 minutes at half load. The sine wave output ensures compatibility with active PFC power supplies found in modern servers and networking gear, while a 2430-joule surge energy rating and EMI/RFI filtering protect against electrical noise and transient spikes.
The UPS incorporates multiple communication interfaces for comprehensive management: USB for local computer connection, serial for legacy systems, SNMP/HTTP for network integration, and an EPO (Emergency Power Off) port for safety systems. Optional RMCARD205 adds relay and dry contact capabilities, while PowerPanel Business Edition software provides configuration, monitoring, and graceful shutdown functionality.
With a transfer time of 4 milliseconds, the unit ensures seamless transition to battery power during outages. The LCD display offers real-time status information including input/output voltage, battery charge level, and load percentage. Status indicators include LED lights for power on, line mode, battery mode, and fault conditions, providing at-a-glance monitoring of system health.
Key Product Advantages
The PR1500RT2UC delivers enterprise-grade power protection with the management features and reliability required for modern IT deployments. Its combination of pure sine wave output, high capacity, and flexible form factor addresses the core power continuity needs of server rooms, network closets, and edge computing locations.
Intelligent Power Management
PowerPanel Business Edition software enables graceful shutdown of connected systems, runtime calibration, and event logging. SNMP/HTTP support allows integration with existing network management systems, while the optional RMCARD205 adds relay and dry contact capabilities for environmental monitoring integration.
- Graceful shutdown for servers
- Runtime calibration and reporting
- SNMP integration for NMS
High-Density Rack Design
The 2U form factor maximizes power density in standard 19-inch racks while maintaining serviceability. Front-accessible LCD and controls simplify monitoring, and hot-swappable batteries enable maintenance without powering down connected equipment.
- 2U rack height saves space
- Front-accessible controls
- Hot-swappable battery maintenance
Comprehensive Protection
Beyond battery backup, the unit provides multi-stage surge protection, automatic voltage regulation, and EMI/RFI filtering. The lifetime connected equipment guarantee offers additional peace of mind for protected devices.
- 2430-joule surge protection
- AVR corrects brownouts
- Lifetime equipment guarantee
Deployment / Use Cases
Designed for business environments where power continuity is non-negotiable, the PR1500RT2UC serves as the foundation for reliable IT infrastructure power protection. Its 1500VA capacity and eight outlets support mixed equipment loads typical in small server rooms, network closets, and telecommunications installations.
The rack/tower convertible design offers deployment flexibility—install it in a standard 19-inch rack for data center consolidation or use it as a tower unit in office environments where rack infrastructure isn't available. This versatility makes it suitable for both centralized IT deployments and distributed edge computing locations.
Server Room Protection
Protect single or multiple servers, storage arrays, and network switches with sufficient runtime for graceful shutdown or ride-through during brief outages. The sine wave output ensures compatibility with server power supplies featuring active power factor correction.
Network Infrastructure
Secure VoIP systems, network switches, routers, and security appliances against power disturbances. The unit's communication ports enable integration with network management systems for centralized monitoring of power status across distributed locations.
Telecommunications & Edge Computing
Deploy in telecommunications cabinets or edge computing locations where space is constrained but reliability is critical. The 2U form factor fits standard racks while providing adequate runtime for critical communications equipment during power events.
Physical Profile
The black chassis measures 10.8" high (2U), 22.1" wide, and 16.2" deep, with a weight of approximately 63.7 pounds. The rack-mount design includes front-accessible controls and status indicators, while the integrated handles facilitate installation and maintenance. The unit operates within a temperature range of up to 104°F (40°C) and 95% humidity, suitable for typical server room environments.
- Width
- 22.10" (561.34 mm)
- Depth
- 16.20" (411.48 mm)
- Height
- 10.80" (274.32 mm)
- Weight
- 52.5 dB(A)
- Length
- 20.90" (530.86 mm)
Highlights
- 1500VA/1500W line-interactive UPS with pure sine wave output
- 2U rack/tower convertible form factor for flexible deployment
- 8 NEMA 5-15R outlets (4 critical battery backup + 4 surge protection)
- 6.5 minutes runtime at full load, 18.2 minutes at half load
- Hot-swappable batteries enable maintenance without downtime
- LCD display with real-time status and configuration
- SNMP/HTTP, USB, serial, and EPO communication ports
- PowerPanel Business Edition software for system management
- 3-year limited warranty with lifetime connected equipment guarantee
- Energy Star certified and RoHS compliant
Specifications
| Specifications | |
|---|---|
| Manufacturer | CyberPower Systems, Inc |
| Manufacturer Part Number | PR1500RT2UC |
| Brand Name | CyberPower |
| Product Line | Smart App Sinewave |
| Product Model | PR1500RT2UC |
| Product Name | PR1500RT2UC Smart App Sinewave UPS Systems |
| Product Type | Line-interactive UPS |
| Technical Information | |
| AVR | Yes |
| Plug/Connector Type | NEMA 5-15P |
| Receptacle Type | NEMA 5-15R |
| Receptacle Detail | 8 x NEMA 5-15R |
| Number of Battery & Surge Outlets | 8 |
| Number of Critical Load Outlets | 4 |
| Overload Protection | Yes |
| Transfer Time | 4 ms |
| EMI/RFI Noise Filter | Yes |
| Application/Usage | Server,Storage Device,VoIP,Network Device,Telecommunication,Equipment |
| Power Description | |
| Load Capacity (VA) | 1.50 kVA |
| Load Capacity (Watt) | 1.50 kW |
| Input Voltage | 120 V AC |
| Input Voltage Range | 70 V AC - 155 V AC |
| Output Voltage | 100 V AC,110 V AC,120 V AC,125 V AC |
| Input Frequency | 63 Hz |
| Output Frequency | 60 Hz |
| Waveform Type | Sine Wave |
| Surge Energy Rating | 2430 J |
| Output Power Factor | 1 |
| Display & Graphics | |
| Display | LCD |
| Management | |
| Network Management | SNMP/HTTP Remote Monitoring,Relay-MS Card,Dry Contact |
| Alarm | Battery Mode,Low Battery,Overload,Over-charge,Fault |
| Controls/Indicators | |
| Status Indicators | LED Indicators Power On Line Mode Battery Mode Fault |
| Interfaces/Ports | |
| Serial Port | Yes |
| USB | Yes |
| EPO Port | Yes |
| USB (HID Compliant) Port | Yes |
| Battery Information | |
| Number of Batteries | 4 |
| Battery Characteristics | Sealed |
| Battery Chemistry | Lead Acid |
| Battery Size | 12V |
| Battery Capacity | 9000 mAh |
| Backup/Run Time (Full Load) | 6.50 Minute |
| Backup/Run Time (Half Load) | 18.20 Minute |
| Hot Swappable | Yes |
| Typical Battery Recharge Time | 3 Hour |
| Replaceable Battery | Yes |
| Environmental Conditions | |
| Maximum Operating Elevation | 9842.52 ft (3000000 mm) |
| Maximum Storage Elevation | 49209.32 ft (14999000 mm) |
| Storage Temperature | 5°F (-15°C) - 113°F (45°C) |
| Operating Humidity | 95% |
| Storage Relative Humidity | 95% |
| Maximum Operating Temperature | 104°F (40°C) |
| Sound Emission (A-Weighted) | 52.5 dB(A) |
| Thermal Dissipation | 93.30 BTU/h |
| Physical Characteristics | |
| Product Color | Black |
| Height | 10.80" (274.32 mm) |
| Width | 22.10" (561.34 mm) |
| Depth | 16.20" (411.48 mm) |
| Length | 20.90" (530.86 mm) |
| Rack Height | 2U |
| Form Factor | Rack/Tower |
| Weight (Approximate) | 63.70 lb (28893.83 g) |
| Miscellaneous | |
| Energy Star | Yes |
| Country of Origin | China |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 3 Year |
| Additional Warranty Information | Connected Equipment Guarantee: Lifetime |
User Manual
FAQ
What is the power capacity of this UPS?
The CyberPower PR1500RT2UC delivers 1500VA/1500W of power capacity, making it suitable for protecting servers, storage arrays, network switches, and other critical IT equipment. This capacity provides sufficient backup power for typical small server room or network closet deployments.
What runtime can I expect at different load levels?
At full load (1500W), the UPS provides approximately 6.5 minutes of runtime. At half load (750W), runtime extends to about 18.2 minutes. These runtimes allow for graceful shutdown of connected equipment during power outages or provide ride-through protection for brief interruptions.
How many outlets does this UPS have and what types?
The unit features eight NEMA 5-15R outlets. Four outlets provide battery backup plus surge protection for critical equipment, while the remaining four offer surge protection only. This configuration supports mixed equipment loads typical in IT environments.
What input and output voltage specifications does this UPS support?
The UPS accepts 120V AC input with a wide range of 70-155V AC, automatically regulating voltage fluctuations. Output voltage is maintained between 100-125V AC at 60Hz, providing clean, stable power to connected equipment. The pure sine wave output ensures compatibility with active PFC power supplies.
Is this UPS designed for rack or tower deployment?
The PR1500RT2UC features a convertible rack/tower design. It occupies 2U of space in standard 19-inch racks but can also function as a standalone tower unit. This flexibility makes it suitable for both data center installations and office environments without rack infrastructure.
What management and connectivity options are available?
The UPS includes USB and serial ports for local management, SNMP/HTTP support for network integration, and an EPO (Emergency Power Off) port for safety systems. Optional RMCARD205 adds relay and dry contact capabilities. PowerPanel Business Edition software provides configuration, monitoring, and graceful shutdown functionality.
