CyberPower PR1500RTXL2UTAA Smart App Sinewave UPS - 1. 50 kVA - 2U Rack/Tower - AVR - 120V AC
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This line-interactive UPS maintains 60 Hz output frequency with pure sine wave technology, ensuring compatibility with sensitive server power supplies and network equipment. The input voltage range spans 75-155 V AC, with AVR correcting brownouts and overvoltages without switching to battery power.
The battery system utilizes four sealed lead-acid 12V batteries with 9000 mAh capacity, user-replaceable for extended service life. Integrated protection features include overload protection, dataline protection via RJ-45, and comprehensive alarms for battery mode, low battery, overcharge, overheating, and overload conditions.
This section brings together practical product details such as AVR, Plug/Connector Type, Receptacle Type, Load Capacity (VA), so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
A strong technical summary explains how the product's interfaces, hardware profile, and operating characteristics work together in real deployment. Buyers often need this context to confirm compatibility with existing devices, expected performance in daily use, and whether installation will be straightforward for IT staff or end users.
Key Product Advantages
The PR1500RTXL2UTAA distinguishes itself through TAA compliance for government procurement, Energy Star certification for energy efficiency, and RoHS environmental compliance. The 3-year limited warranty provides assurance for business deployment.
Intelligent Power Management

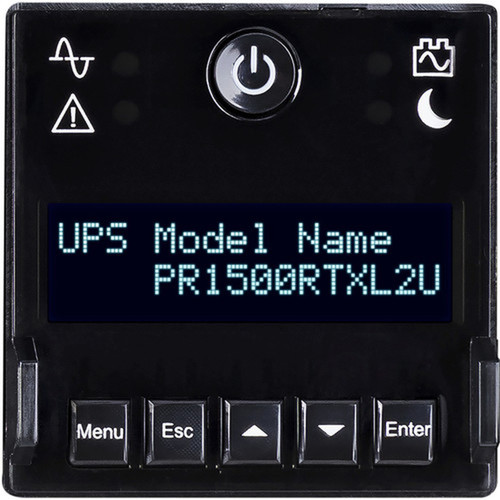

The multifunction LCD panel provides 27 setup and control items with 20 status updates and log menus, while LED indicators display power status, line mode, battery mode, fault conditions, night mode, and wiring faults for at-a-glance monitoring.
- Remote SNMP/HTTP management
- USB HID compliant port
- EPO (Emergency Power Off) port
- Serial port for legacy systems
Comprehensive Protection Suite
Beyond basic battery backup, this UPS delivers multiple layers of protection including AVR for voltage correction, 2430 joule surge energy rating, EMI/RFI noise filtering, and GreenPower UPS bypass technology for energy efficiency during normal operation.
Deployment / Use Cases
This UPS suits mixed IT environments including workstations, network devices, and telecommunications equipment. The flexible rack/tower configuration allows deployment in standard 19-inch racks or as a standalone tower, adapting to various data center and office layouts.
For environments with space constraints, the compact 3.4-inch height maximizes rack density while the 17.1-inch width and 19.7-inch depth provide stable mounting in standard server racks.
Server Room Protection
Ideal for rack-mounted servers and storage arrays requiring clean sine wave power and sufficient runtime for graceful shutdowns during extended outages. The 2U form factor optimizes rack space while providing 1.50 kVA capacity for multiple server loads.
Network Infrastructure Support
Protects switches, routers, VoIP equipment, and telecommunications devices with dataline protection and stable power delivery. The 4 critical load outlets prioritize essential network equipment during battery operation.
Physical Profile

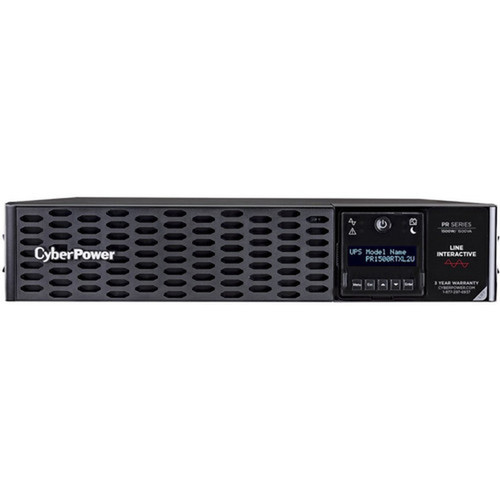

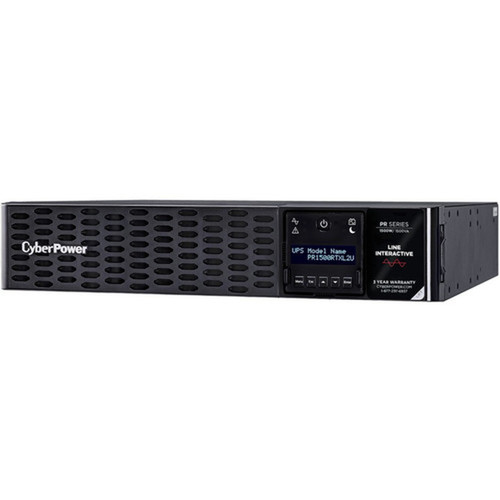

The black chassis features a professional rack-mount design with integrated mounting hardware for standard 19-inch racks. At 67.70 pounds, the unit provides substantial construction for stable rack installation. The front panel includes the multifunction LCD display, control buttons, and status LEDs for easy monitoring in rack environments.
Dimensions of 3.40" H × 17.10" W × 19.70" D (86.36 × 434.34 × 500.38 mm) ensure compatibility with standard server rack depths while the 2U height optimizes vertical space utilization in crowded racks.
- Width
- 17.10" (434.34 mm)
- Depth
- 19.70" (500.38 mm)
- Height
- 2U
- Weight
- 67.70 lb (30708.20 g)
What's in the Box
The CyberPower PR1500RTXL2UTAA UPS includes PowerPanel® Business software for comprehensive power management and monitoring.
Package contents include PowerPanel® Business. These included items support setup, installation, and immediate deployment without needing to source the core bundled accessories separately.
Highlights
- 1.50 kVA line-interactive UPS with pure sine wave output
- 2U rack/tower form factor for flexible deployment
- Automatic Voltage Regulation (AVR) corrects brownouts/overvoltages

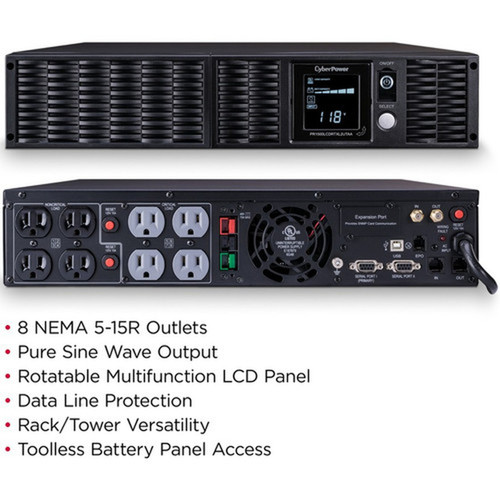

- 8 NEMA 5-15R outlets (4 critical load) for equipment connectivity
- SNMP/HTTP network management with optional RMCARD205TAA card
- Multifunction LCD panel with 27 setup items and status logging
- 4 sealed lead-acid batteries, user-replaceable for extended life
- 3-year limited warranty with TAA compliance for government procurement
- Energy Star certified with GreenPower UPS bypass technology
- RoHS compliant with comprehensive surge and EMI/RFI protection
Specifications
| Specifications | |
|---|---|
| Manufacturer | CyberPower Systems, Inc |
| Manufacturer Part Number | PR1500RTXL2UTAA |
| Brand Name | CyberPower |
| Product Series | TAA Compliant UPS & Hardware |
| Product Model | PR1500RTXL2UTAA |
| Product Name | PR1500RTXL2UTAA Smart App Sinewave UPS |
| Product Condition | New |
| Product Type | Line-interactive UPS |
| Technical Information | |
| AVR | Yes |
| Plug/Connector Type | NEMA 5-15P |
| Receptacle Type | NEMA 5-15R |
| Receptacle Detail | 8 x NEMA 5-15R |
| Number of Battery & Surge Outlets | 8 |
| Number of Critical Load Outlets | 4 |
| Transfer Time | 4 ms |
| Dataline Protection | RJ-45 |
| Overload Protection | Yes |
| EMI/RFI Noise Filter | Yes |
| Energy Saving | GreenPower UPS Bypass Technology |
| Application/Usage | Server,Workstation,Network Device,Telecommunication,VoIP Device |
| Power Description | |
| Load Capacity (VA) | 1.50 kVA |
| Input Voltage | 120 V AC |
| Input Voltage Range | 75 V AC - 155 V AC |
| Output Voltage | 110 V AC,120 V AC,125 V AC,100 V AC |
| Input Frequency | 63 Hz |
| Output Frequency | 60 Hz |
| Waveform Type | Sine Wave |
| Surge Energy Rating | 2430 J |
| Management | |
| Network Management | SNMP/HTTP Remote Monitoring With Optional RMCARD205TAA |
| Alarm | Battery Mode,Low Battery,Over Charge,Overheat,Overload |
| Controls/Indicators | |
| Status Indicators | Multifunction LCD Panel: 27 setup and control items 20 status updates and log menus LED Indicators: Power on Line mode Battery mode Fault Night mode Wiring Fault |
| Interfaces/Ports | |
| Serial Port | Yes |
| Network (RJ-45) | Yes |
| USB (HID Compliant) Port | Yes |
| EPO Port | Yes |
| Battery Information | |
| Number of Batteries | 4 |
| Battery Characteristics | Sealed |
| Battery Chemistry | Lead Acid |
| Battery Size | 12V |
| Battery Capacity | 9000 mAh |
| Backup/Run Time (Full Load) | 6.50 Minute |
| Backup/Run Time (Half Load) | 17.90 Minute |
| Typical Battery Recharge Time | 3 Hour |
| Replaceable Battery | Yes |
| Environmental Conditions | |
| Maximum Operating Temperature | 104°F (40°C) |
| Maximum Operating Elevation | 9842.52 ft (3000000 mm) |
| Maximum Storage Elevation | 49212.60 ft (15000000 mm) |
| Physical Characteristics | |
| Product Color | Black |
| Form Factor | Rack/Tower |
| Rack Height | 2U |
| Height | 3.40" (86.36 mm) |
| Width | 17.10" (434.34 mm) |
| Depth | 19.70" (500.38 mm) |
| Weight (Approximate) | 67.70 lb (30708.20 g) |
| Miscellaneous | |
| Software Included | PowerPanel® Business |
| Energy Star | Yes |
| Country of Origin | Taiwan |
| TAA Compliant | Yes |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 3 Year |
User Manual
FAQ
What is the power capacity of this CyberPower UPS?
The PR1500RTXL2UTAA provides 1.50 kVA (1500 VA) of line-interactive power protection. This capacity supports mixed IT loads including servers, network equipment, and workstations with sufficient runtime for graceful shutdowns during power outages.
How long does this UPS run on battery power?
At full load (1500 VA), the UPS provides approximately 6.50 minutes of runtime. At half load (750 VA), runtime extends to approximately 17.90 minutes. These figures allow sufficient time for equipment shutdown or generator startup during power interruptions.
What type of outlets does this UPS have?
This unit features 8 NEMA 5-15R outlets, with 4 designated as critical load outlets that receive battery backup priority. All outlets provide surge protection, with the critical load outlets maintaining power during battery operation for essential equipment.
Can this UPS be rack-mounted?
Yes, the PR1500RTXL2UTAA features a versatile 2U rack/tower form factor. It includes mounting hardware for standard 19-inch server racks with dimensions of 3.40" H × 17.10" W × 19.70" D. The unit can also operate as a standalone tower if rack mounting isn't required.
What management capabilities does this UPS offer?
The UPS supports SNMP/HTTP network management with an optional RMCARD205TAA network management card. It includes PowerPanel® Business software for centralized monitoring and control, plus a multifunction LCD panel with 27 setup items, 20 status updates, and comprehensive log menus for local management.
What type of batteries does this UPS use and are they replaceable?
This UPS utilizes four sealed lead-acid 12V batteries with 9000 mAh capacity. The batteries are user-replaceable, extending the service life of the unit. Typical recharge time is 3 hours after a complete discharge, ensuring quick recovery for subsequent power events.
What power capacity is listed for this UPS?
The listed power specification is 1.50 kVA, which helps position the unit for the right load level and installation role.
How many outlets are available?
The product includes 8, which helps buyers understand how many connected devices it can support in its intended deployment.
