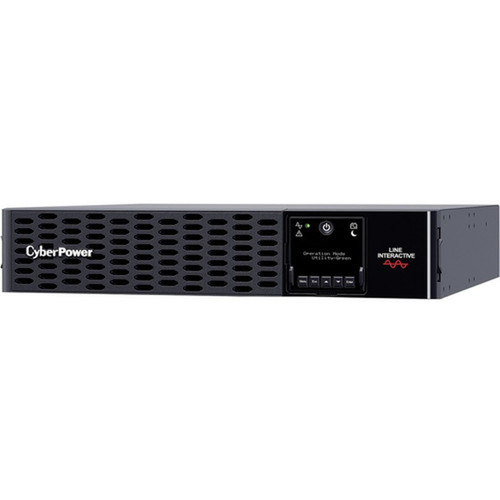

CyberPower PR2200RTXL2UAN Smart App Sinewave UPS - 2. 2 kVA - 120V - Line Interactive - 8 Outlets - 2U Rack/Tower - Sine Wave - LCD
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This line-interactive UPS delivers 2.2 kVA (2200W) of power capacity with a wide input voltage range of 75–155 V AC, automatically correcting under- and over-voltage conditions without switching to battery. The sine wave output ensures compatibility with active PFC power supplies found in modern servers, networking gear, and storage systems.
Transfer time is rated at 4 ms, providing near-instantaneous switchover to battery power during outages. The unit incorporates EMI/RFI noise filtering, surge protection rated at 2430 joules, and overload protection to safeguard connected equipment. GreenPower UPS™ bypass technology reduces energy consumption during normal operation.
This section brings together practical product details such as AVR, Plug/Connector Type, Receptacle Type, Load Capacity (VA), so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
A strong technical summary explains how the product's interfaces, hardware profile, and operating characteristics work together in real deployment. Buyers often need this context to confirm compatibility with existing devices, expected performance in daily use, and whether installation will be straightforward for IT staff or end users.
Key Product Advantages
The PR2200RTXL2UAN stands out with its convertible rack/tower design, comprehensive remote management capabilities, and robust power conditioning features. It is built to protect critical infrastructure with high-efficiency operation and user-replaceable batteries.
Flexible Deployment
Install as a 2U rack-mount unit or as a standalone tower, adapting to space constraints and cooling requirements in data centers, telecom rooms, or industrial settings.
- 2U rack height
- Tower conversion kit included
- Black finish
Advanced Monitoring
The multifunction LCD displays real-time status, runtime estimates, and load levels. Integrated SNMP/HTTP remote monitoring via the pre-installed RMCARD205 card enables centralized management.
- LCD panel with LED indicators
- SNMP/HTTP support
- PowerPanel® Business software
Enhanced Protection
Beyond battery backup, the UPS provides automatic voltage regulation, surge suppression, and dataline protection for connected Ethernet equipment, ensuring comprehensive defense against power anomalies.
- AVR corrects ±25% voltage fluctuations
- RJ-45 dataline protection
- 8 surge-protected outlets
Deployment / Use Cases
This UPS is ideal for protecting rack-mounted servers, network switches, storage arrays, and industrial control systems where stable, clean power is non-negotiable. Its 2U form factor and 8 outlets make it suitable for consolidating power distribution in standard 19-inch racks.
Common applications include small to medium server rooms, edge computing locations, VoIP systems, and security surveillance setups. The line-interactive topology with sine wave output ensures compatibility with equipment featuring active power factor correction, while the remote management capabilities allow IT staff to monitor power status and receive alerts from anywhere.
Server Room Protection
Safeguard critical servers and networking hardware from power interruptions, providing enough runtime for graceful shutdowns or continued operation during short outages.
Network Closet UPS
Deploy in telecommunications or wiring closets to keep switches, routers, and access points online, with SNMP management integrating into existing network monitoring systems.
Physical Profile
The UPS measures 3.40" (86.36 mm) in height, 17.10" (434.34 mm) in width, and 24.80" (629.92 mm) in depth, fitting standard 19-inch rack enclosures at 2U. Its substantial 93 lb weight reflects the internal battery bank and robust construction. The black finish and low 57.5 dB(A) sound emission make it suitable for occupied office spaces or noise-sensitive environments.
The physical profile is practical for deployment planning because the dimensions and weight are clearly defined: 2U, 17.10" (434.34 mm), 24.80" (629.92 mm), 57.5 dB(A). This helps confirm rack, shelf, desk, or cabinet fit before installation.
- Width
- 17.10" (434.34 mm)
- Depth
- 24.80" (629.92 mm)
- Height
- 2U
- Weight
- 57.5 dB(A)
Highlights
- 2.2 kVA / 2200W line-interactive UPS with AVR and sine wave output
- 8 NEMA 5-20R outlets provide ample connectivity for critical loads
- Convertible 2U rack-mount or tower design for flexible installation
- 6.3 minutes runtime at full load, 16.1 minutes at half load
- Remote management via SNMP/HTTP with pre-installed RMCARD205 card
- Multifunction LCD panel displays status, load, and battery information
- Replaceable sealed lead-acid batteries with 3-hour recharge time
- Includes USB, serial, and EPO ports for comprehensive monitoring and control
- Energy Star certified with GreenPower UPS™ bypass technology
- 3-year limited warranty and RoHS compliance
Specifications
| Specifications | |
|---|---|
| Manufacturer | CyberPower Systems, Inc |
| Manufacturer Part Number | PR2200RTXL2UAN |
| Brand Name | CyberPower |
| Product Series | New Smart App Sinewave UPS |
| Product Model | PR2200RTXL2UAN |
| Product Name | Smart App Sinewave PR2200RTXL2UAN 2.2KVA Tower/Rack Convertible UPS |
| Product Condition | New |
| Product Type | Line-interactive UPS |
| Technical Information | |
| AVR | Yes |
| Plug/Connector Type | NEMA L5-30P |
| Receptacle Type | NEMA 5-20R |
| Receptacle Detail | 8 x NEMA 5-20R |
| Number of Battery & Surge Outlets | 8 |
| Number of Critical Load Outlets | 4 |
| Transfer Time | 4 ms |
| Dataline Protection | RJ-45 |
| Overload Protection | Yes |
| EMI/RFI Noise Filter | Yes |
| Energy Saving | GreenPower UPS™ Bypass Technology |
| Power Description | |
| Load Capacity (VA) | 2.20 kVA |
| Input Voltage | 120 V AC |
| Input Voltage Range | 75 V AC - 155 V AC |
| Output Voltage | 100 V AC,110 V AC,120 V AC |
| Input Frequency | 63 Hz |
| Output Frequency | 60 Hz |
| Waveform Type | Sine Wave |
| Surge Energy Rating | 2430 J |
| Management | |
| Network Management | SNMP/HTTP Remote Monitoring |
| Alarm | Battery Mode,Low Battery,Overload,Overheat,Over Charge |
| Controls/Indicators | |
| Status Indicators | Multifunction LCD Panel LED Indicators Power on Line mode Battery mode Fault Night mode Wiring Fault |
| Interfaces/Ports | |
| Serial Port | Yes |
| Network (RJ-45) | Yes |
| USB (HID Compliant) Port | Yes |
| EPO Port | Yes |
| Battery Information | |
| DC System Voltage | 12 V DC |
| Number of Batteries | 8 |
| Battery Characteristics | Sealed |
| Battery Chemistry | Lead Acid |
| Battery Size | 12V |
| Battery Capacity | 6000 mAh |
| Backup/Run Time (Full Load) | 6.30 Minute |
| Backup/Run Time (Half Load) | 16.10 Minute |
| Typical Battery Recharge Time | 3 Hour |
| Replaceable Battery | Yes |
| Environmental Conditions | |
| Maximum Operating Temperature | 104°F (40°C) |
| Maximum Operating Elevation | 10000 ft (3048000 mm) |
| Maximum Storage Elevation | 50000 ft (15240000 mm) |
| Storage Relative Humidity | 0% - 95% |
| Sound Emission (A-Weighted) | 57.5 dB(A) |
| Thermal Dissipation | 85.90 BTU/h |
| Physical Characteristics | |
| Product Color | Black |
| Form Factor | Rack/Tower |
| Rack Height | 2U |
| Height | 3.40" (86.36 mm) |
| Width | 17.10" (434.34 mm) |
| Depth | 24.80" (629.92 mm) |
| Weight (Approximate) | 93 lb (42184.09 g) |
| Miscellaneous | |
| Energy Star | Yes |
| Country of Origin | Philippines |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 3 Year |
User Manual
FAQ
What is the power capacity of this CyberPower UPS?
The PR2200RTXL2UAN delivers 2.2 kVA (2200 watts) of power capacity. This line-interactive UPS supports a wide input voltage range of 75–155 V AC and provides sine wave output at 100–120 V AC ±5%, making it suitable for servers, networking equipment, and other critical business hardware.
How long will this UPS run on battery power?
At full load (2200W), the runtime is 6.3 minutes. At half load (1100W), runtime extends to 16.1 minutes. These figures allow sufficient time for graceful shutdowns or continued operation during short power interruptions. The sealed lead-acid batteries typically recharge within 3 hours after use.
Can this UPS be installed in a server rack?
Yes, the UPS is designed as a convertible 2U rack-mount or tower unit. It occupies 2U of vertical space in a standard 19-inch rack, with dimensions of 3.40" H × 17.10" W × 24.80" D. The included hardware allows easy conversion between rack and tower configurations to match your deployment needs.
What types of outlets does this UPS have?
It features 8 NEMA 5-20R outlets, all providing battery backup and surge protection. The input plug is a NEMA L5-30P, connected via a 10-foot cord. This outlet configuration supports typical server, switch, and peripheral power connections in North American environments.
How can I monitor and manage this UPS remotely?
The UPS includes a pre-installed RMCARD205 network management card that supports SNMP and HTTP monitoring. Additional connectivity options include USB, serial, and EPO (emergency power off) ports. CyberPower's PowerPanel® Business software enables centralized management, alerting, and automated shutdowns across multiple units.
What protection features does this UPS offer beyond battery backup?
Beyond battery backup, the UPS provides automatic voltage regulation (AVR) to correct brownouts and overvoltages without draining the battery. It also includes EMI/RFI noise filtering, 2430-joule surge protection, overload protection, and RJ-45 dataline protection for connected network equipment, ensuring comprehensive power conditioning.
What power capacity is listed for this UPS?
The listed power specification is 2.20 kVA, which helps position the unit for the right load level and installation role.
How many outlets are available?
The product includes 8, which helps buyers understand how many connected devices it can support in its intended deployment.
