CyberPower PR750LCDRT1U Smart App Sinewave UPS - 750VA/600W - 120V - 1U Rack/Tower - 7 Outlets - LCD
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
Engineered for reliability, the PR750LCDRT1U incorporates a sealed lead-acid battery system with four 6V, 7000 mAh batteries, user-replaceable for extended service life. It includes comprehensive protection features such as overload protection, EMI/RFI noise filtering, and a 15A circuit breaker.
Communication and management capabilities are robust, with USB, serial, and EPO ports, plus SNMP/HTTP remote monitoring for integration into network management systems. The included PowerPanel Business Edition software enables automated shutdown, event logging, and energy usage reporting.
This section brings together practical product details such as AVR, AVR Range, Plug/Connector Type, Load Capacity (VA), so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
A strong technical summary explains how the product's interfaces, hardware profile, and operating characteristics work together in real deployment. Buyers often need this context to confirm compatibility with existing devices, expected performance in daily use, and whether installation will be straightforward for IT staff or end users.
Key Product Advantages
This UPS combines high-efficiency operation with practical features for business continuity. The GreenPower UPS bypass mode reduces energy consumption during normal operation, and the unit meets RoHS environmental compliance standards.
Pure Sine Wave Output
Delivers clean, stable AC power compatible with active PFC power supplies found in modern servers and networking gear, preventing equipment damage and ensuring optimal performance.
Flexible Deployment
The 1U rack/tower design includes mounting brackets and stands, allowing installation in standard 19-inch racks or as a standalone tower to suit diverse IT environments.
Advanced Management

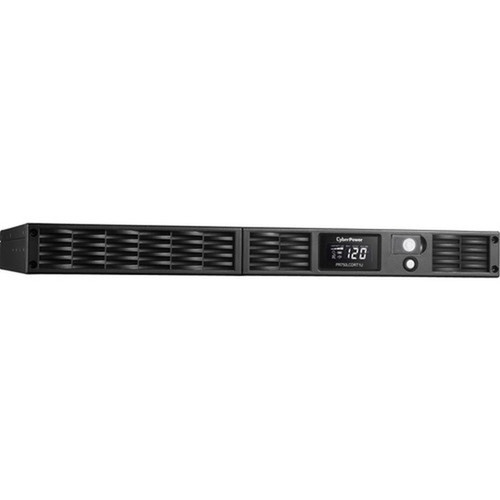

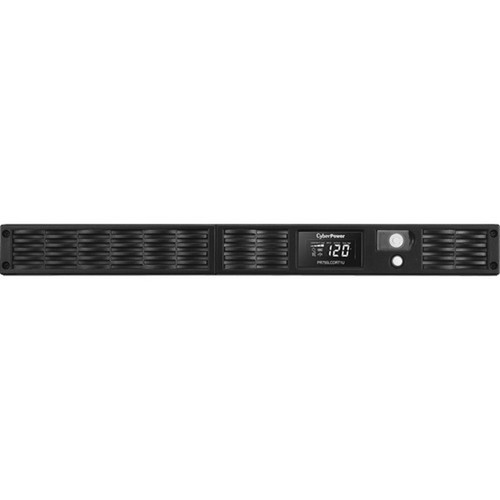

LCD display provides clear status alerts, while remote monitoring via SNMP/HTTP and PowerPanel software offers centralized control and proactive power management.
Deployment / Use Cases

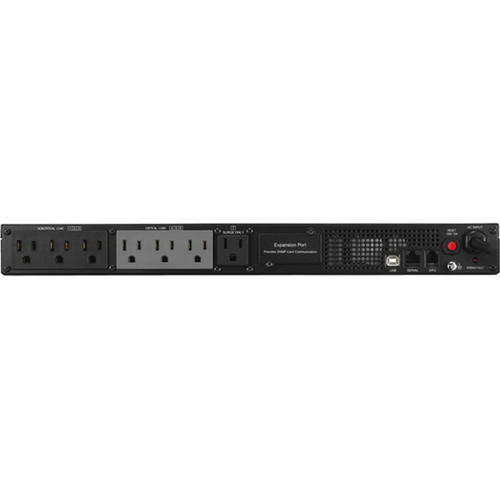

Deploy the PR750LCDRT1U in small to medium server rooms, network closets, or office setups where reliable power backup is essential. Its 7 outlets (6 battery/surge, 1 surge-only) accommodate multiple devices, and the 10-foot power cord offers placement flexibility.
Typical applications include protecting critical loads in retail POS systems, medical offices, or remote branch locations where power quality may be inconsistent.
This section brings together practical product details such as AVR, AVR Range, Plug/Connector Type, Load Capacity (VA), so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Server and Storage Protection
Ideal for safeguarding single servers, NAS devices, or small storage arrays, providing enough runtime for graceful shutdowns during power outages.
Network and Telecom Infrastructure
Supports VoIP phones, routers, switches, and telecommunication equipment, ensuring uninterrupted communication and network uptime.
Physical Profile
The UPS features a compact black chassis measuring 1.75" H x 17.25" W x 15.80" D, weighing approximately 30.70 lb. Its 1U rack height minimizes space consumption in crowded racks, while the tower configuration includes stands for desktop use. The design prioritizes efficient cooling with a thermal dissipation of 45.60 BTU/h.
The physical profile is practical for deployment planning because the dimensions and weight are clearly defined: 1U, 17.25" (438.15 mm), 15.80" (401.32 mm), 30.70 lb (13925.29 g). This helps confirm rack, shelf, desk, or cabinet fit before installation.
- Width
- 17.25" (438.15 mm)
- Depth
- 15.80" (401.32 mm)
- Height
- 1U
- Weight
- 30.70 lb (13925.29 g)
- Length
- 10 ft (3048 mm)
What's in the Box
The package includes all necessary components for immediate deployment and management.
Highlights
- 750VA/600W pure sine wave output for sensitive electronics
- Line-interactive topology with AVR (boost +30%/buck -12%)
- 1U rack/tower form factor with included mounting hardware
- 7 outlets: 6 battery/surge, 1 surge-only
- LCD display for real-time status and diagnostics
- SNMP/HTTP remote monitoring and PowerPanel software
- User-replaceable sealed lead-acid batteries
- 3-year limited warranty and RoHS compliance
Specifications
| Specifications | |
|---|---|
| Manufacturer | CyberPower Systems, Inc |
| Manufacturer Part Number | PR750LCDRT1U |
| Brand Name | CyberPower |
| Product Series | Smart App Sinewave UPS |
| Product Model | PR750LCDRT1U |
| Product Name | PR750LCDRT1U Smart App Sinewave UPS Systems |
| Product Type | Line-interactive UPS |
| Technical Information | |
| AVR | Yes |
| AVR Range | Boost +30% / Buck -12% |
| Plug/Connector Type | NEMA 5-15P |
| Receptacle Type | NEMA 5-15R |
| Receptacle Detail | 7 x NEMA 5-15R |
| Number of Battery & Surge Outlets | 6 |
| Number of Surge-only Outlets | 1 |
| Number of Critical Load Outlets | 3 |
| Transfer Time | 10 ms |
| Overload Protection | Yes |
| EMI/RFI Noise Filter | Yes |
| Energy Saving | GreenPower UPS™ Bypass |
| Application/Usage | Server,Storage Device,VoIP Device,Network Device,Telecommunication |
| Cord Length | 10 ft (3048 mm) |
| Circuit Breaker Current Rating | 15 A |
| Power Description | |
| Load Capacity (VA) | 750 VA |
| Load Capacity (Watt) | 600 W |
| Input Voltage | 120 V AC |
| Input Voltage Range | 80 V AC - 150 V AC |
| Output Voltage | 120 V AC |
| Input Frequency | 50 Hz,60 Hz |
| Output Frequency | 60 Hz |
| Waveform Type | Sine Wave |
| Surge Energy Rating | 1030 J |
| Output Power Factor | 0.8 |
| Display & Graphics | |
| Display | LCD |
| Management | |
| Network Management | SNMP/HTTP Remote Monitoring |
| Alarm | Battery Mode |
| Controls/Indicators | |
| Status Indicators | Power On Wiring Fault |
| Interfaces/Ports | |
| Serial Port | Yes |
| USB | Yes |
| USB (HID Compliant) Port | Yes |
| EPO Port | Yes |
| Battery Information | |
| Number of Batteries | 4 |
| Battery Characteristics | Sealed |
| Battery Chemistry | Lead Acid |
| Battery Size | 6V |
| Battery Capacity | 7000 mAh |
| Backup/Run Time (Full Load) | 3 Minute |
| Backup/Run Time (Half Load) | 10 Minute |
| Typical Battery Recharge Time | 6 Hour |
| Replaceable Battery | Yes |
| Environmental Conditions | |
| Maximum Operating Temperature | 104°F (40°C) |
| Storage Temperature | 5°F (-15°C) - 113°F (45°C) |
| Maximum Operating Elevation | 10000 ft (3048000 mm) |
| Maximum Storage Elevation | 50000 ft (15240000 mm) |
| Operating Humidity | 0% - 95% |
| Thermal Dissipation | 45.60 BTU/h |
| Physical Characteristics | |
| Product Color | Black |
| Form Factor | Rack/Tower |
| Rack Height | 1U |
| Height | 1.75" (44.45 mm) |
| Width | 17.25" (438.15 mm) |
| Depth | 15.80" (401.32 mm) |
| Weight (Approximate) | 30.70 lb (13925.29 g) |
| Miscellaneous | |
| Package Contents | Smart App Sinewave PR750LCDRT1U 750VA Pure Sine Wave 1U RT LCD UPS User's Manual for UPS 2 x Rack Mount Brackets 2 x Wall Mount Brackets 2 x Stands Emergency Power Off Cable (gray PowerPanel® Business Edition Software CD Serial Interface Cable (RJ45/DB-9) USB A+B type cable Warranty Registration Card |
| Software Included | PowerPanel Business Edition |
| Energy Star | No |
| Country of Origin | China |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 3 Year |
User Manual
FAQ
What is the power capacity of this UPS?
The CyberPower PR750LCDRT1U provides 750 volt-amps (VA) and 600 watts (W) of output power. This capacity supports typical loads like a server, network switch, and VoIP system, with a power factor of 0.8 for efficient energy delivery.
Can this UPS be installed in a server rack?
Yes, it is designed for both rack and tower deployment. The 1U height fits standard 19-inch racks, and the package includes rack mount brackets. It can also be used as a standalone tower with the provided stands.
What is the battery runtime under full load?
At full load (600W), the UPS provides approximately 3 minutes of backup runtime. At half load (300W), runtime extends to about 10 minutes, allowing sufficient time for graceful shutdowns of connected equipment.
Does this UPS support remote management?
Yes, it includes SNMP/HTTP remote monitoring capabilities for integration into network management systems. The bundled PowerPanel Business Edition software also enables remote shutdown, monitoring, and configuration via USB or serial connections.
What type of power output does it provide?
It delivers pure sine wave output, which is essential for compatibility with active power factor correction (PFC) power supplies in modern servers, networking gear, and sensitive electronics, preventing potential damage or instability.
What is included in the warranty?
CyberPower backs this UPS with a 3-year limited warranty, covering defects in materials and workmanship. The user-replaceable batteries are included, and the unit is RoHS compliant for environmental safety.
What power capacity is listed for this UPS?
The listed power specification is 750 VA, which helps position the unit for the right load level and installation role.
How many outlets are available?
The product includes 6, which helps buyers understand how many connected devices it can support in its intended deployment.
