CyberPower PRL3000RT2UC Smart App Sinewave UPS - 3000VA/3000W - Lithium - 2U Rack/Tower - 100-120VAC - NEMA L5-30P
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
The UPS operates with input frequencies of 47-63 Hz and delivers output frequencies of 50-60 Hz, accommodating international power standards. It includes an LCD display for real-time status monitoring and configuration, along with LED indicators for power, line mode, battery mode, and fault conditions.
Communication interfaces include USB, serial (RS-232), EPO port, and USB HID-compliant ports for integration with management software. The unit supports SNMP/HTTP remote monitoring and dry contact alarms for network integration.
This section brings together practical product details such as AVR, Plug/Connector Type, Receptacle Type, Load Capacity (VA), so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
A strong technical summary explains how the product's interfaces, hardware profile, and operating characteristics work together in real deployment. Buyers often need this context to confirm compatibility with existing devices, expected performance in daily use, and whether installation will be straightforward for IT staff or end users.
Key Product Advantages
The UPS includes PowerPanel Business Edition software for advanced monitoring, shutdown scheduling, and event logging. ENERGY STAR 6.0 certification confirms energy-efficient operation, reducing electricity costs during normal conditions.
Lithium Battery Technology

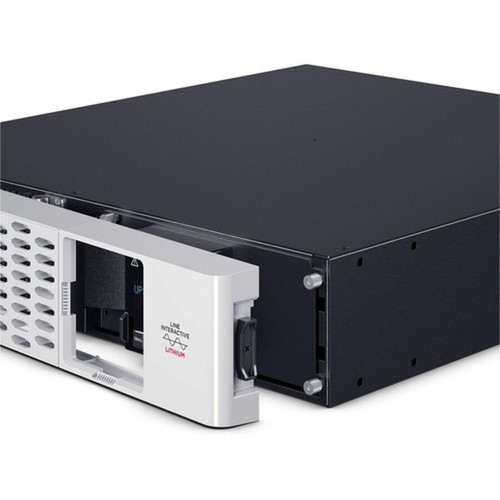

Lithium-ion batteries provide maintenance-free operation, faster recharge in approximately 2 hours, and extended lifespan compared to conventional batteries. The batteries are hot-swappable and user-replaceable.
Flexible Installation Options
The tower/rack convertible design allows deployment as a standalone unit or in a standard 19-inch rack using the included 2U mounting hardware. This flexibility suits both server room and office environments.
Comprehensive Power Protection

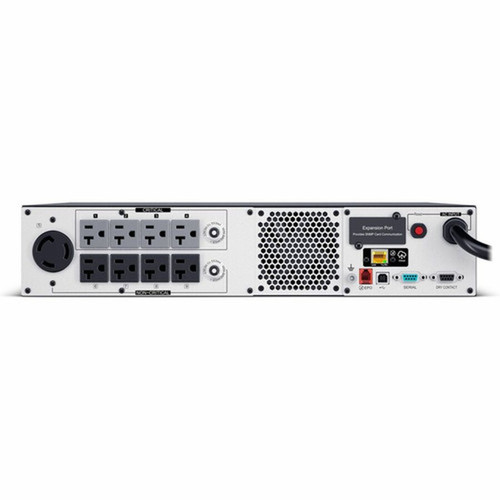

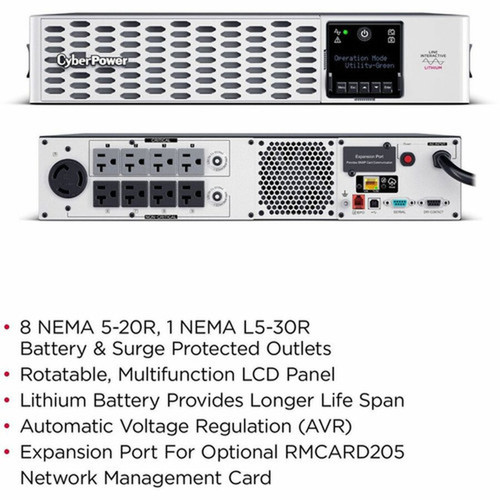

Nine outlets (eight NEMA 5-20R and one NEMA L5-30R) provide both battery backup and surge protection for multiple devices. Four outlets are designated for critical loads with overload protection.
Deployment / Use Cases
This UPS is engineered for corporate, server room, network closet, and telecommunications environments where uptime is critical. It protects equipment from power interruptions, surges, and electrical noise that can cause data loss or hardware damage.
Typical applications include supporting server racks, network switches, storage arrays, VoIP systems, and telecommunications equipment. The 10-foot power cord and multiple outlet types accommodate various device configurations and installation layouts.
This section brings together practical product details such as AVR, Plug/Connector Type, Receptacle Type, Load Capacity (VA), so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Server Room Protection
Provides backup power for rack-mounted servers and network equipment during outages, allowing for graceful shutdowns or continued operation.
Network Infrastructure Support
Protects switches, routers, and storage devices from power anomalies that can disrupt network connectivity and data access.
Physical Profile

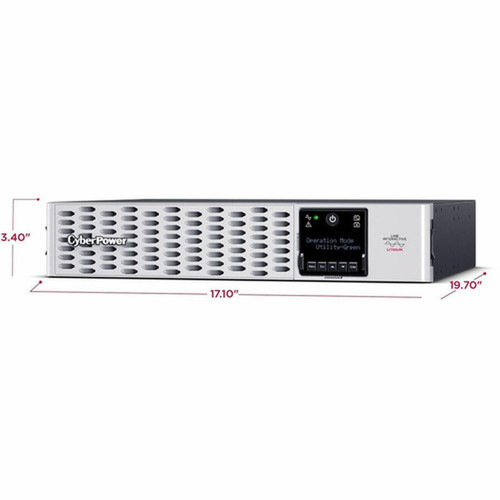

The unit measures 3.39" (86 mm) in height, 17.09" (434 mm) in width, and 19.69" (500 mm) in depth, with a black and silver finish. At 65.30 lb (29620 g), it's designed for stable placement in either tower or rack orientation.
Operating conditions range from 32°F to 104°F (0°C to 40°C) with 0-95% humidity, suitable for typical data center and office environments. Thermal dissipation is rated at 192.50 BTU/h.
- Width
- 17.09" (434 mm)
- Depth
- 19.69" (500 mm)
- Height
- 3.39" (86 mm)
- Weight
- 65.30 lb (29620 g)
- Length
- 10 ft (3.05 m)
What's in the Box
The package includes the CyberPower PRL3000RT2UC UPS unit with installed lithium-ion batteries and PowerPanel Business Edition software for system management and monitoring.
Package contents include PowerPanel® Business Edition. These included items support setup, installation, and immediate deployment without needing to source the core bundled accessories separately.
Highlights
- 3000VA/3000W line-interactive UPS with sine wave output
- Lithium-ion battery technology for faster recharge and longer life
- 2U rack/tower convertible design for flexible installation
- Nine outlets: eight NEMA 5-20R and one NEMA L5-30R
- Automatic voltage regulation (AVR) and EMI/RFI filtering
- LCD display with status indicators and configuration options
- Remote management via SNMP/HTTP, USB, and serial interfaces
- Hot-swappable, user-replaceable batteries
- ENERGY STAR 6.0 certified for energy efficiency
- 5-year warranty including battery and $400,000 connected equipment guarantee
Specifications
| Specifications | |
|---|---|
| Manufacturer | CyberPower Systems, Inc |
| Manufacturer Part Number | PRL3000RT2UC |
| Brand Name | CyberPower |
| Product Line | Smart App Sinewave |
| Product Model | PRL3000RT2UC |
| Product Name | PRL3000RT2UC Smart App Sinewave UPS Systems |
| Product Type | Line-interactive UPS |
| Technical Information | |
| AVR | Yes |
| Plug/Connector Type | NEMA L5-30P |
| Receptacle Type | NEMA 5-20R,NEMA L5-30R |
| Receptacle Detail | 8 x NEMA 5-20R,1 x NEMA L5-30R |
| Number of Battery & Surge Outlets | 9 |
| Number of Critical Load Outlets | 4 |
| Overload Protection | Yes |
| Cord Length | 10 ft (3.05 m) |
| Transfer Time | 9 ms |
| EMI/RFI Noise Filter | Yes |
| Application/Usage | Corporate,Server,Network Device,Storage Device,Telecommunication,VoIP |
| Features | Audible Alarm |
| Power Description | |
| Load Capacity (VA) | 3 kVA |
| Load Capacity (Watt) | 3 kW |
| Input Voltage | 120 V AC |
| Input Voltage Range | 100 V AC - 120 V AC,70 V AC - 155 V AC |
| Output Voltage | 100 V AC,110 V AC,120 V AC |
| Input Frequency | 47 Hz,63 Hz |
| Output Frequency | 50 Hz,60 Hz |
| Waveform Type | Sine Wave |
| Surge Energy Rating | 2430 J |
| Circuit Breaker | Yes |
| Output Power Factor | 1 |
| Display & Graphics | |
| Display | LCD |
| Management | |
| Network Management | SNMP/HTTP Remote Monitoring,RS-232,Dry Contact |
| Alarm | Battery Mode,Low Battery,Overload,Over-charge |
| Controls/Indicators | |
| Status Indicators | LED Indicators: Power On Line Mode Battery Mode UPS Fault LCD Display: UPS Status UPS Setup Control Management Testing Options. |
| Interfaces/Ports | |
| Serial Port | Yes |
| USB | Yes |
| EPO Port | Yes |
| USB (HID Compliant) Port | Yes |
| Battery Information | |
| Number of Batteries | 4 |
| Battery Characteristics | Maintenance-free |
| Battery Chemistry | Lithium Ion (Li-Ion) |
| Battery Size | 12.8V |
| Battery Capacity | 9000 mAh |
| Backup/Run Time (Full Load) | 4 Minute |
| Backup/Run Time (Half Load) | 13.60 Minute |
| Hot Swappable | Yes |
| Typical Battery Recharge Time | 2 Hour |
| Replaceable Battery | Yes |
| Environmental Conditions | |
| Maximum Operating Elevation | 9843 ft (3000146.40 mm) |
| Maximum Storage Elevation | 49213 ft (15000122.40 mm) |
| Storage Temperature | 5°F (-15°C) - 113°F (45°C) |
| Operating Humidity | 0% - 95% |
| Storage Relative Humidity | 0% - 95% |
| Minimum Operating Temperature | 32°F (0°C) |
| Maximum Operating Temperature | 104°F (40°C) |
| Thermal Dissipation | 192.50 BTU/h |
| Physical Characteristics | |
| Product Color | Black,Silver |
| Height | 3.39" (86 mm) |
| Width | 17.09" (434 mm) |
| Depth | 19.69" (500 mm) |
| Rack Height | 2U |
| Form Factor | Tower/Rack Convertible |
| Weight (Approximate) | 65.30 lb (29620 g) |
| Miscellaneous | |
| Software Included | PowerPanel® Business Edition |
| Energy Star | Yes |
| Environmentally Friendly | Yes |
| Energy Efficiency Certification | ENERGY STAR 6.0 |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 5 Year |
| Additional Warranty Information | 5 years (Including Battery) and 400,000 connected equipment guarantee. |
User Manual
FAQ
What is the power capacity of this UPS?
The CyberPower PRL3000RT2UC provides 3000VA/3000W of power capacity. This rating supports critical equipment during outages, with an output power factor of 1 for efficient power delivery to connected devices.
What type of battery does this UPS use?
This UPS uses lithium-ion (Li-Ion) battery technology. The maintenance-free batteries offer faster recharge times (approximately 2 hours), longer service life, and are hot-swappable for easy replacement without downtime.
What are the runtime specifications?
At full 3000W load, the UPS provides approximately 4 minutes of runtime. At half load (1500W), runtime extends to about 13.6 minutes, allowing time for graceful shutdowns or continued operation during brief outages.
Can this UPS be installed in a server rack?
Yes, the unit is tower/rack convertible with a 2U rack height. It can be mounted in a standard 19-inch rack using included hardware or used as a standalone tower, providing installation flexibility for different environments.
What outlets are available on this UPS?
The UPS has nine outlets total: eight NEMA 5-20R outlets and one NEMA L5-30R outlet. Four of these are designated as critical load outlets with overload protection, while all provide surge protection and battery backup.
What management and monitoring options are included?
Management options include USB, serial (RS-232), EPO port, and USB HID-compliant ports. The UPS supports SNMP/HTTP remote monitoring, dry contact alarms, and includes PowerPanel Business Edition software for configuration, monitoring, and shutdown scheduling.
What power capacity is listed for this UPS?
The listed power specification is 3 kVA, which helps position the unit for the right load level and installation role.
How many outlets are available?
The product includes 9, which helps buyers understand how many connected devices it can support in its intended deployment.
