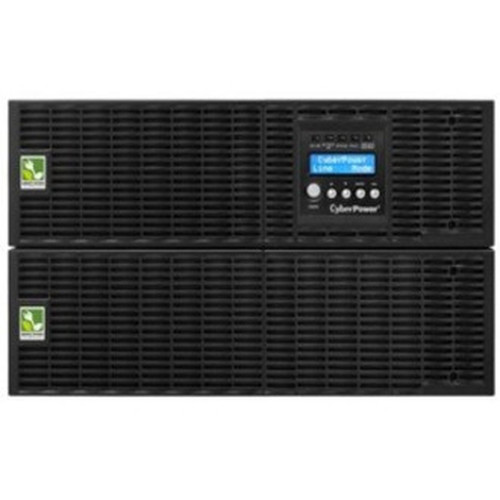

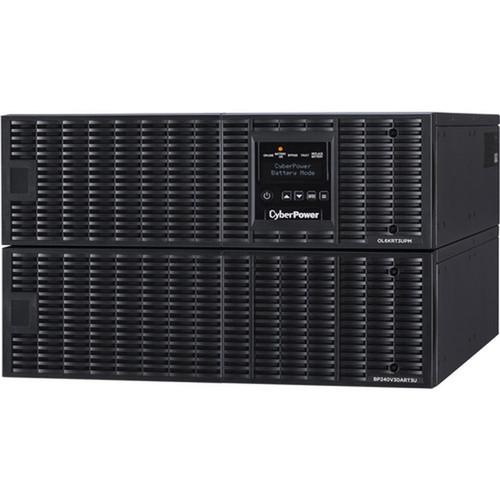

CyberPower OL6000RT3U Smart App Online 6000VA/5. 4kW Pure Sine Wave UPS - Rack/Tower 6U - 220V AC - LCD - SNMP/HTTP
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This double conversion online UPS maintains consistent power quality by continuously converting AC input to DC and back to AC, isolating connected equipment from grid disturbances. The 6 kVA/5.4 kW capacity supports high-density server racks, network closets, and telecommunications equipment with pure sine wave output compatible with sensitive electronics.

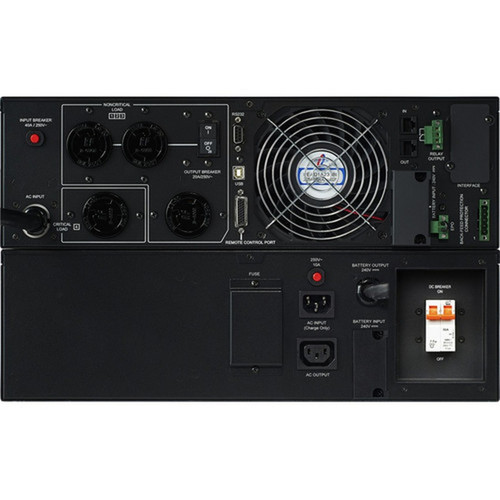

Power distribution includes two NEMA L6-30R and two NEMA L6-20R receptacles, fed by a NEMA L6-30P plug. Dataline protection for RJ-11 and RJ-45 connections safeguards connected network devices from surges and spikes.
This section brings together practical product details such as Plug/Connector Type, Receptacle Type, Receptacle Detail, Load Capacity (VA), so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
A strong technical summary explains how the product's interfaces, hardware profile, and operating characteristics work together in real deployment. Buyers often need this context to confirm compatibility with existing devices, expected performance in daily use, and whether installation will be straightforward for IT staff or end users.
Key Product Advantages
The OL6000RT3U combines high-capacity power protection with flexible deployment options and advanced management features. Its double conversion topology ensures clean, stable power regardless of input conditions, while the rack/tower design adapts to both data center and office environments.
Zero Transfer Time Protection
Double conversion technology eliminates transfer delays during power events, providing seamless backup for servers, storage, and networking equipment without interruption.
- Continuous power conditioning
- Isolation from grid anomalies
- No break in output during transitions
Comprehensive Remote Management
SNMP/HTTP remote monitoring enables centralized oversight of power status, battery health, and environmental conditions from any network location.
- Real-time alerts for overload, battery fault, and low battery
- Web-based configuration interface
- Integration with existing network management systems
Flexible Physical Deployment
The 6U rack-mountable design includes hardware for secure installation, while the tower configuration option supports standalone placement where rack space is unavailable.
- Rack rails and mounting hardware included
- Sturdy construction for high-density environments
- Front-panel LCD for at-a-glance status
Deployment / Use Cases
This UPS is engineered for environments where power continuity is non-negotiable. Its 6000VA capacity and pure sine wave output make it suitable for protecting server racks, network infrastructure, and industrial control systems from outages, surges, and frequency variations.
The rack/tower flexibility allows deployment in data centers, server rooms, telecommunications closets, and manufacturing facilities. The included PowerPanel Business Edition software enables automated shutdown sequences for connected servers, ensuring data integrity during extended power failures.
Data Center Server Protection
Provides runtime for critical servers and storage arrays to complete graceful shutdowns or maintain operations during short-term outages, with SNMP integration for monitoring across large installations.
Network Infrastructure Support
Protects switches, routers, and VoIP equipment with dataline surge suppression and sufficient runtime to maintain connectivity during power transitions or brownouts.
Physical Profile
The UPS measures 10.50" (266.70 mm) in height, 17" (431.80 mm) in width, and 26" (660.40 mm) in depth, occupying 6U of rack space. Its 220 lb weight reflects robust construction with internal battery banks, requiring proper handling equipment for installation. The front panel features an LCD display with status indicators for power modes, faults, and battery conditions.
The physical profile is practical for deployment planning because the dimensions and weight are clearly defined: 10.50" (266.70 mm), 17" (431.80 mm), 26" (660.40 mm), 220 lb (99790.32 g). This helps confirm rack, shelf, desk, or cabinet fit before installation.
- Width
- 17" (431.80 mm)
- Depth
- 26" (660.40 mm)
- Height
- 10.50" (266.70 mm)
- Weight
- 220 lb (99790.32 g)
What's in the Box
The package includes all necessary components for immediate deployment and management.
Highlights
- 6000VA/5.4kW double conversion online UPS with pure sine wave output
- Rack/tower 6U form factor with included mounting hardware
- 220V AC input with configurable output voltages (208V, 220V, 230V, 240V AC)
- 5.4-minute runtime at full load, 15.6 minutes at half load
- SNMP/HTTP remote monitoring with comprehensive alarm notifications
- Hot-swappable maintenance-free sealed lead acid batteries
- Zero transfer time for seamless power protection
- Front-panel LCD display with status indicators
- Includes PowerPanel Business Edition software for automated shutdown
- 3-year limited warranty and RoHS environmental compliance
Specifications
| Specifications | |
|---|---|
| Manufacturer | CyberPower Systems, Inc |
| Manufacturer Part Number | OL6000RT3U |
| Brand Name | CyberPower |
| Product Line | Smart App Online |
| Product Model | OL6000RT3U |
| Product Name | Smart App Online OL6000RT3U 6000VA 200-240V Pure Sine Wave LCD Rack/Tower UPS |
| Product Type | Double Conversion Online UPS |
| Technical Information | |
| Plug/Connector Type | NEMA L6-30P |
| Receptacle Type | NEMA L6-30R,NEMA L6-20R |
| Receptacle Detail | 2 x NEMA L6-30R,2 x NEMA L6-20R |
| Dataline Protection | RJ-11,RJ-45 |
| Transfer Time | 0 ns |
| Power Description | |
| Load Capacity (VA) | 6 kVA |
| Load Capacity (Watt) | 5.40 kW |
| Input Voltage | 220 V AC |
| Output Voltage | 240 V AC,208 V AC,230 V AC,220 V AC |
| Waveform Type | Sine Wave |
| Management | |
| Network Management | SNMP/HTTP Remote Monitoring |
| Alarm | Overload,UPS Fault,Replace Battery,Low Battery,Battery Mode |
| Controls/Indicators | |
| Status Indicators | Power On Line Mode Battery Mode Bypass Mode Fault Replace Battery |
| Interfaces/Ports | |
| Serial Port | Yes |
| USB | Yes |
| Battery Information | |
| Battery Characteristics | Maintenance-free, Sealed |
| Battery Chemistry | Lead Acid |
| Backup/Run Time (Full Load) | 5.40 Minute |
| Backup/Run Time (Half Load) | 15.60 Minute |
| Hot Swappable | Yes |
| Typical Battery Recharge Time | 4 Hour |
| Physical Characteristics | |
| Height | 10.50" (266.70 mm) |
| Width | 17" (431.80 mm) |
| Depth | 26" (660.40 mm) |
| Rack Height | 6U |
| Form Factor | Rack/Tower |
| Weight (Approximate) | 220 lb (99790.32 g) |
| Miscellaneous | |
| Package Contents | Smart App Online OL6000RT3U 6000VA 200-240V Pure Sine Wave LCD Rack/Tower UPS PowerPanel Business Edition Software CD User Manual USB Cable Serial Cable Phone Cable Mounting Hardware Registration Card |
| Software Included | PowerPanel Business Edition Software |
| Energy Star | No |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 3 Year |
User Manual
FAQ
What is the power capacity of this UPS?
The CyberPower OL6000RT3U provides 6000VA (6 kVA) and 5400 watts (5.4 kW) of double conversion online power protection. This capacity supports high-density server racks, network equipment, and industrial systems requiring clean, uninterrupted power.
How long does the battery last during a power outage?
At full load (5.4 kW), the UPS delivers 5.4 minutes of runtime. At half load (2.7 kW), runtime extends to 15.6 minutes. These figures allow for graceful shutdowns of connected equipment or bridging short-term outages.
What type of power outlets does this UPS have?
The unit includes two NEMA L6-30R and two NEMA L6-20R receptacles, fed by a NEMA L6-30P input plug. This configuration supports high-power devices commonly found in data centers and industrial environments.
Can this UPS be mounted in a standard server rack?
Yes, the OL6000RT3U is designed for 6U rack mounting with included hardware. It also functions as a tower unit for standalone placement, providing flexibility for different deployment scenarios.
How is the UPS managed remotely?
Network management is accomplished via SNMP/HTTP remote monitoring, allowing administrators to check status, configure settings, and receive alerts for overload, battery faults, and low battery conditions from any network location.
What is included in the package?
The package contains the UPS unit, PowerPanel Business Edition software CD, user manual, USB cable, serial cable, phone cable, mounting hardware, and registration card for complete out-of-box deployment and management.
What power capacity is listed for this UPS?
The listed power specification is 6 kVA, which helps position the unit for the right load level and installation role.
What voltage details are listed?
The listed power specification is 220 V AC, which helps position the unit for the right load level and installation role.
