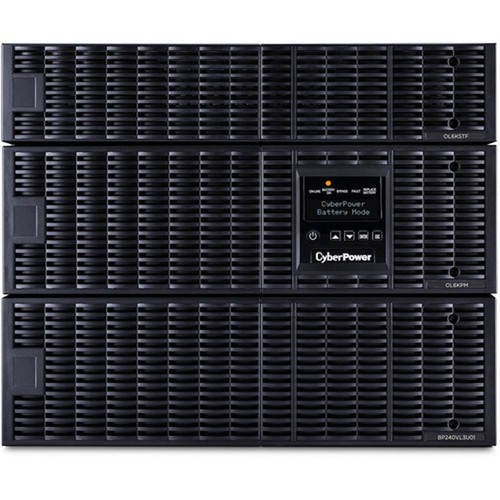

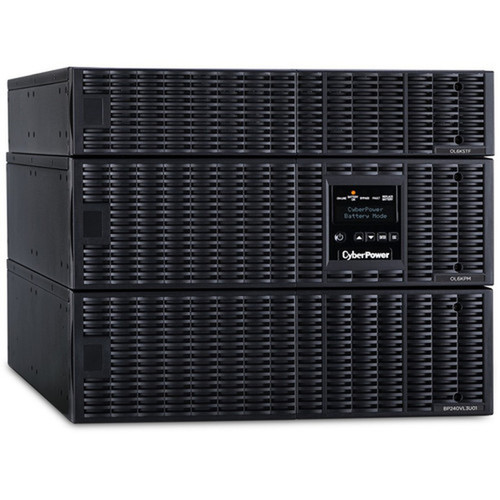

CyberPower OL6KRTF Smart App Online 6kVA Double Conversion UPS - Rack/Tower Mountable - 120/230V AC Input - 5. 4 Min Full Load Runtime
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This double conversion online UPS continuously converts incoming AC power to DC and back to clean AC, isolating connected equipment from utility power anomalies. The sine wave output ensures compatibility with sensitive servers, networking gear, and storage devices.
The unit accepts input voltages of 120 V AC or 230 V AC, with an operational range from 120 V AC to 280 V AC, providing tolerance for voltage fluctuations. Output voltages are configurable across multiple standards including 120 V AC, 200 V AC, 208 V AC, 220 V AC, 230 V AC, and 240 V AC, supporting diverse equipment requirements globally.
This section brings together practical product details such as Plug/Connector Type, Receptacle Type, Receptacle Detail, Load Capacity (VA), so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Key Product Advantages
These strengths make the product easier to deploy and manage in real environments, especially where reliability, usability, and day-to-day operational continuity matter. Notable benefits include Flexible Mounting, Comprehensive Outlet Configuration, Robust Power Protection.
Flexible Mounting
Designed for both rack and tower installations, this UPS adapts to your space constraints. It includes rackmount rails, hanging brackets, and tower stands for versatile deployment in server racks or standalone setups.
Comprehensive Outlet Configuration
Features a terminal block plus multiple NEMA receptacles: one NEMA L6-30R, two NEMA L6-20R, and six NEMA 5-20R outlets. This variety supports different plug types and power requirements for connected devices.
Robust Power Protection
Delivers pure sine wave output with double conversion technology, ensuring clean, stable power for critical loads. The SNMP management capability allows for integration into network monitoring systems.
Deployment / Use Cases
The CyberPower OL6KRTF is engineered for environments where power continuity is essential. Its 6 kVA capacity and rack/tower form factor make it suitable for server rooms, network closets, and data centers protecting rack-mounted servers, storage arrays, and network switches.
VoIP systems benefit from the clean power and runtime to maintain communication during outages. The unit's terminal block and multiple receptacle types accommodate varied equipment, from high-power servers using NEMA L6 connections to smaller devices using standard NEMA 5-20 plugs.
Server Room Protection
Ideal for safeguarding critical servers and storage devices, providing runtime to gracefully shut down systems or ride through short outages.
Network Infrastructure
Protects switches, routers, and VoIP equipment, ensuring network continuity and preventing data loss or service disruption during power events.
Physical Profile
The UPS features a black finish and measures 14" (355.60 mm) in height, 17" (431.80 mm) in width, and 26" (660.40 mm) in depth, with an approximate weight of 316.60 lb (143607.34 g). Its 2U rack height allows efficient use of rack space, while the included tower stands enable floor placement where rack mounting isn't feasible.
- Width
- 17" (431.80 mm)
- Depth
- 26" (660.40 mm)
- Height
- 14" (355.60 mm)
- Weight
- 316.60 lb (143607.34 g)
What's in the Box
The package includes all necessary components for installation and operation, whether deployed in a rack or as a tower unit.
Highlights
- 6 kVA double conversion online UPS with pure sine wave output
- Rack/tower mountable design with included rails and stands
- 5.4 minute runtime at full load, 15 minutes at half load
- Input voltages: 120 V AC or 230 V AC with wide 120-280 V AC range
- Multiple output voltages: 120/200/208/220/230/240 V AC
- Outlet configuration includes terminal block, NEMA L6-30R, L6-20R, and 5-20R receptacles
- SNMP manageable for remote monitoring and control
- Black finish with dimensions 14"H x 17"W x 26"D
- 3-year limited warranty
- RoHS compliant and environmentally friendly
Specifications
| Specifications | |
|---|---|
| Manufacturer | CyberPower Systems, Inc |
| Manufacturer Part Number | OL6KRTF |
| Brand Name | CyberPower |
| Product Series | Smart App Online UPS |
| Product Model | OL6KRTF |
| Product Name | Smart App Online OL6KRTF 6kVA Tower/Rack Mountable UPS |
| Product Type | Double Conversion Online UPS |
| Technical Information | |
| Plug/Connector Type | NEMA L6-30P |
| Receptacle Type | Terminal Block,NEMA L6-30R,NEMA L6-20R,NEMA 5-20R |
| Receptacle Detail | 1 x Terminal Block,1 x NEMA L6-30R,2 x NEMA L6-20R,6 x NEMA 5-20R |
| Application/Usage | Network Device,Server Room,Storage Device,VoIP |
| Power Description | |
| Load Capacity (VA) | 6 kVA |
| Input Voltage | 120 V AC,230 V AC |
| Input Voltage Range | 120 V AC - 280 V AC |
| Output Voltage | 120 V AC,200 V AC,208 V AC,220 V AC,230 V AC,240 V AC |
| Waveform Type | Sine Wave |
| Management | |
| Network Management | SNMP Manageable |
| Battery Information | |
| Backup/Run Time (Full Load) | 5.40 Minute |
| Backup/Run Time (Half Load) | 15 Minute |
| Physical Characteristics | |
| Product Color | Black |
| Form Factor | Rack/Tower |
| Height | 14" (355.60 mm) |
| Width | 17" (431.80 mm) |
| Depth | 26" (660.40 mm) |
| Weight (Approximate) | 316.60 lb (143607.34 g) |
| Miscellaneous | |
| Package Contents | Smart App Online OL6KRTF 6kVA Tower/Rack Mountable UPS 6 ft NEMA L6-30 Locking Male Plug to 3-wire ROJ (Remove Outer Jacket) Power Cable (L630PHW6FT) 2 x Terminal Block Cable glands Left & Right Rackmount Rails Left & Right Hanging Brackets Input/Output Terminal Block Cover Quick Start Guide Registration Card 2U Rack Mount Ears (Tower Stands) Tower Installation Tie Plate 8 x M5X7L Black Flat Head Screws 12 x M5X12L Black Pan an Head Screws 6 x M5X6L silver pan head Screws 8 x Plastic Washers 12 x Screw Hole Dust Covers 12 x Rubber Pads Safety Instruction Card |
| Energy Star | No |
| Country of Origin | China |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 3 Year |
User Manual
FAQ
What is the power capacity of the CyberPower OL6KRTF UPS?
The CyberPower OL6KRTF has a load capacity of 6 kVA. This double conversion online UPS provides robust power protection for critical equipment such as servers, network devices, and storage systems, ensuring clean sine wave output and reliable backup during outages.
How long does the battery last at full and half load?
At full load, the UPS provides approximately 5.40 minutes of runtime. At half load, runtime extends to about 15 minutes. These figures allow for graceful shutdowns or short outage ride-through for connected equipment.
What input and output voltages does this UPS support?
The UPS accepts input voltages of 120 V AC or 230 V AC, with an operational range from 120 V AC to 280 V AC. Output voltages are configurable and include 120 V AC, 200 V AC, 208 V AC, 220 V AC, 230 V AC, and 240 V AC, accommodating various equipment standards.
Can this UPS be mounted in a rack or used as a tower?
Yes, the OL6KRTF is designed for both rack and tower mounting. It includes rackmount rails, hanging brackets, and tower stands, offering flexibility for deployment in server racks or as a standalone floor unit depending on your space and infrastructure needs.
What types of outlets are available on this UPS?
The UPS features a terminal block plus multiple NEMA receptacles: one NEMA L6-30R, two NEMA L6-20R, and six NEMA 5-20R outlets. This variety supports different plug types, allowing connection of high-power servers and standard network devices.
Is this UPS network manageable?
Yes, the CyberPower OL6KRTF is SNMP manageable. This enables remote monitoring, configuration, and control over the network, allowing integration into existing management systems for proactive power management and alerting.
What power capacity is listed for this UPS?
The listed power specification is 6 kVA, which helps position the unit for the right load level and installation role.
What voltage details are listed?
The listed power specification is 120 V AC,230 V AC, which helps position the unit for the right load level and installation role.
