CyberPower PR5000RTXL2UC Smart App Sinewave UPS - 5000VA/5000W Line-Interactive - 2U Tower/Rack Convertible - AVR - 3-Hour Recharge
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This line-interactive UPS features a 5 kVA/5 kW capacity with single-phase 230V AC input that accepts a wide 148-254V AC range. The pure sine wave output ensures compatibility with sensitive electronics, while the 4ms transfer time provides seamless transition to battery power during interruptions.
The unit incorporates eight 12V sealed lead-acid batteries with 9000mAh capacity, supporting 8.3 minutes of runtime at half load and 1.7 minutes at full load. The hot-swappable battery design allows for maintenance without downtime, and the 3-hour typical recharge time minimizes vulnerability windows.
This section brings together practical product details such as AVR, Plug/Connector Type, Receptacle Type, Load Capacity (VA), so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
A strong technical summary explains how the product's interfaces, hardware profile, and operating characteristics work together in real deployment. Buyers often need this context to confirm compatibility with existing devices, expected performance in daily use, and whether installation will be straightforward for IT staff or end users.
Key Product Advantages
The PR5000RTXL2UC offers enterprise-grade power protection with flexible deployment options and advanced management features. The convertible 2U form factor supports both tower and rack installations, making it suitable for diverse IT environments from small server rooms to large data centers.
Comprehensive Power Protection
Automatic voltage regulation corrects brownouts and overvoltages without draining batteries, while 2430 joules of surge protection and EMI/RFI filtering safeguard connected equipment from electrical noise and spikes.
- AVR maintains stable output voltage
- EMI/RFI noise filtering
- GreenPower UPS bypass technology
Advanced Management Capabilities
Multiple connectivity options including USB, serial, and SNMP/HTTP support integration with existing monitoring systems. The LCD display provides real-time status information, while the optional RMCARD205 enables cloud-based remote management.
- SNMP/HTTP remote monitoring
- LCD status display
- Dry contact relay support
Flexible Installation Options
The tower/rack convertible design with 2U rack height accommodates both standalone and rack-mounted deployments. The hardwire terminal block and included L6-30P power cord support professional electrical connections.
- 2U rack mountable
- Tower configuration option
- Hardwire terminal capability
Deployment / Use Cases
This UPS is engineered for environments requiring reliable power protection for critical loads. The 5000VA capacity and multiple outlet types support mixed equipment configurations, from servers and networking gear to industrial control systems.
In server room deployments, the unit protects rack-mounted equipment while providing runtime for orderly shutdowns. For industrial applications, the wide input voltage range and robust construction handle challenging electrical environments. The convertible form factor makes it equally suitable for network closets where rack space is limited but tower placement is preferred.
Server Room Protection
Protect critical servers, storage arrays, and network infrastructure with pure sine wave output that ensures compatibility with active PFC power supplies. The multiple outlet types accommodate different equipment power requirements.
Industrial Control Systems
Maintain uptime for PLCs, HMIs, and control equipment with AVR that handles voltage fluctuations common in industrial settings. The robust construction supports operation in temperatures up to 104°F (40°C).
Physical Profile

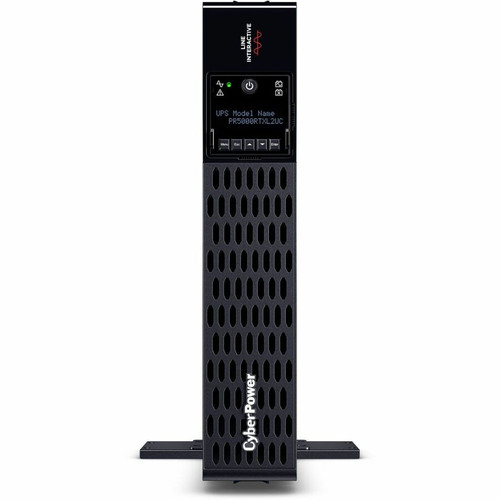

The black enclosure measures 3.39" (86mm) high, 17.09" (434mm) wide, and 24.80" (630mm) deep, with a 2U rack height specification. At 104.19 pounds, the unit requires proper support for rack mounting. The front panel features an LCD display, status LEDs, and control buttons for easy monitoring and configuration.
- Width
- 17.09" (434 mm)
- Depth
- 24.80" (630 mm)
- Height
- 3.39" (86 mm)
- Weight
- 68.5 dB(A)
- Length
- 10 ft (3.05 m)
What's in the Box
The package includes everything needed for immediate deployment of the UPS system.
Highlights
- 5000VA/5000W line-interactive UPS with pure sine wave output
- 2U tower/rack convertible form factor for flexible deployment
- Automatic voltage regulation (AVR) corrects brownouts and overvoltages
- 8.3 minutes runtime at half load, 1.7 minutes at full load
- Hot-swappable batteries with 3-hour typical recharge time
- Multiple connectivity: USB, serial, SNMP/HTTP, dry contact
- Includes PowerPanel Business management software
- Wide input voltage range: 148-254V AC

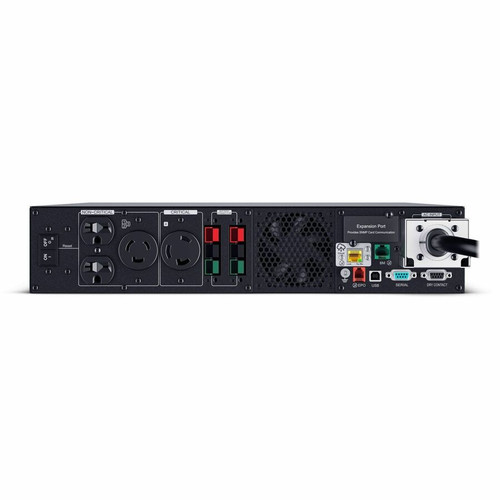

- Four outlet types: 2×NEMA 6-20R, 1×L6-20R, 1×L6-30R
- 3-year limited warranty with RoHS compliance
Specifications
| Specifications | |
|---|---|
| Manufacturer | CyberPower Systems, Inc |
| Manufacturer Part Number | PR5000RTXL2UC |
| Brand Name | CyberPower |
| Product Line | Smart App Sinewave |
| Product Model | PR5000RTXL2UC |
| Product Name | Smart App Sinewave PR5000RTXL2UC 5000VA Tower/Rack Convertible UPS |
| Product Type | Line-interactive UPS |
| Technical Information | |
| AVR | Yes |
| Plug/Connector Type | Hardwire Terminal Block,NEMA L6-30P |
| Receptacle Type | NEMA 6-20R,NEMA L6-20R,NEMA L6-30R |
| Receptacle Detail | 2 x NEMA 6-20R,1 x NEMA L6-20R,1 x NEMA L6-30R |
| Number of Critical Load Outlets | 1 |
| Overload Protection | Yes |
| Cord Length | 10 ft (3.05 m) |
| Transfer Time | 4 ms |
| EMI/RFI Noise Filter | Yes |
| Phase | Single Phase |
| Energy Saving | GreenPower UPS Bypass Technology |
| Surge Suppression | Yes |
| Features | Cold Start Function,Audible Alarm |
| Power Description | |
| Load Capacity (VA) | 5 kVA |
| Load Capacity (Watt) | 5 kW |
| Input Voltage | 230 V AC |
| Input Voltage Range | 200 V AC - 240 V AC,148 V AC - 254 V AC |
| Output Voltage | 200 V AC,208 V AC,220 V AC,230 V AC,240 V AC |
| Input Frequency | 50 Hz,60 Hz |
| Output Frequency | 50 Hz,60 Hz |
| Waveform Type | Sine Wave |
| Surge Energy Rating | 2430 J |
| Circuit Breaker | Yes |
| Output Power Factor | 1 |
| Display & Graphics | |
| Display | LCD |
| Management | |
| Network Management | Dry Contact,SNMP/HTTP Remote Monitoring |
| Alarm | Battery Mode |
| Controls/Indicators | |
| Status Indicators | LED Indicators: Power On |
| Interfaces/Ports | |
| Serial Port | Yes |
| USB | Yes |
| EPO Port | Yes |
| USB (HID Compliant) Port | Yes |
| Battery Information | |
| Number of Batteries | 8 |
| Battery Characteristics | Sealed |
| Battery Chemistry | Lead Acid |
| Battery Size | 12V |
| Battery Capacity | 9000 mAh |
| Backup/Run Time (Full Load) | 1.70 Minute |
| Backup/Run Time (Half Load) | 8.30 Minute |
| Hot Swappable | Yes |
| Typical Battery Recharge Time | 3 Hour |
| Replaceable Battery | Yes |
| Environmental Conditions | |
| Maximum Operating Elevation | 9843 ft (3000146.40 mm) |
| Maximum Storage Elevation | 49213 ft (15000122.40 mm) |
| Storage Temperature | 5°F (-15°C) - 113°F (45°C) |
| Storage Relative Humidity | 0% - 95% |
| Minimum Operating Temperature | 32°F (0°C) |
| Maximum Operating Temperature | 104°F (40°C) |
| Sound Emission (A-Weighted) | 68.5 dB(A) |
| Thermal Dissipation | 4478.80 BTU/h |
| Physical Characteristics | |
| Product Color | Black |
| Height | 3.39" (86 mm) |
| Width | 17.09" (434 mm) |
| Depth | 24.80" (630 mm) |
| Rack Height | 2U |
| Form Factor | Tower/Rack Convertible |
| Weight (Approximate) | 104.19 lb (47260 g) |
| Miscellaneous | |
| Package Contents | Smart App Sinewave PR5000RTXL2UC 5000VA Tower/Rack Convertible UPS L6-30P Power Cord |
| Software Included | PowerPanel Business |
| Energy Star | No |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 3 Year |
User Manual
FAQ
What is the power capacity of this UPS?
The CyberPower PR5000RTXL2UC provides 5000VA/5000W of power capacity. This line-interactive UPS can support critical equipment loads up to 5 kilowatts, making it suitable for server racks, network infrastructure, and industrial control systems requiring substantial backup power.
How long does the battery backup last during a power outage?
At half load (2500W), the UPS provides approximately 8.3 minutes of runtime. At full load (5000W), runtime decreases to about 1.7 minutes. These figures allow sufficient time for orderly shutdown of connected equipment or for backup generators to engage in facilities with redundant power systems.
Can this UPS be installed in a server rack?
Yes, the PR5000RTXL2UC features a convertible 2U form factor that supports both tower and rack installations. The unit measures 3.39 inches high (2U rack space) and includes appropriate mounting hardware for standard 19-inch server racks, providing deployment flexibility for different IT environments.
What management capabilities does this UPS offer?
The UPS includes multiple management interfaces: USB and serial ports for local monitoring, SNMP/HTTP for network management, and dry contact relays for integration with building management systems. The included PowerPanel Business software enables remote monitoring, graceful shutdowns, and energy management across connected equipment.
What type of power outlets does this UPS have?
The unit features four different outlet types: two NEMA 6-20R receptacles, one NEMA L6-20R receptacle, and one NEMA L6-30R receptacle. This variety supports different equipment power requirements and connector types commonly found in server rooms and industrial settings.
How long does it take to recharge the batteries after use?
The typical battery recharge time is 3 hours under normal conditions. The hot-swappable battery design allows for battery replacement without taking the UPS offline, minimizing downtime during maintenance. The eight 12V sealed lead-acid batteries provide reliable performance with a 9000mAh total capacity.
What power capacity is listed for this UPS?
The listed power specification is 5 kVA, which helps position the unit for the right load level and installation role.
How many outlets are available?
The product includes 1, which helps buyers understand how many connected devices it can support in its intended deployment.
