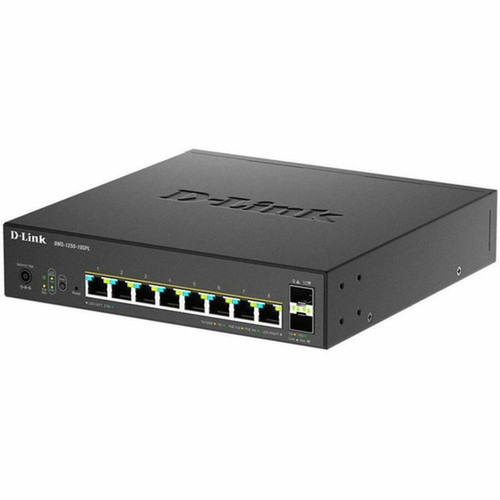

D-Link 8-Port Multi-Gigabit Smart Managed Switch - 8 Ports - Manageable - Gigabit Ethernet, 2.5 Gigabit Ethernet, 10 Gigabit Ethernet (DMS-1250-10SPL-6KV)
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Features: Fanless
Total Number of Network Ports: 8
Network (RJ-45): Yes
Uplink Port: Yes
Port/Expansion Slot Details: 8 x 100/1000/2.5GBASE-T PoE Network Port,2 x 10 Gigabit Ethernet SFP+ Expansion Slot
Media Type Supported: Twisted Pair,Optical Fiber
Ethernet Technology: Gigabit Ethernet,2.5 Gigabit Ethernet,10 Gigabit Ethernet
Network Technology: 100/1000Base-T,2.5GBase-T,10GBase-X
Maximum Data Transfer Rate: 1.25 GB/s
Total Number of Expansion Slots: 2
Expansion Slot Type: SFP+
Number of SFP+ Slots: 2
Layer Supported: 2
Networking Standards: IEEE 802.3af,IEEE 802.3at,IEEE 802.3bt,IEEE 802.1x,IEEE 802.1D,IEEE 802.1w,IEEE 802.1s,IEEE 802.3x,IEEE 802.3ad,IEEE 802.1Q,IEEE 802.1p,IEEE 802.3u,IEEE 802.3ab,IEEE 802.3bz,IEEE 802.3an,IEEE 802.3ae,IEEE 802.3z,IEEE 802.3az
Manageable: Yes
PoE (RJ-45) Port: Yes
PoE Budget: 120 W
Input Voltage: 5 V DC
Power Source: PoE
Power Consumption: 147 W
Height: 1.73" (44 mm)
Width: 8.27" (210 mm)
Length: 8.27" (210 mm)
Weight (Approximate): 2.95 lb (1340 g)
- Cascade to other network devices through the uplink port to expand your local area network
- Expand your network capacity with the help of 8 networking ports and transfer your data quickly and easily
- No need for power lines and outlets, the switch is capable of obtaining power from the PoE source
- Layer 2 switch provides a complete lineup of features including IGMP snooping, port mirroring, and spanning tree
- Management capability provides control over setup and configuration of your network
- Up to 10x faster than standard Ethernet server connectivity while providing high-performance uplinks
- Supports cost-efficient twisted pair cables for high-speed data transfer up to 100 meters
[custom-specifications]
| Specifications | |
| Manufacturer | D-Link Systems, Inc |
| Manufacturer Part Number | DMS-1250-10SPL-6KV |
| Manufacturer Website Address | http://www.dlink.com |
| Brand Name | D-Link |
| Product Series | DMS-1250 |
| Product Model | DMS-1250-10SPL |
| Product Name | 8-Port Multi-Gigabit Smart Managed Switch |
| Product Type | Ethernet Switch |
| Technical Information | |
| Features | Fanless |
| Interfaces/Ports | |
| Total Number of Network Ports | 8 |
| Network (RJ-45) | Yes |
| Uplink Port | Yes |
| Port/Expansion Slot Details | 8 x 100/1000/2.5GBASE-T PoE Network Port,2 x 10 Gigabit Ethernet SFP+ Expansion Slot |
| Media & Performance | |
| Media Type Supported | Twisted Pair,Optical Fiber |
| Ethernet Technology | Gigabit Ethernet,2.5 Gigabit Ethernet,10 Gigabit Ethernet |
| Network Technology | 100/1000Base-T,2.5GBase-T,10GBase-X |
| Maximum Data Transfer Rate | 1.25 GB/s |
| I/O Expansions | |
| Total Number of Expansion Slots | 2 |
| Expansion Slot Type | SFP+ |
| Number of SFP+ Slots | 2 |
| Network & Communication | |
| Layer Supported | 2 |
| Networking Standards | IEEE 802.3af,IEEE 802.3at,IEEE 802.3bt,IEEE 802.1x,IEEE 802.1D,IEEE 802.1w,IEEE 802.1s,IEEE 802.3x,IEEE 802.3ad,IEEE 802.1Q,IEEE 802.1p,IEEE 802.3u,IEEE 802.3ab,IEEE 802.3bz,IEEE 802.3an,IEEE 802.3ae,IEEE 802.3z,IEEE 802.3az |
| Management & Protocols | |
| Manageable | Yes |
| Power Description | |
| PoE (RJ-45) Port | Yes |
| PoE Budget | 120 W |
| Input Voltage | 5 V DC |
| Power Source | PoE |
| Power Consumption | 147 W |
| Physical Characteristics | |
| Height | 1.73" (44 mm) |
| Width | 8.27" (210 mm) |
| Length | 8.27" (210 mm) |
| Weight (Approximate) | 2.95 lb (1340 g) |
[/custom-specifications]
[custom-options]
| Product | D-Link DEM-432XT SFP+ Module - 1 x LC Duplex 10GBase-SR Network |
| SKU | DEM-432XT |
| Sale Price | $137.95 |
| Product | D-Link 1000Base GBIC - 1000Base-SX |
| SKU | DEM-311GT |
| Sale Price | $28.95 |
| Product | D-Link DEM-431XT SFP+ Module - 1 x LC Duplex 10GBase-SR Network |
| SKU | DEM-431XT |
| Sale Price | $74.95 |
| Product | D-Link Stacking Cable - 9.8 ft (3 m) Network Cable for Network Device - First End: SFP+ Network - Black |
| SKU | DEM-CB300S |
| Sale Price | $111.95 |
| Product | D-Link Gigabit Interface Converter - 1 x 1000Base-LX |
| SKU | DEM-310GT |
| Sale Price | $28.95 |
[/custom-options]
