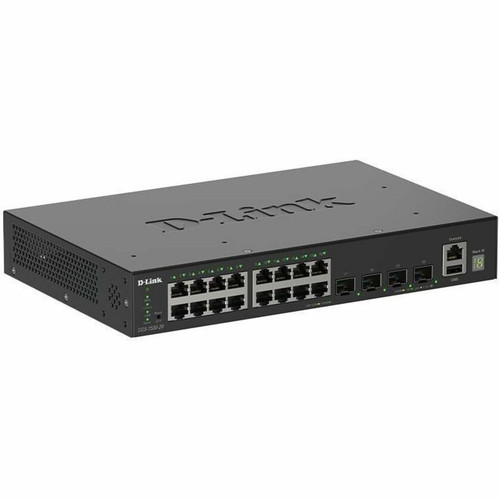

D-Link DGS-1530-20 Smart Managed Ethernet Switch - 16 Port Gigabit + 4 SFP+ 10GbE - Layer 2 - Desktop/Rack-Mountable
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
The DGS-1530-20 operates as a Layer 2 switch, supporting key networking standards including IEEE 802.3, 802.1Q, and 802.1x for VLANs, QoS, and port-based authentication. It achieves a maximum data transfer rate of 1.25 GB/s across its 16 Gigabit RJ-45 ports and four SFP+ expansion slots, enabling efficient handling of high-bandwidth applications and future-ready uplink connectivity.
Smart managed functionality provides granular control over network configuration, traffic prioritization, and security policies. The switch supports twisted pair and optical fiber media, with input voltage compatibility for 120 V AC and 230 V AC regions. Its 26.10 W power consumption reflects an energy-efficient design suitable for continuous operation.
This section brings together practical product details such as Features, Total Number of Network Ports, Network (RJ-45), Uplink Port, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Key Product Advantages
This switch offers a practical blend of port density, uplink readiness, and management capabilities that address common business networking needs. The inclusion of four SFP+ slots provides a clear path for integrating fiber connections or aggregating uplinks to core switches, supporting network growth without immediate hardware replacement.
Silent Operation
Fanless construction ensures noiseless performance, making the switch ideal for office environments where acoustic disturbance is a concern.
- Zero moving parts
- Reduced maintenance
- Suitable for open spaces
Deployment Flexibility
Desktop and rack-mountable form factors allow installation in varied settings, from under-desk placements to standard 19-inch racks.
- Compact footprint
- Tool-less rack mounting options
- Versatile placement
Enhanced Network Control
Smart managed features like ACLs, DHCP snooping, and storm control give administrators precise tools to optimize traffic flow and secure network segments.
- Traffic prioritization
- Security policy enforcement
- Remote monitoring support
Deployment / Use Cases
The DGS-1530-20 is well-suited for branch offices, small business networks, and departmental switching where a mix of Gigabit access ports and high-speed uplinks is required. Its 16-port base provides ample connectivity for workstations, IP phones, and printers, while the SFP+ slots can link to servers, storage arrays, or aggregation switches using fiber or DAC cables.
In retail or educational settings, the switch’s desktop form factor and quiet operation allow placement in public areas or classrooms. For IT closets, the rack-mountable design integrates neatly with other networking gear. The support for redundant power supplies (when used with compatible external units) adds resilience for critical applications.
Physical Profile
Measuring 1.73 inches in height, 11.02 inches in width, and 7.09 inches in depth, the switch occupies minimal space whether deployed on a desktop or mounted in a rack. The 4.41-pound weight and sturdy construction ensure stability during operation. The compact dimensions make it easy to integrate into existing infrastructure without requiring extensive cabinet real estate.
The physical profile is practical for deployment planning because the dimensions and weight are clearly defined: 1.73" (44 mm), 11.02" (280 mm), 7.09" (180 mm), 4.41 lb (2000 g). This helps confirm rack, shelf, desk, or cabinet fit before installation.
- Width
- 11.02" (280 mm)
- Depth
- 7.09" (180 mm)
- Height
- 1.73" (44 mm)
- Weight
- 4.41 lb (2000 g)
Highlights
- 16 Gigabit Ethernet RJ-45 ports for high-speed device connectivity
- 4 SFP+ slots supporting 10 Gigabit Ethernet uplinks or fiber expansion
- Smart managed with Layer 2 switching for VLANs, QoS, and security
- Fanless design ensures silent operation in office environments
- Desktop and rack-mountable form factor for flexible installation
- Supports redundant power supply for increased reliability
- Low power consumption at 26.10 W for energy efficiency
- Compatible with twisted pair and optical fiber media types
- Includes surge protection and broadcast storm control features
- Stack port enables easy network expansion and management
Specifications
| Specifications | |
|---|---|
| Manufacturer | D-Link Systems, Inc |
| Manufacturer Part Number | DGS-1530-20 |
| Brand Name | D-Link |
| Product Series | DGS-1530 |
| Product Model | DGS-1530-20 |
| Product Name | DGS-1530-20 Ethernet Switch |
| Product Type | Ethernet Switch |
| Technical Information | |
| Features | Surge Protection,Fanless,Access Control List,Remote Monitoring (RMON),Strict Priority Queuing (SPQ),DHCP Snooping,DHCP Relay,Broadcast Storm Control |
| Interfaces/Ports | |
| Total Number of Network Ports | 16 |
| Network (RJ-45) | Yes |
| Uplink Port | Yes |
| Stack Port | Yes |
| Port/Expansion Slot Details | 16 x 10/100/1000BASE-T Gigabit Ethernet RJ-45 Network Port,4 x 10 Gigabit Ethernet SFP+ Expansion Slot |
| Media & Performance | |
| Media Type Supported | Twisted Pair,Optical Fiber |
| Ethernet Technology | Gigabit Ethernet,10 Gigabit Ethernet |
| Network Technology | 10/100/1000Base-T,10GBase-X |
| Maximum Data Transfer Rate | 1.25 GB/s |
| I/O Expansions | |
| Total Number of Expansion Slots | 4 |
| Expansion Slot Type | SFP+ |
| Number of SFP+ Slots | 4 |
| Network & Communication | |
| Layer Supported | 2 |
| Networking Standards | IEEE 802.3,IEEE 802.3u,IEEE 802.3ab,IEEE 802.3ae,IEEE 802.3x,IEEE 802.1v,IEEE 802.1p,IEEE 802.1Q,IEEE 802.1x,IEEE 802.3ah,IEEE 802.1ab |
| Management & Protocols | |
| Manageable | Yes |
| Switch Management Type | Smart Managed |
| Power Description | |
| Input Voltage | 120 V AC,230 V AC |
| Power Source | Power Supply,AC |
| Redundant Power Supply Supported | Yes |
| Power Consumption | 26.10 W |
| Physical Characteristics | |
| Form Factor | Desktop,Rack-mountable |
| Height | 1.73" (44 mm) |
| Width | 11.02" (280 mm) |
| Depth | 7.09" (180 mm) |
| Weight (Approximate) | 4.41 lb (2000 g) |
FAQ
How many ports does the D-Link DGS-1530-20 switch have?
The DGS-1530-20 provides 16 Gigabit Ethernet RJ-45 ports for connecting devices like computers, printers, and IP phones. Additionally, it includes four SFP+ slots that support 10 Gigabit Ethernet uplinks, allowing for high-speed connections to core switches or servers using fiber or direct-attach cables.
Is this switch manageable, and what management features are included?
Yes, the DGS-1530-20 is a smart managed switch. It offers Layer 2 management capabilities such as VLAN support (IEEE 802.1Q), Quality of Service (QoS) for traffic prioritization, access control lists, DHCP snooping, and broadcast storm control. These features provide administrators with tools to optimize network performance and enhance security.
Can the switch be rack-mounted, and what are its dimensions?
The switch supports both desktop and rack-mountable installations. Its dimensions are 1.73 inches in height, 11.02 inches in width, and 7.09 inches in depth (44 x 280 x 180 mm), making it compact enough for standard 19-inch racks or desktop use. The weight is approximately 4.41 pounds (2000 grams).
What types of uplink or expansion options are available?
The switch includes four SFP+ slots that support 10 Gigabit Ethernet connections. These slots can be used with SFP+ transceivers for fiber optic uplinks or with direct-attach copper cables for short-range connections. This provides flexibility for integrating high-speed links into your network infrastructure.
Does the switch support Power over Ethernet (PoE)?
No, the DGS-1530-20 does not support Power over Ethernet. It is a non-PoE switch designed for data connectivity only. If you require PoE to power devices like IP phones or wireless access points, you would need to consider a PoE-capable model from D-Link's product lineup.
What is the power consumption and input voltage range?
The switch consumes 26.10 watts under typical operation, contributing to energy efficiency. It accepts input voltages of 120 V AC and 230 V AC, making it compatible with standard power outlets in North America and international regions. The built-in power supply ensures stable operation, and redundant power supply support is available for added reliability.
What uplink, SFP, fiber, or media support detail is listed?
The warranty or support detail listed is Yes, giving buyers a clearer picture of expected coverage after purchase.
