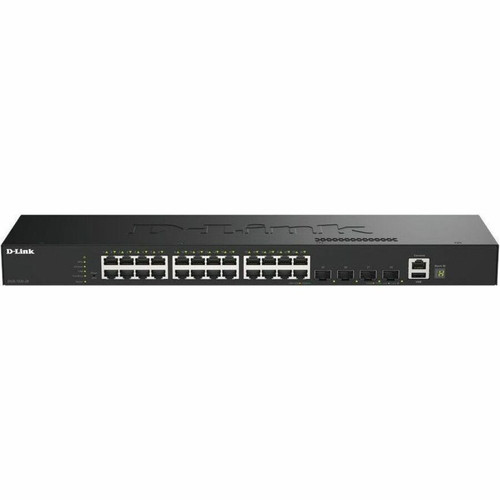

D-Link DGS-1530-28 Ethernet Switch - 24 Port Gigabit + 4 SFP+ Uplinks - Smart Managed Layer 2 - Desktop/Rack-Mountable
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
Built on a robust Layer 2 switching architecture, the DGS-1530-28 supports a comprehensive set of networking standards including IEEE 802.3, 802.3u, 802.3ab, 802.3ae, and 802.1Q for VLANs. It achieves a maximum data transfer rate of 1.25 GB/s across its 24 copper ports and four SFP+ fiber-ready expansion slots.
The switch accommodates both twisted pair and optical fiber media, enabling cost-effective copper deployments up to 100 meters or high-speed fiber uplinks for longer distances and backbone connectivity. Its smart managed capabilities provide granular control over network configuration, monitoring, and security policies.
This section brings together practical product details such as Features, Total Number of Network Ports, Network (RJ-45), Stack Port, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
A strong technical summary explains how the product's interfaces, hardware profile, and operating characteristics work together in real deployment. Buyers often need this context to confirm compatibility with existing devices, expected performance in daily use, and whether installation will be straightforward for IT staff or end users.
Key Product Advantages
The DGS-1530-28 stands out with its balanced port density, uplink flexibility, and enterprise-grade management features in a compact, dual-form-factor design. It eliminates the need for separate aggregation switches by integrating high-speed SFP+ uplinks directly into the base unit.
Uplink Readiness
Four SFP+ slots support 10 Gigabit Ethernet fiber or DAC connections, providing ample bandwidth for uplinks to core switches, servers, or storage arrays without requiring a separate expansion module.
- 10GBase-X compatibility
- Fiber or copper SFP+ modules
- Future-proof backbone links
Deployment Flexibility
The switch installs as a desktop unit or mounts in a standard 19-inch rack, adapting to space-constrained environments or organized rack deployments with equal ease.
- 1U rack height (1.73")
- Desktop footprint
- Tool-less or bracket mounting
Management & Security
Smart managed features include ACLs, RMON for remote monitoring, 802.1x port-based authentication, and surge protection for enhanced network reliability and security.
- Access Control Lists
- Remote Monitoring (RMON)
- Surge Protection
Deployment / Use Cases
Ideal for branch offices, small business networks, or departmental segmentation, the DGS-1530-28 serves as an access layer switch connecting workstations, IP phones, and wireless access points. Its SFP+ uplinks enable high-speed aggregation to core switches or direct server connections in server room environments.
The desktop form factor makes it suitable for open office layouts or retail environments where rack space is limited, while rack-mountability ensures it can integrate into structured cabling systems in IT closets. Support for link aggregation and spanning tree protocols provides redundancy and load balancing for critical network segments.
Office Network Access
Deploy as the primary switch for 20-30 users, providing Gigabit to the desktop and high-speed uplinks for internet and server traffic.
- 24 user ports
- PoE-ready via optional injectors
- VLAN segmentation
Server Room Aggregation
Use SFP+ ports to connect multiple servers or storage arrays at 10 Gigabit speeds, reducing bottlenecks in virtualized or data-intensive environments.
- 4 x 10G uplinks
- Low latency switching
- Rack-mountable design
Physical Profile
The switch measures 17.32" wide, 8.27" deep, and 1.73" high, fitting a standard 1U rack space or occupying a minimal desktop footprint. Weighing 4.74 lb, it is lightweight yet built with a sturdy chassis suitable for continuous operation. The compact dimensions and dual form-factor support make it adaptable to various installation scenarios without sacrificing port density or performance.
- Width
- 17.32" (440 mm)
- Depth
- 8.27" (210 mm)
- Height
- 1.73" (44 mm)
- Weight
- 4.74 lb (2150 g)
Highlights
- 24 Gigabit Ethernet ports for high-density device connectivity
- 4 SFP+ uplink slots supporting 10 Gigabit Ethernet fiber or copper
- Smart managed Layer 2 switch with ACLs, RMON, and 802.1x
- Desktop or rack-mountable form factor (1U height)
- Supports link aggregation and spanning tree for redundancy
- IEEE 802.3, 802.1Q, and other key networking standards
- 32W power consumption for energy-efficient operation
- 120V/230V AC input with support for redundant power supplies
Specifications
| Specifications | |
|---|---|
| Manufacturer | D-Link Systems, Inc |
| Manufacturer Part Number | DGS-1530-28 |
| Brand Name | D-Link |
| Product Series | DGS-1530 |
| Product Model | DGS-1530-28 |
| Product Name | DGS-1530-28 Ethernet Switch |
| Product Type | Ethernet Switch |
| Technical Information | |
| Features | Link Aggregation,Remote Monitoring (RMON),Access Control List,Zero-Touch Provisioning (ZTP),Surge Protection |
| Interfaces/Ports | |
| Total Number of Network Ports | 24 |
| Network (RJ-45) | Yes |
| Stack Port | Yes |
| Port/Expansion Slot Details | 24 x Gigabit Ethernet Network,4 x 10 Gigabit Ethernet Expansion Slot |
| Media & Performance | |
| Media Type Supported | Twisted Pair,Optical Fiber |
| Ethernet Technology | Gigabit Ethernet,10 Gigabit Ethernet |
| Network Technology | 10/100/1000Base-T,10GBase-X |
| Maximum Data Transfer Rate | 1.25 GB/s |
| I/O Expansions | |
| Total Number of Expansion Slots | 4 |
| Expansion Slot Type | SFP+ |
| Number of SFP+ Slots | 4 |
| Network & Communication | |
| Layer Supported | 2 |
| Networking Standards | IEEE 802.3,IEEE 802.3u,IEEE 802.3ab,IEEE 802.3ae,IEEE 802.3x,IEEE 802.1AX,IEEE 802.3ad,IEEE 802.1x,IEEE 802.1ag,IEEE 802.3ah,IEEE 802.1D,IEEE 802.1w,IEEE 802.1s,IEEE 802.1v,IEEE 802.1Q,IEEE 802.1p |
| Management & Protocols | |
| Manageable | Yes |
| Switch Management Type | Smart Managed |
| Power Description | |
| Input Voltage | 120 V AC,230 V AC |
| Power Source | Power Supply,AC |
| Redundant Power Supply Supported | Yes |
| Power Consumption | 32 W |
| Physical Characteristics | |
| Form Factor | Desktop,Rack-mountable |
| Height | 1.73" (44 mm) |
| Width | 17.32" (440 mm) |
| Depth | 8.27" (210 mm) |
| Weight (Approximate) | 4.74 lb (2150 g) |
User Manual
FAQ
How many ports does the DGS-1530-28 have, and what types are they?
The switch has 24 Gigabit Ethernet RJ-45 ports for connecting devices like computers, phones, and access points, plus four SFP+ expansion slots for high-speed uplinks. The SFP+ slots support 10 Gigabit Ethernet connections using fiber or direct-attach copper modules, providing flexibility for backbone or server links.
Is this switch manageable, and what features does it include?
Yes, it is a smart managed Layer 2 switch. Management features include Access Control Lists (ACLs) for security, Remote Monitoring (RMON) for traffic analysis, IEEE 802.1x for port-based authentication, and support for VLANs (802.1Q), link aggregation, and spanning tree protocols. These tools allow granular control over network configuration and performance.
Can I use this switch in a rack or as a desktop unit?
The DGS-1530-28 supports both desktop and rack-mountable installations. Its dimensions (17.32" wide, 8.27" deep, 1.73" high) fit a standard 1U rack space, and it includes mounting hardware for rack deployment. As a desktop switch, it occupies a minimal footprint suitable for office or retail environments.
What are the SFP+ slots used for, and what speeds do they support?
The four SFP+ slots are expansion ports that support 10 Gigabit Ethernet connections (10GBase-X). They can be used with SFP+ fiber modules for long-distance uplinks or direct-attach copper cables for short-range, high-speed links to other switches, servers, or storage devices, providing significant bandwidth for aggregated traffic.
What power requirements does this switch have?
The switch operates on 120V or 230V AC input and consumes 32W under typical load. It includes a built-in power supply and supports redundant power supplies for increased reliability in critical deployments. This low power draw makes it energy-efficient for continuous operation.
Does this switch support PoE (Power over Ethernet)?
No, the DGS-1530-28 does not include built-in PoE. It provides data connectivity only on its 24 Gigabit ports. For PoE devices like IP phones or wireless access points, you would need to use external PoE injectors or consider a switch model specifically designed with PoE capabilities.
What uplink, SFP, fiber, or media support detail is listed?
The warranty or support detail listed is Twisted Pair,Optical Fiber, giving buyers a clearer picture of expected coverage after purchase.
