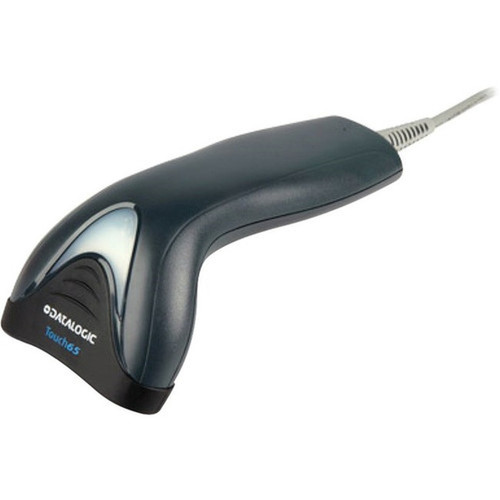

Datalogic TD1120-BK-65K1 Touch Series Corded Handheld 1D Barcode Scanner Kit - USB Connectivity - 5. 91" Scan Distance - Black
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
The TD1120-BK-65K1 delivers technical performance through its omni-directional scan pattern that reads barcodes at angles up to 70° skew, 65° pitch, and 45° roll. This flexibility reduces positioning requirements and speeds up scanning operations in various orientations.
With a scanning distance of 5.91 inches (150 mm), this scanner maintains reliable reading even when barcodes aren't perfectly aligned. The device operates effectively in ambient light conditions up to 20,000 lux and requires only 25% minimum print contrast for successful reads.
This section brings together practical product details such as Connectivity Technology, Scanning Capability, Barcode Symbology Supported, Host Interface, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
A strong technical summary explains how the product's interfaces, hardware profile, and operating characteristics work together in real deployment. Buyers often need this context to confirm compatibility with existing devices, expected performance in daily use, and whether installation will be straightforward for IT staff or end users.
Key Product Advantages
This Datalogic scanner combines durability with scanning precision in a compact package. The rugged construction ensures reliable performance in environments where equipment faces regular handling, while the advanced reading capabilities maintain accuracy across various barcode conditions.
Durability Built In
Engineered to withstand repeated 1.5-meter drops onto concrete, this scanner maintains operational integrity in demanding work environments where accidental impacts occur.
- Drop-tested construction
- Ruggedized components
- Long-term reliability
Flexible Scanning Angles
With reading angles of 70° skew, 65° pitch, and 45° roll, this scanner accommodates various barcode orientations without requiring perfect alignment, speeding up workflow efficiency.
- Multi-angle capability
- Reduced positioning time
- Omni-directional pattern
Precision Reading
The linear imager sensor reads barcodes with element resolutions from 7.50 mil to 10 mil for Code 39, ensuring accurate data capture across different print qualities and sizes.
- Fine resolution capability
- Code 39 optimization
- Consistent performance
Deployment / Use Cases
The TD1120-BK-65K1 excels in library environments where daily scanning of book barcodes, media labels, and inventory tags requires reliable performance. Its rugged design handles the frequent handling typical in circulation desks, shelving operations, and inventory management tasks.
Beyond library applications, this scanner serves general-purpose retail, warehouse, and office environments where 1D barcode reading forms part of inventory control, asset tracking, or point-of-sale operations. The USB connectivity ensures compatibility with standard computer systems without requiring additional interface cards or complex configuration.
This section brings together practical product details such as Connectivity Technology, Scanning Capability, Barcode Symbology Supported, Host Interface, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Physical Profile
Measuring 6.30" × 2.30" × 3.30" (160.02 × 58.42 × 83.82 mm) and weighing just 4.60 ounces (130.41 g), this handheld scanner offers comfortable ergonomics for extended use. The black finish provides a professional appearance that blends with various work environments, while the compact dimensions facilitate easy storage when not in use.
The physical profile is practical for deployment planning because the dimensions and weight are clearly defined: 6.30" (160.02 mm), 2.30" (58.42 mm), 3.30" (83.82 mm), 4.60 oz (130.41 g). This helps confirm rack, shelf, desk, or cabinet fit before installation.
- Width
- 2.30" (58.42 mm)
- Depth
- 3.30" (83.82 mm)
- Height
- 6.30" (160.02 mm)
- Weight
- 4.60 oz (130.41 g)
What's in the Box
This kit includes the TD1120-BK-65K1 barcode scanner with integrated USB cable for immediate connectivity to host systems.
Package contents include USB. These included items support setup, installation, and immediate deployment without needing to source the core bundled accessories separately.
Highlights
- Corded handheld 1D barcode scanner with USB connectivity
- Linear imager sensor autodiscriminates standard 1D codes including GS1 DataBar
- Omni-directional scan pattern with flexible reading angles
- 5.91" (150 mm) scanning distance for reliable reading
- Rugged construction withstands 1.5 m drops onto concrete
- Compact dimensions: 6.30" × 2.30" × 3.30" (160.02 × 58.42 × 83.82 mm)
- Lightweight design at 4.60 oz (130.41 g) for comfortable handling
- Black finish for professional appearance in various environments
- Optimized for library and general-purpose scanning applications
- Includes integrated USB cable for immediate host connection
Specifications
| Specifications | |
|---|---|
| Manufacturer | Datalogic S.p.A |
| Manufacturer Part Number | TD1120-BK-65K1 |
| Brand Name | Datalogic |
| Product Line | Touch |
| Product Series | TD1100 |
| Product Model | 65 Lite |
| Product Name | General Purpose Corded Handheld Contact Linear Imager Barcode Scanner Kit |
| Product Type | Barcode Scanner Kit |
| Technical Information | |
| Connectivity Technology | Cable |
| Scanning Capability | 1D |
| Barcode Symbology Supported | 1D / Linear Codes: Autodiscriminates all standard 1D codes including GS1 DataBar linear codes Stacked Codes: GS1 DataBar Expanded Stacked GS1 DataBar Stacked GS1 DataBar Stacked Omnidirectional |
| Image Sensor Type | Imager,Linear |
| Scan Pattern | Omni-directional |
| Scanning Distance | 5.91" (150 mm) |
| Cable Type Included | USB |
| Reading Angle (Skew) | 70° |
| Reading Angle (Pitch) | 65° |
| Reading Angle (Roll) | 45° |
| Maximum Ambient Light | 20000 lux |
| Drop Specification | Withstands repeated drops from 1.5 m / 5.0 ft onto a concrete surface |
| Minimum Print Contrast | 25% |
| Minimum Element Resolution (Code 39) | 7.50 mil (0.19 mm) |
| Maximum Element Resolution (Code 39) | 10 mil (0.25 mm) |
| Interfaces/Ports | |
| Host Interface | USB |
| Physical Characteristics | |
| Form Factor | Handheld |
| Rugged | Yes |
| Color Family | Black |
| Product Color | Black |
| Height | 6.30" (160.02 mm) |
| Width | 2.30" (58.42 mm) |
| Depth | 3.30" (83.82 mm) |
| Weight (Approximate) | 4.60 oz (130.41 g) |
| Miscellaneous | |
| Application/Usage | Library |
| Country of Origin | Vietnam |
User Manual
FAQ
What type of barcodes can this Datalogic scanner read?
This scanner reads 1D barcodes exclusively, autodiscriminating all standard 1D symbologies including GS1 DataBar linear codes. It also handles GS1 DataBar stacked codes in expanded, stacked, and stacked omnidirectional formats, making it suitable for various inventory and library applications where 1D barcodes are standard.
How does the scanning distance affect daily use?
The 5.91-inch (150 mm) scanning distance allows operators to read barcodes without needing direct contact with items. This distance provides flexibility in positioning while maintaining reliable reading performance, which is particularly useful when scanning multiple items quickly or when barcodes aren't perfectly accessible.
What makes this scanner suitable for library environments?
Designed with library usage specifically noted, this scanner combines the durability needed for frequent handling at circulation desks with the precise 1D reading required for book and media barcodes. The rugged construction withstands accidental drops, while the omni-directional scanning accommodates various barcode orientations common in library workflows.
How durable is the TD1120-BK-65K1 scanner?
This scanner features rugged construction that withstands repeated drops from 1.5 meters (5.0 feet) onto concrete surfaces. This durability ensures reliable performance in environments where equipment faces regular handling, making it suitable for busy library, retail, or warehouse settings where accidental impacts may occur.
What connectivity options does this scanner offer?
The TD1120-BK-65K1 connects via USB interface with an integrated cable included in the kit. This plug-and-play connectivity ensures compatibility with standard computer systems without requiring additional interface cards or complex configuration, simplifying deployment in various environments.
Can this scanner read barcodes at different angles?
Yes, this scanner features an omni-directional scan pattern with reading angles of 70° skew, 65° pitch, and 45° roll. This flexibility allows successful barcode reading even when items aren't perfectly aligned, reducing positioning time and improving workflow efficiency in fast-paced scanning environments.
What duplex or duty-cycle detail is listed?
the specifications are intended to help buyers confirm fit, compatibility, and expected day-to-day operation. In practical terms, the best reading of this product comes from how its hardware, connectivity, and deployment details work together.
What connectivity options are listed?
Connectivity details help confirm how the product integrates with your network, accessories, and surrounding peripherals before rollout or replacement planning. They are often the difference between a technically compatible device and one that is genuinely easy to deploy.
