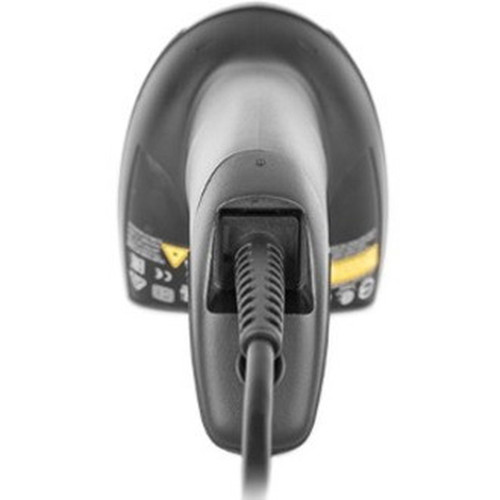

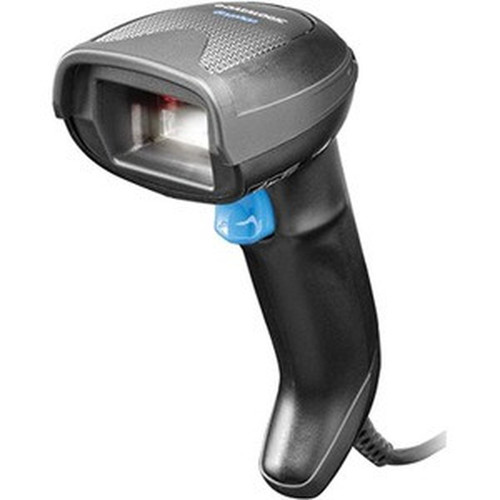

Datalogic GD4520-BKK1B Gryphon I Barcode Scanner Kit - USB Cable - 1D/2D Laser Imager - Omni-directional - Handheld Black - IP52
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
The GD4520 scanner features a 1280 x 800 pixel image sensor resolution that captures detailed grayscale images in JPEG, TIFF, or BMP formats. Its laser light source operates effectively in ambient light up to 100,000 lux, while the integrated white LED illumination assists in low-light conditions.
Reading angles of 65° skew, 65° pitch, and 360° roll provide exceptional flexibility, and the 35 in/s (889 mm/s) motion tolerance accommodates rapid scanning workflows. The scanner maintains reliable performance with barcodes having minimum print contrast as low as 15%.
This section brings together practical product details such as Connectivity Technology, Scanning Capability, Barcode Symbology Supported, Host Interface, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
A strong technical summary explains how the product's interfaces, hardware profile, and operating characteristics work together in real deployment. Buyers often need this context to confirm compatibility with existing devices, expected performance in daily use, and whether installation will be straightforward for IT staff or end users.
Key Product Advantages
The Gryphon I GD4520 stands out with its combination of industrial durability and advanced scanning capabilities. The IP52 rating provides protection against dust ingress and water dripping, while the drop-resistant construction survives repeated 1.8-meter falls onto concrete surfaces.
Comprehensive Symbology Support
Automatically discriminates all standard 1D codes including GS1 DataBar, plus 2D codes like QR Code, Data Matrix, Aztec Code, PDF417, and specialized postal codes from multiple countries.
- Auto-discrimination of 1D/2D codes
- GS1 DataBar linear and composite
- International postal code support
Enhanced User Experience
Features include audible beep confirmation, notification LED indicators, 3GL scanning technology for extended range, and an ergonomic handheld design that reduces operator fatigue during extended use.
- Audible beep feedback
- Notification LED
- Ergonomic handheld design
Deployment / Use Cases
The GD4520-BKK1B is engineered for environments where reliable barcode scanning directly impacts operational efficiency. Its cable connectivity makes it ideal for fixed workstation applications where consistent performance outweighs mobility requirements.
In retail settings, the scanner handles product UPC/EAN codes, loyalty cards, and mobile coupon QR codes at point-of-sale. Healthcare facilities utilize it for patient wristbands, medication labels, and specimen tracking. Light manufacturing and warehouse operations benefit from its ability to read damaged or poorly printed labels on inventory and shipping containers.
This section brings together practical product details such as Connectivity Technology, Scanning Capability, Barcode Symbology Supported, Host Interface, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Physical Profile
The black handheld scanner weighs just 5.68 ounces (161 grams) for comfortable extended use. Its compact form factor fits naturally in hand, while the durable construction withstands the rigors of daily commercial use. The scanner operates in temperatures from 32°F to 122°F (0°C to 50°C) and stores safely in conditions from -40°F to 158°F (-40°C to 70°C) with 0% to 95% non-condensing humidity tolerance.
- Weight
- 5.68 oz (161 g)
What's in the Box
The GD4520-BKK1B kit includes the Gryphon I GD4520 barcode scanner with integrated USB cable for immediate deployment.
Package contents include USB. These included items support setup, installation, and immediate deployment without needing to source the core bundled accessories separately.
Highlights
- USB cable connectivity for reliable plug-and-play operation
- 1D and 2D barcode scanning with comprehensive symbology support
- Laser imager technology effective in various lighting conditions
- Omni-directional reading pattern with 65° skew/pitch and 360° roll angles
- Industrial durability with IP52 rating and drop resistance from 1.8 meters
- 1280 x 800 pixel image sensor for detailed grayscale capture
- Ergonomic handheld design weighing just 5.68 ounces (161 grams)
- Suitable for healthcare, retail, manufacturing, and transportation applications
Specifications
| Specifications | |
|---|---|
| Manufacturer | Datalogic S.p.A |
| Manufacturer Part Number | GD4520-BKK1B |
| Brand Name | Datalogic |
| Product Line | Gryphon I |
| Product Series | GD4500 |
| Product Model | GD4520 |
| Product Name | Gryphon I GD4520 Barcode Scanner Kit |
| Product Type | Barcode Scanner Kit |
| Technical Information | |
| Connectivity Technology | Cable |
| Scanning Capability | 1D,2D |
| Barcode Symbology Supported | 1D: Auto discriminates all standard 1D codes including GS1 DataBar linear codes. 2D: Aztec Code China Han Xin Code Data Matrix MaxiCode Micro QR Code QR Code Dot Code Postal Codes: Australian Post British Post China Post IMB Japanese Post KIX Post Planet Code Postnet Royal Mail Code (RM4SCC) Stacked Codes: EAN/JAN Composites GS1 DataBar Composites GS1 DataBar Expanded Stacked GS1 DataBar Stacked GS1 DataBar Stacked Omnidirectional MacroPDF MicroPDF417 PDF417 UPC A/E Composites Digital Watermarking: Digimarc Barcodes |
| Light Source | Laser |
| Image Sensor Type | Imager |
| Scan Pattern | Omni-directional |
| Cable Type Included | USB |
| Reading Angle (Skew) | 65° |
| Reading Angle (Pitch) | 65° |
| Reading Angle (Roll) | 360° |
| Motion Tolerance | 35 in/s (889 mm/s) |
| Image Formats | JPEG,TIFF,BMP |
| Maximum Ambient Light | 100000 lux |
| Drop Specification | Withstands repeated drops from 1.8 m / 6.0 ft onto a concrete surface. |
| Minimum Print Contrast | 15% |
| Image Sensor Resolution | 1280 x 800 |
| Illumination Type | LED |
| Illumination Color | White |
| Air Electrostatic Discharge (+/-) | 16kV |
| Features | Grayscale Image Capture,Beep,3GL,Notification LED,Ergonomic Design |
| Interfaces/Ports | |
| Host Interface | USB |
| Environmental Conditions | |
| Operating Temperature | 32°F (0°C) to 122°F (50°C) |
| Storage Temperature | -40°F (-40°C) to 158°F (70°C) |
| Humidity (Non-condensing) | 0% to 95% |
| Physical Characteristics | |
| Form Factor | Handheld |
| Color Family | Black |
| Product Color | Black |
| Durability | Drop Resistant |
| Weight (Approximate) | 5.68 oz (161 g) |
| Miscellaneous | |
| Ingress Protection (IP) Rating | IP52 |
| Application/Usage | Healthcare,Retail,Light/Clean Manufacturing,Transportation,Commercial Service,Laboratory,Pharmacy |
User Manual
FAQ
What types of barcodes can the Datalogic GD4520 scanner read?
The GD4520 scanner reads both 1D and 2D barcodes, automatically discriminating all standard 1D codes including GS1 DataBar linear codes. For 2D codes, it supports Aztec Code, China Han Xin Code, Data Matrix, MaxiCode, Micro QR Code, QR Code, Dot Code, various international postal codes, stacked codes including EAN/JAN Composites and GS1 DataBar Composites, MacroPDF, MicroPDF417, PDF417, UPC A/E Composites, and even Digimarc digital watermarks.
How durable is the Gryphon I GD4520 barcode scanner?
The GD4520 is built for industrial durability with an IP52 ingress protection rating that resists dust and water dripping. It withstands repeated drops from 1.8 meters (6 feet) onto concrete surfaces, making it suitable for demanding environments where equipment may be accidentally dropped. The scanner also features 16kV air electrostatic discharge protection for added reliability.
What connectivity options does this barcode scanner offer?
The GD4520-BKK1B kit features USB cable connectivity with the cable included. This wired connection provides reliable data transfer to host systems without wireless interference concerns. The USB interface ensures compatibility with standard workstations, point-of-sale systems, and industrial computers for straightforward plug-and-play deployment.
What are the scanning performance specifications of the GD4520?
The scanner features omni-directional reading with 65° skew and pitch angles plus 360° roll capability. It tolerates motion up to 35 inches per second (889 mm/s) and operates effectively in ambient light up to 100,000 lux. The 1280 x 800 pixel image sensor captures detailed grayscale images, and the scanner can read barcodes with minimum print contrast as low as 15%.
In what temperature ranges can the GD4520 scanner operate?
The scanner operates reliably in temperatures from 32°F to 122°F (0°C to 50°C) and can be stored in conditions from -40°F to 158°F (-40°C to 70°C). It tolerates 0% to 95% non-condensing humidity, making it suitable for various environmental conditions encountered in commercial, industrial, and healthcare settings.
What industries and applications is this barcode scanner designed for?
The GD4520 is engineered for healthcare (patient wristbands, medication labels), retail (point-of-sale, inventory), light/clean manufacturing (production tracking), transportation (shipping labels), commercial service, laboratory (specimen tracking), and pharmacy environments. Its durability and comprehensive symbology support make it versatile across sectors requiring reliable barcode scanning.
What duplex or duty-cycle detail is listed?
the specifications are intended to help buyers confirm fit, compatibility, and expected day-to-day operation. In practical terms, the best reading of this product comes from how its hardware, connectivity, and deployment details work together.
What connectivity options are listed?
Connectivity details help confirm how the product integrates with your network, accessories, and surrounding peripherals before rollout or replacement planning. They are often the difference between a technically compatible device and one that is genuinely easy to deploy.
