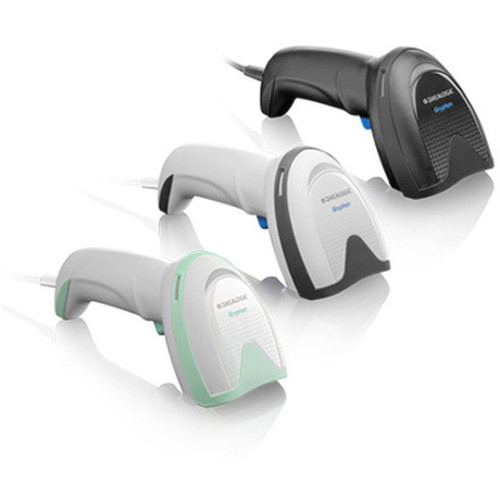

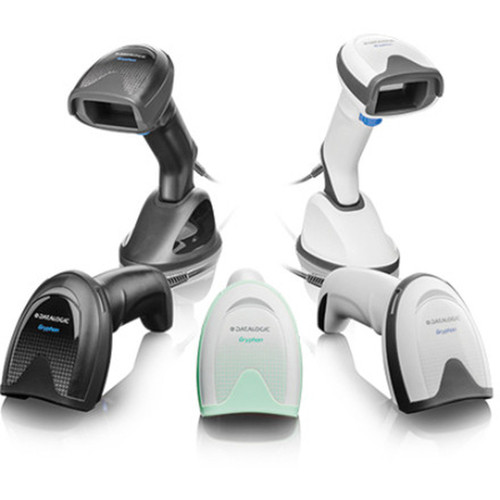

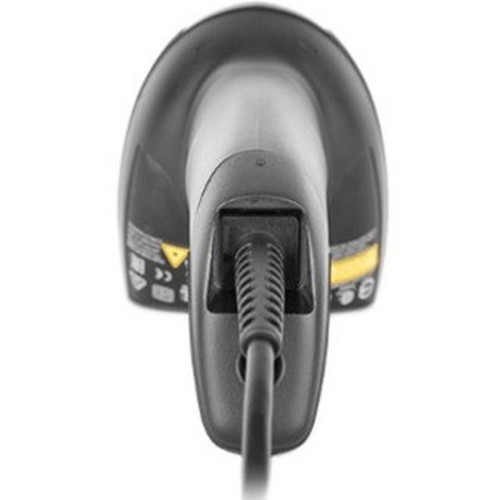

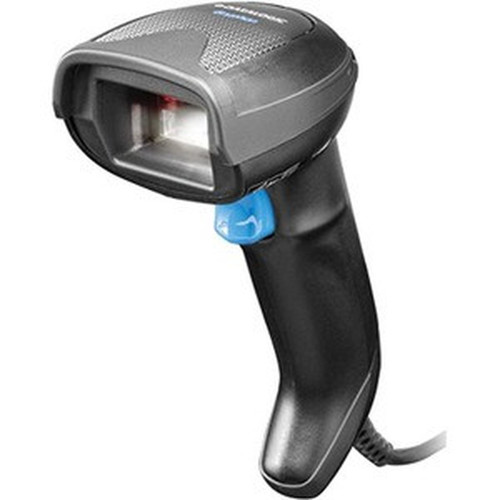

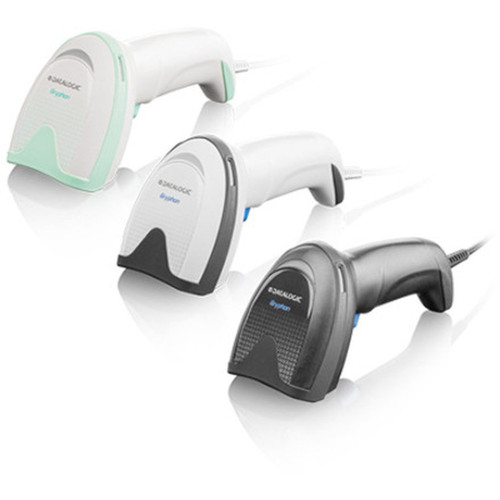

Datalogic GD4520-BKK1S Gryphon I Barcode Scanner Kit - Laser & Imager - 1D/2D - Omni-directional - USB - Black - Stand Included
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
The GD4520 features a dual-technology scanning system with laser illumination for standard barcode reading and an imager sensor for capturing 2D codes, images, and digital watermarks. The 1280 x 800 resolution sensor provides clear image capture in JPEG, TIFF, and BMP formats for documentation and verification purposes.
With a motion tolerance of 35 inches per second, this scanner maintains reliable performance even when scanning rapidly moving items. The 65° skew and pitch angles, combined with 360° roll capability, allow flexible positioning while the white LED illumination ensures consistent performance across varying lighting conditions up to 100,000 lux ambient light.
This section brings together practical product details such as Connectivity Technology, Scanning Capability, Barcode Symbology Supported, Host Interface, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
A strong technical summary explains how the product's interfaces, hardware profile, and operating characteristics work together in real deployment. Buyers often need this context to confirm compatibility with existing devices, expected performance in daily use, and whether installation will be straightforward for IT staff or end users.
Key Product Advantages
The Gryphon I GD4520 stands out with its combination of rugged construction, versatile scanning capabilities, and user-friendly features that streamline workflow efficiency in commercial settings.
Comprehensive Symbology Support
Automatically discriminates all standard 1D codes including GS1 DataBar linear codes, plus extensive 2D support for Aztec Code, Data Matrix, QR Code, PDF417, and postal codes from multiple countries including Australian Post, British Post, China Post, and USPS systems.
- Auto-discrimination of 1D codes
- Full 2D code support
- International postal code recognition
Enhanced User Experience
Features include audible beep confirmation, 3GL technology for improved scanning performance, notification LED for status indication, and ergonomic design for comfortable extended use. The included stand provides convenient workstation placement when not in handheld use.
- Audible beep confirmation
- Status notification LED
- Ergonomic handheld design
Deployment / Use Cases
The GD4520 is engineered for environments requiring reliable barcode scanning with minimal setup complexity. Its cable connectivity makes it ideal for fixed workstation deployments where consistent performance and direct host connection are priorities.
In retail settings, the scanner handles high-volume item processing at point-of-sale stations. Healthcare facilities benefit from its ability to capture medication barcodes and patient wristbands. Light manufacturing and laboratory applications utilize the imager's capability to document 2D codes on components and specimens.
Retail & Point of Sale
Process transactions quickly with omni-directional scanning that captures barcodes from any angle. The drop-resistant construction withstands daily use at checkout counters.
Healthcare & Pharmacy
Verify medications and patient information with precise 2D code reading. The IP52 rating provides basic protection against dust and water ingress in clinical environments.
Physical Profile
The GD4520 features a compact handheld form factor with black finish that maintains professional appearance in commercial environments. Weighing just 5.68 ounces (161 grams), it provides comfortable handling during extended scanning sessions without user fatigue.
The physical profile is practical for deployment planning because the dimensions and weight are clearly defined: 5.68 oz (161 g). This helps confirm rack, shelf, desk, or cabinet fit before installation.
- Weight
- 5.68 oz (161 g)
What's in the Box
This kit includes everything needed for immediate deployment.
Package contents include USB. These included items support setup, installation, and immediate deployment without needing to source the core bundled accessories separately.
Highlights
- Laser and imager dual-technology scanning for 1D and 2D barcodes
- Omni-directional scan pattern with 65° skew/pitch and 360° roll angles
- Withstands repeated drops from 1.8 meters onto concrete surfaces
- 1280 x 800 resolution imager captures JPEG, TIFF, and BMP images
- USB cable connectivity for direct workstation integration
- Includes stand for convenient desktop placement
- IP52 rating for basic dust and water ingress protection
- White LED illumination for consistent performance in varying light
- Operating temperature range of 32°F to 122°F (0°C to 50°C)
- Ergonomic design with notification LED and audible beep confirmation
Specifications
| Specifications | |
|---|---|
| Manufacturer | Datalogic S.p.A |
| Manufacturer Part Number | GD4520-BKK1S |
| Brand Name | Datalogic |
| Product Line | Gryphon I |
| Product Series | GD4500 |
| Product Model | GD4520 |
| Product Name | Gryphon I GD4520 Barcode Scanner Kit |
| Product Type | Barcode Scanner Kit |
| Technical Information | |
| Connectivity Technology | Cable |
| Scanning Capability | 1D,2D |
| Barcode Symbology Supported | 1D: Auto discriminates all standard 1D codes including GS1 DataBar linear codes. 2D: Aztec Code China Han Xin Code Data Matrix MaxiCode Micro QR Code QR Code Dot Code Postal Codes: Australian Post British Post China Post IMB Japanese Post KIX Post Planet Code Postnet Royal Mail Code (RM4SCC) Stacked Codes: EAN/JAN Composites GS1 DataBar Composites GS1 DataBar Expanded Stacked GS1 DataBar Stacked GS1 DataBar Stacked Omnidirectional MacroPDF MicroPDF417 PDF417 UPC A/E Composites Digital Watermarking: Digimarc Barcodes |
| Light Source | Laser |
| Image Sensor Type | Imager |
| Scan Pattern | Omni-directional |
| Cable Type Included | USB |
| Stand Included | Yes |
| Reading Angle (Skew) | 65° |
| Reading Angle (Pitch) | 65° |
| Reading Angle (Roll) | 360° |
| Motion Tolerance | 35 in/s (889 mm/s) |
| Image Formats | JPEG,TIFF,BMP |
| Maximum Ambient Light | 100000 lux |
| Drop Specification | Withstands repeated drops from 1.8 m / 6.0 ft onto a concrete surface. |
| Minimum Print Contrast | 15% |
| Image Sensor Resolution | 1280 x 800 |
| Illumination Type | LED |
| Illumination Color | White |
| Air Electrostatic Discharge (+/-) | 16kV |
| Features | Grayscale Image Capture,Beep,3GL,Notification LED,Ergonomic Design |
| Interfaces/Ports | |
| Host Interface | USB |
| Environmental Conditions | |
| Operating Temperature | 32°F (0°C) to 122°F (50°C) |
| Storage Temperature | -40°F (-40°C) to 158°F (70°C) |
| Humidity (Non-condensing) | 0% to 95% |
| Physical Characteristics | |
| Form Factor | Handheld |
| Color Family | Black |
| Product Color | Black |
| Durability | Drop Resistant |
| Weight (Approximate) | 5.68 oz (161 g) |
| Miscellaneous | |
| Ingress Protection (IP) Rating | IP52 |
| Application/Usage | Healthcare,Retail,Light/Clean Manufacturing,Transportation,Commercial Service,Laboratory,Pharmacy |
User Manual
FAQ
What types of barcodes can the GD4520 scanner read?
The GD4520 reads both 1D and 2D barcodes. For 1D codes, it automatically discriminates all standard linear codes including GS1 DataBar. For 2D codes, it supports Aztec Code, China Han Xin Code, Data Matrix, MaxiCode, Micro QR Code, QR Code, Dot Code, multiple postal codes (Australian Post, British Post, China Post, IMB, Japanese Post, KIX Post, Planet Code, Postnet, Royal Mail Code), stacked codes (EAN/JAN Composites, GS1 DataBar Composites, GS1 DataBar Expanded Stacked, GS1 DataBar Stacked, GS1 DataBar Stacked Omnidirectional), MacroPDF, MicroPDF417, PDF417, UPC A/E Composites, and Digimarc digital watermarks.
How durable is this barcode scanner for commercial use?
The GD4520 is built for demanding environments with drop resistance that withstands repeated drops from 1.8 meters (6 feet) onto concrete surfaces. It carries an IP52 ingress protection rating, providing basic protection against dust and water ingress. The operating temperature range extends from 32°F to 122°F (0°C to 50°C), with storage capability from -40°F to 158°F (-40°C to 70°C).
What connectivity options does this scanner offer?
This scanner uses cable connectivity with a USB host interface. The kit includes a USB cable for direct connection to workstations, computers, or point-of-sale systems. This wired approach ensures reliable data transmission without wireless interference concerns, making it ideal for fixed workstation deployments.
What is the scanning performance in terms of speed and angles?
The GD4520 offers a motion tolerance of 35 inches per second (889 mm/s), allowing it to capture barcodes on quickly moving items. It features omni-directional scanning with 65° skew and pitch angles plus 360° roll capability, meaning it can read barcodes presented at various orientations without requiring precise alignment.
Does this scanner work in different lighting conditions?
Yes, the scanner performs well across varying lighting environments. The laser technology works effectively in low ambient lighting, while the white LED illumination ensures consistent performance. It can operate in maximum ambient light up to 100,000 lux and requires only 15% minimum print contrast to successfully read barcodes.
What industries or applications is this scanner designed for?
The GD4520 is suitable for healthcare, retail, light/clean manufacturing, transportation, commercial service, laboratory, and pharmacy applications. Its combination of durability, comprehensive symbology support, and reliable performance makes it versatile for point-of-sale, inventory management, patient identification, component tracking, and document processing across these sectors.
What duplex or duty-cycle detail is listed?
the specifications are intended to help buyers confirm fit, compatibility, and expected day-to-day operation. In practical terms, the best reading of this product comes from how its hardware, connectivity, and deployment details work together.
What connectivity options are listed?
Connectivity details help confirm how the product integrates with your network, accessories, and surrounding peripherals before rollout or replacement planning. They are often the difference between a technically compatible device and one that is genuinely easy to deploy.
