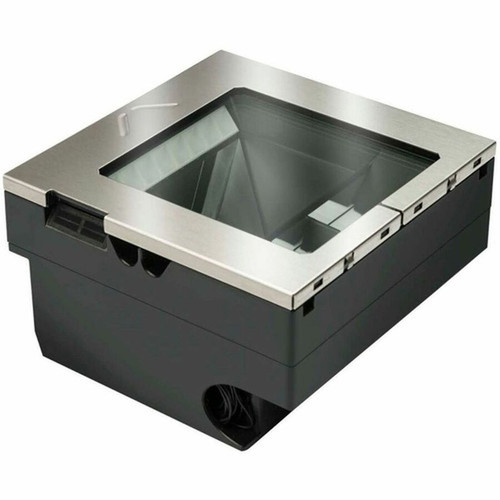

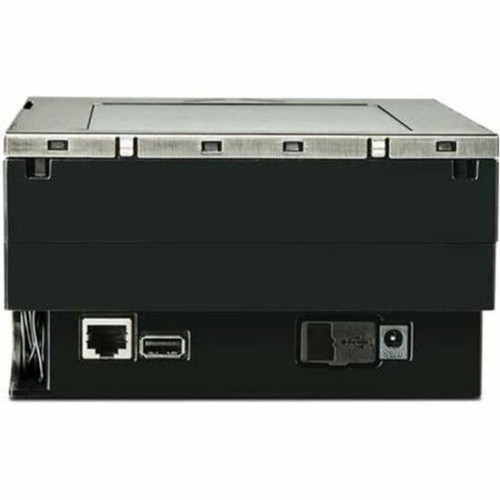

Datalogic M3513-010200 MAGELLAN 3510HSi Barcode Scanner - 1D/2D Area Imager - USB/Serial Cable - Black/Silver - IP52
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
The MAGELLAN 3510HSi scanner uses a 1280 x 800 resolution image sensor to capture barcodes with high accuracy, even in challenging lighting conditions up to 86,100 lux ambient light. It maintains a minimum print contrast of 25%, ensuring reliable reads on low-contrast or faded labels. The scanner's area scan pattern covers a broad field, while reading angles of 75° skew, 65° pitch, and 360° roll provide flexibility in positioning.
Technical resilience is enhanced by air electrostatic discharge protection up to 25kV, safeguarding against static electricity in dry environments. The scanner supports image capture in BMP and JPEG formats, useful for documentation or verification workflows. Environmental specifications include storage from -40°F to 158°F and humidity tolerance from 5% to 95% non-condensing, ensuring reliability across varied conditions.
This section brings together practical product details such as Connectivity Technology, Scanning Capability, Barcode Symbology Supported, Host Interface, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Key Product Advantages
This scanner combines robust hardware with practical features tailored for retail efficiency. The area imager design eliminates the need for precise laser alignment, speeding up checkout processes and reducing user fatigue. Dual connectivity options allow integration with legacy Serial systems or modern USB setups, providing deployment flexibility.
Wide Symbology Support
Autodiscriminates standard 1D codes including GS1 DataBar, plus 2D codes like Aztec, Data Matrix, and QR Code. Optional Digimarc® barcode support enables digital watermark reading.
- 1D and 2D scanning
- GS1 DataBar linear codes
- Optional Digimarc® support
Retail-Optimized Features
Integrated Sensormatic and Checkpoint EAS support helps prevent theft, while audible beeps and LED notifications provide clear scan confirmation to cashiers and customers.
- EAS compatibility
- Audible/visual feedback
- In-counter form factor
Deployment / Use Cases
The MAGELLAN 3510HSi scanner is engineered for retail point-of-sale environments where reliability and speed are critical. Its in-counter form factor makes it ideal for fixed checkout lanes, minimizing counter clutter while providing ergonomic scanning at natural hand heights. The IP52 rating ensures dependable operation in areas prone to dust exposure or occasional liquid splashes.
This scanner suits various retail applications, from grocery stores scanning produce barcodes to electronics retailers verifying serial numbers on 2D labels. The cable connectivity ensures stable data transmission in high-traffic settings, avoiding wireless interference issues. The dual-color design allows seamless integration into both modern and traditional store aesthetics.
Fixed Checkout Counters
Install directly into counter surfaces for streamlined scanning workflows, reducing physical strain on cashiers during peak hours.
Retail Back-Office Operations
Use for inventory management, receiving, or price verification, leveraging the wide symbology support for various label types.
Physical Profile
The scanner features a compact 6" x 6" (152.4 mm x 152.4 mm) footprint, designed to fit standard counter cutouts. Its 2.16 lb weight provides stability during use, while the black and silver dual-color finish offers a professional appearance. The in-counter form factor positions the scanning window flush with the counter surface, creating a tidy workspace.
The physical profile is practical for deployment planning because the dimensions and weight are clearly defined: 6" (152.40 mm), 2.16 lb (980 g). This helps confirm rack, shelf, desk, or cabinet fit before installation.
- Width
- 6" (152.40 mm)
- Weight
- 2.16 lb (980 g)
- Length
- 6" (152.40 mm)
Highlights
- 1D and 2D barcode scanning with area imager technology
- USB and Serial cable connectivity for reliable data transmission
- LED illumination for consistent performance in various lighting
- IP52 rating for dust and water splash protection
- In-counter form factor with black/silver dual-color design
- Wide reading angles (75° skew, 65° pitch, 360° roll)
- Supports Aztec Code, Data Matrix, QR Code, and PDF417
- EAS compatibility for retail security integration
- Operating temperature range from 50°F to 104°F
- 1280 x 800 resolution image sensor for precise captures
Specifications
| Specifications | |
|---|---|
| Manufacturer | Datalogic S.p.A |
| Manufacturer Part Number | M3513-010200 |
| Brand Name | Datalogic |
| Product Line | Magellan |
| Product Series | 3510HSi |
| Product Model | M3513 |
| Product Name | MAGELLAN 3510HSi Barcode Scanner |
| Product Type | Barcode Scanner |
| Technical Information | |
| Connectivity Technology | Cable |
| Scanning Capability | 1D,2D |
| Barcode Symbology Supported | 1D Codes: Autodiscriminates all standard 1D codes including GS1 DataBar linear codes. 2D Codes: Aztec Code; Data Matrix (ECC200 only); QR Code Stacked Codes: GS1 DataBar Composites; GS1 DataBar Expanded Stacked; GS1 DataBar Stacked; GS1 DataBar Stacked Omnidirectional; MicroPDF417; PDF417 Digital Watermarks: Optional support for Digimarc® Barcodes/GS1 DW Code |
| Light Source | LED |
| Image Sensor Type | Imager |
| Scan Mode | Continuous |
| Scan Pattern | Area |
| Scanner Range | Standard Range |
| Reading Angle (Skew) | 75° |
| Reading Angle (Pitch) | 65° |
| Reading Angle (Roll) | 360° |
| Image Formats | BMP,JPEG |
| Maximum Ambient Light | 86100 lux |
| Minimum Print Contrast | 25% |
| Image Sensor Resolution | 1280 x 800 |
| Illumination Type | LED |
| Air Electrostatic Discharge (+/-) | 25kV |
| Features | Beep,Notification LED,Sensormatic EAS,Checkpoint EAS |
| Interfaces/Ports | |
| Host Interface | USB,Serial |
| Environmental Conditions | |
| Operating Temperature | 50°F (10°C) to 104°F (40°C) |
| Storage Temperature | -40°F (-40°C) to 158°F (70°C) |
| Humidity (Non-condensing) | 5% to 95% |
| Physical Characteristics | |
| Form Factor | In-counter |
| Color Family | Dual Color |
| Product Color | Black,Silver |
| Width | 6" (152.40 mm) |
| Length | 6" (152.40 mm) |
| Weight (Approximate) | 2.16 lb (980 g) |
| Miscellaneous | |
| Ingress Protection (IP) Rating | IP52 |
| Application/Usage | Retail |
User Manual
FAQ
What types of barcodes can this scanner read?
The Datalogic MAGELLAN 3510HSi scanner reads both 1D and 2D barcodes. It autodiscriminates standard 1D codes including GS1 DataBar linear codes, and supports 2D codes such as Aztec Code, Data Matrix (ECC200 only), and QR Code. It also handles stacked codes like GS1 DataBar Composites and PDF417, with optional support for Digimarc® digital watermarks.
What connectivity options are available?
This scanner uses cable connectivity with both USB and Serial host interfaces. This wired approach ensures stable, interference-free data transmission, making it suitable for fixed retail installations where reliability is paramount. The dual interface support allows compatibility with modern USB systems or legacy Serial equipment.
What is the IP52 rating, and why does it matter?
The IP52 rating indicates protection against dust ingress (level 5) and water droplets falling at up to 15° from vertical (level 2). For retail environments, this means the scanner can withstand dust accumulation and occasional liquid splashes, such as from cleaning or spilled drinks, ensuring continued operation in busy store conditions.
How does the area imager differ from laser scanners?
Unlike laser scanners that require precise alignment with a single line, the area imager captures a broad field of view using a 1280 x 800 resolution sensor. This allows faster, more forgiving scanning since barcodes can be read at various angles within the 75° skew, 65° pitch, and 360° roll ranges, reducing cashier effort and speeding transactions.
What are the physical dimensions and weight?
The scanner measures 6 inches in both width and length (152.4 mm square) and weighs approximately 2.16 pounds (980 grams). This compact, square footprint is designed for in-counter installation, fitting standard cutouts while providing enough mass to stay secure during vigorous scanning actions.
Can this scanner be used in environments with bright lighting?
Yes, the scanner performs reliably in high-ambient-light conditions up to 86,100 lux, thanks to its LED illumination and image sensor technology. It also maintains a minimum print contrast of 25%, enabling accurate reads on low-contrast or faded labels that might be challenging in brightly lit retail spaces.
What duplex or duty-cycle detail is listed?
the specifications are intended to help buyers confirm fit, compatibility, and expected day-to-day operation. In practical terms, the best reading of this product comes from how its hardware, connectivity, and deployment details work together.
What connectivity options are listed?
Connectivity details help confirm how the product integrates with your network, accessories, and surrounding peripherals before rollout or replacement planning. They are often the difference between a technically compatible device and one that is genuinely easy to deploy.
