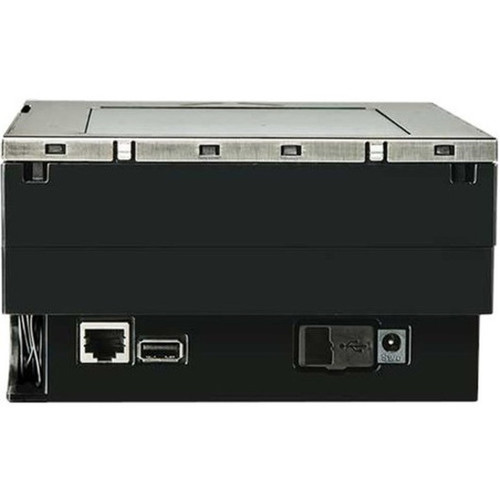

Datalogic Magellan 3510HSi - Cable Connectivity - 1D, 2D - Imager - Linear, Omni-directional - USB, Serial - Power Supply Included - - (M3511-010210-00604)
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
- Autodiscriminates all standard 1D codes including GS1 DataBar™ linear codes
- Aztec Code; Data Matrix (ECC200 only); QR Code
- GS1 DataBar Composites
- GS1 DataBar Expanded Stacked
- GS1 DataBar Stacked
- GS1 DataBar Stacked Omnidirectional
- MicroPDF417
- PDF417
Connectivity Technology: Cable
Scanning Capability: 1D,2D
Barcode Symbology Supported: 1D :
Image Sensor Type: Imager
Scan Pattern: Linear,Omni-directional
Scanner Range: Standard Range
Cable Type Included: USB
Reading Angle (Skew): 75°
Reading Angle (Pitch): 65°
Reading Angle (Roll): 360°
Image Formats: JPEG,BMP
Maximum Ambient Light: 86100 lux
Minimum Print Contrast: 25%
Host Interface: USB,Serial
Power Supply Included: Yes
Form Factor: In-counter
Width: 6" (152.40 mm)
Depth: 3.40" (86.36 mm)
Length: 6" (152.40 mm)
Weight (Approximate): 2.16 lb (980 g)
Ingress Protection (IP) Rating: IP52
Application/Usage: Retail
Environmentally Friendly: Yes
Environmental Compliance: Restriction of Hazardous Substances (RoHS),China Restriction of Hazardous Substances (China RoHS)
[custom-specifications]
| Specifications | |
| Manufacturer | Datalogic S.p.A |
| Manufacturer Part Number | M3511-010210-00604 |
| Manufacturer Website Address | http://www.datalogic.com |
| Brand Name | Datalogic |
| Product Line | Magellan |
| Product Series | 3500HSi |
| Product Model | 3510HSi |
| Product Name | Magellan 3510HSi |
| Product Type | Barcode Scanner Kit |
| Technical Information | |
| Connectivity Technology | Cable |
| Scanning Capability | 1D,2D |
| Barcode Symbology Supported | 1D :
|
| Image Sensor Type | Imager |
| Scan Pattern | Linear,Omni-directional |
| Scanner Range | Standard Range |
| Cable Type Included | USB |
| Reading Angle (Skew) | 75° |
| Reading Angle (Pitch) | 65° |
| Reading Angle (Roll) | 360° |
| Image Formats | JPEG,BMP |
| Maximum Ambient Light | 86100 lux |
| Minimum Print Contrast | 25% |
| Interfaces/Ports | |
| Host Interface | USB,Serial |
| Power Description | |
| Power Supply Included | Yes |
| Physical Characteristics | |
| Form Factor | In-counter |
| Width | 6" (152.40 mm) |
| Depth | 3.40" (86.36 mm) |
| Length | 6" (152.40 mm) |
| Weight (Approximate) | 2.16 lb (980 g) |
| Miscellaneous | |
| Ingress Protection (IP) Rating | IP52 |
| Application/Usage | Retail |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS),China Restriction of Hazardous Substances (China RoHS) |
[/custom-specifications]
[custom-options]
| Product | Datalogic Counter Mount |
| SKU | 11-0178 |
| Sale Price | $78.95 |
| Product | Datalogic Standard Counter Mount |
| SKU | 11-0027 |
| Sale Price | $59.95 |
[/custom-options]
[custom-user-manual]
Available Documentation:
Manufacturer-Brochure
[/custom-user-manual]
